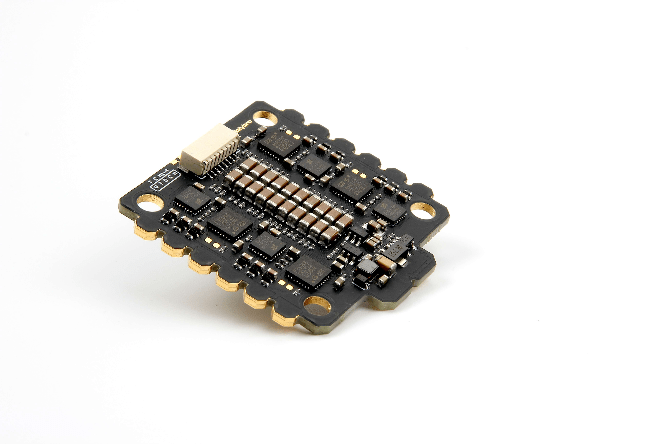

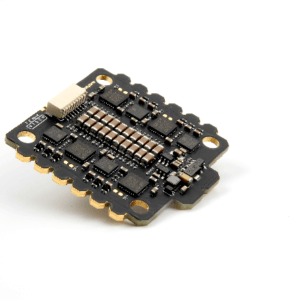

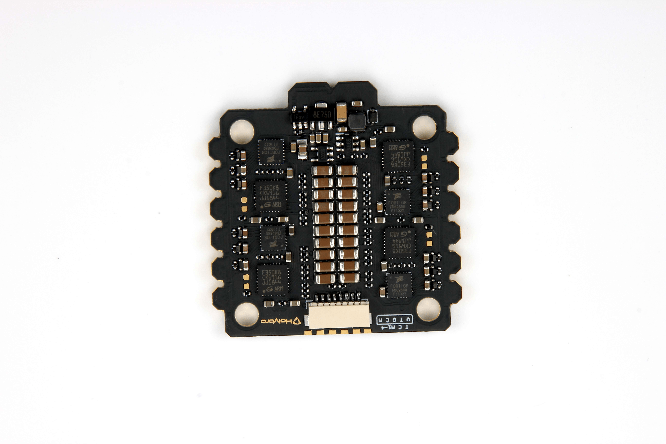

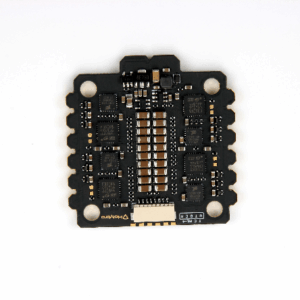

Holybro Tekko32 F3 Metal 4in1 ESC (65A)
Check out our entire Holybro line of products.
New BLHELI32 ESC with F3 MCU, give more smooth control and faster responding speed. using metal case mosfet for better Heat dissipation. We tested in short time on 220A in total. The actual performance will only limited by the air flow.
Specifications
- F3(M4 Core) MCU, Runs BLHELI32 firmware, the MCU works at 108Mhz
- The 4in1 has onboard analog current sensor, and TLM function(then no current reading over TLM)

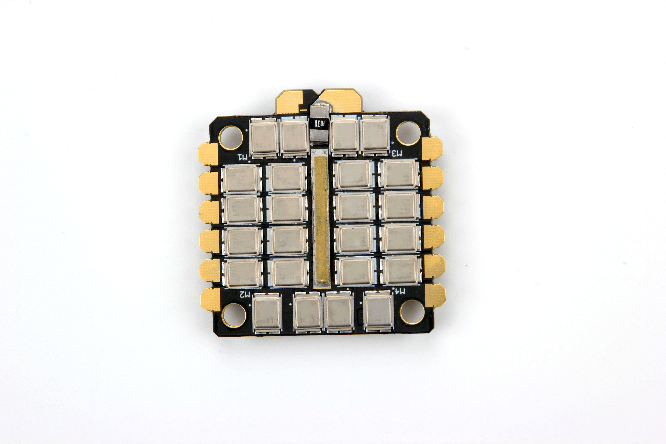

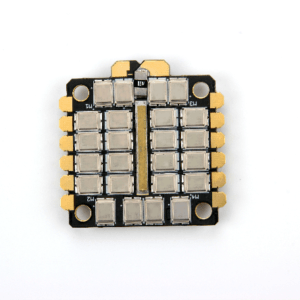

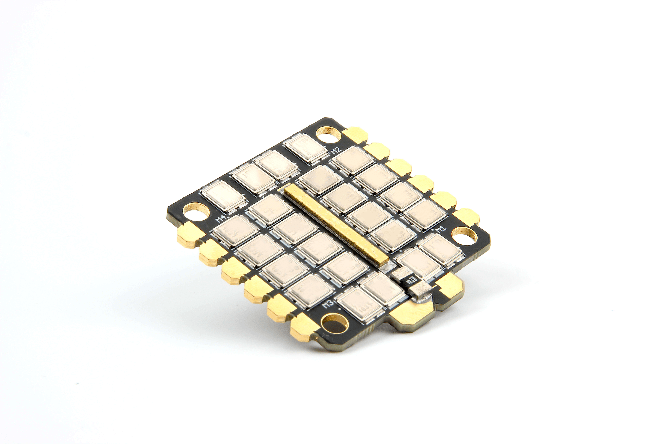

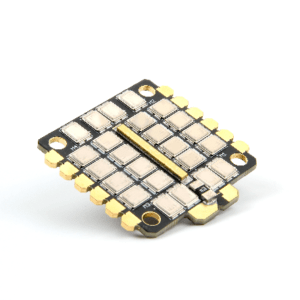

- Using metal case mosfet for better Heat dissipation
- Supports Lipo 3-6S
- Ext. cap needed for 6s (470uf 35v for 6s usage.)
- Size:42 x 42 mm
- Mounting holes:30.5×30.5mm
- Weight: 12g
Notice:
The air flow is very import if you want to run this 4in1 in high current.
The input cable(from lipo to 4in1), should be good soldered, and at least 12AWG

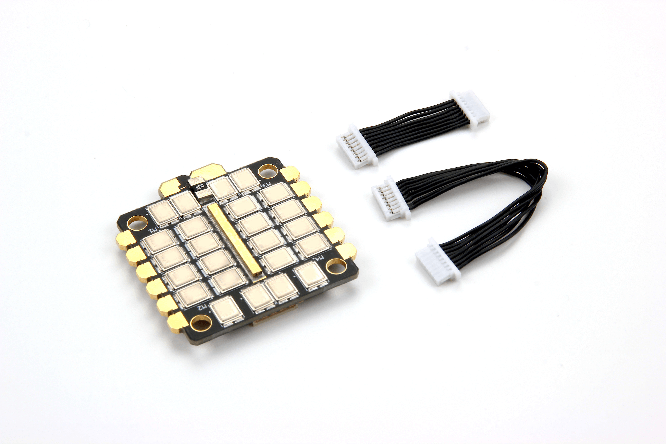

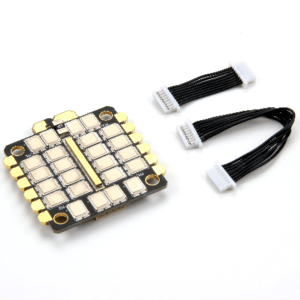

Package includes
Tekko32 F3 Metal 4in1 ESC *1
Electrolytic capacito: 470uF 35v *1
8pin to 8pin 1mm pitch 65mm cable *1
8pin to 8pin 1mm pitch 25mm cable *1
Pin MAP:
