HGLRC Zeus F745 V2 STACK
Power your next FPV drone build with the HGLRC Zeus F722 V2 Mini Stack. This 20x20mm electronics combo delivers high-end performance and reliability at a fantastic value. Featuring a powerful F7 flight controller with a modern BMI270 gyro and a robust 45A 6S ESC, this stack is the perfect core for a wide range of FPV drone kits, from 3-inch micros to 5-inch freestyle machines.
Powerful F7 Flight Control
The Zeus F722 mini flight controller is built around a high-performance STM32F722 processor and the clean, reliable BMI270 gyro. This combination provides the processing power needed for modern Betaflight features and delivers a smooth, locked-in flight experience. With multiple UARTs and support for I2C peripherals, you have plenty of options for connecting your drone parts.
Reliable 45A 6S Power
The included Zeus 45A V2 4-in-1 ESC is a proven workhorse. It can handle a continuous current of 45A per motor (55A burst) and supports up to 6S LiPo input, providing plenty of power for most 5-inch motor and propeller combinations. Running on reliable BLHeli_S firmware, it supports DShot protocols for a precise and responsive throttle feel.
Compact & Versatile
With its 20x20mm mounting pattern, this mini stack is ideal for creating a clean and lightweight build. It’s perfectly suited for a huge variety of modern FPV drone frames, giving you top-tier performance without the size and weight of a full 30x30mm stack.
Specifications
Zeus F722 mini Flight Controller:
- MCU: STM32F722
- Gyro: BMI270
- Input Voltage: 3-6S LiPo
- Firmware Target: HGLRCF722
- Mounting: 20x20mm (M3)
Zeus 45A V2 BL_S 4-in-1 ESC:
- Input Voltage: 3-6S LiPo
- Continuous Current: 45A x 4
- Peak Current: 55A (10s)
- Firmware: BLHeli_S (F-H-40)
- Supported Protocols: DShot600/300/150, etc.
- Mounting: 20x20mm (M3)

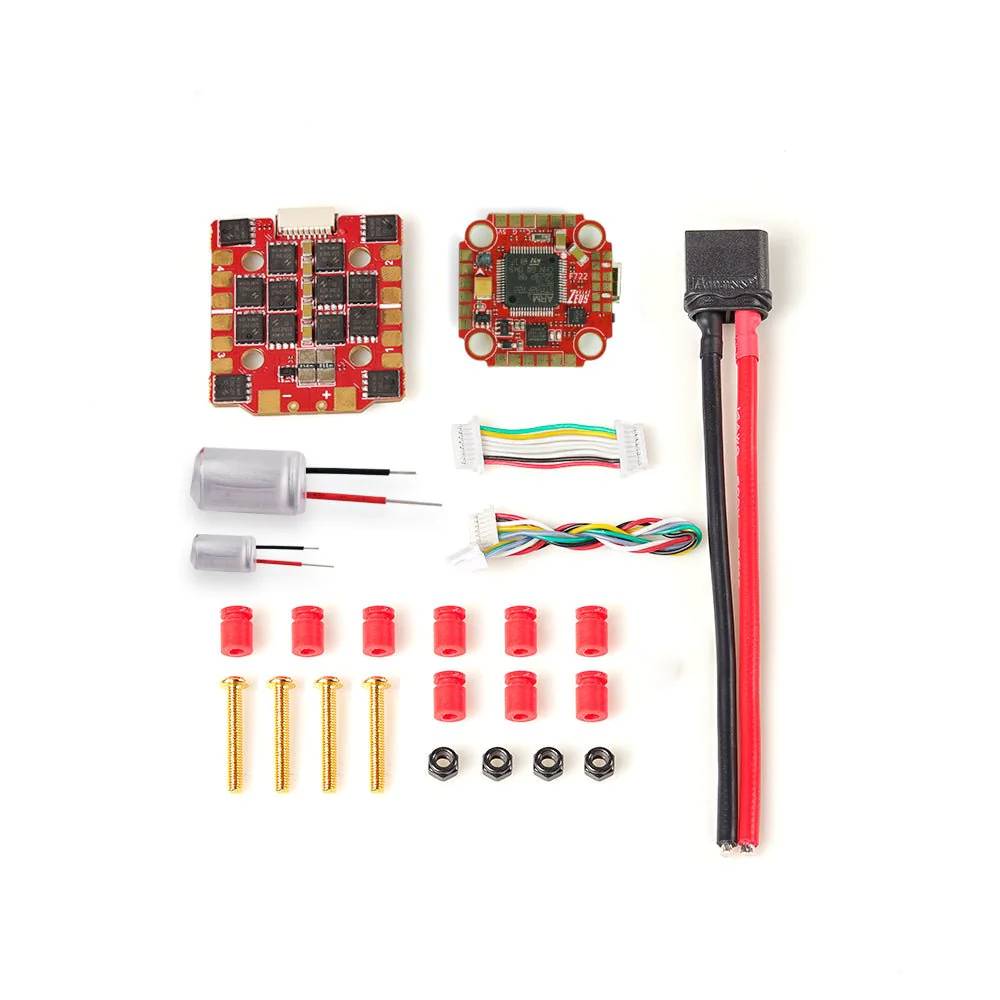

What’s in the Box?
- 1x Zeus F722 mini Flight Controller
- 1x Zeus 45A V2 BL_S 4-in-1 ESC
- 1x Accessory Package (Cables, Capacitor, Mounting Hardware)
