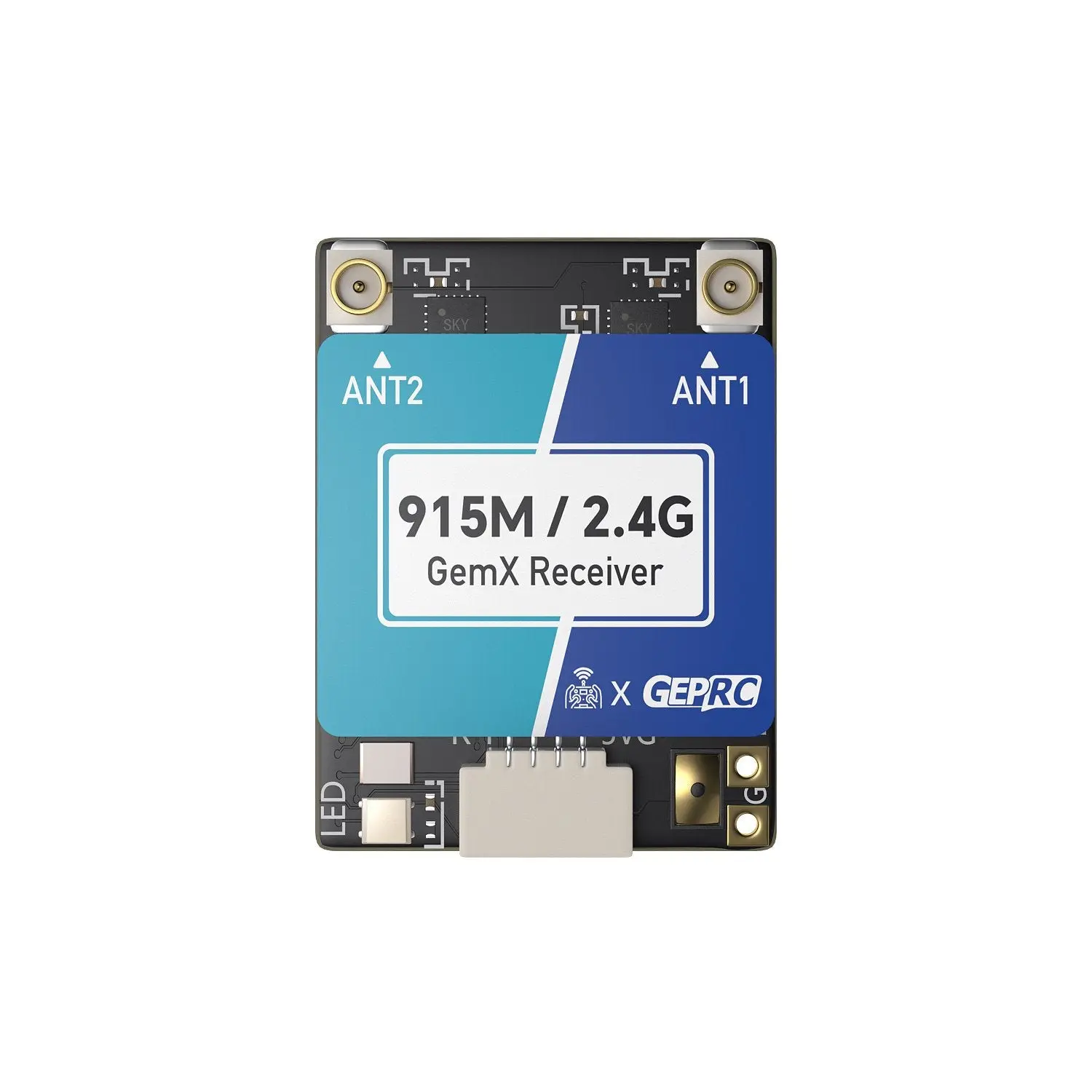

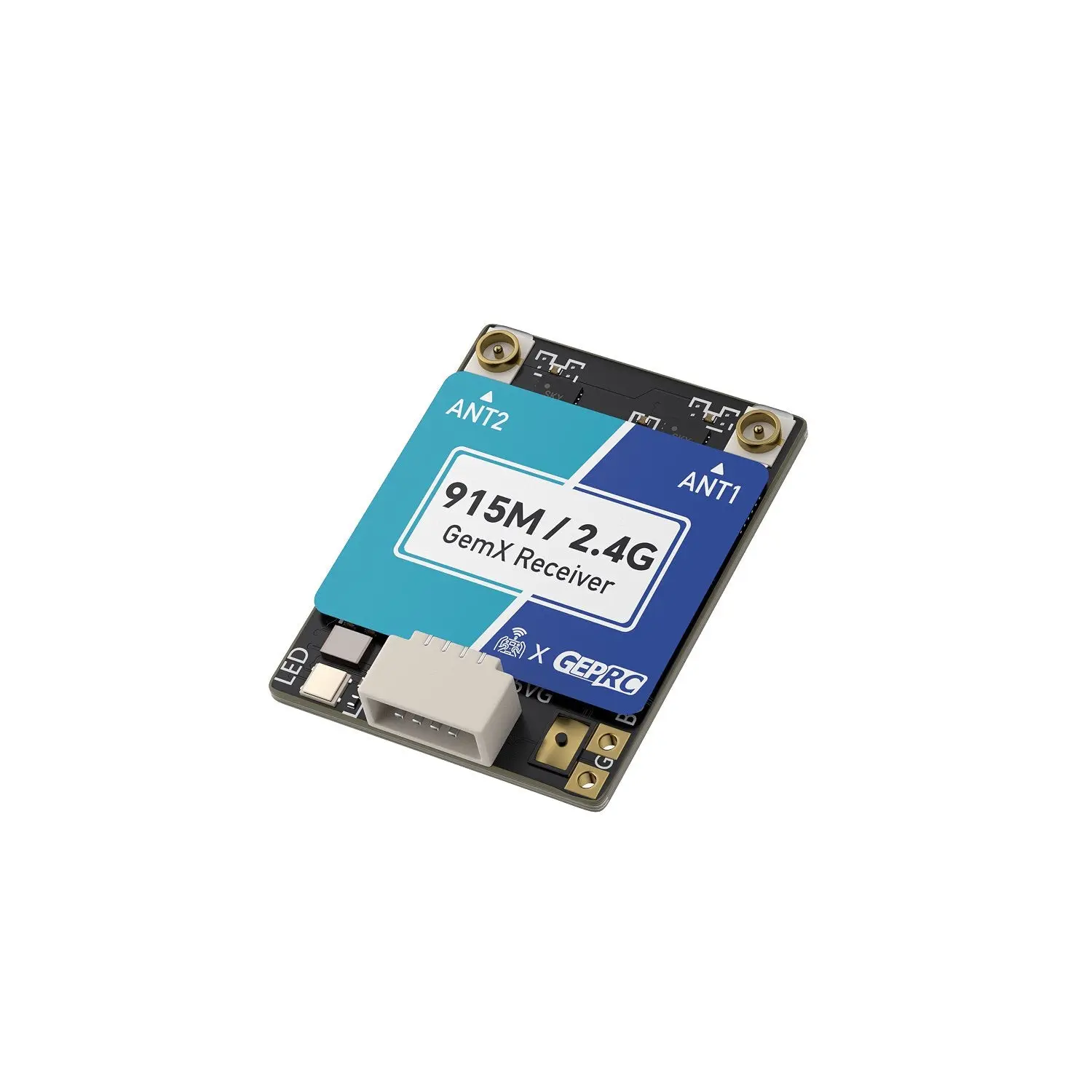

GEPRC ELRS 915M/2.4G Gemini Xrossband Receiver

Dual-Band Long-Range FPV Receiver
The Gemini Xrossband Receiver revolutionizes signal reliability with simultaneous 915MHz and 2.4GHz operation. Built on Semtech’s LR1121 RF chips, it delivers ultra-low latency (up to 1000Hz) and exceptional interference resistance for competitive pilots and long-range enthusiasts.

Key Features:

• Dual-Band Technology: Simultaneous 915MHz + 2.4GHz operation

• Ultra-Low Latency: 1000Hz refresh rate for precise control

• TCXO Stabilization: Maintains frequency accuracy across temperatures

• High-Power Telemetry: 100mW output for robust signal feedback

• Compact Design: 18×23.6×5.7mm, 1.7g (receiver only)

• Easy Updates: Built-in WiFi for firmware upgrades

Technical Specifications:

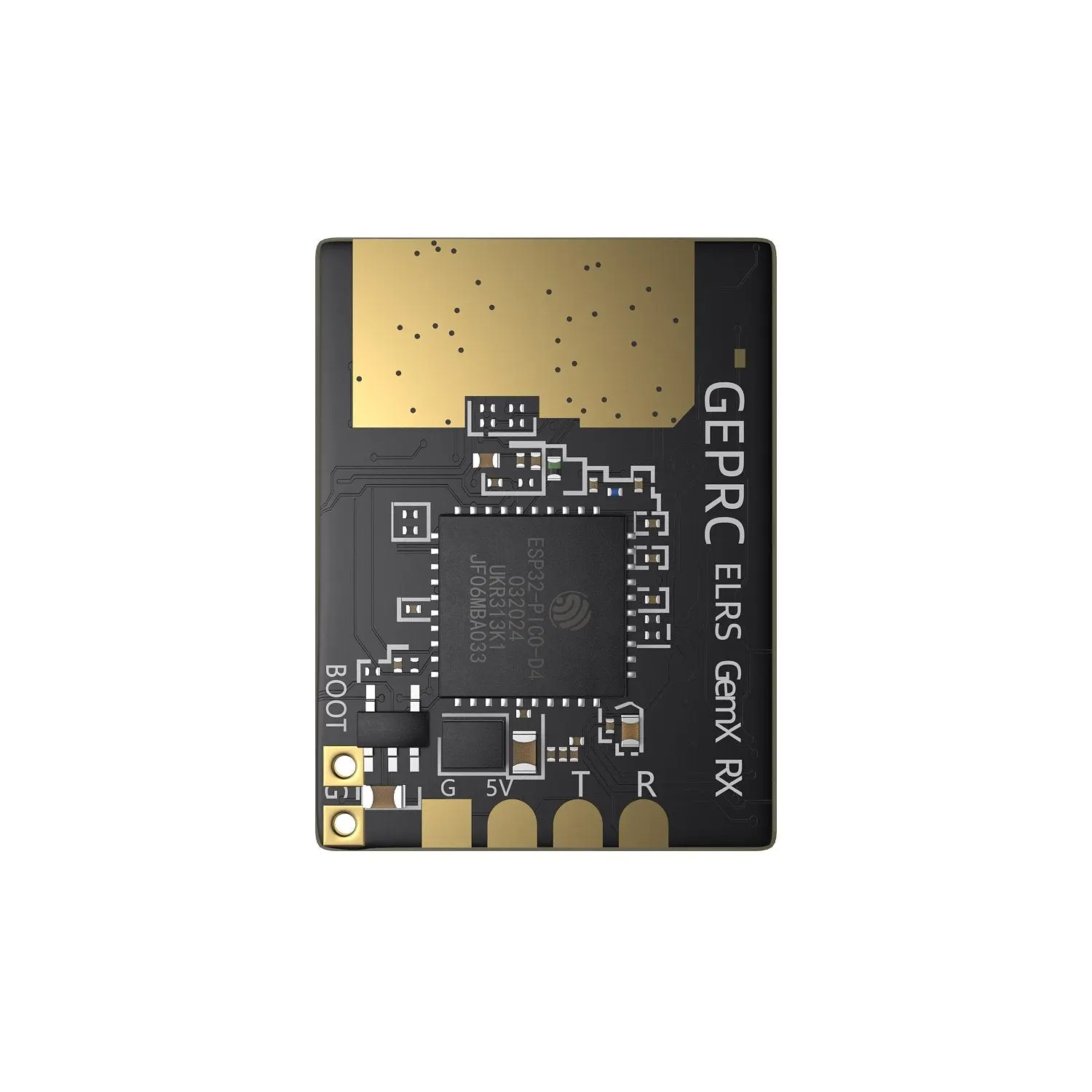

• Chips: Dual LR1121 + ESP32-PICO-D4

• Frequency Modes:

  • 915MHz single-band

  • 2.4GHz single-band

  • Dual-band simultaneous

• Voltage: 5V

• Antenna Port: IPEX1

• Telemetry Power: 100mW max

• Refresh Rate: 25-1000Hz adjustable

Package Includes:
1 × Gemini Xrossband Receiver
2 × Dual-band T-Antennas
1 × Heat shrink tube
1 × 4-pin silicone cable
1 × User manual

Compatibility:

• Works with all ELRS 915MHz/2.4GHz transmitters

• Supports existing ELRS protocols

• Requires dual-band TX module for full functionality
