TAKER F722 BT 8Bit 60A Stack
GEPRC TAKER F722 BT 60A Stack
Experience the ultimate in performance and convenience with the GEPRC TAKER F722 BT 60A Stack. This flight controller and ESC combination is engineered for discerning FPV pilots who demand a powerful, feature-rich core for their drone. With a high-speed STM32F722 processor and wireless Bluetooth tuning, this stack eliminates compromises and streamlines your entire flight experience.
The standout feature is the integrated Bluetooth module, allowing you to wirelessly connect to the Betaflight configurator on your mobile device. Forget fumbling with USB cables in the field—now you can adjust PIDs, rates, and filters right from your phone, making tuning faster and more intuitive than ever. Combined with an enormous 512M onboard black box, you have nearly unlimited space to log flight data for meticulous fine-tuning.
This stack is built to handle serious power. The TAKER H60 4-in-1 ESC pushes a continuous 60A, providing the headroom needed for aggressive 3-6S freestyle or racing builds. It features a direct plug-in port for any DJI Air Unit for a clean, solder-free HD build, while the dual independent BECs (9V@2.5A & 5V@3A) provide stable, filtered power to your VTX and other peripherals. With an integrated barometer and the latest ICM42688-P gyro, the TAKER F722 BT stack is the complete, high-performance solution for your next build.
KEY FEATURES
- Wireless Bluetooth Tuning: Connect to your phone via the SpeedyBee app to configure Betaflight settings without a USB cable.
- Massive 512M Black Box: Provides ample storage for extensive flight logging and analysis.
- High-Performance F7 Core: Features a powerful STM32F722 MCU and a stable ICM42688-P gyroscope for a smooth, locked-in flight feel.
- Robust 60A 4-in-1 ESC: Delivers a continuous 60A (65A burst) current, perfect for demanding 3-6S builds.
- Plug-and-Play DJI HD Ready: Includes a direct port for any DJI Air Unit, making for a clean and simple installation.
- Integrated Barometer: Onboard barometer for accurate altitude readings and functions.
- Dual Independent BEC: Provides clean 9V@2.5A and 5V@3A power for your VTX and other accessories.
SPECIFICATIONS

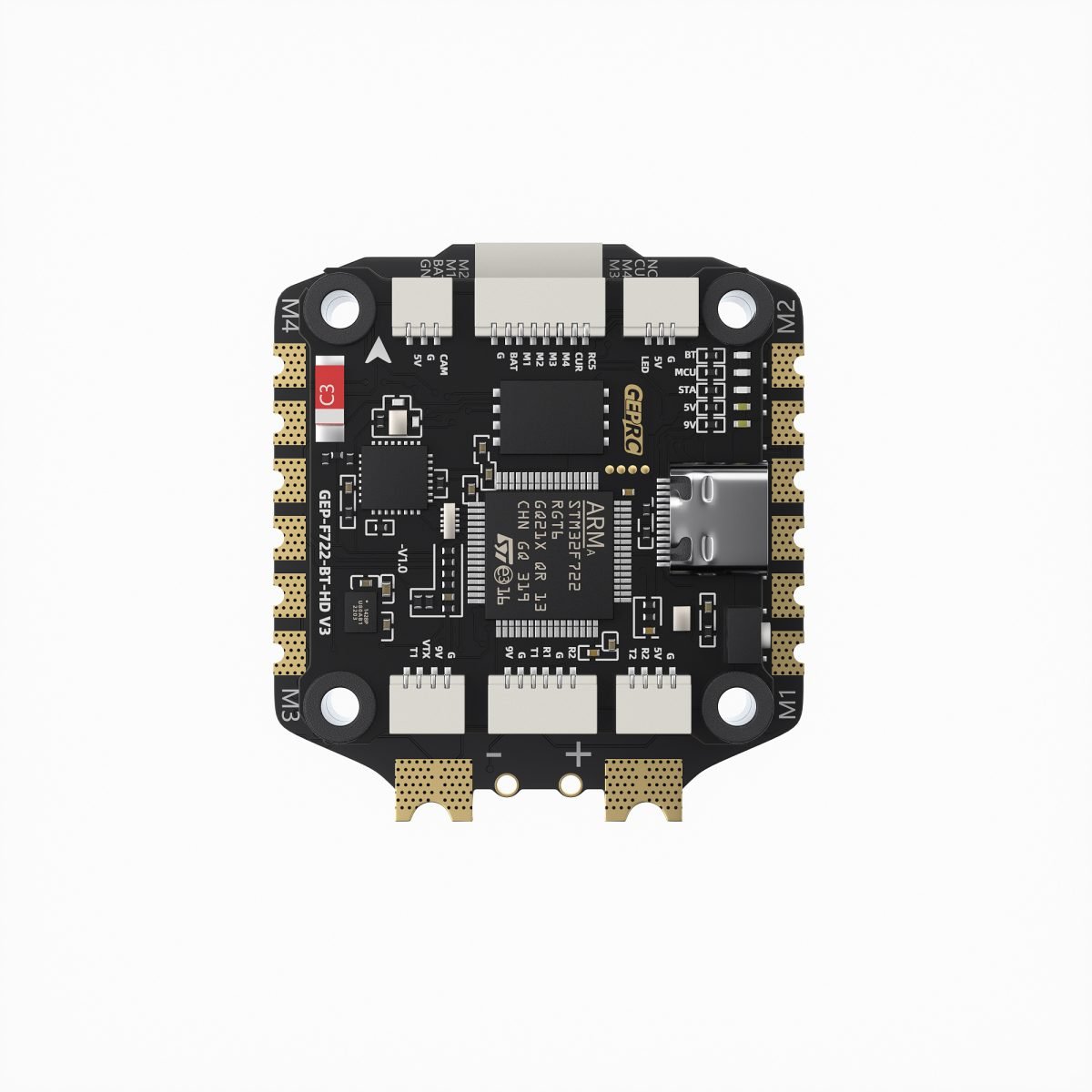

GEP-F722-BT-HD V3 Flight Controller
- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Black Box: 512M onboard
- Input Voltage: 3-6S LiPo
- BEC: 9V@2.5A & 5V@3A
- Firmware Target: GEPRCF722_BT_HD_V3

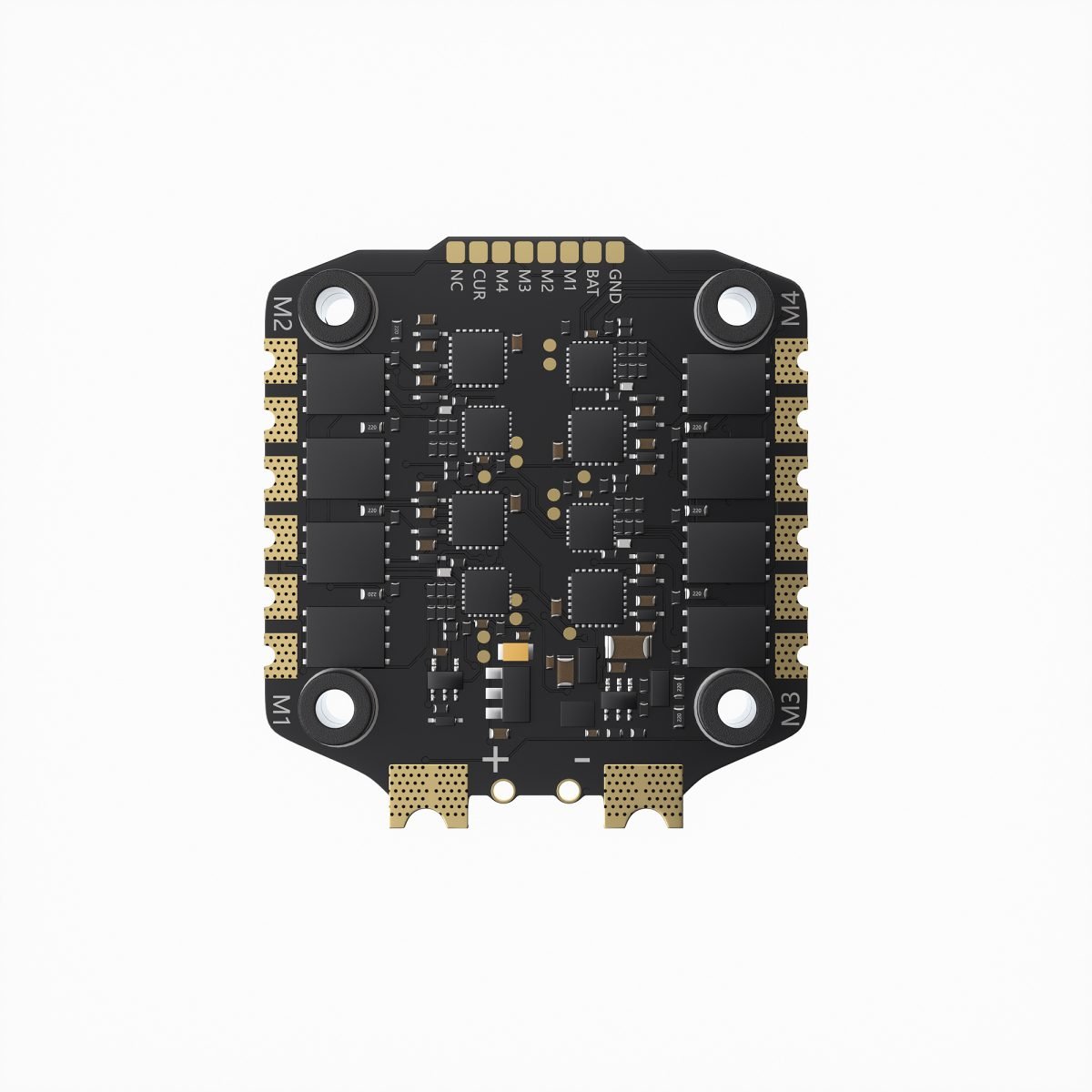

TAKER H60_BLS 60A 4IN1 ESC
- Continuous Current: 60A
- Burst Current: 65A (5s)
- Input Voltage: 3-6S Lipo
- Protocol: Dshot 150/300/600
- Target: B_X_30
INCLUDES
- 1 x GEP-F722-BT-HD V3 Flight Controller
- 1 x TAKER H60_BLS 60A 4IN1 ESC
- 1 x Capacitor
- 1 x O3 3-in-1 Connection Cable
- 1 x FC Adapter Cable
- 1 x Camera & VTX Connection Cables
- 1 x XT90 Power Cable
- All necessary screws, nuts, and silicone grommets
