Flywoo GOKU HEX GN405 Nano 13A STACK – 16*16mm

Check out all of our Flywoo products!

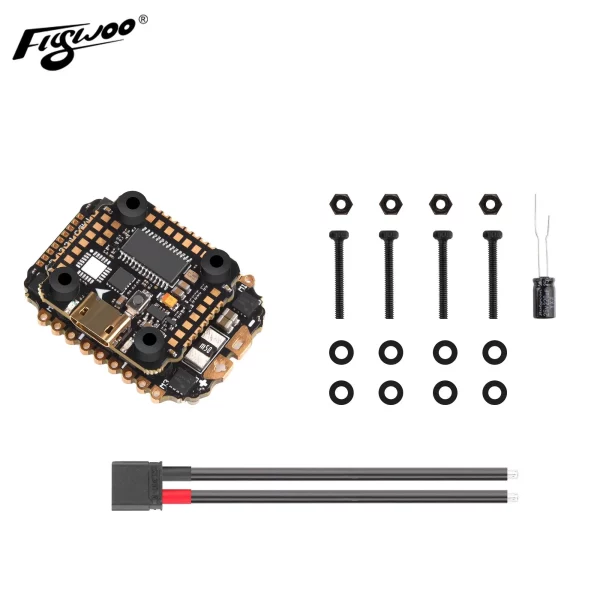

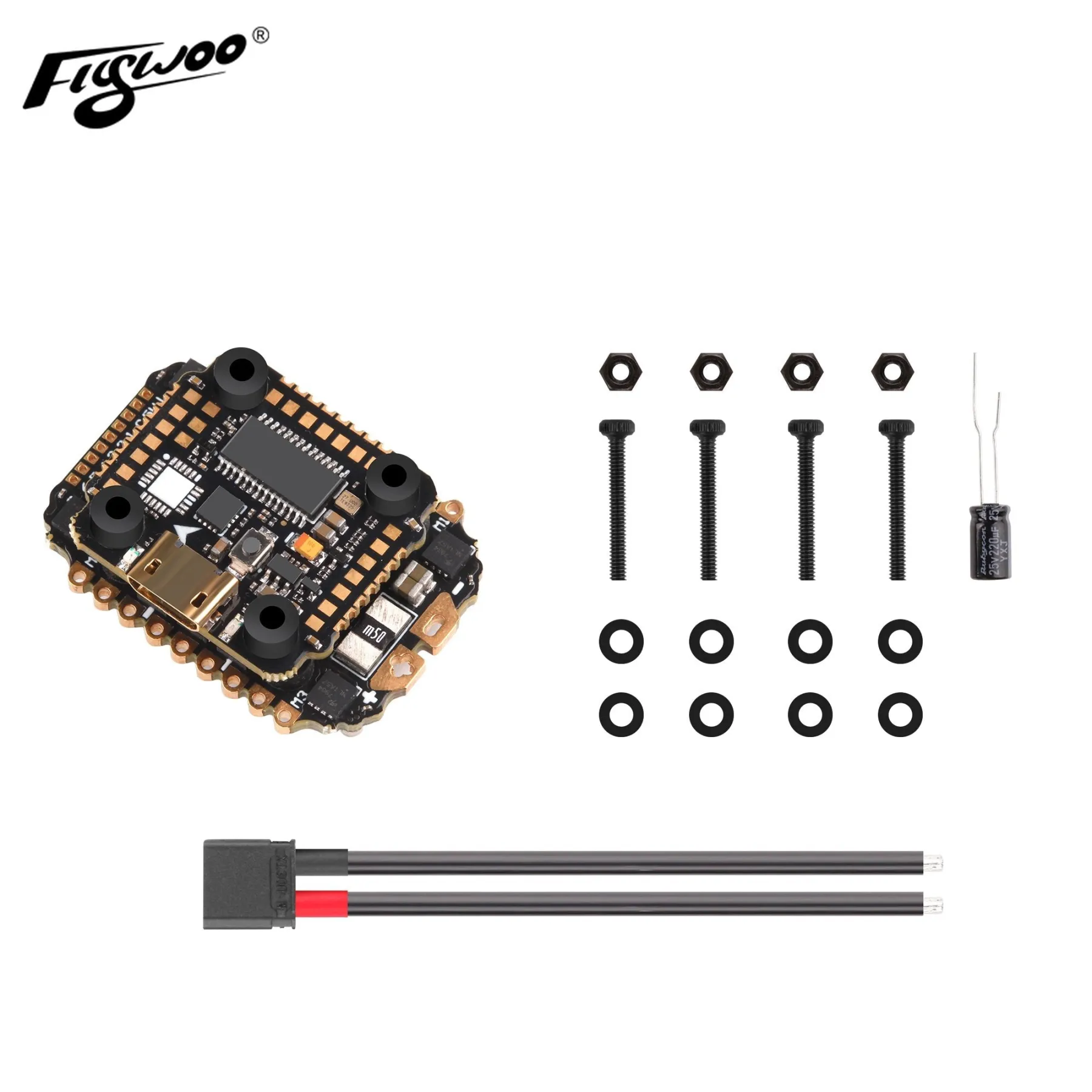

The Flywoo GOKU HEX GN405 Nano 13A STACK is a state-of-the-art piece of technology designed for the most demanding drone enthusiasts. With a compact 16x16mm footprint, it boasts an impressive F405 BGA MCU and an advanced IMU of BMI270 via SPI. The board is enriched with a SPL06 barometer and an onboard LED feature with WS2812*4. With a wide input voltage range of 2-4S, it supports up to 6 hardware UARTS, catering to most serial receivers like SBUS, iBus, Spektrum, and Crossfire. However, it’s worth noting that PPM and PWM receivers find no compatibility here. A dedicated 16MB blackbox is available for logging crucial flight data. The board allows for standard 16/16mm mounting holes. It weighs a mere 2.3g, ensuring minimal weight addition to your setup. Firmware updates and modifications are made easy with the FLYWOOF405NANO. Additionally, the package comes with the BS13A BLheli_S 2-4S 4in1, supporting various shot types and weighing only 2.5g.

Features

• F405 BGA MCU
• Barometer
• 5V 2A BEC
• Black Box 16MB
• 6 UARTS
• WS2812LED

Specifications

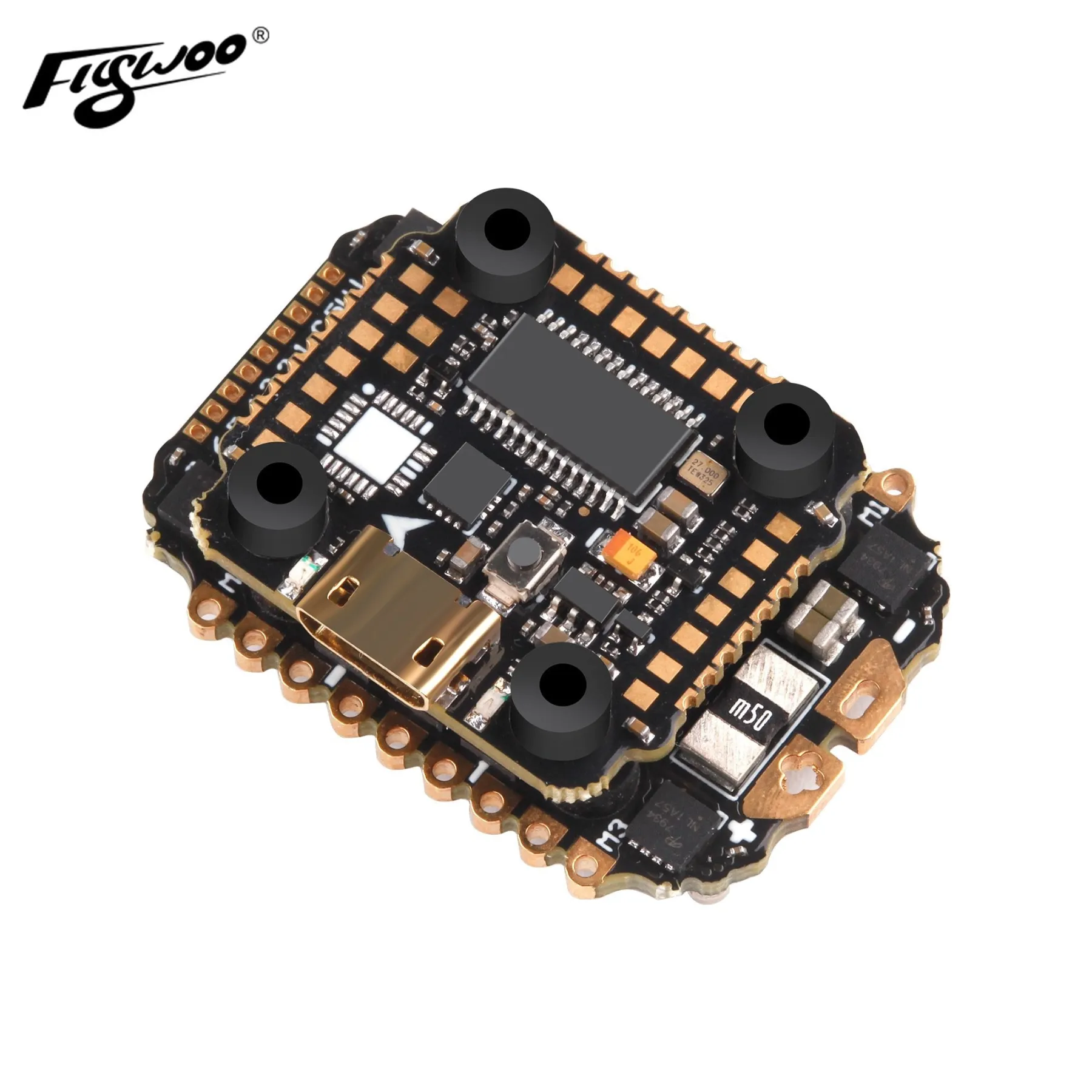

GOKU HEX GN405 Nano16X16 FC

• MCU: STM32F405 BGA
• IMU: BMI270 (SPI)
• Barometer: SPL06
• input voltage ： 2-4S

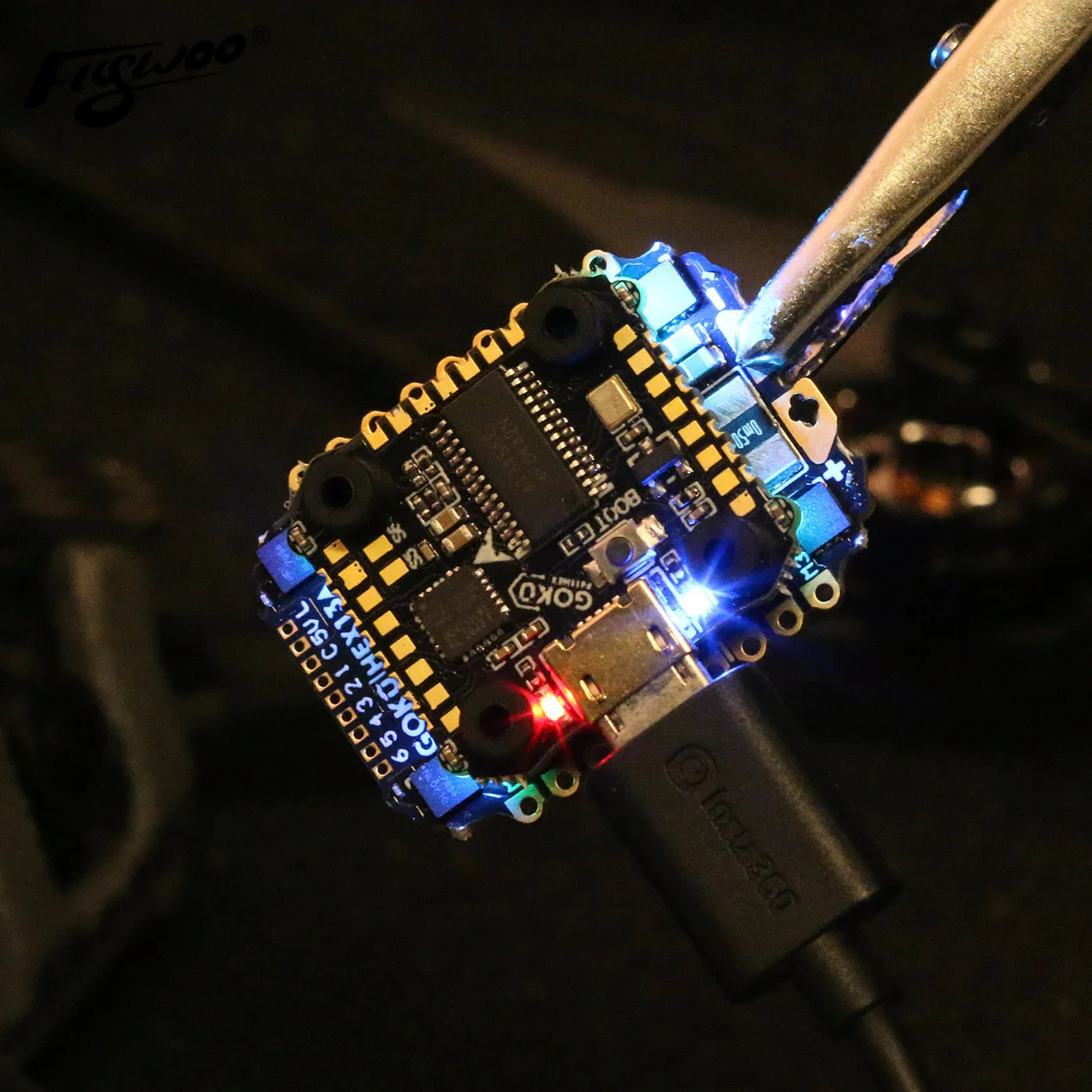

• Onboard LED：WS2812*4
• 6 hardware UARTS (UART1,2,3,4,5,6)
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only.
• PPM and PWM receivers are not supported.
• Onbord 16Mbytes for Blackbox logging
• 5V Power Out: 2.0A max
• 3.3V Power Out: 0.5A max
• Dimensions: 22x22mm
• Mounting Holes: Standard 16/16mm square to center of holes
• Weight: 2.3g
• Firrmware : FLYWOOF405NANO

BS13A BLheli_S 2-4S 4in1

• BS13A BLheli_S 2-4S 4in1
• Weight: 2.5g
• Mounting Hole: 16x16mm (M3)
• Support Oneshot, Multishot,
• DShot150/300/600
