Flywoo ELRS EL24E 2.4G Receiver
Check out all of our Flywoo products!
The Flywoo 2.4GHz Elrs Nano Series Receiver is an Open Source Program Based on Expresslrs, the Lightweight, the Lightweight, Minimal Size, Use ESP8285 MCU. So You Can Upgrade Firmware by WiFi, That’s Too Simple, divided into two Version EL24E / EL24P.
- EL24E: ESP8285 MCU, SX1280 RF CHIP, it has a Built-in Ceramic Antenna, Which Is Super Light and Small in Size.
- EL24P: ESP8285 MCU, SX1280 RF CHIP, use IPX ports, connect external T-type antennas, farther distance, stronger signal
Due to the low-latency and high-refresh-rate rf module, They are the Ultra Light and nano size of the Ultra Light, and Nano Size.
Specifications:

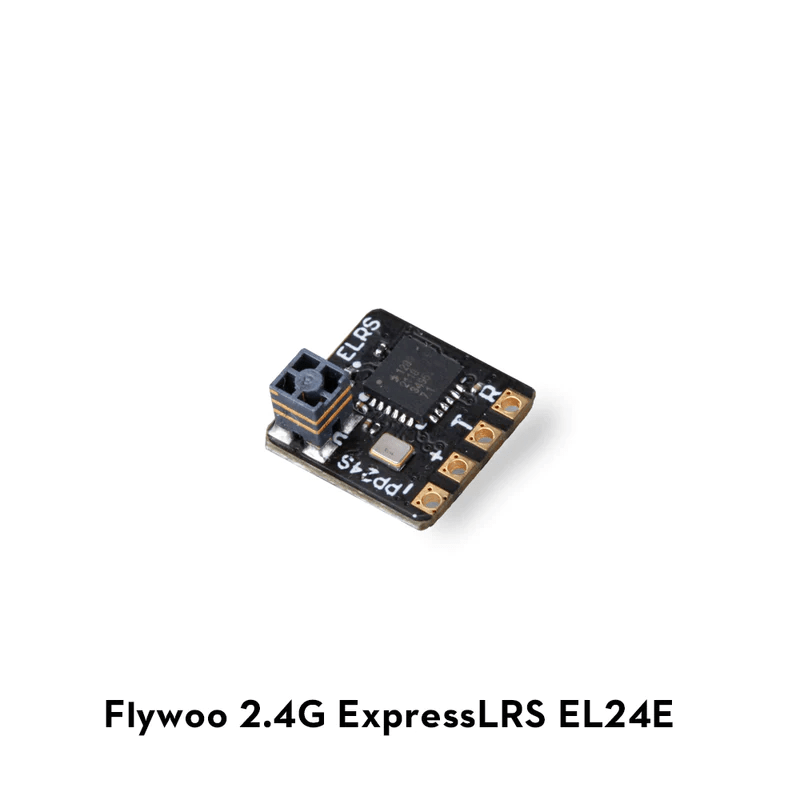

EL24E Nano Receiver
- Type: ISM
- ESP8285 MCU
- SX1280IMLTRT RF Module
- SMD Ceramic antenna
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v

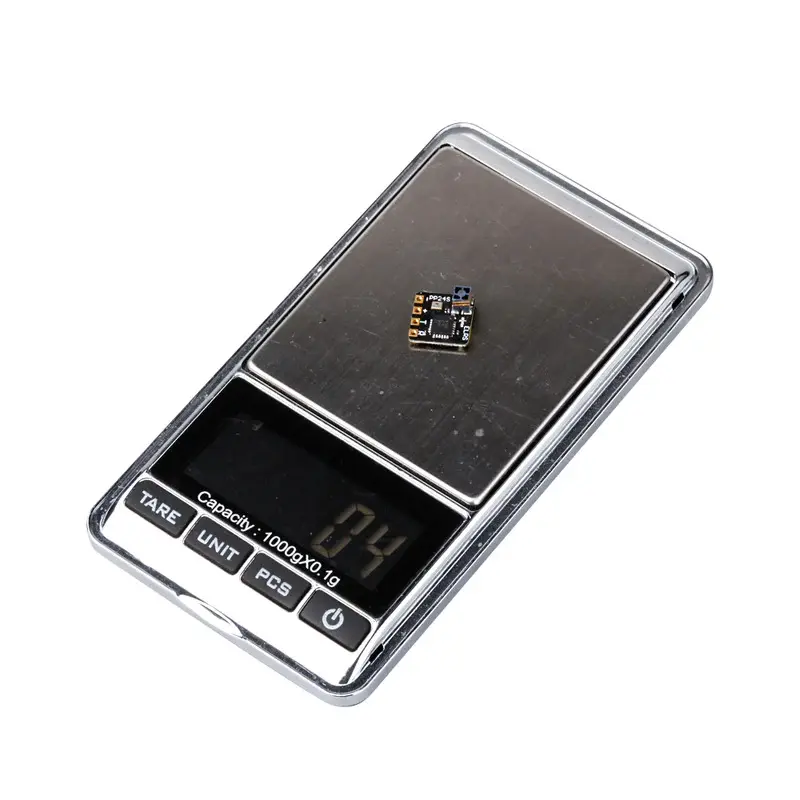

- Weight: 0.4g
- Dimension: 10.8mm*11mm*6mm
- Peak gain: 3.7dB
EL24P Nano Receiver
- Type: ISM
- ESP8285 MCU
- SX1280IMLTRT RF Module
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v
- Weight: 0.4g
- Dimension: 10.8mm*11mm*6mm
- Peak gain: 3.2dB
Package includes 1pcs 40mm half-wave dipole antenna
