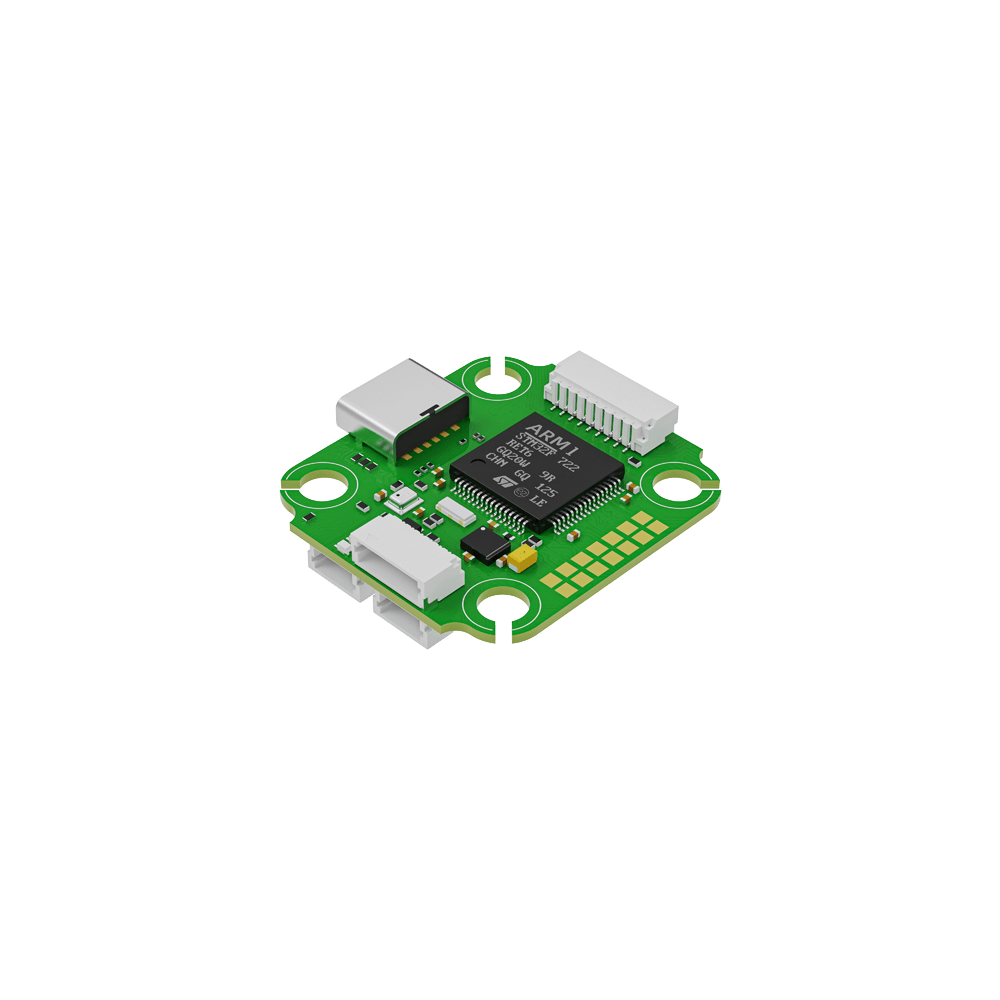

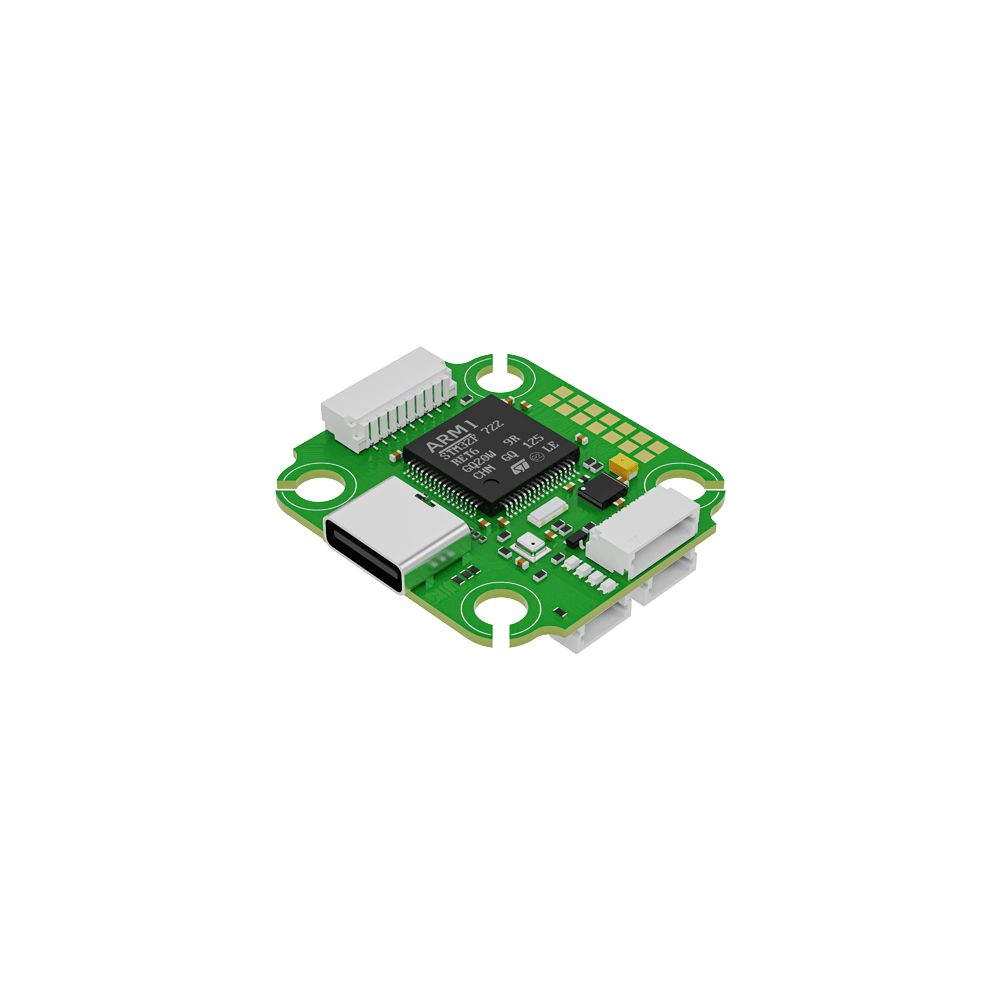

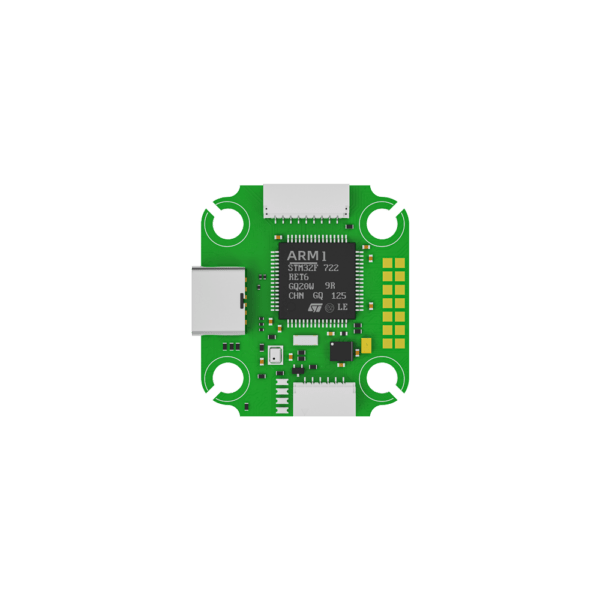

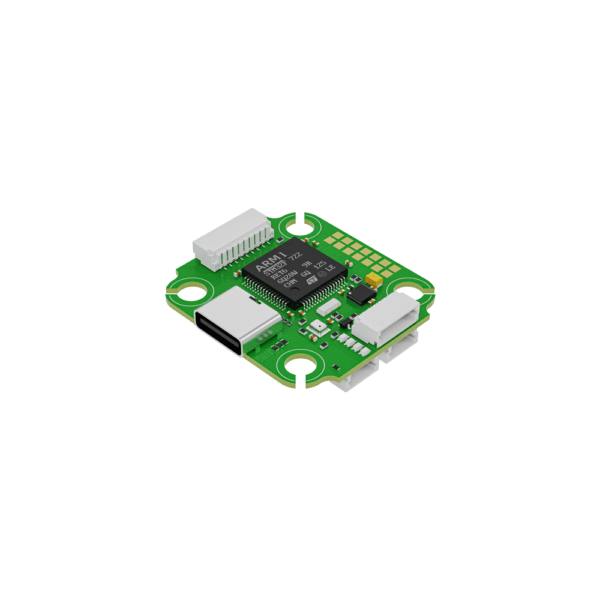

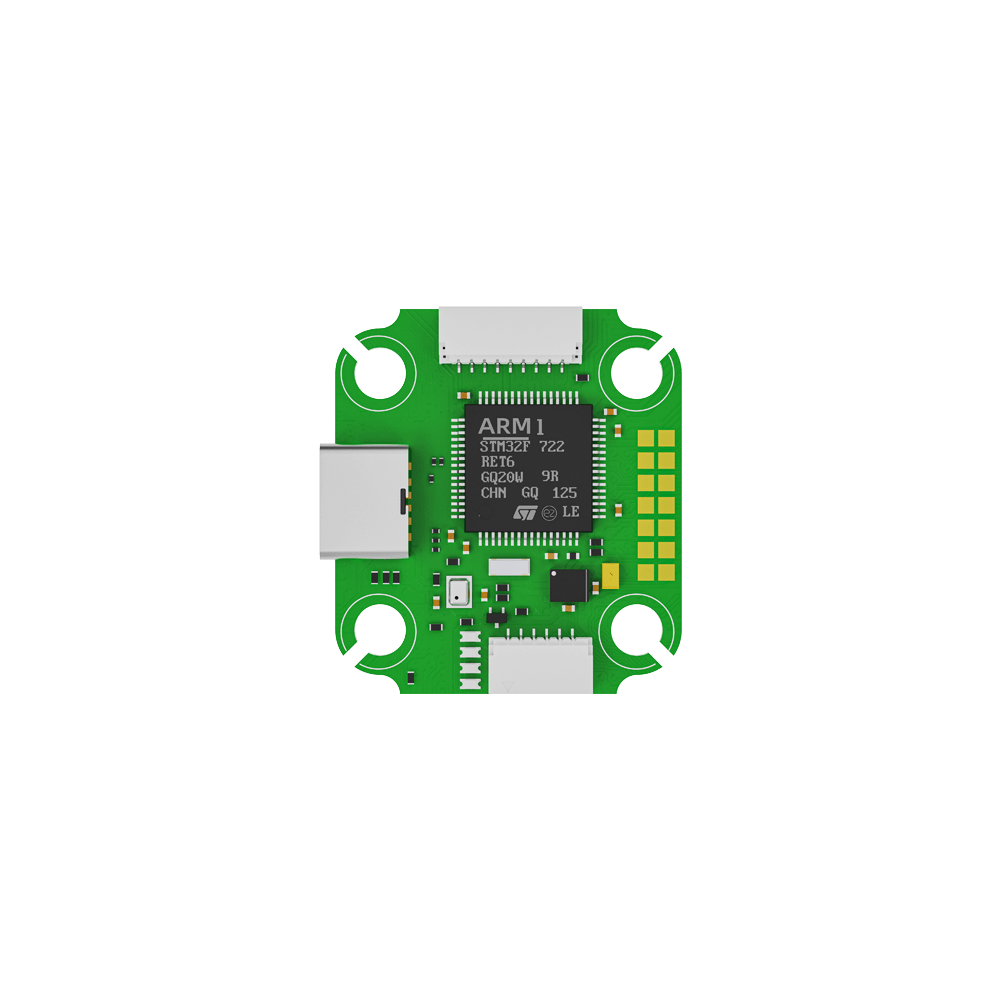

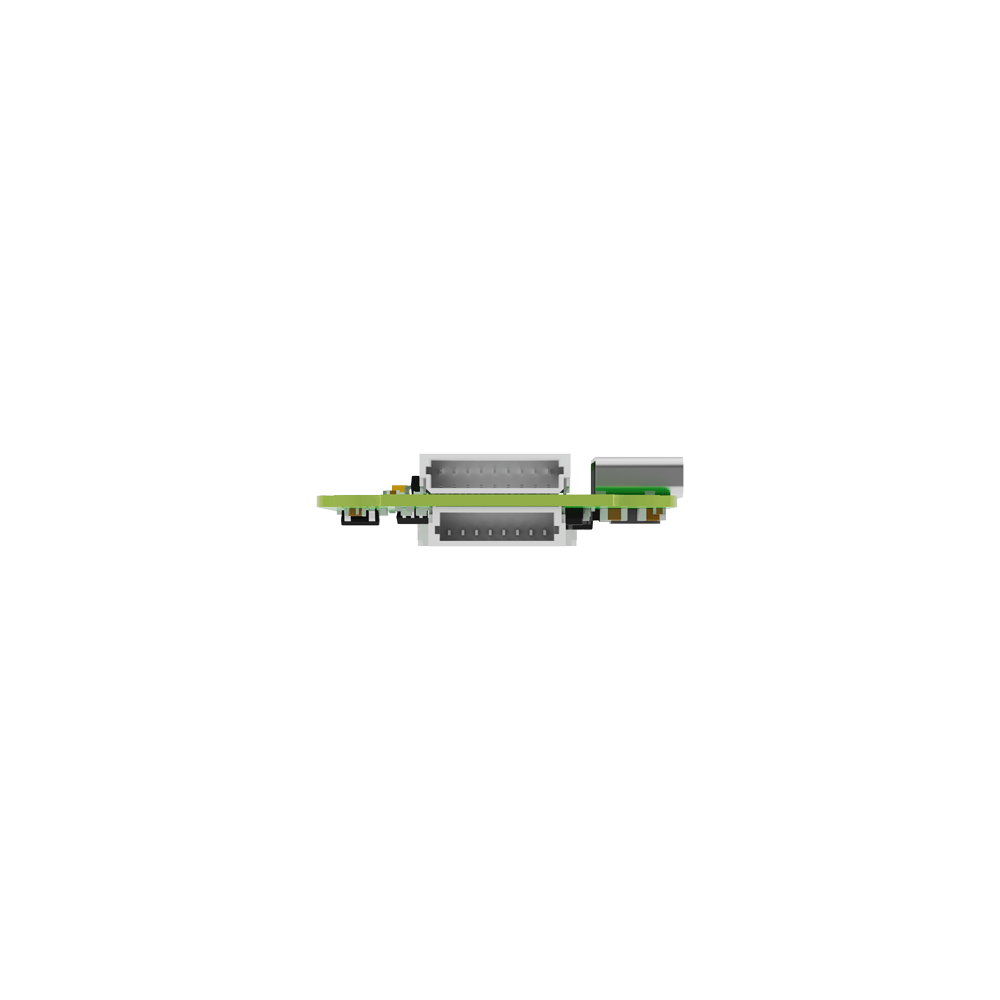

iFlight BLITZ Mini F7 V1.1 Flight Controller
Dive into the next level of drone flight control with the iFlight BLITZ Mini F7 V1.1 Flight Controller. Engineered for the tech-savvy and performance-oriented pilot, this compact controller packs a punch with its STM32 F722 MCU, ensuring rapid and responsive control inputs. Equipped with the precision of a BMI270 gyro and the reliability of a DPS310 barometer, it delivers stable and smooth flight characteristics under various conditions.
The controller’s design thoughtfully incorporates 8MB of blackbox flash memory for comprehensive flight data logging, six UARTs for extensive connectivity options, and dedicated pads for I2C serial expansion. It supports both Smartaudio and IRC Tramp VTX protocols for seamless communication with video transmitters, enhancing your FPV experience. An integrated LED controller and beeper pad provide additional utility and convenience, making setup and troubleshooting a breeze.
With its 20×20 mm mount pattern, including silicon grommets designed for M3 screws, this flight controller ensures a snug and secure fit in your drone’s frame. The iFlight BLITZ Mini F7 V1.1 maintains a lightweight profile at just 5g, minimizing its impact on your drone’s total weight and maximizing performance. Whether you’re racing or exploring, this flight controller is your gateway to superior flight dynamics and control.
Check out all of our iFlight Products!
Specifications
- MCU: STM32 F722
- Gyro: BMI270
- Barometer: DPS310
- OSD Chip: AT7456
- Flash: 8MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA/SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722
- Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
- Dimensions: 30.5×27 mm
- Weight: 5g
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

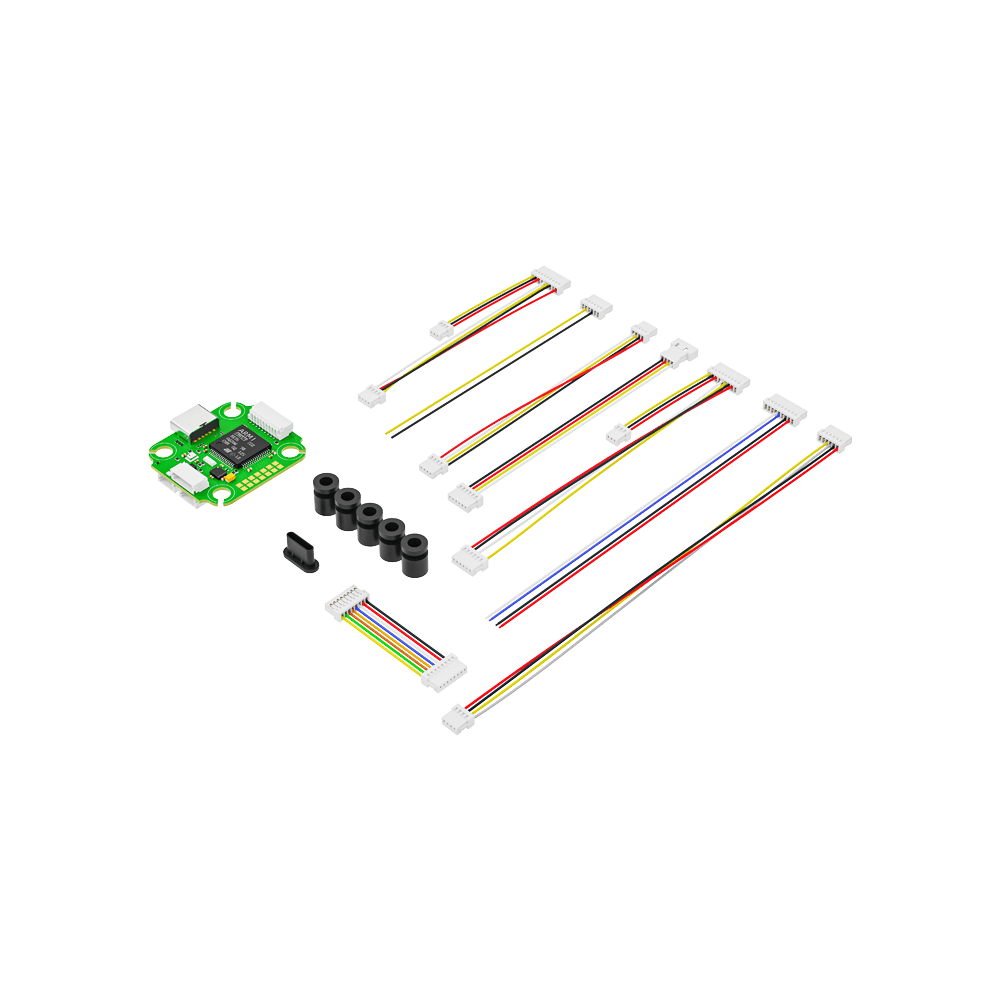

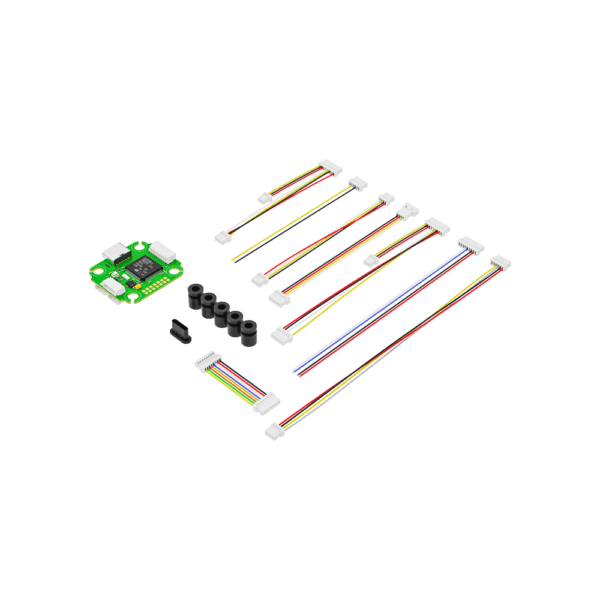

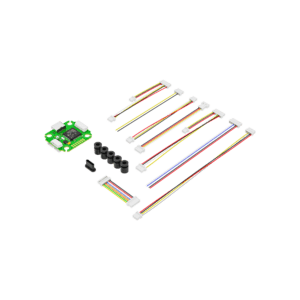

Packing List
1 x BLITZ Mini F7 V1.1 Flight Controller
1 x FC connectors
1 x Silicon grommets
