$79.99
Earn 80 Reward Points

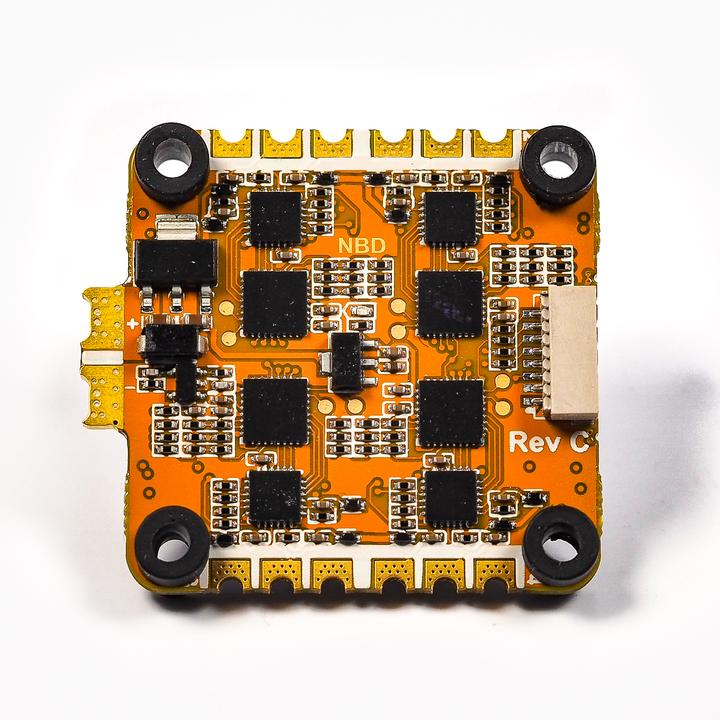

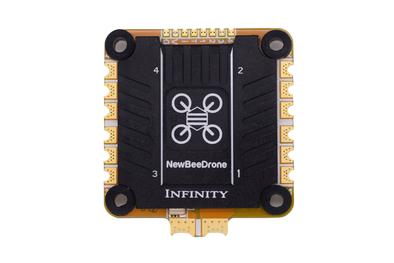

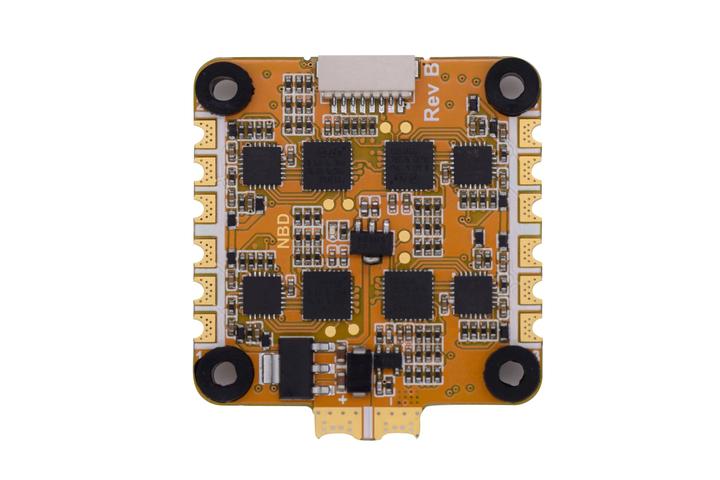

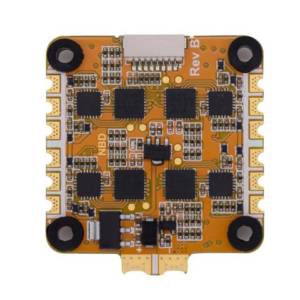

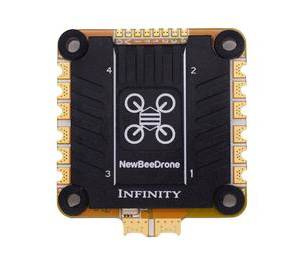

The infinity305 4-in-1 ESC from NewBeeDrone. Designed to work with the DJI Air unit module!
In stock
Check out all of our NewBeeDrone Products!
Pair this with the Infinity305 Flight Controller to create the market’s smallest most powerful Stack!
Build Video:
This ESC is part of the NewBeeDrone Infinity305 Stack that is plug-and-play with the DJI Digital FPV System!
Infinity 305 ESC Spec:
• LiPo Power input: 3S-6S
• ESC Programming: BLHeliSuite32
• Cont.Current: 40Ax4
• Burst Current: 55Ax4
• Weight / Size: 15.0g / 41×37.5x6mm
• Mounting holes: 30.5×30.5mm
• Signal plug JST1.0 8pin plug with NBD Infinity30FC
• Solder pad ready for signal and power.
• Heatsink design

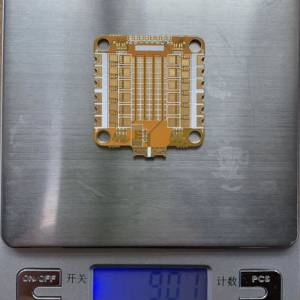

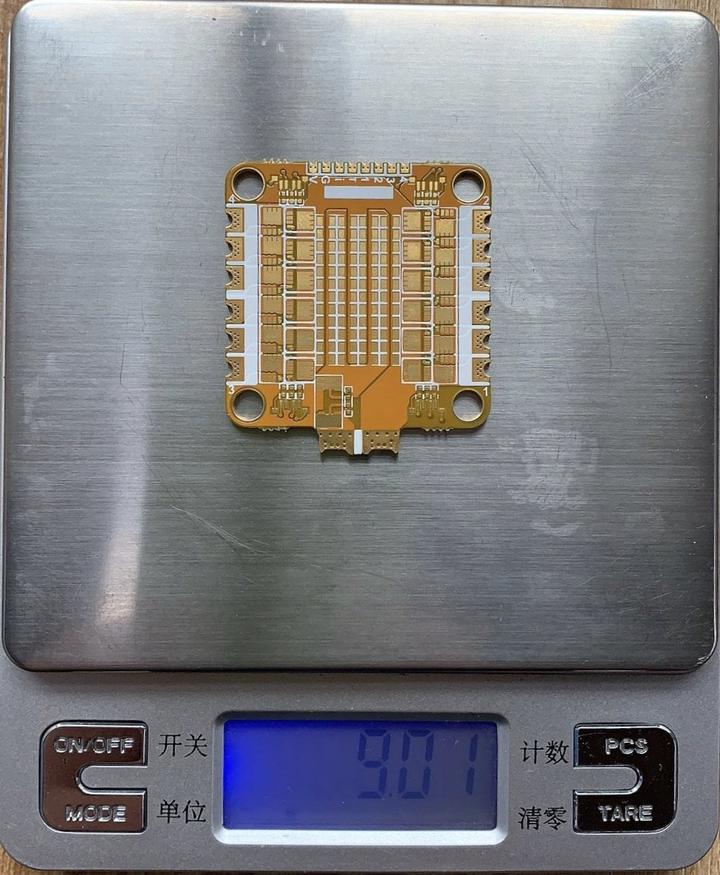

• 10 Layer PCB with 2Oz Copper Only PCB weight: 9grams
• On board capacitor: 10uf x 48 Total 480uF, No need for external Capacitor
• BLHeli32 Programable Sided RGB LED x4
• Smoov performance design by Team NBD
Includes:
| Weight | .1875 lbs |
|---|---|
| Dimensions | 2 × 2 × 1 in |
| ESC Type | 4 in 1 |
| ESC Mounting Size | 30x30mm |
