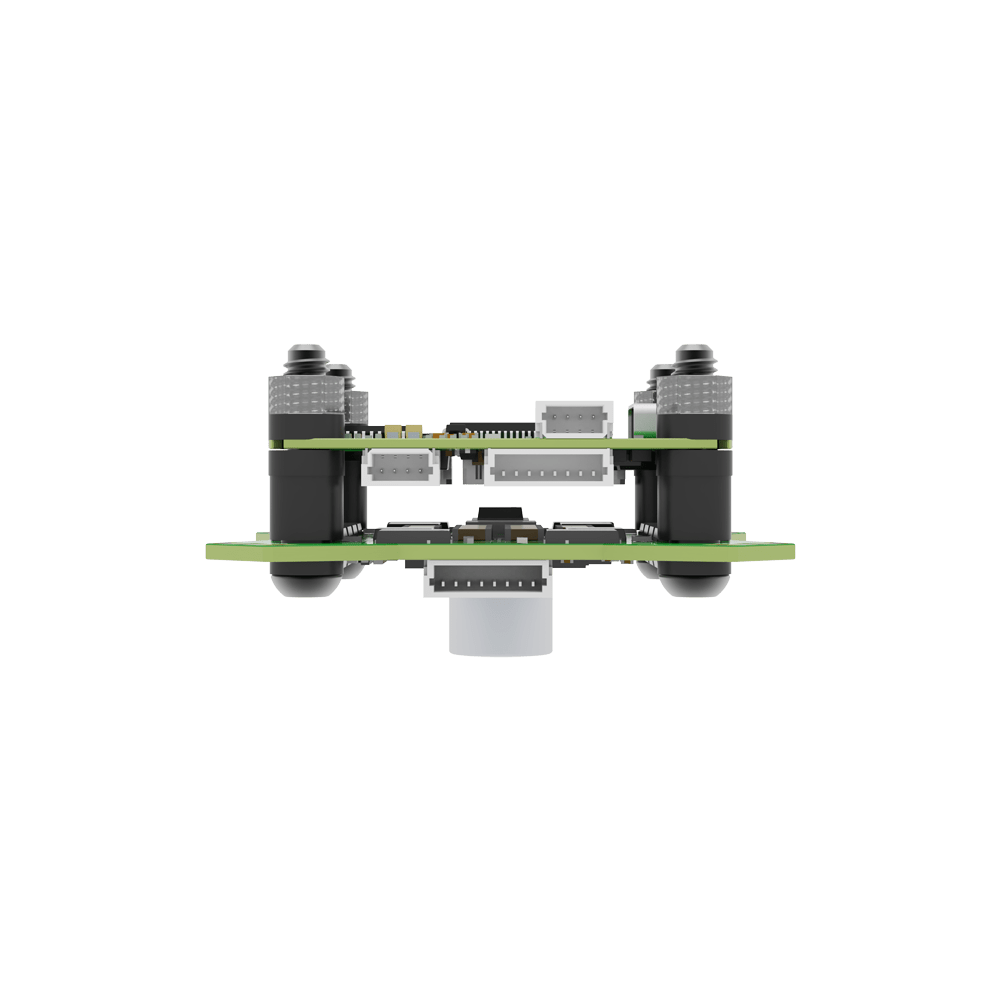

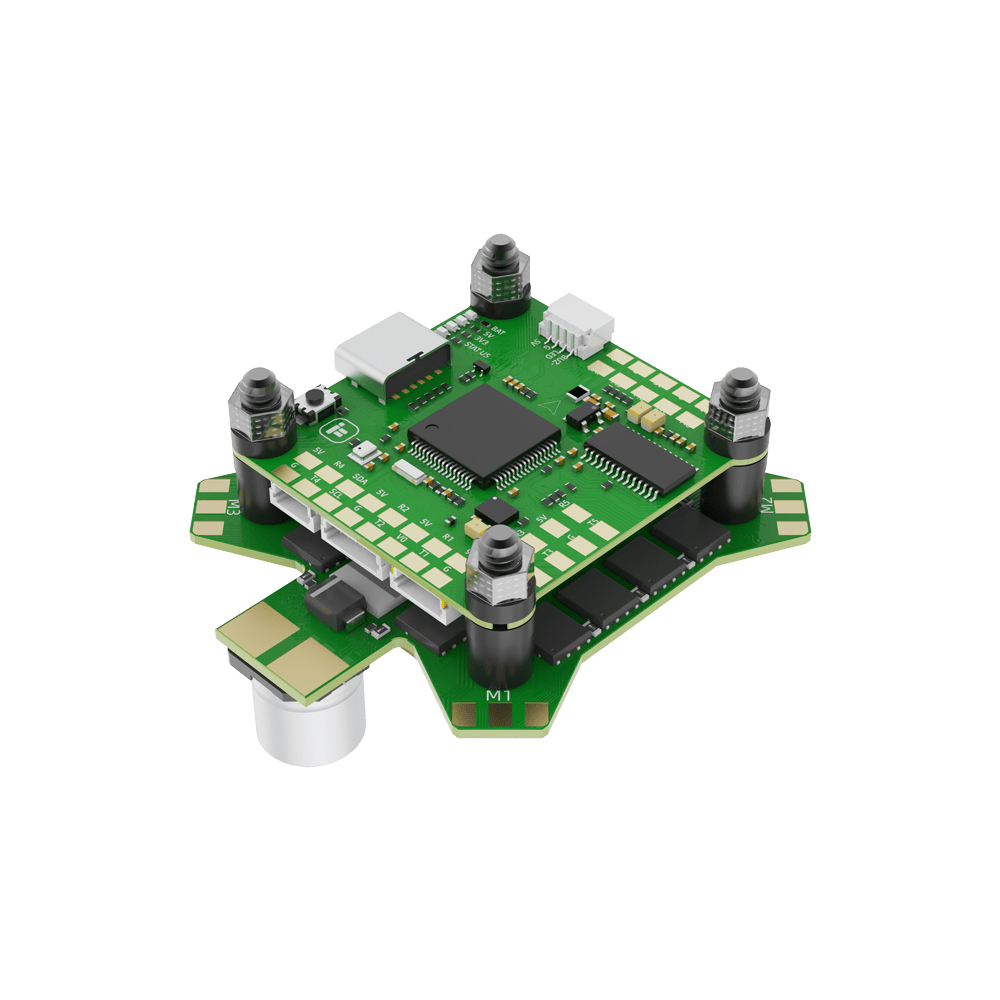

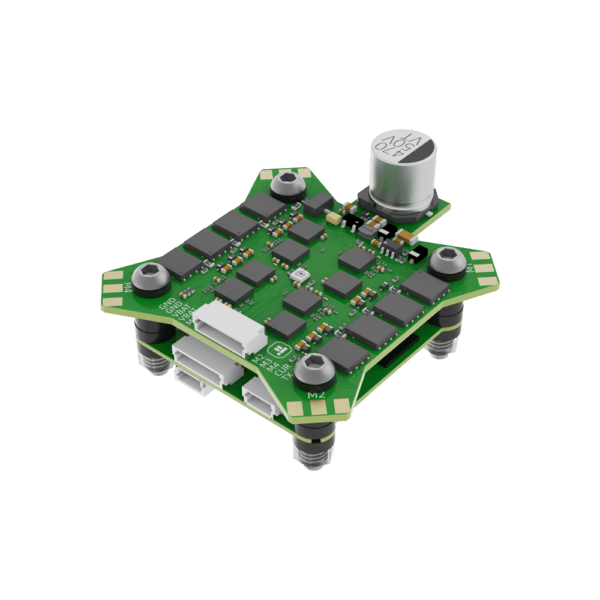

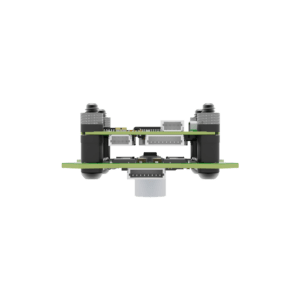

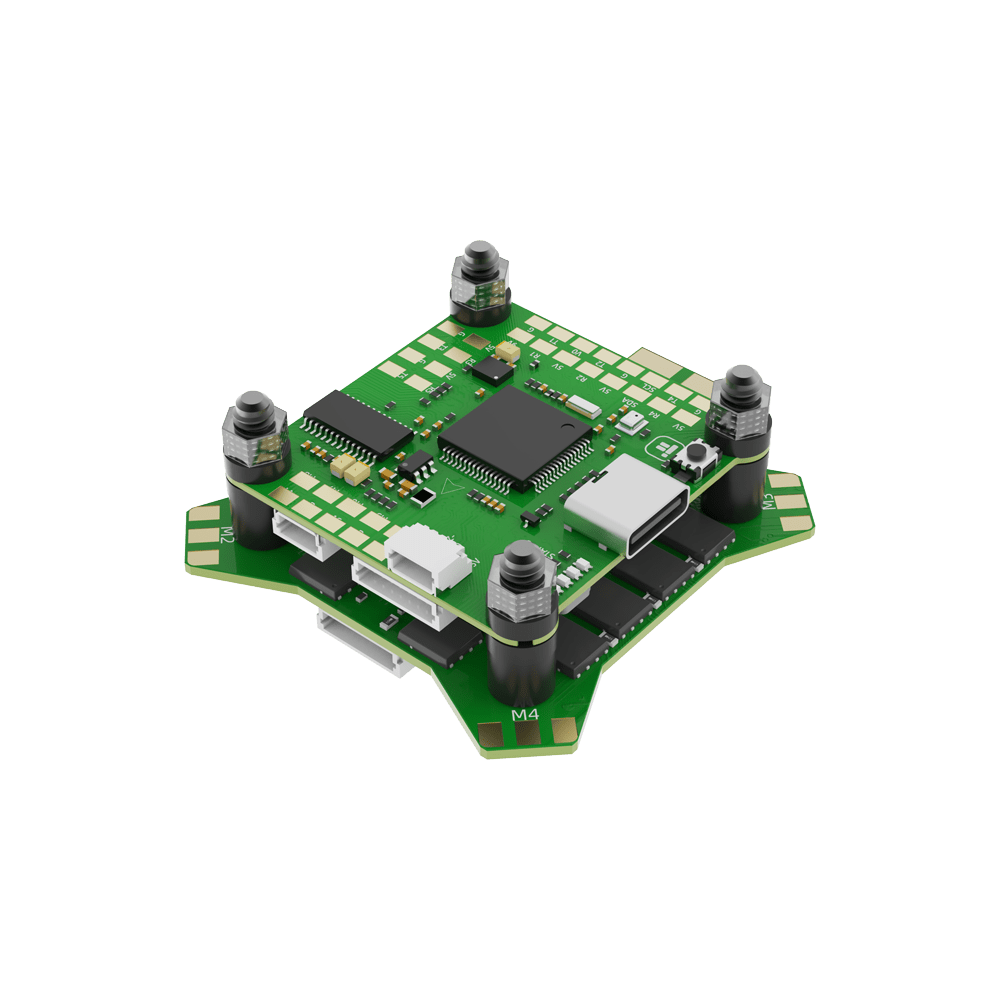

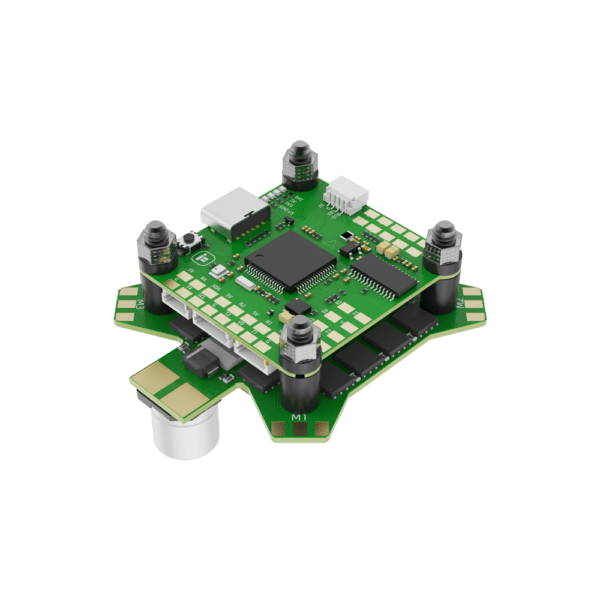

iFlight BLITZ F7 Stack (F7 V1.2 + 55A 4in1 ESC)
Transform your FPV flying with the iFlight BLITZ F7 Stack, featuring the latest F7 V1.2 Flight Controller paired with a powerful 55A 4-in-1 ESC. This stack is designed for serious drone enthusiasts who demand the best in terms of control precision, responsiveness, and power handling.
The heart of this setup is the BLITZ F7 V1.2 Flight Controller, powered by an STM32 F722 MCU for top-notch processing speed, complemented by an ICM42688 gyro for unmatched flight stability. The DPS310 barometer ensures accurate altitude data, while the AT7456E OSD chip, 32MB of blackbox flash memory, and six UART ports offer extensive customization and telemetry options. Whether you’re configuring for VTX HD/Analog, a receiver, GPS, or other peripherals, this FC supports a wide array of connections including Smartaudio and IRC Tramp protocols, and it’s equipped with an LED controller and beeper pad for comprehensive functionality.
Paired with the FC is the BLITZ E55 4-IN-1 ESC, capable of supporting 2-6S lipo inputs, delivering a constant 55 Amps and a peak of 65 Amps to your motors. This ESC is built with a G071 MCU, providing smooth and responsive power distribution, and is compatible with all major protocols including DShot and MultiShot. Its 15.3g weight and 30.5*30.5mm mounting holes make it an ideal match for the F7 FC, ensuring a compact and efficient build.
Together, the iFlight BLITZ F7 V1.2 Flight Controller and BLITZ E55 4-IN-1 ESC form a formidable combination that promises to unlock new levels of performance and reliability for your drone, making every flight an exhilarating experience.

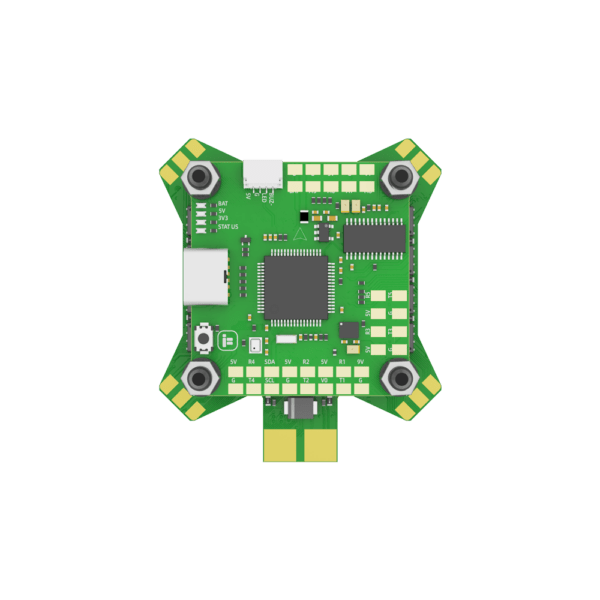

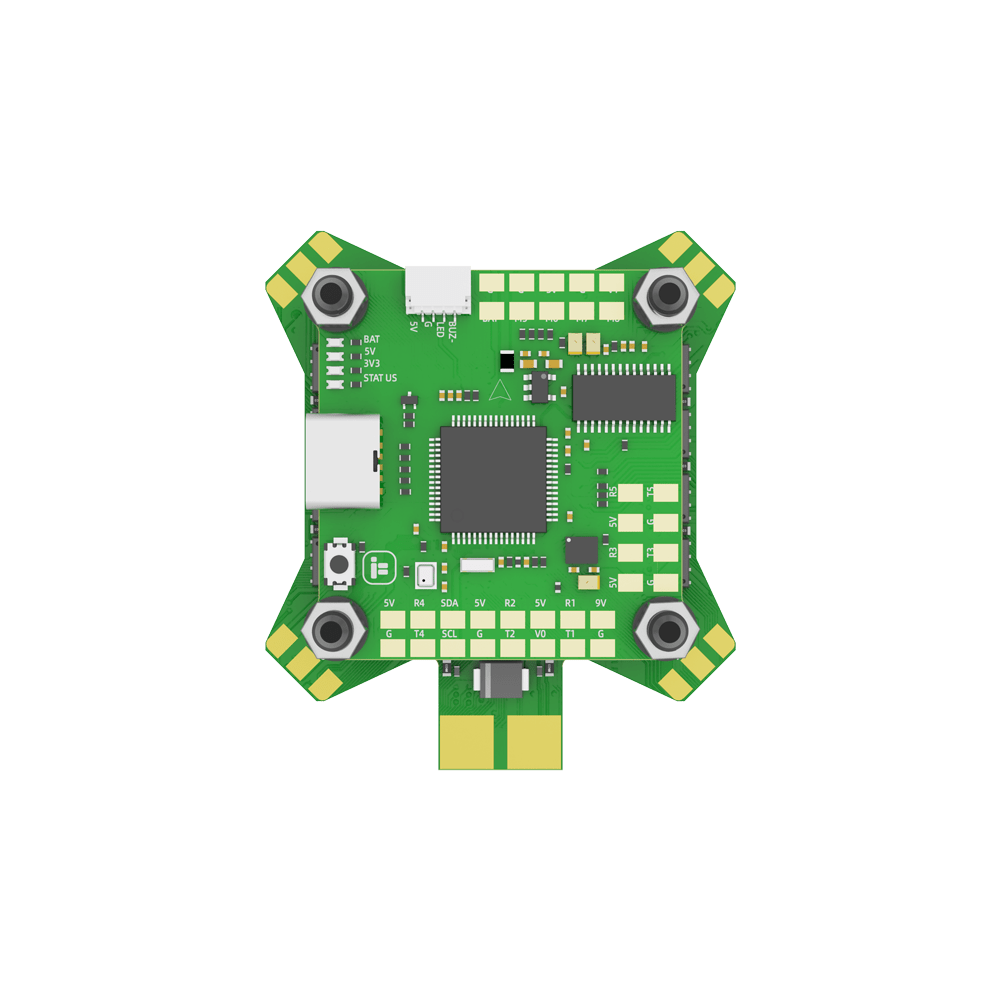

FC Specifications
- MCU: STM32 F722
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio / IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFRC-IFLIGHT_BLITZ_F722
- Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
- Dimensions: 36.5*35 mm
- Weight: 7.8g
- BEC: 5V 2.5A / 9V 2A
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

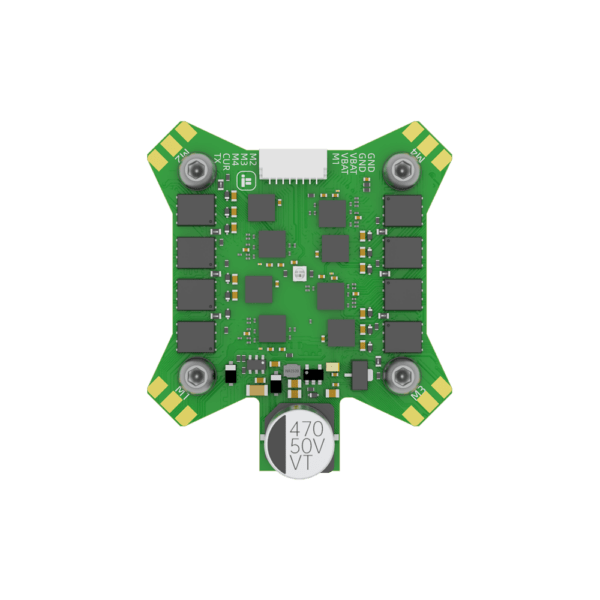

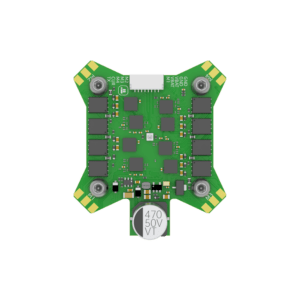

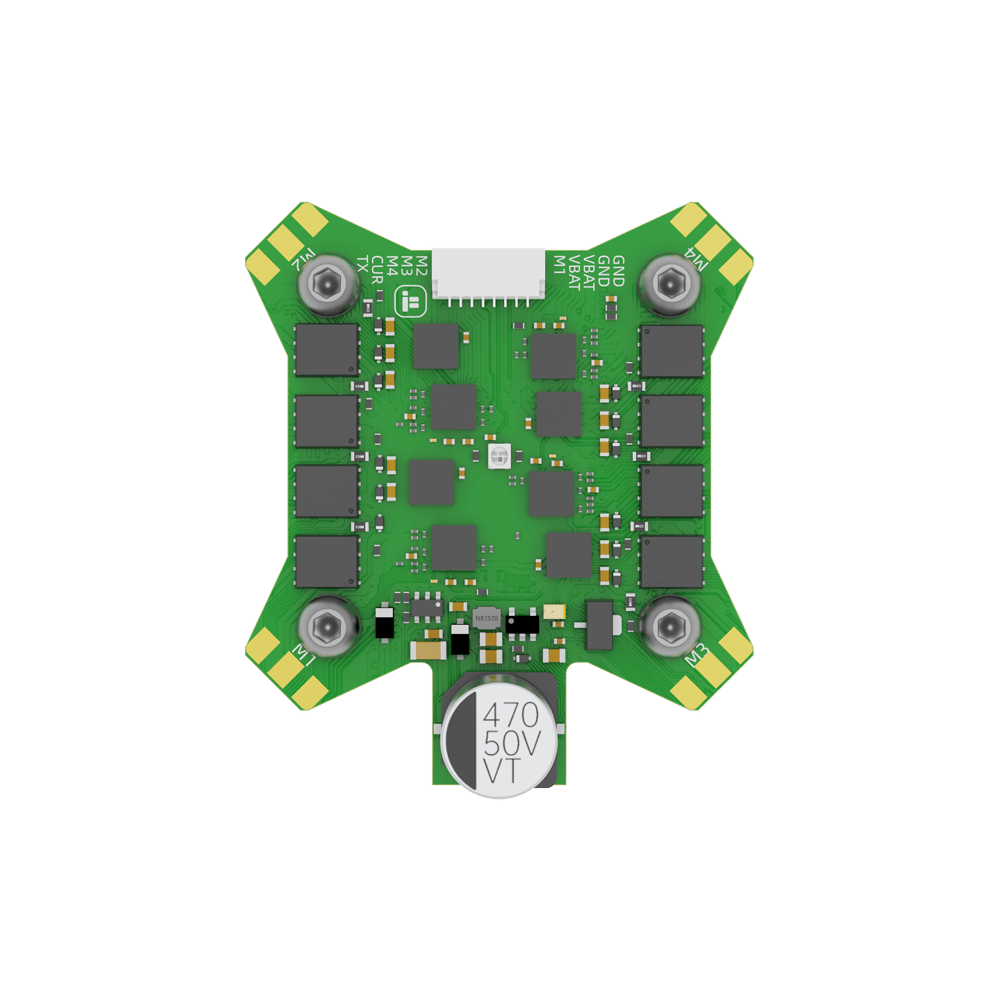

ESC Specifications
- Mounting Holes: 30.5*30.5mm/Φ4mm
- Weight: 15.3g
- Supports 2-6S lipo input
- MCU: G071
- Constant: 55 Amps
- Burst: 65 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 200
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: IFLIGHT_BLITZ_G3 32.9

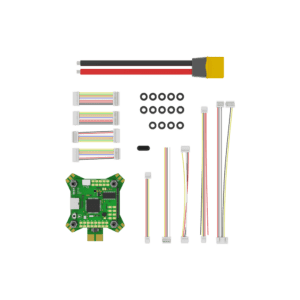

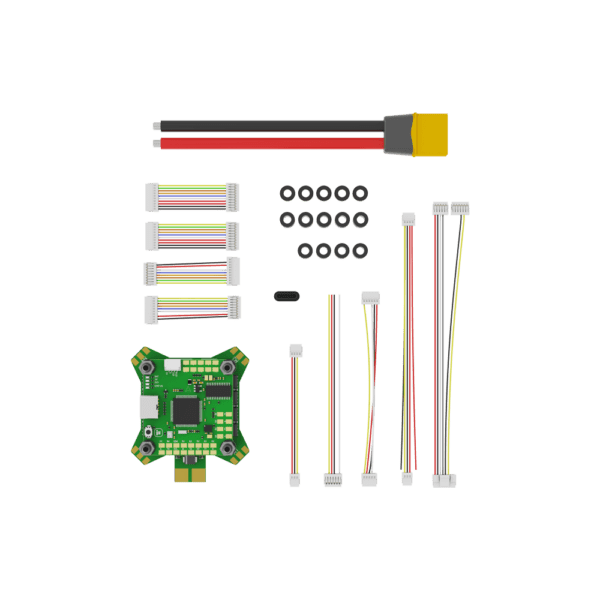

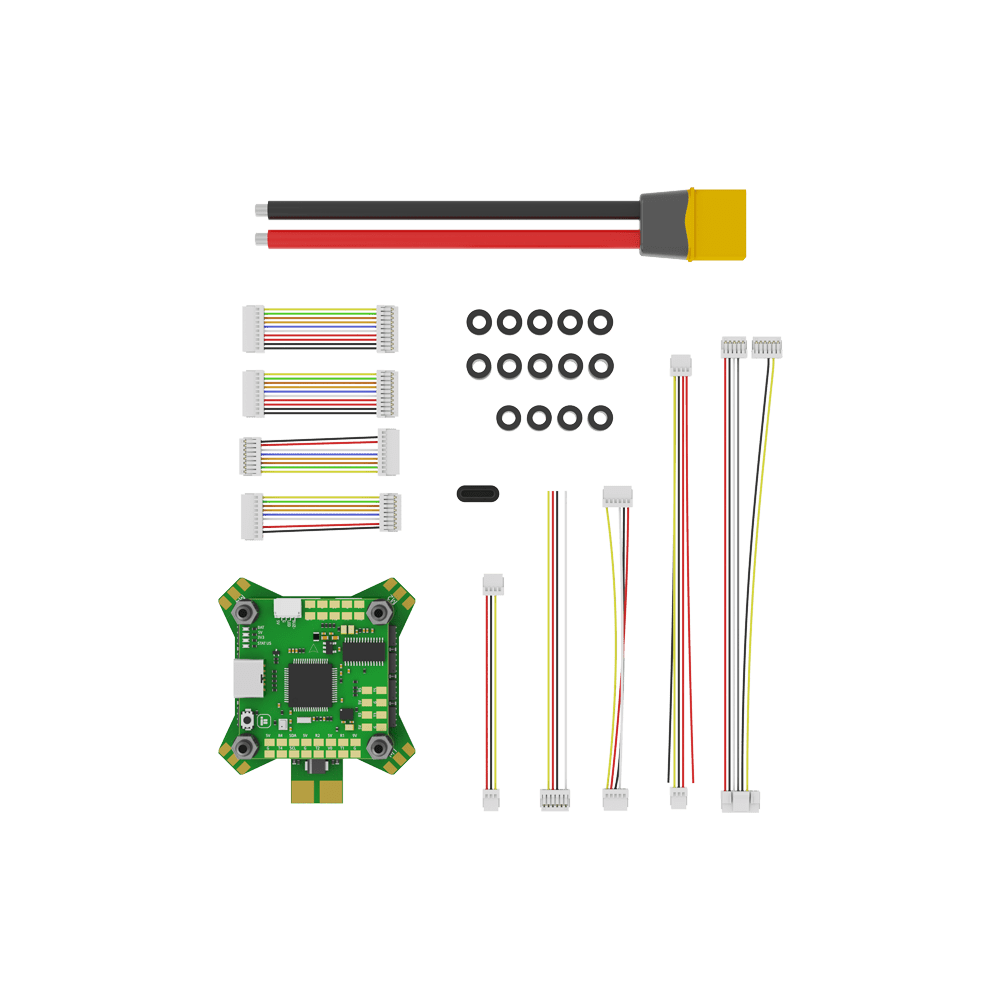

Packing List
1 x BLITZ F7 V1.2 Flight Controller
1 x BLITZ E55 4-IN-1 2-6S ESC
1 x silicon grommets
1 x wire harness for F7 Flight controller
