FETtec High Performance DShot 2400 4in1 45a v1.2 ESC
Check Out The 35Amp Version <—-
FETtec ESC 4in1 high performance DShot 2400 ESC’s with full sine wave control. The most powerful and reliable 4in1 esc for the Fettec FC and Kiss FC. They’ve put a lot of modern engineering design into their ESCs, including software made from the ground up for their FPV hardware.
-
Specifications
- Active current limiting @ 45A
- Input voltage: 3S-6S
- High quality 40V MOSFETs
- STM32G071 @ 64MHz
- 128 kHz motor PWM
- Full sine wave control
- Solder points for up to 5 additional capacitors
- KISS FC Passthrough
- Betaflight pass-through (available from 4.1)
- Automatic input signal detection:
- Dshot 300-2400
- PWM
- OneShot42 / 125
- OneWire BUS with up to 8kHz looptime (one cable for all motor signals and telemetry)
- in development: Crossfire, SBUS
- New FETtec Firmware
- FETtec Configurator for updated, configuration and telemetry. Standalone for MacOS, Windows 32 & 64 bit and Chrome Plugin
- Dimensions: 38mm x 38mm
- Mounting hole: 30.5 mm x 30.5 mm, M3 breakable for M4
When combined with the FETtec Spike Absorber, you can try to prevent this ESC from high voltage spikes that can damage your electronics.
Includes

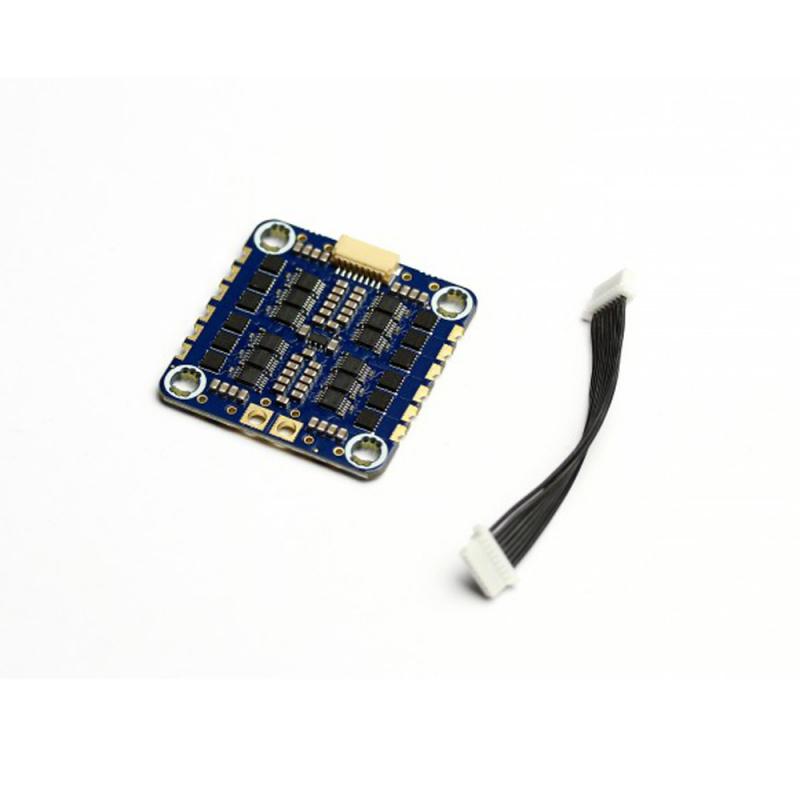

- 1x FETtec 45A 30×30 4in1 ESC
- 1x Capacitor 50V, ESC < 1ohm (477CKE050M)
- 1x JST-SH 8 Pin Cable
