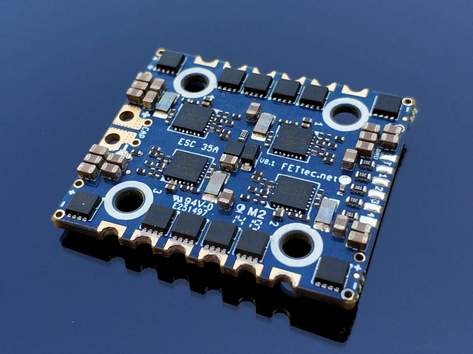

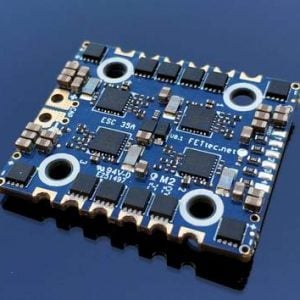

FETtec High Performance DShot 2400 4in1 35a ESC
Check Out The MyFPV Adapter To Make Mounting Easy!

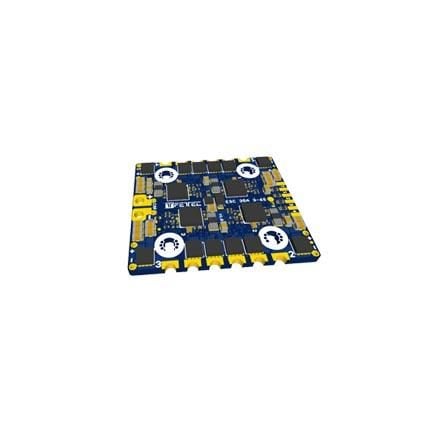

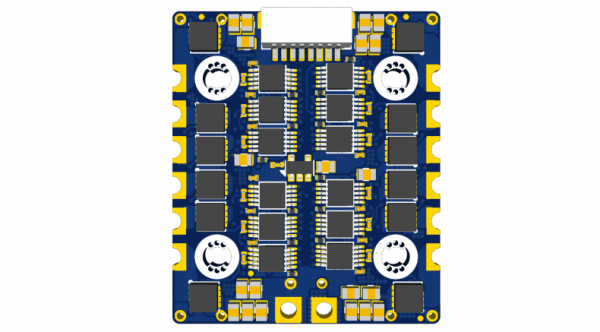

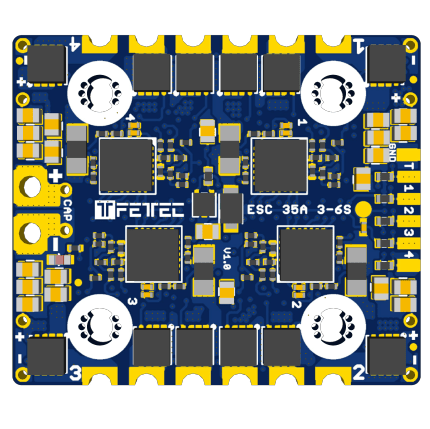

FETtec ESC 4in1 high performance DShot 2400 ESC’s with full sine wave control. The most powerful and reliable 4in1 esc for the Fettec FC and Kiss FC. They’ve put a lot of modern engineering design into their ESCs, including software made from the ground up for their FPV hardware.
- Active current limiting at 35A
- Input voltage: 3s – 6s
- High quality 40V Mosfets
- STM32G071 @ 64MHz
- Dimensions: 30mm x 35mm
- 20mm x 20 mm mounting
- Mounting holes 2mm expandable to 3mm

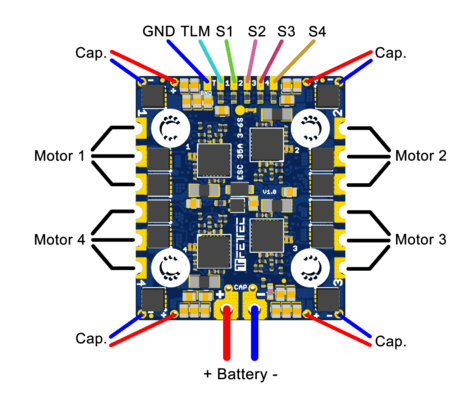

- Soldering holes for up to 5 additional capacitors
- Automatic DShot recognition
- 128 kHz Motor PWM
KISS FC Passthrough, Betaflight Passthrough is in development

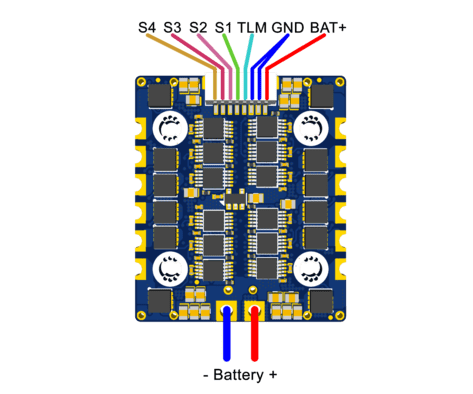

Upcoming Features:One-Wire BUS. All 4 ESC’s and Telemetry through one wire with up to 8kHz Looptime.This means: Only two wires from FC to ESC (Ground + Signal)
