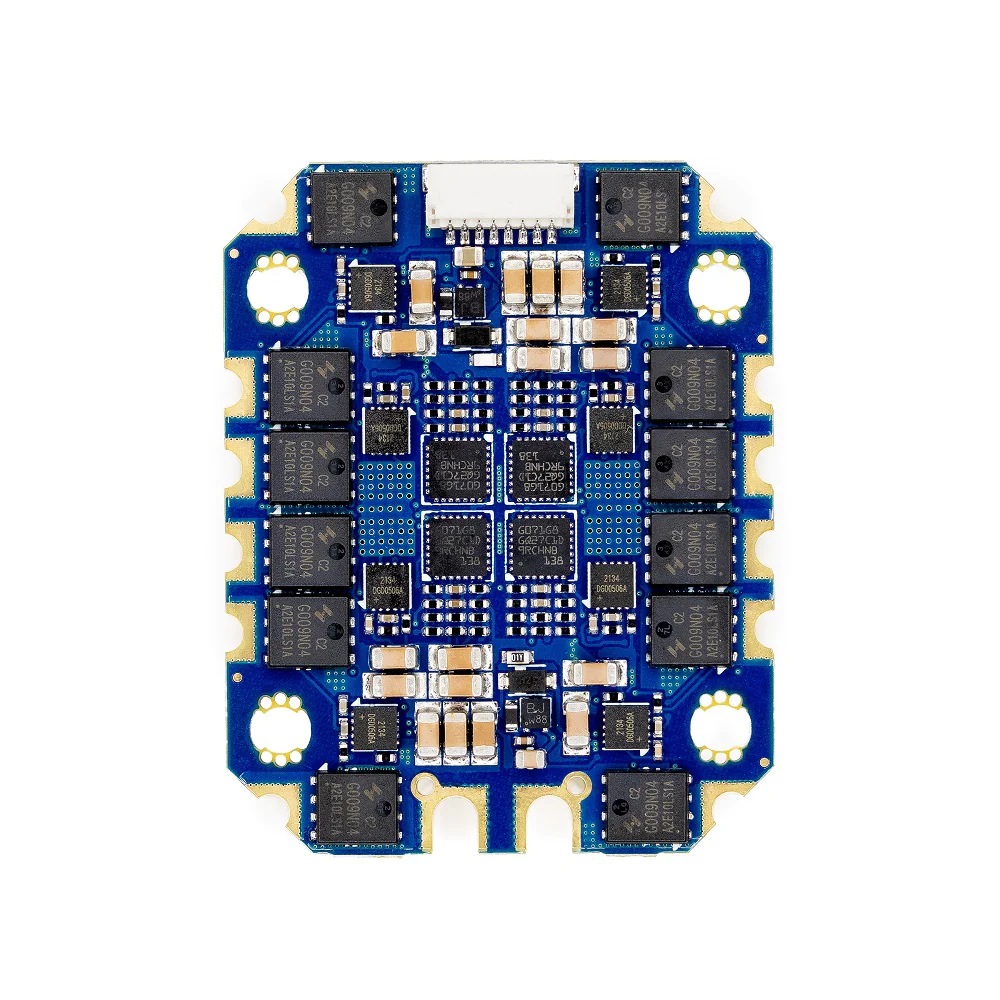

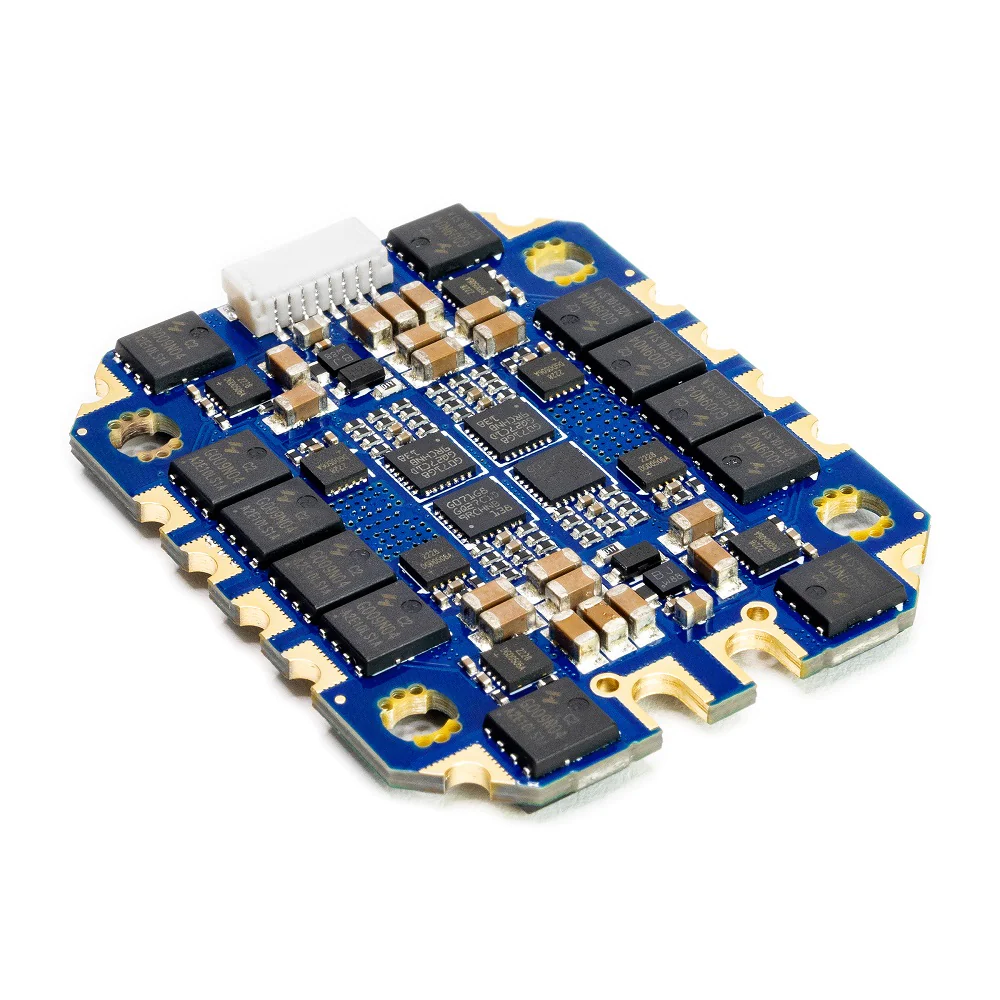

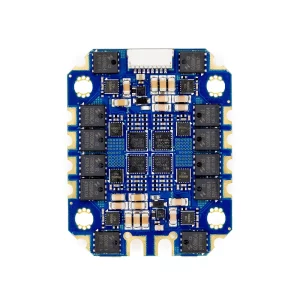

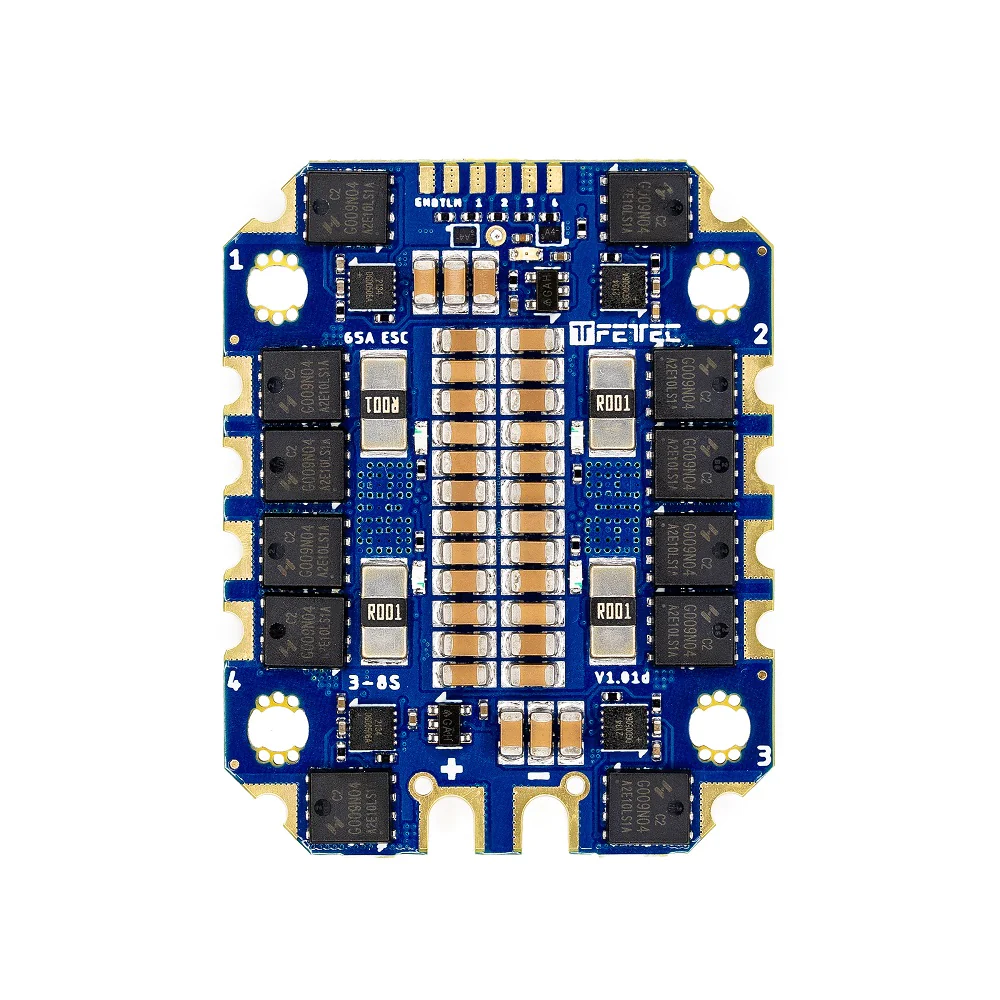

FETTEC 65A 4-IN-1 3-6S ESC – 30X30

See all of our FETtec Products!

Check Out The 35Amp Version <—-

FETtec has released a 4-In-1 8S 65A DShot 2400 ESC to complement the FETtec Flight Controllers and KISS Flight Controllers.  With full sine wave control and all the latest features, this is the perfect ESC to pair with the new flight controller.

FEATURES:

• Active current limiting @ 65A
• Input voltage: 3S-8S
• High-quality 40V MOSFETs
• STM32G071 @ 64MHz
• 128 kHz Motor PWM
• Full sine wave control
• Soldering holes for up to 5 additional capacitors
• KISS FC Passthrough
• Betaflight Passthrough (available in 4.1)
• Automatic input signal detection:
  • Dshot 300-2400
  • PWM
  • OneShot 42/125
  • OneWire BUS with up to 8kHz looptime (one cable for all Motorsignals and Telemetry)
  • S2M

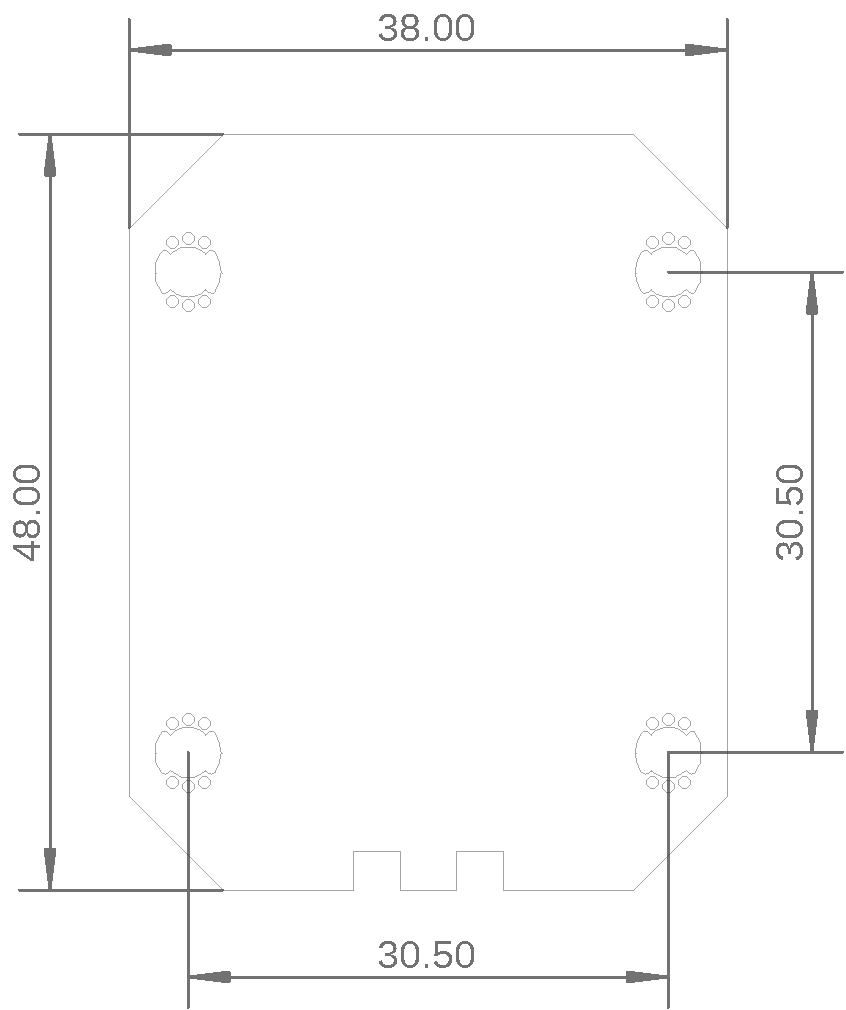

DIMENSIONS:

• Maximum outside dimensions 38 x 48mm
• Mounting hole: 30.5 x 30.5mm, M3 expandable for M4
• Weight: 13.6g

FIRMWARE:

• New FETtec Firmware
• FETtec Configurator for updated, configuration and telemetry. Standalone for MacOS, Windows 32 & 64 bit, and Chrome Plugin
•  FETtec 4in1 ESC 65A Manual
•  FETtec Configurator

PACKAGE INCLUDES:

• 1 x FETTEC 65A 4-IN-1 3-6S ESC – 30×30
• 1 x Capacitor 50V, ESC < 1ohm
• 1 x JST-SH 8-Pin Cable

When combined with the FETtec Spike Absorber, you can try to prevent this ESC from high voltage spikes that can damage your electronics.
