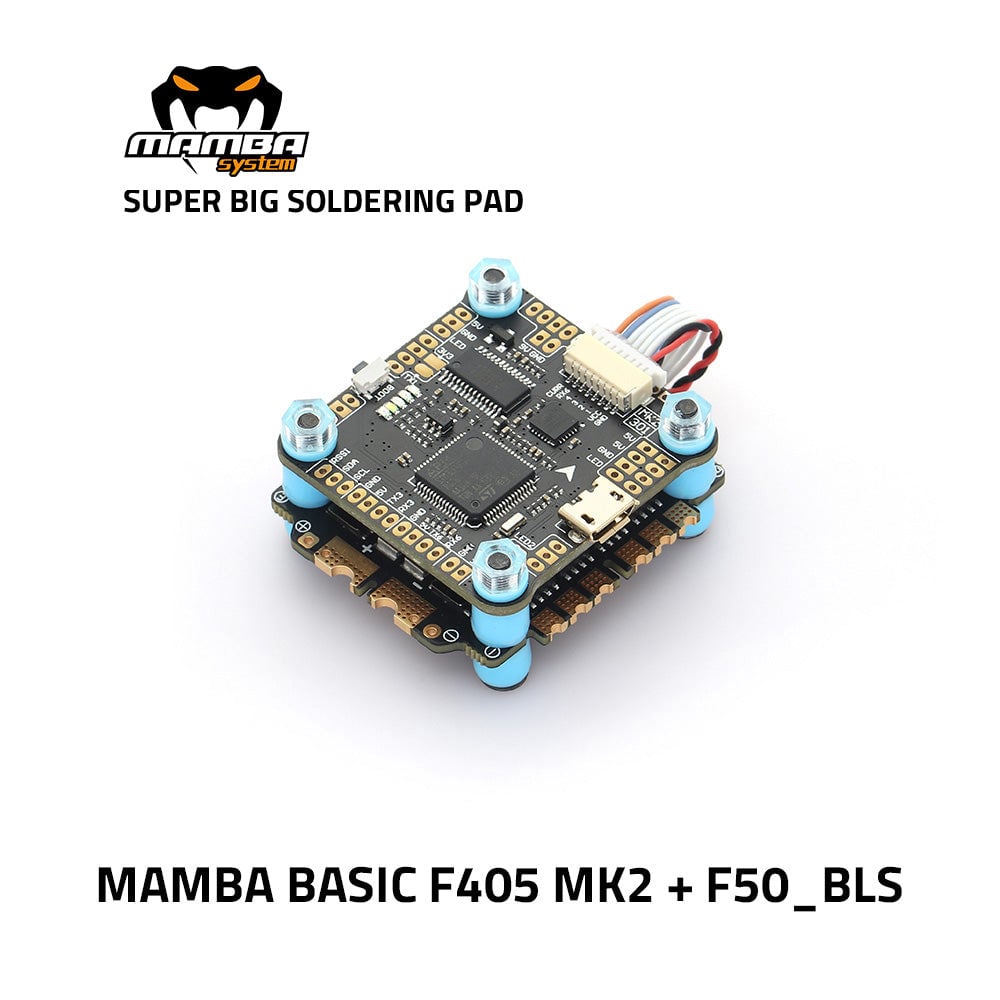

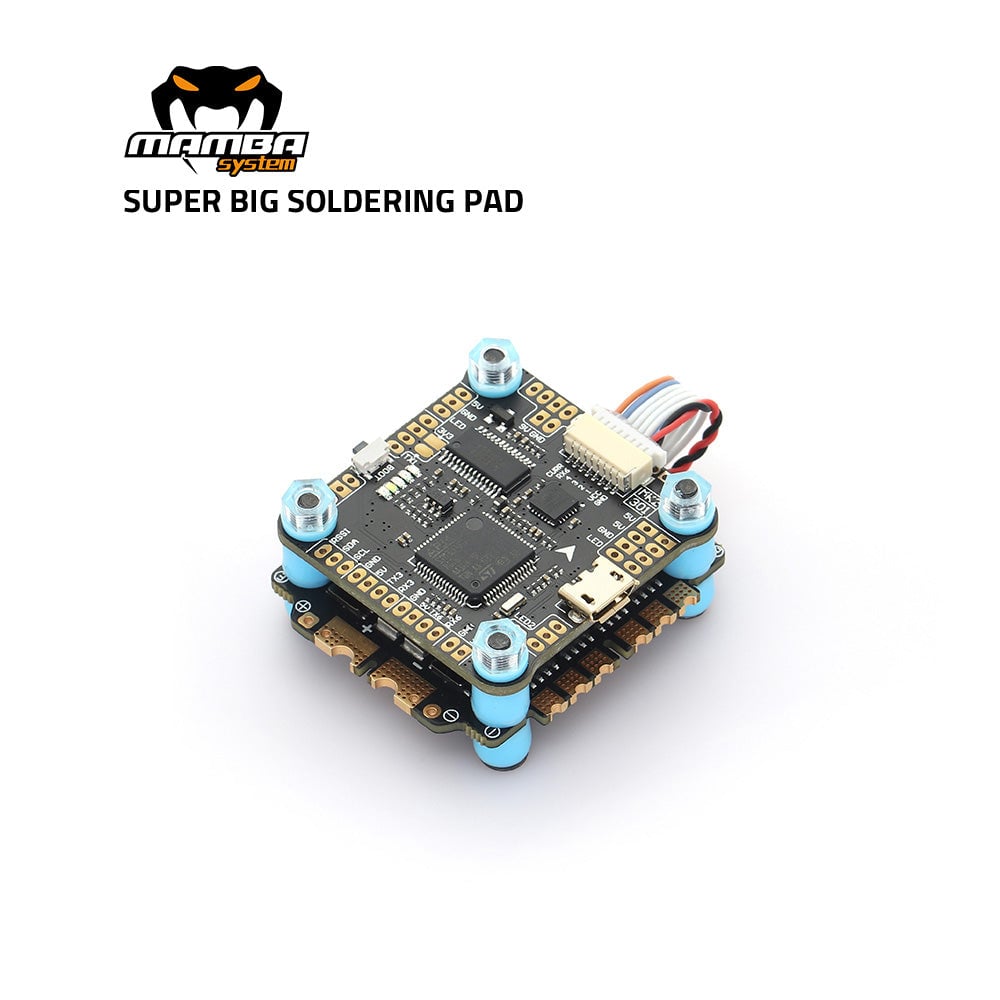

Diatone MAMBA F405 MK2 /50A 8bit 4-6S Flight Controller Stack
Check out all of our Diatone Products!
Specifications:

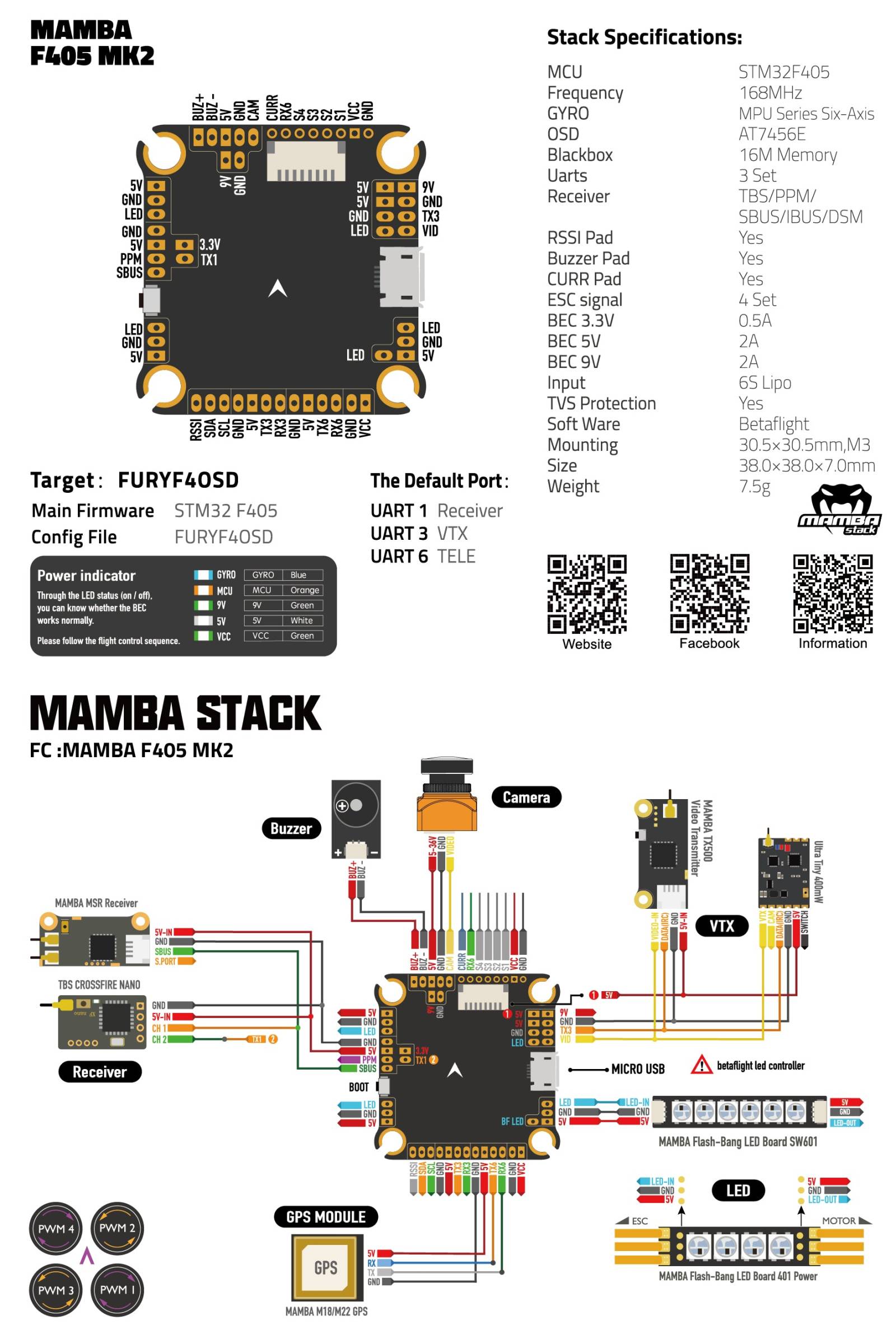

Mamba F405 FC
Item name: F405 Betaflight Flight Controller
Input power: 12.6-25V (3-6S)
BEC:5V 2.5A & 9V 2A
MCU: STM32F405
Gyro: MPU Series Six-Axis
Flash: 16MB
OSD: AT7456
Mounting hole:Â M3
Weight: 6g

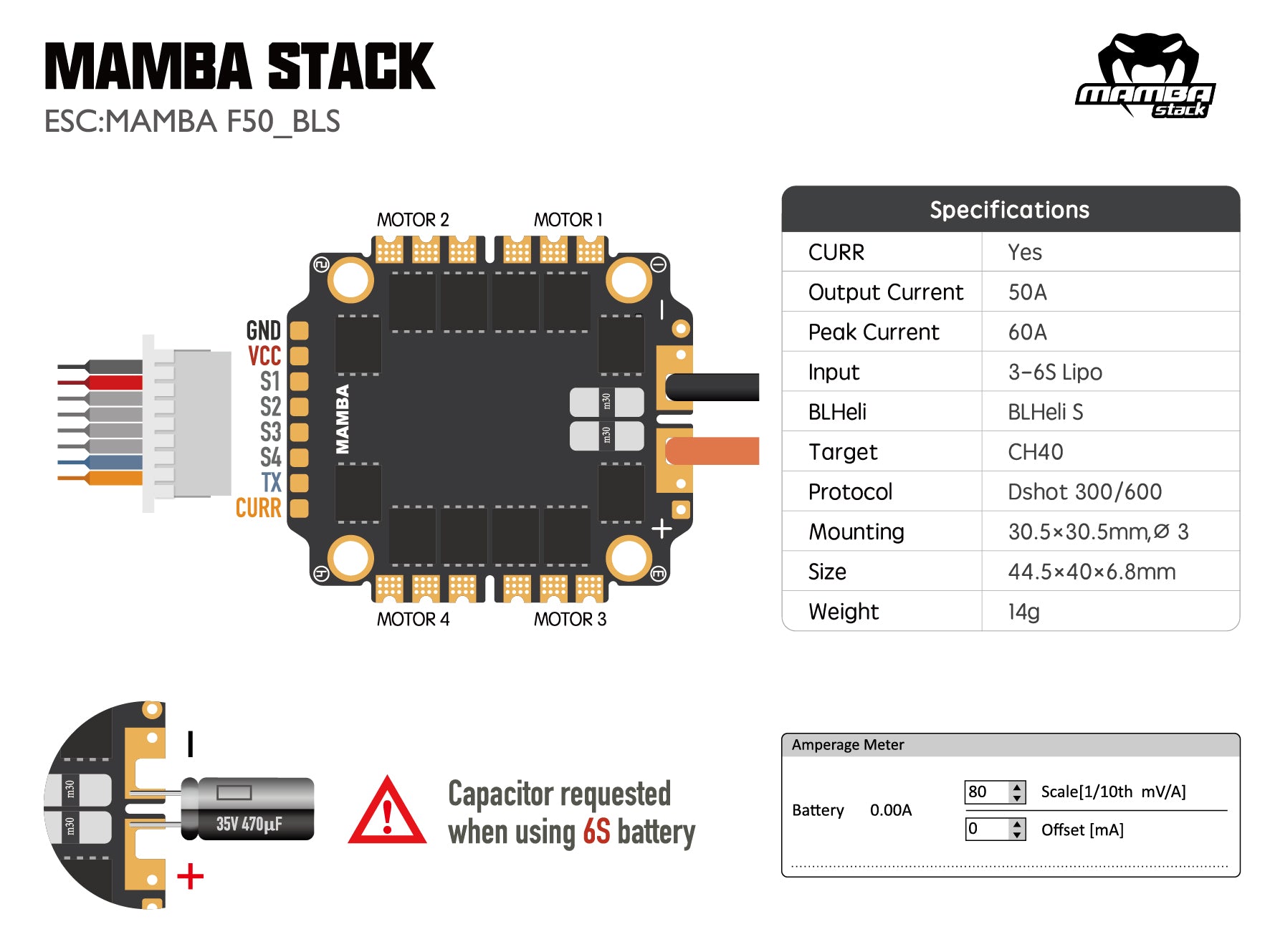

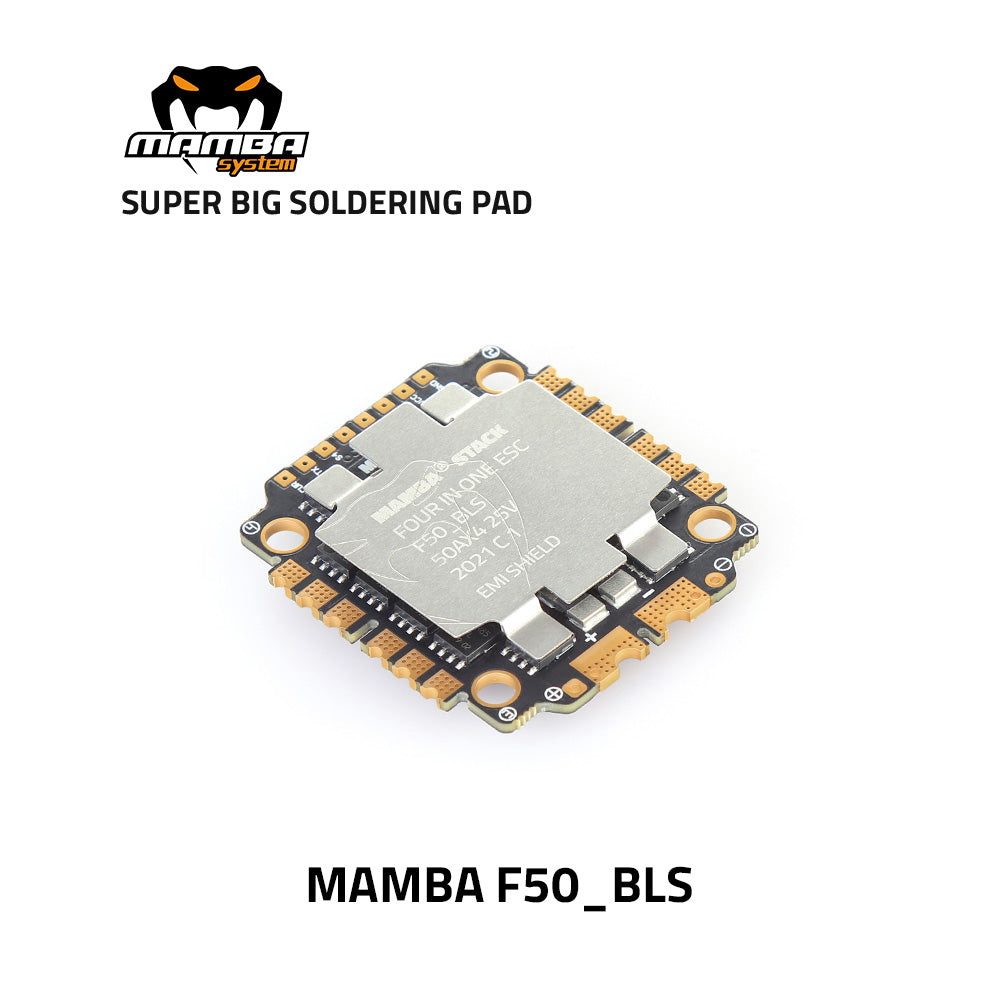

MAMBA F50 BLS
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:50A×4
BURST CURRENT:60A (10S)
BEC: No
Target: BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 30.5mm/M3
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:50A×4
BURST CURRENT:60A (10S)
BEC: No
Target: BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 30.5mm/M3
Mounting: 30mm / φM3
Weight: 10g
