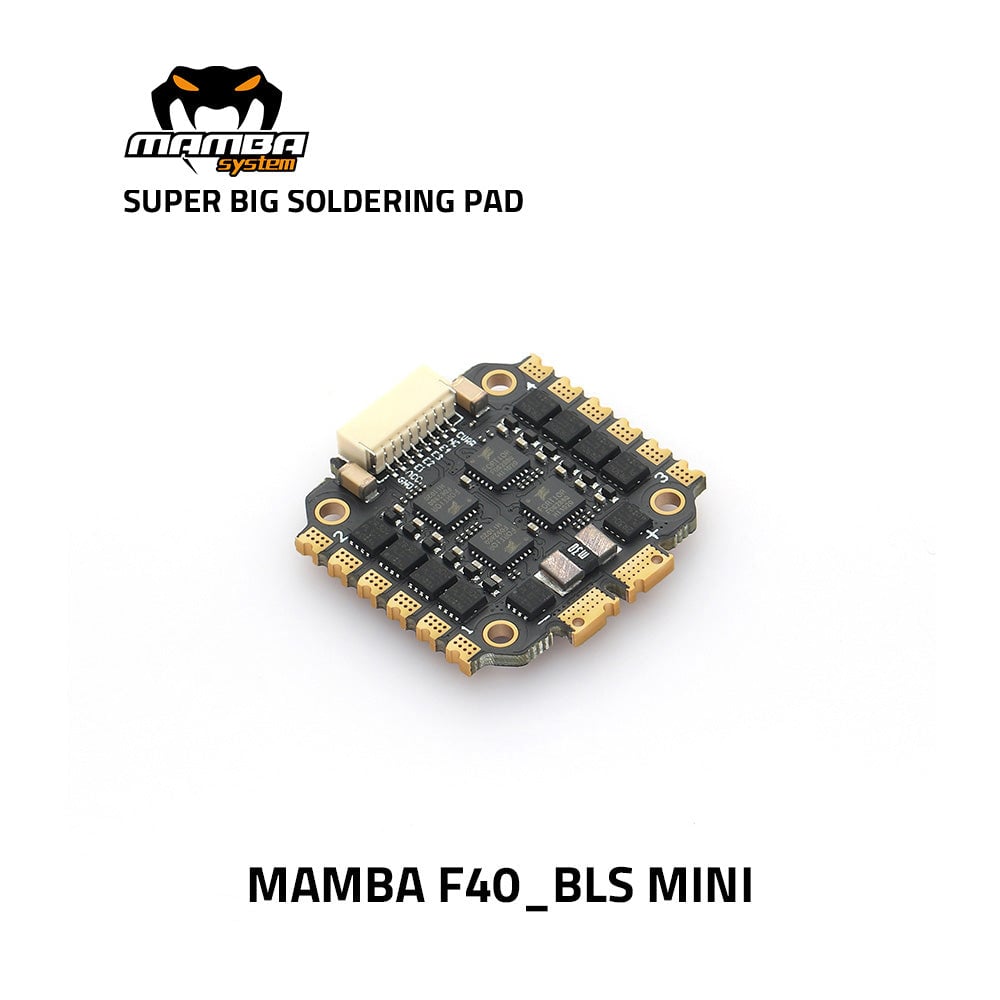

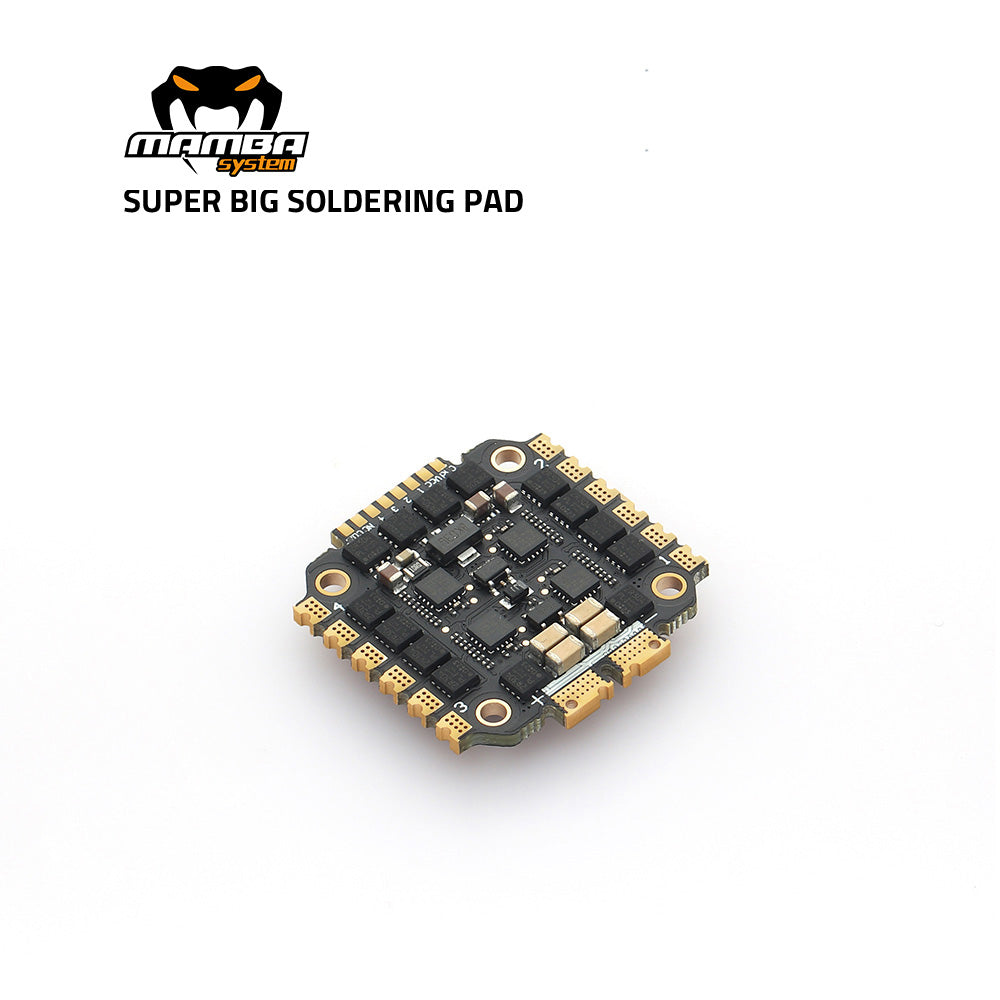

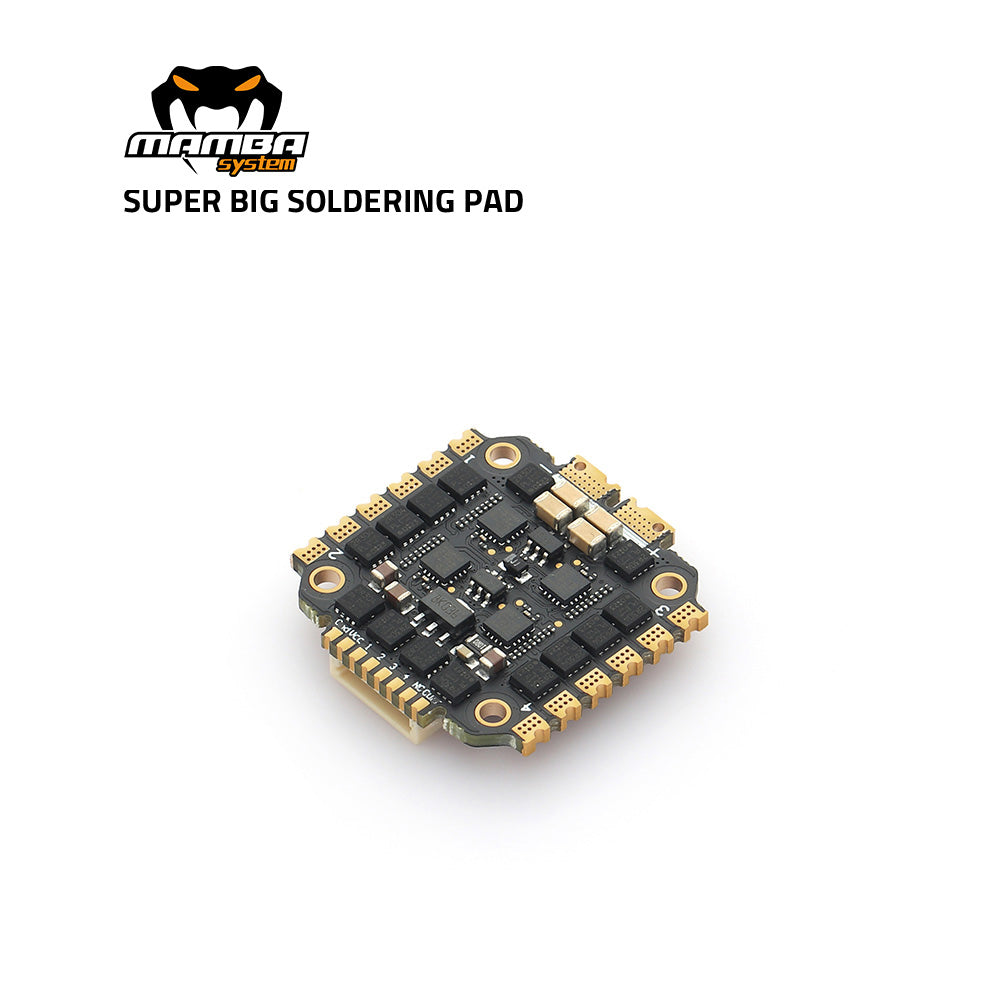

Diatone MAMBA F40 MINI Dshot600 4IN1 ESC 40A 6S
Check out all of our Diatone Products!
Power your compact FPV build with the reliable and powerful Diatone Mamba F40 MINI 4-in-1 ESC. As a trusted name in FPV electronics, Diatone’s Mamba series is known for performance, and this ESC is no exception. With its robust 40A continuous current rating and compact 20x20mm mounting pattern, it’s the perfect choice for high-performance 3-inch, 4-inch, and ultralight 5-inch drones.
The Mamba F40 MINI delivers smooth and dependable power, handling a wide 2-6S LiPo voltage range. This versatility allows you to use it in a variety of builds, from lightweight park flyers to aggressive 6S racers. Running on the proven BLHeli_S firmware with Dshot600 support, this ESC provides the responsive and locked-in feel that pilots demand.
Built for durability, the F40 MINI includes onboard TVS (Transient Voltage Suppression) protection. This crucial feature helps absorb damaging voltage spikes that can occur during active braking or crashes, protecting your ESC and other valuable components. If you’re looking for a powerful, reliable, and compact ESC for your next build, the Mamba F40 MINI is an excellent choice.
KEY FEATURES
- 40A Continuous Current: Provides ample power for demanding motors on up to 6S LiPo.
- Compact 20x20mm Mounting: A “mini” form factor perfect for a wide range of frames where space is limited.
- BLHeli_S Firmware: Offers reliable and proven performance with Dshot600 support.
- TVS Protection: Includes onboard protection against damaging voltage spikes for enhanced durability.
- Ideal for 3″-5″ Builds: Specifically recommended for 3-inch, 4-inch, and ultralight 5-inch drones.
SPECIFICATIONS
- Input Voltage: 2-6S Lipo (8.4V – 25.2V)
- Continuous Current: 40A × 4
- Burst Current: 45A (10S)
- BEC: None
- Firmware Target: BLHeli_S CH40
- Protocol: Dshot300/600
- Mounting: 20mm x 20mm, M2
- Protection: TVS Protection
INCLUDES
- 2x 8pin sh1.0 Cables
- 1x AMASS Original XT60 Connector
- 1x High-Frequency 470uF/35V Capacitor
