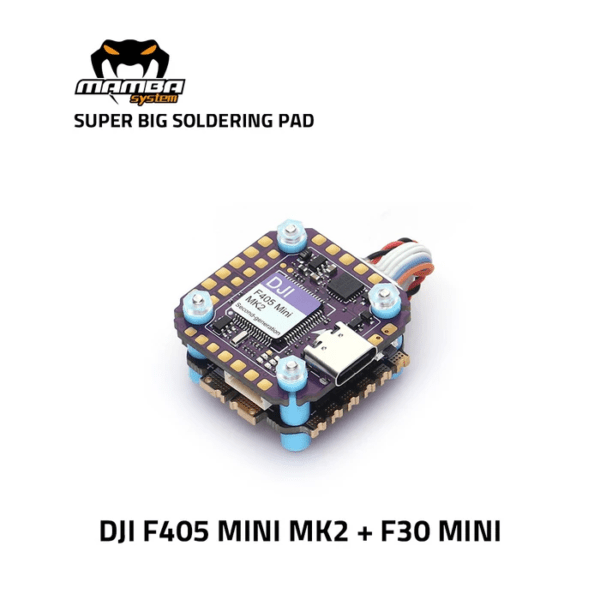

Diatone MAMBA DJI F405 Mini MK2 30A 5S 8bit Flight Controller Stack

FC Specifications

MAMBA DJI F405MINI MK2
MCU: 168MHz STM32F405RGT6
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: No
Uarts: 6 Set
ESC Soft: Dshot300/600/1200
Power Led: Yes
LED Controller: BF LED
F.Port: Yes
RSSI: No
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A /9V 2A
MOUNTING: 20mm, M2

ESC Specifications

MAMBA F30 MINI
INPUT VOLTAGE: 3~5S Lipo
CONTINUE CURRENT: 30A×4
BURST CURRENT: 40A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING: 20mm, M2

Includes:

High-Frequency 330uF/25V ×1
8pin sh1.0 ×2
DJI 8pin ×1
18AWG 60mm ×2
AMASS Original XT30
