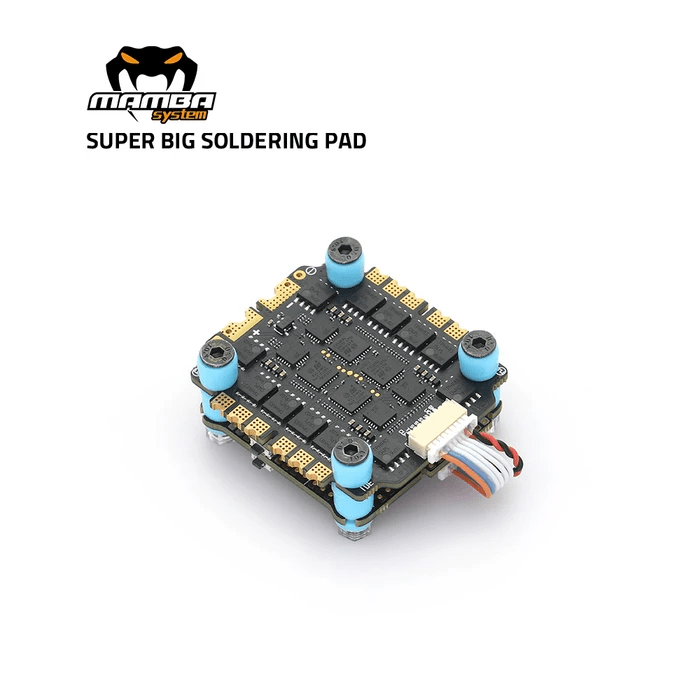

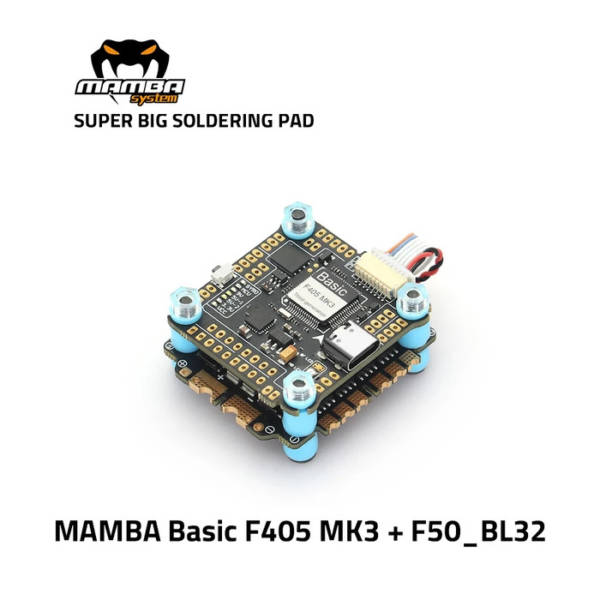

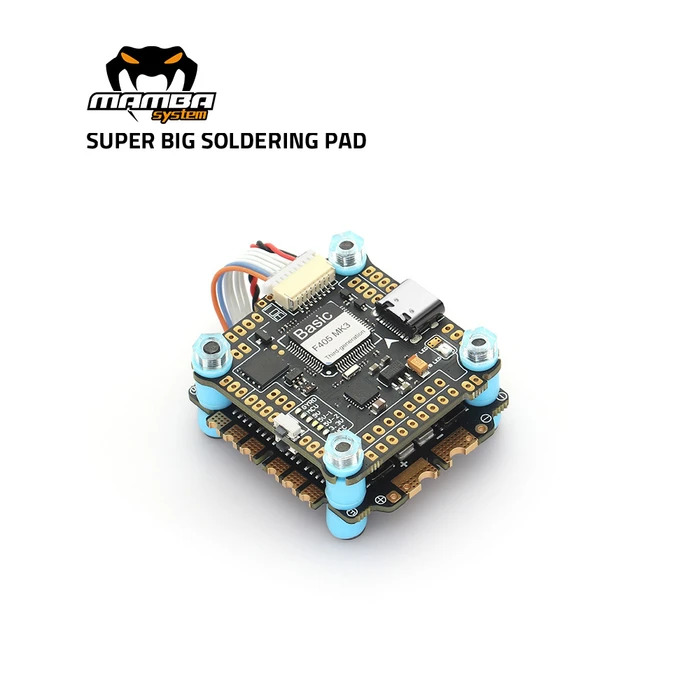

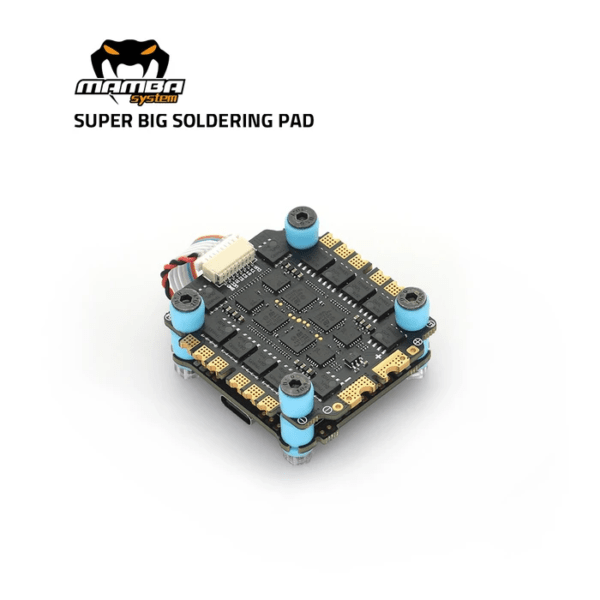

Diatone MAMBA Basic F405 MK3 50A 6S 8bit Flight Controller Stack

Features

• 6 UARTS
• Through-hole soldering pads
• Included XT60 pigtail
• Included flight controller soft mounts

Specifications

Diatone Mamba Basic F405 MK3

• MCU: STM32F405RGT6
• Gyro: MPU6000
• Barometer: Yes
• OSD: Yes
• Blackbox: 16mb Flash Memory
• UARTS: 6 Sets
• ESC Software: DSHot300/600/1200
• ESC Telemetry: Yes
• LED Controller: Yes
• Input Voltage: 3-6s (12.6-25.2V)
• BEC: 3.3V 0.5A / 5V 3A
• Mounting: 30x30mm M3

Diatone Mamba F50_BL32 4in1 ESC

• Input Voltage: 3-6s (12.6-25.2V)
• Continuous Current: 50Ax4
• Burst Current: 60A (10s)
• BEC: No
• Software: DShot300/600/1200
• Target: BLHeli_32 MAMBA F50_BL32
• TVS Protection: Yes
• Mounting: 30x30mm M3

Includes

• 1x Diatone Mamba Basic F405 MK3
• 1x Diatone Mamba F50_BL32 4in1 ESC
• 1x 470uF 35V Capacitor
• 1x AMASS XT60 Connector
• 2x 12AWG 100mm wires (1 Red, 1 Black)
• 2x 8 Pin sh1.0 Cables
