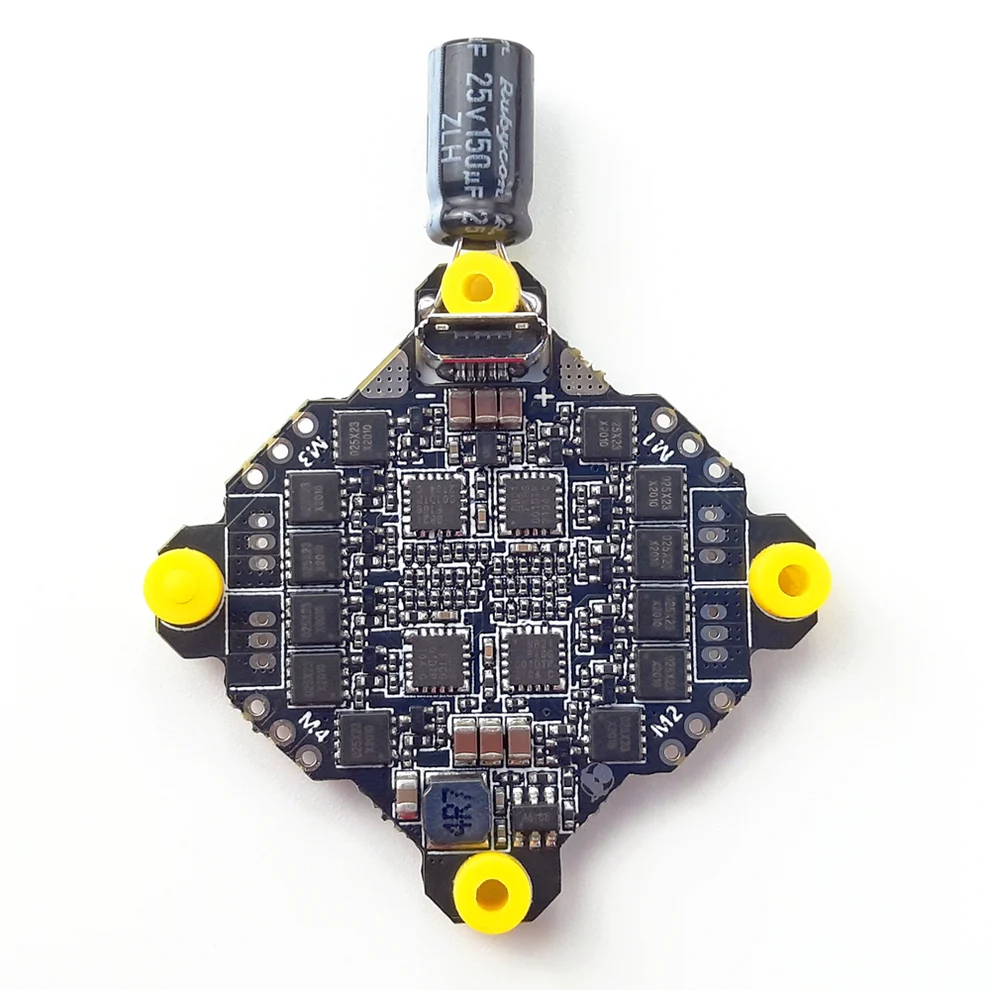

DarwinFPV 1-3S 15A Whoop AIO
See all of our DarwinFPV Products!
This DarwinFPV AIO is a great choice for ultralight FPV drones and Whoop Builds! It even has a pre-soldered capacitor!
Mounting Size: 25.5 x 25.5
ESC Description
- Input voltage: 3.7 ~ 13V DCIN(1 ~ 3 6slipo)
- Constant current: 15A
- Peak current: 17A
- BEC Output: No
- Mcu: 48mhz efm8bb21f16g protocol: dshot/Oneshot/multishot blheli_s
- firmware target: SH-50
- Telemetry: No
- Current Sensor: No
FC Description
- Mcu Specifications: 100mhz stm32f411ceu6
- Imu: MPU6500 (spi) or ICM20689
- Baro: No
- Blackbox: No
- OSD: AT7456E
- 2xuarts (1,2)
- Built-in drive for sbus input (UART1-RX) 1x softserial supported (s5)
- 3.7 ~ 13V DCIN(1 ~ 3 6slipo)
- Bec: 5v 2nd cont. (max 2.5a )
- LDO3.3V:Max 200mA
- Battery voltage sensor: 1:10 (scale110)
- BetaFlight target: MATEKF411
