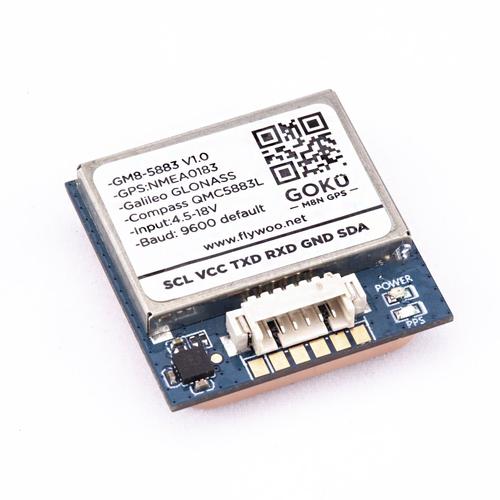

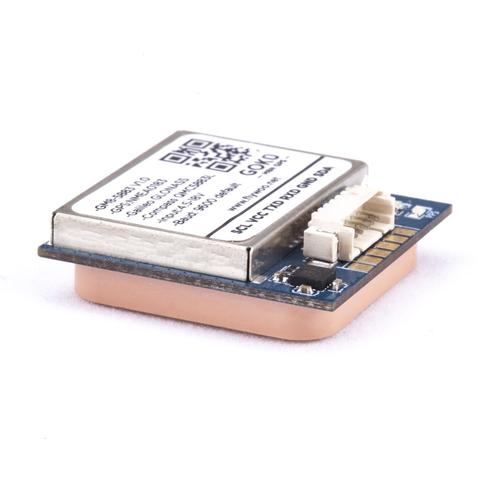

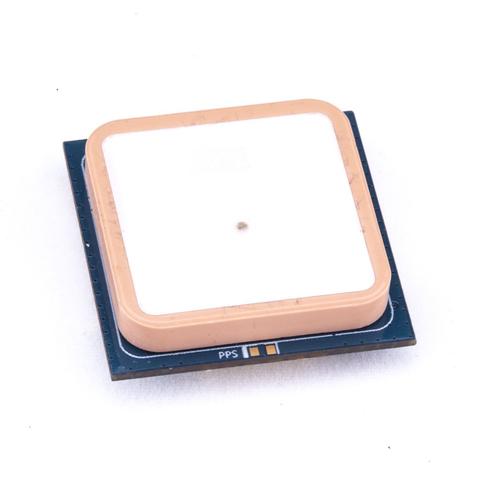

Get precise location data for your drone with the Flywoo GM8-5883 V1.0 GPS module.

Specifications

Dimension :　28mm*28mm*8.5mm
Weight: 10g
Connector: 1.25mm spacing between the 6pins patch seat

Features:

GPS Module, Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat

Specification
Electrical Characteristics
Chipset: M8030-KT
Receiving Format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels: 72 Searching Channel

Sensitivity
Tracking: -167dBm
Reacquisition: -160dBm
Cold start: -148dBm
Hot start: -156dBm

Accuracy
Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity: 0.1m/sec 95% (SA off)
Timing: 1us synchronized to GPS time

Acquisition Time
Cold Start: 26s
Warm start: 25s
Hot start: 1s

Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level: TTL or RS-232, Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits
Altitude : 50,000m Max
Velocity: 515m/s Max
Acceleration: Less than 4g

Power consumption
VCC: DC Voltage 4.5V-18V
Current: Capture 50mA/5.0V
Operating temp:　-40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :
TX LED: RED. The data output, TX LED flashing
PPS LED:red.PPS LED is not bright when GPS is not fixed, flashing when fixed
The Module’s Pins： SCL VCC TX RX GND SDA

Package Includes

1 x GM8-5883 V1.0 GPS Module
1 x 30cm Cable
