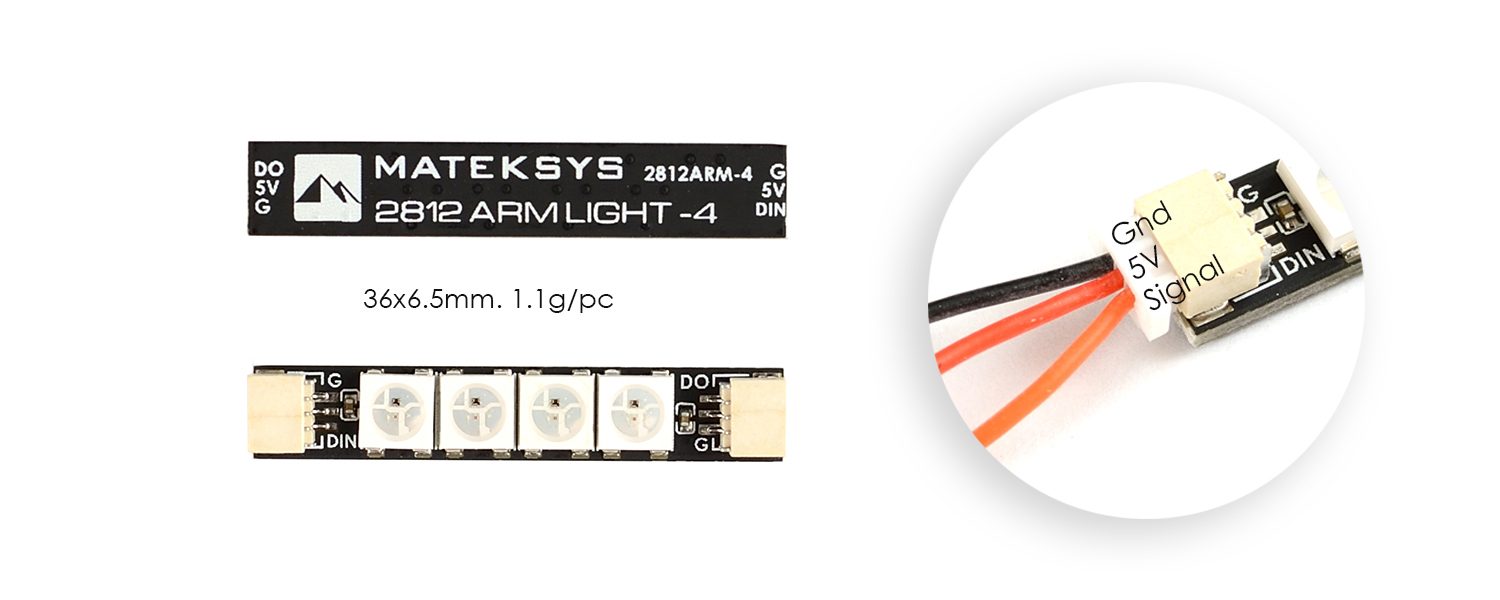

Matek 2812 ARM Light 4 LED (4pcs)
This LED Strip contains 4x LED Bars only! You can purchase the controller here! We also have 2812 6 LED Bars.
Add brilliant, customizable lighting to your FPV drone with this set of four Matek 2812 ARM Light boards. Specifically designed to be mounted on the arms of a quadcopter, each board features four bright, individually addressable RGB LEDs. This kit is the perfect way to improve the visibility of your FPV drone, meet race regulations, or simply add a stunning custom look to your build.
Bright & Customizable Arm Lighting
Each of the four boards in this set contains four WS2812B LEDs, which are known for their brightness and vibrant colors. Because each LED is individually addressable, you can configure them in your flight controller software (like Betaflight) to display an almost infinite combination of colors, patterns, and warnings. This is perfect for setting up race-compliant colors or for creating a unique look for your freestyle FPV drone.
Durable & Easy to Install

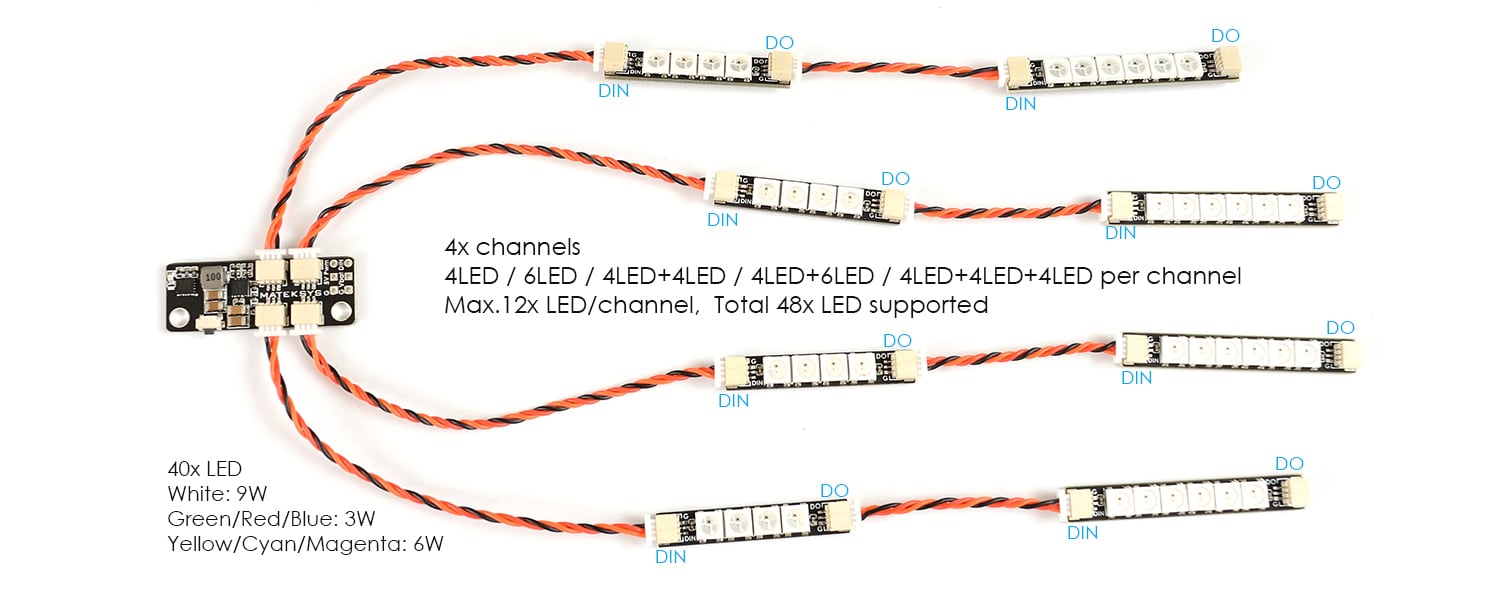

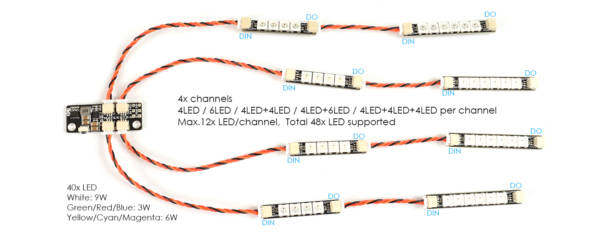

These LED boards are built on a rigid PCB, making them more durable than flimsy LED strips. They are designed to be easily mounted on the arms of most 5-inch FPV drone kits and can be “daisy-chained” together, meaning you only need to run a single signal wire from your flight controller to control all the lights.
Important: What You Need
Please note that these are 5V addressable LEDs. To use them, you will need a flight controller that has a dedicated LED signal pad and can provide a 5V power source. The color and patterns are configured through your flight controller’s firmware (e.g., Betaflight LED Strip tab).
Specifications
- Brand: Matek
- Model: 2812 ARM Light
- LEDs per Board: 4x WS2812B RGB
- Input Voltage: 5V
- Control: Requires Flight Controller with LED Signal Output
- Dimensions: Approx. 35mm x 8mm

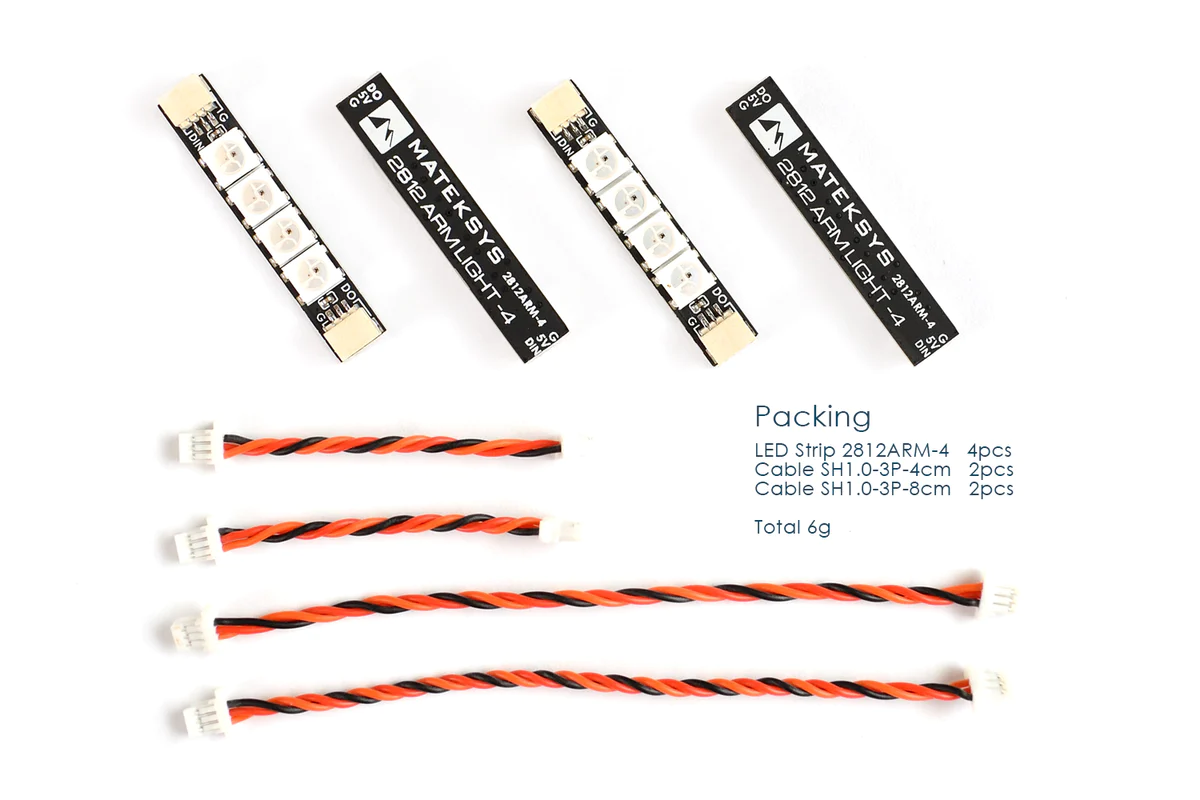

What’s in the Box?
- 4x Matek 2812 ARM Light LED Boards (each with 4 LEDs)
