GEPRC SPAN-F7-BT-HD BLheli_32 50A 4in1 ESC

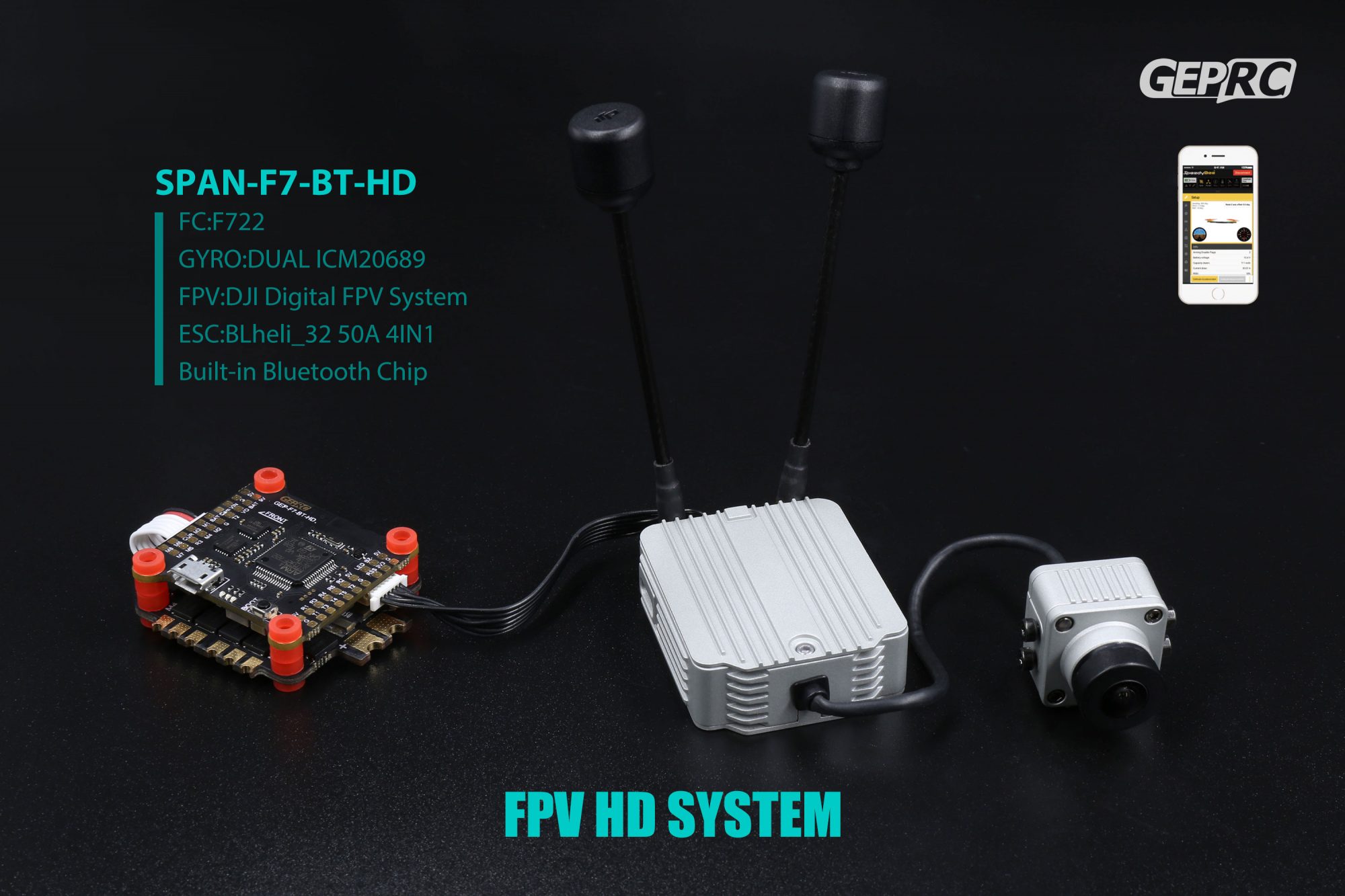

The GEPRC GEP-F7-BT-HD is a new match for the DJI FPV Air Unit, which is very easy. The GEP-F7-BT-HD supports Bluetooth tuning and is very convenient.

SpeedyBee App Download

Android:
https://play.google.com/store/apps/details?id=com.runcam.android.runcambf

iPhone:
https://apps.apple.com/us/app/speedybee-app/id1150315028

Flight Controller Firmware（EXF722DUAL）:
https://github.com/betaflight/betaflight/releases

Main Features:

• MCU: STM32F722RET6
• IMU: 2x ICM20689(SPI)
• Build-In: BlueTooth wireless adapter

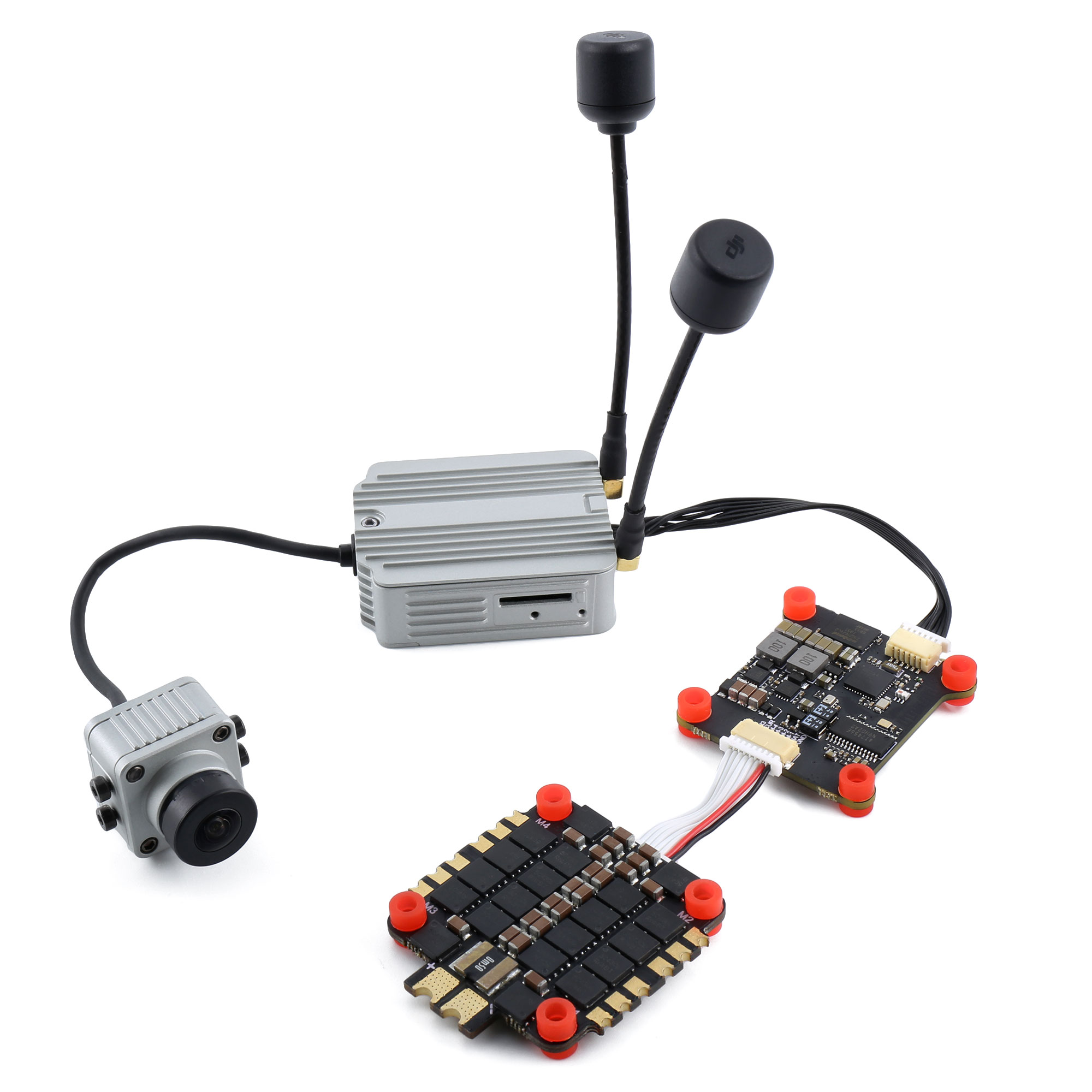

• DJI FPV Air Unit Supported
• BlackBox: 32Mb onboard Flash
• BLheli_32 50A ESC 4in1 3-6S
• Integrated LC Filter
• Simple installation method, compact space
• Supports: Sbus,PPM,CRSF,DSMX,iBus

Specifications:

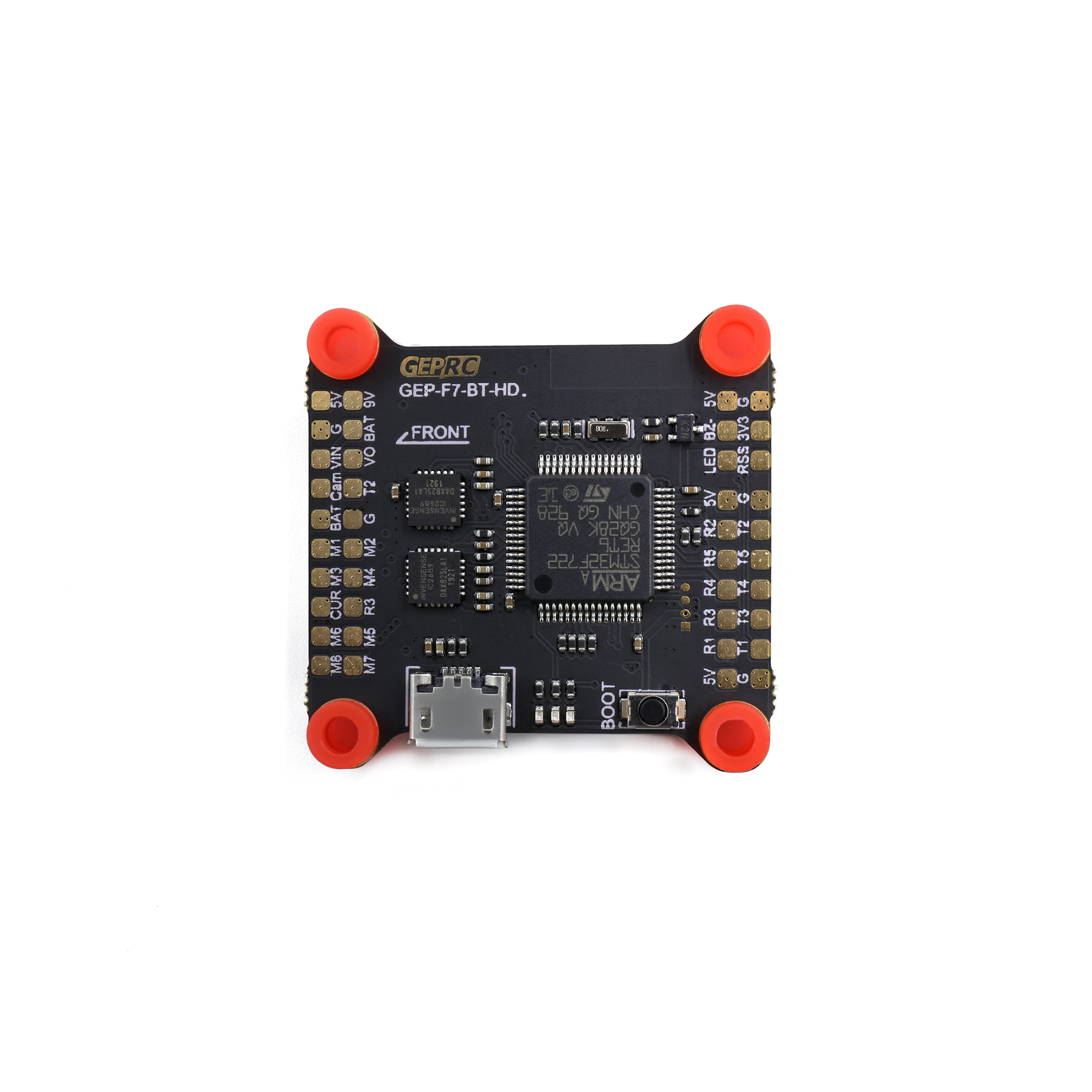

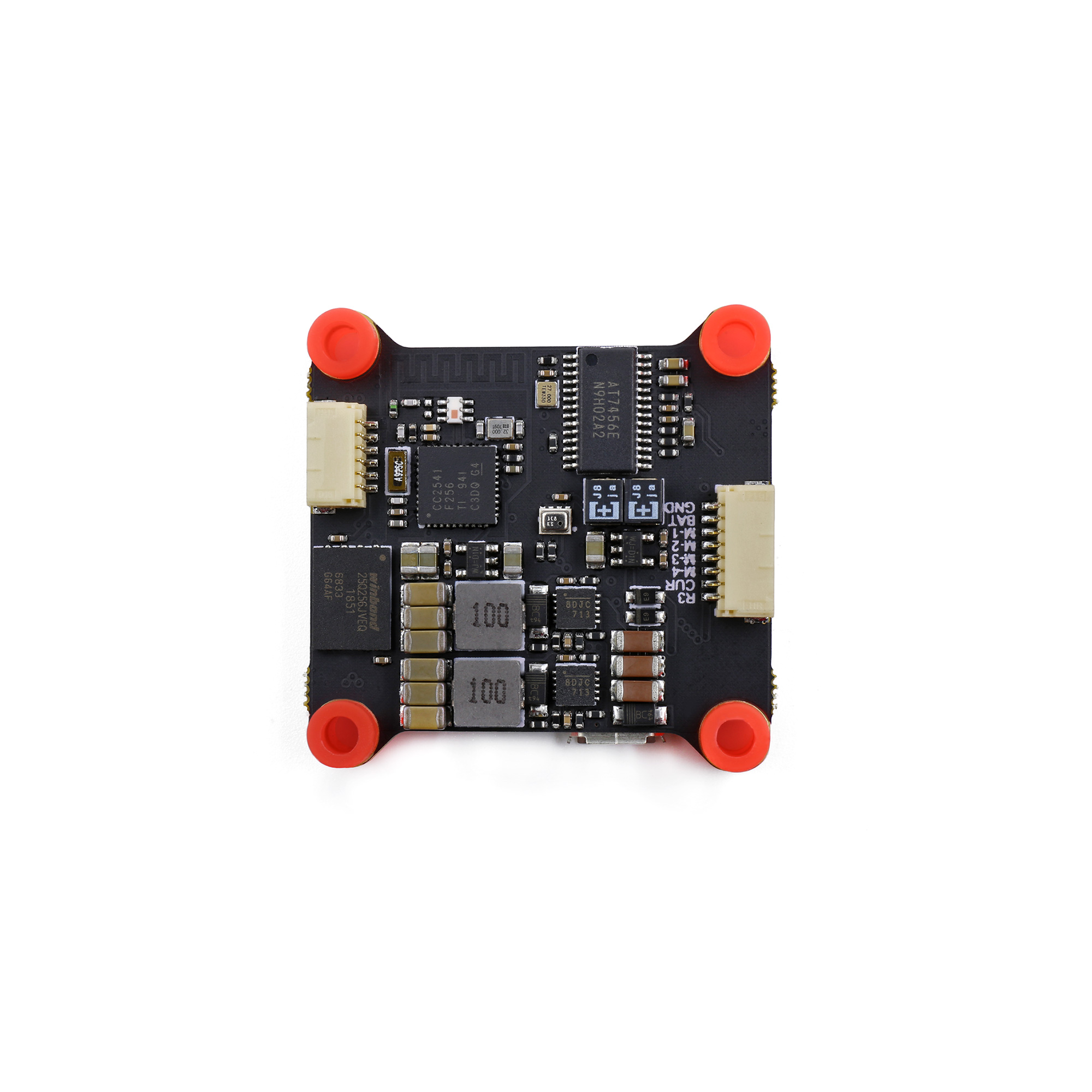

F722 DUAL ICM20689 Flight Controller:

• MCU: STM32F722RET6
• IMU: 2x ICM20689(SPI)
• Build-In: BlueTooth wireless adapter (SpeedyBee APP)
• BlackBox: 32Mb onboard Flash
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro: BMP280
• BEC Output: 5V@2A / 9V@2A
• Integrated LC Filter
• Firmware target: EXF722DUAL
• Size: 36x36mm board, φ4mm with Grommets φ3mm
• Power input: 3-6S LiPo
• 5x UART
• 8x Motor outputs

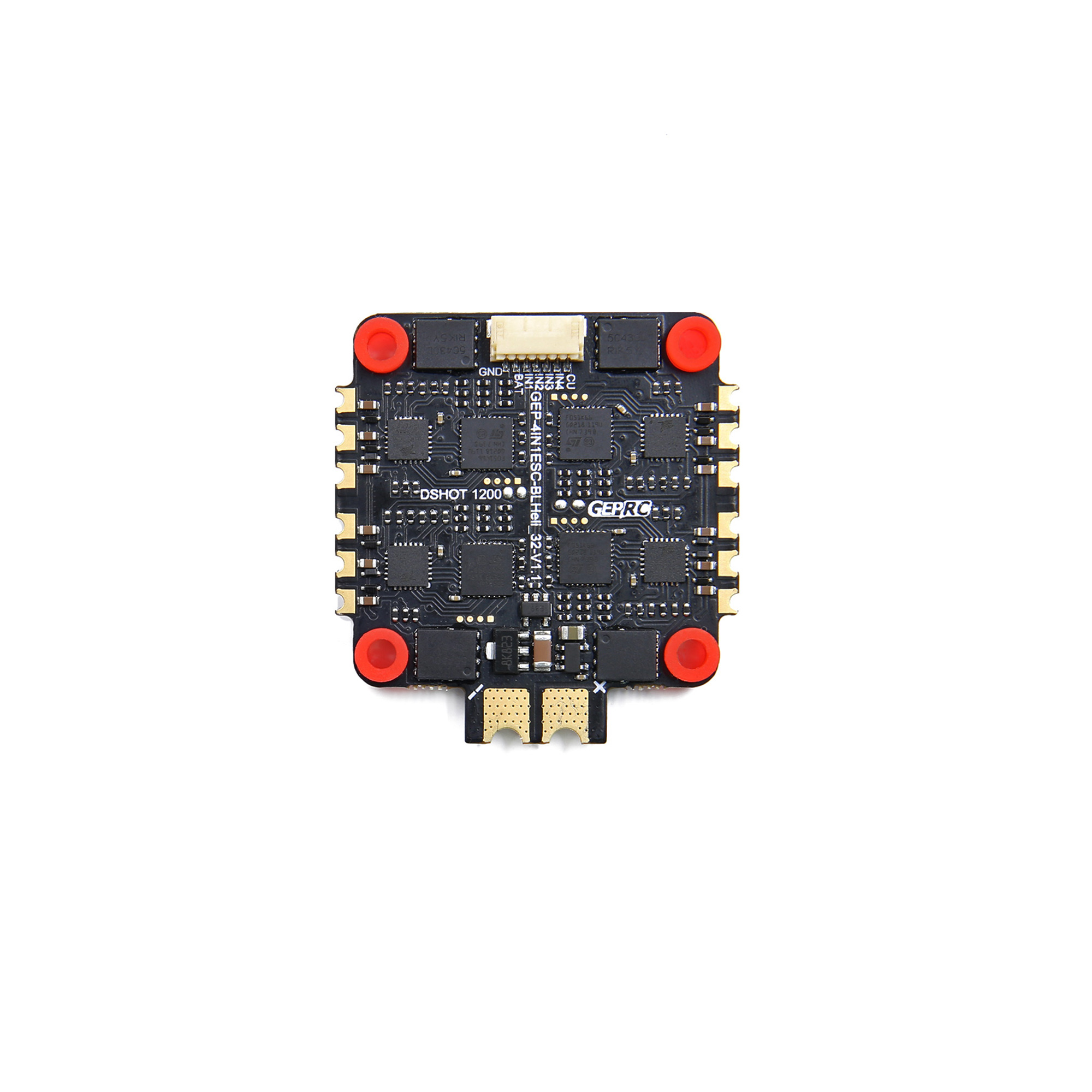

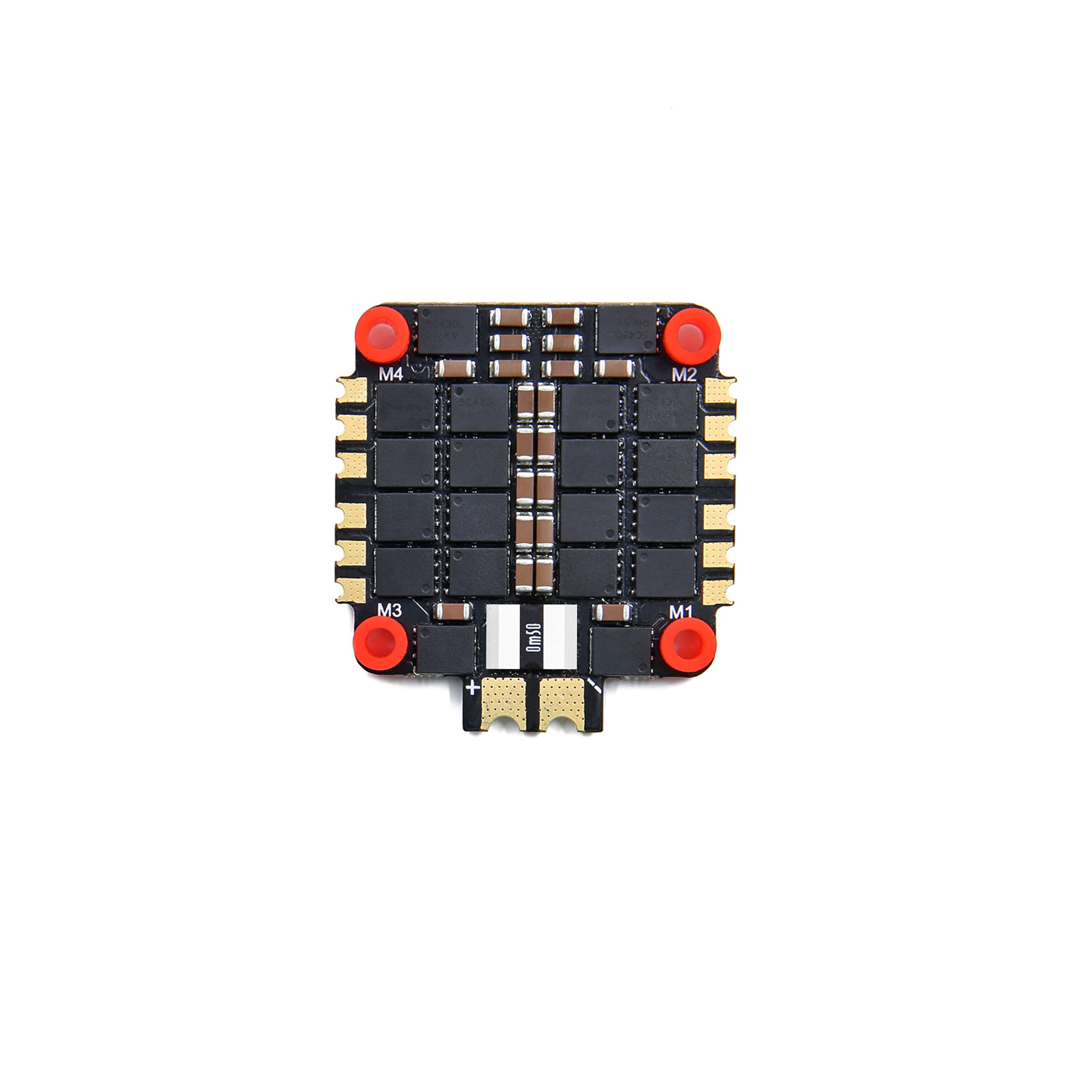

BL32 50A ESC 4IN1:

• MCU: STM32FO51K86(32bit 48mHz)
• Continuous Current: 50A
• Peak Current: 55A (5S)
• Current sensor: YES
• Telemetry: Supported
• Supports DSHOT1200/DSHOT600, PWM, Multishot, OneShot
• Firmware Version:GEPRC-BL32-4IN1
• Input Voltage: 3-6S Lipo

BLHeliSuite download:

http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file

Package Includes:

• 1x F7 Flight Controller Board
• 1x 50A ESC Board
• 1x 8pin Cable
• 1x 6pin DJI Cable
• 1x 35v 220uf Capacitor
• 1x XT60 Power cable
• 12x Silicon grommets M4 to M3
• 4x M3*25 YFS screw
• 4x M3*30 YFS screw
• 8x M3 Nylon nut
