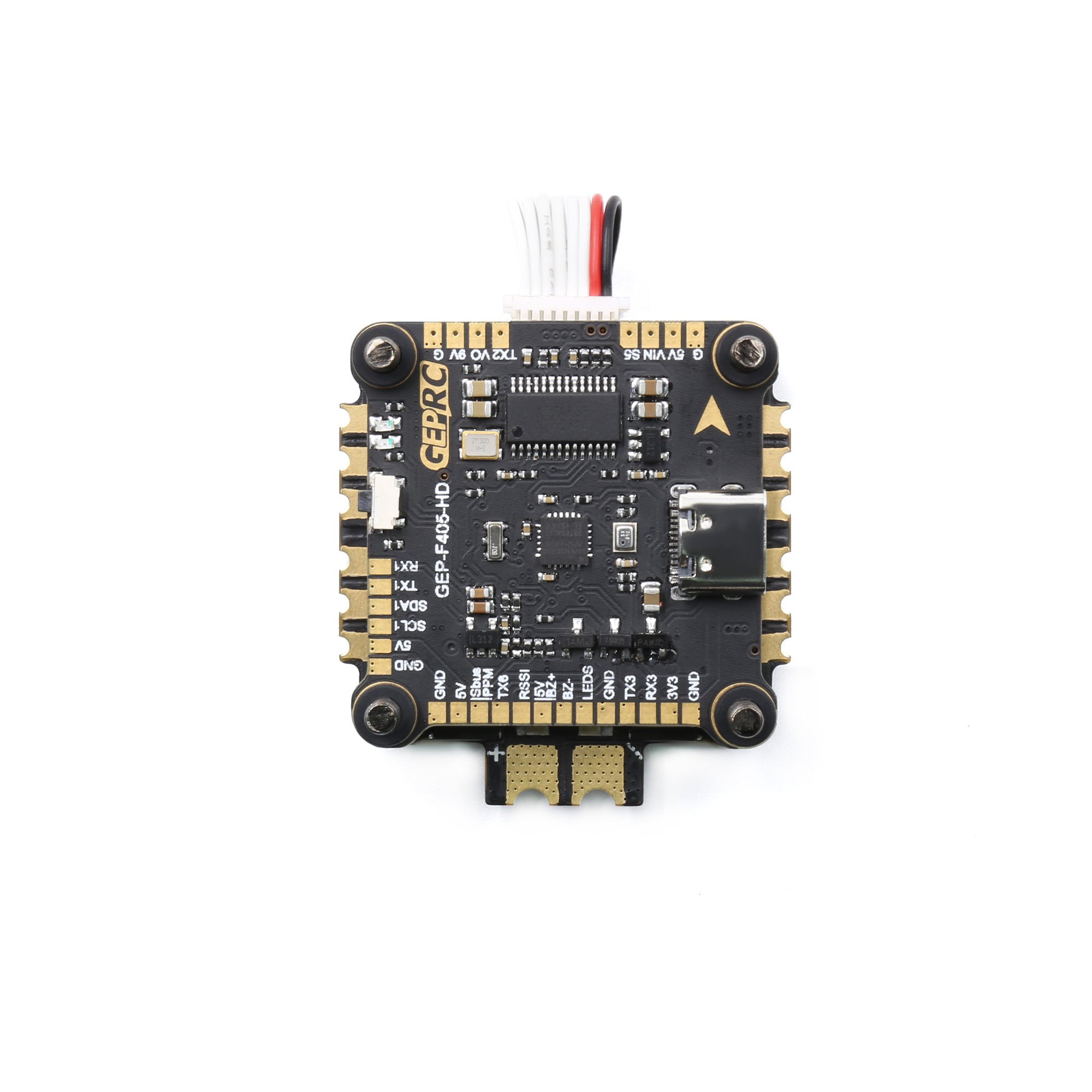

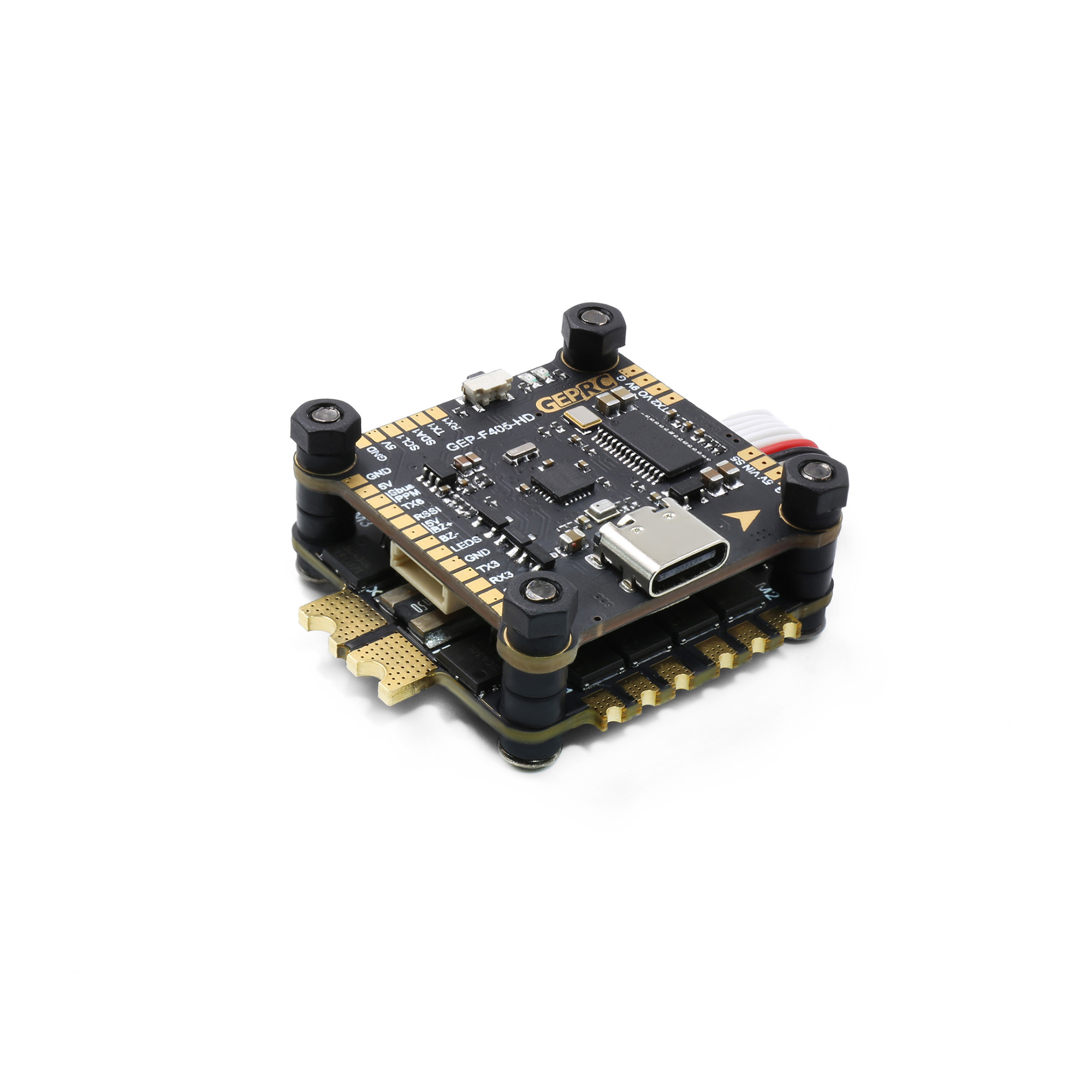

GEPRC SPAN F405 HD Stack
GEP-F405-HD is a plug-and-play flight controller with an F405 chip and a tower flight system with BLheli_32 50A 4 and 1 32-bit electrical modulation. It integrates a 16Mb black box, MPU6000 gyroscope, and barometer for a more delicate hand experience.

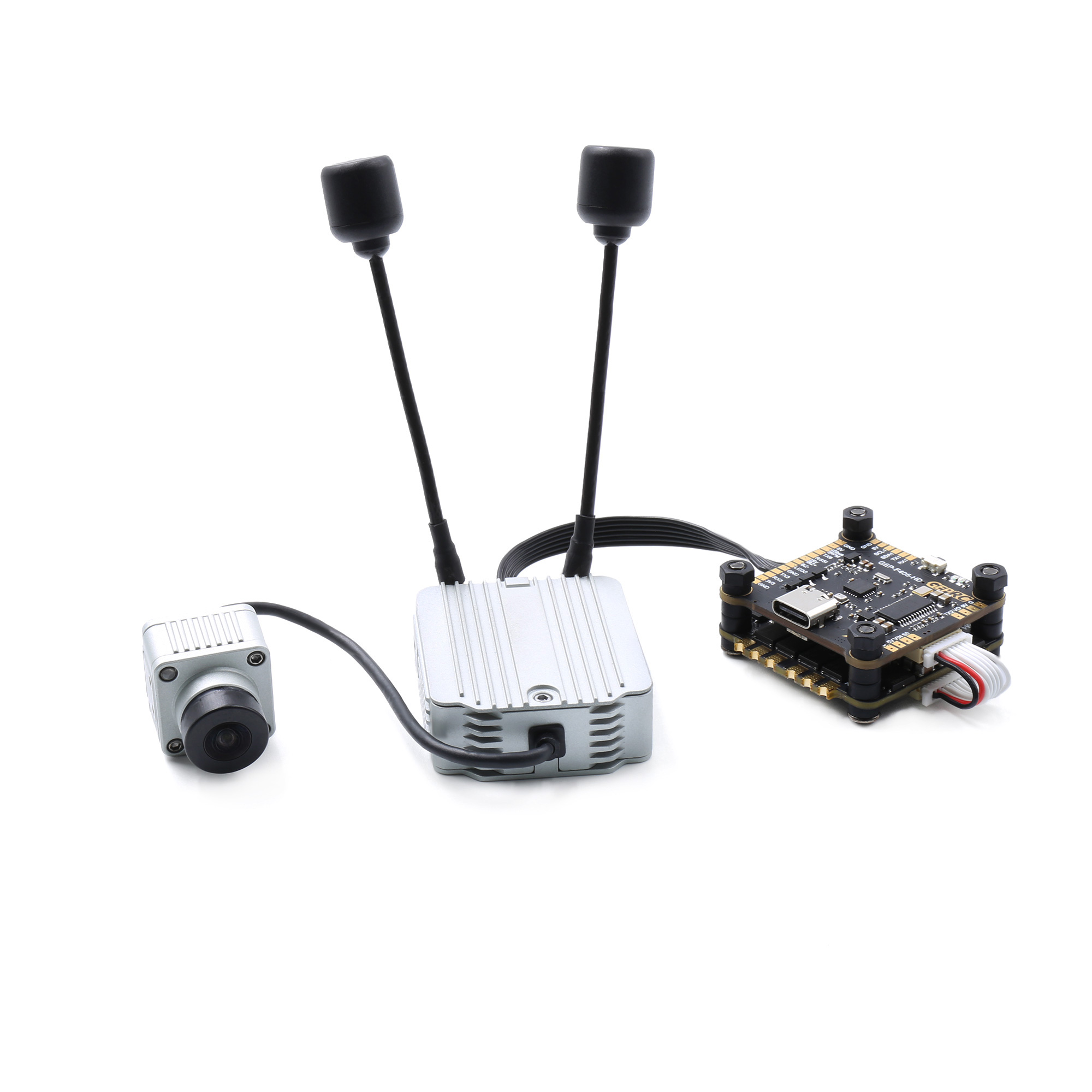

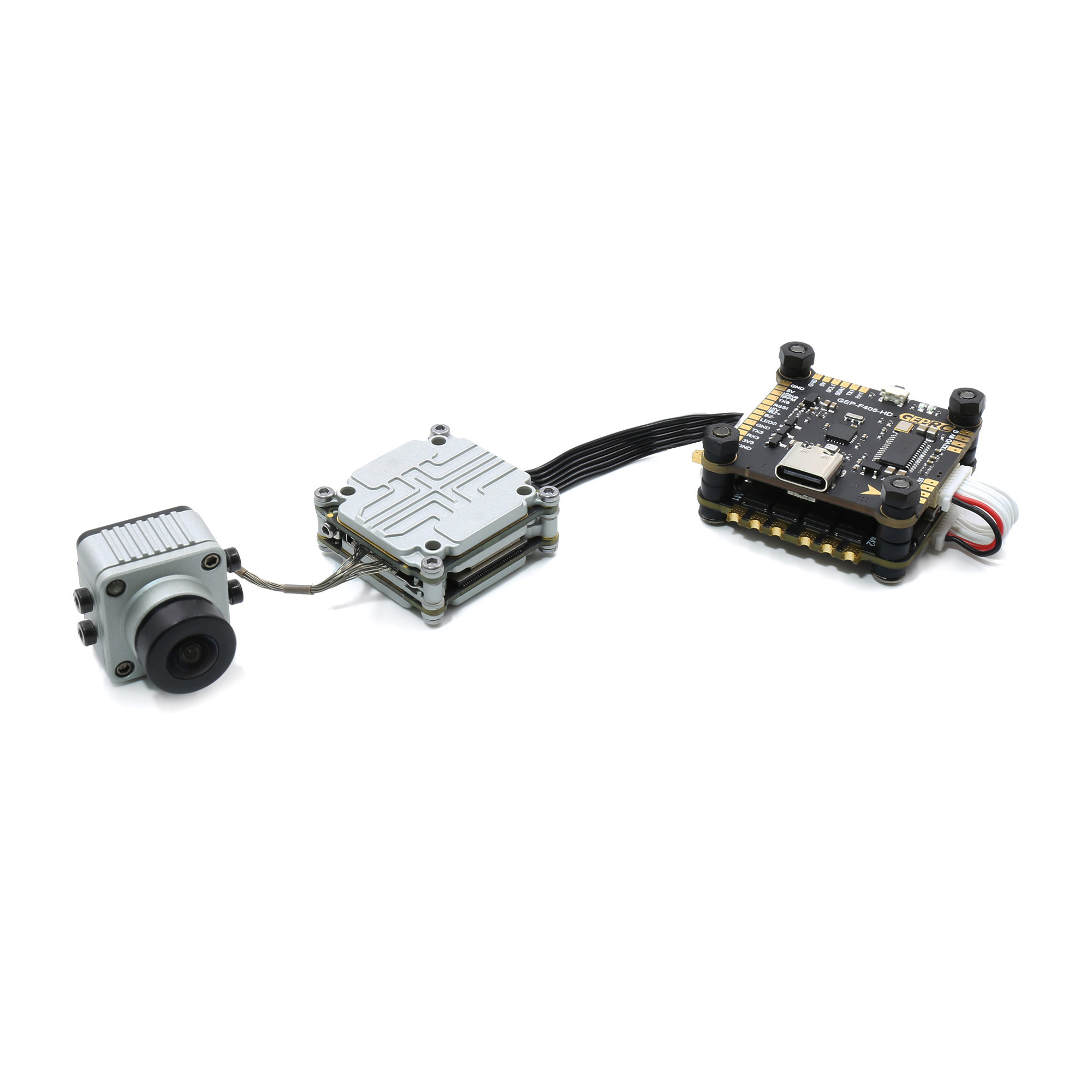

GEP-F405-HD supports direct insertion into the DJI Digital FPV System, which can avoid the trouble of welding. Upgrade the USB interface of Type-C, greatly improve the life of the socket and reduce the risk of bad contact.
GEP-F405-HD can be used together with GEP-G50A-4IN1 for a perfect flight effect.
GEP-F405-HD supports all kinds of receivers, including Sbus, PPM, CRSF, DSMX,iBus, DUMD, and so on. You don’t have to worry about the remote control in your hand can’t be used.
Main Feature:
- MCU: STM32F405
- IMU: MPU6000(SPI)
- BlackBox: 16Mb onboard Flash
- Integrated LC Filter
- Type-C USB interface
- The directly connected DJI Digital FPV System
- BLheli_32 50A ESC 4in1
- Simple installation method, compact space
- Support:Sbus,PPM,CRSF,DSMX,iBus
Specifications:
- MCU: STM32F405
- IMU: MPU6000(SPI)
- DJI FPV Air Unit Supported.
- BlackBox: 16Mb onboard Flash
- Type-C USB interface
- OSD: BetaFlight OSD w/ AT7456E chip
- Baro:BMP280
- BEC Output: 5V,9V BEC
- Integrated LC Filter
- Firmware target:GEPRCF405
- Size: 36x36mm board, φ4mm with Grommets φ3mm
- Power input: 3-6S LiPo
- 6x UART
BL32 50A ESC 4IN1:
- MCU: STM32FO51K86(32bit 48mHz)
- Continuous Current: 50A
- Peak Current: 55A (5S)
- Current sensor: YES
- Telemetry:Supported
- Support DSHOT1200/DSHOT600, PWM, Multishot, OneShot
- Firmware Version:GEPRC-BL32-4IN1
- Input Voltage: 3-6S Lipo
BLHeliSuite download:
http://www.mediafire.com/file/hkln8fcaif5s9l8/BLHeliSuite32_32616a.zip/file
Receiver Support:
- Frsky XM/XM+/R-XSR
- Futaba Receiver
- DSM/DSMX
- FlySky Receive
- TBS Crossfire Receiver
- AC900
- Most receivers that support SBUS

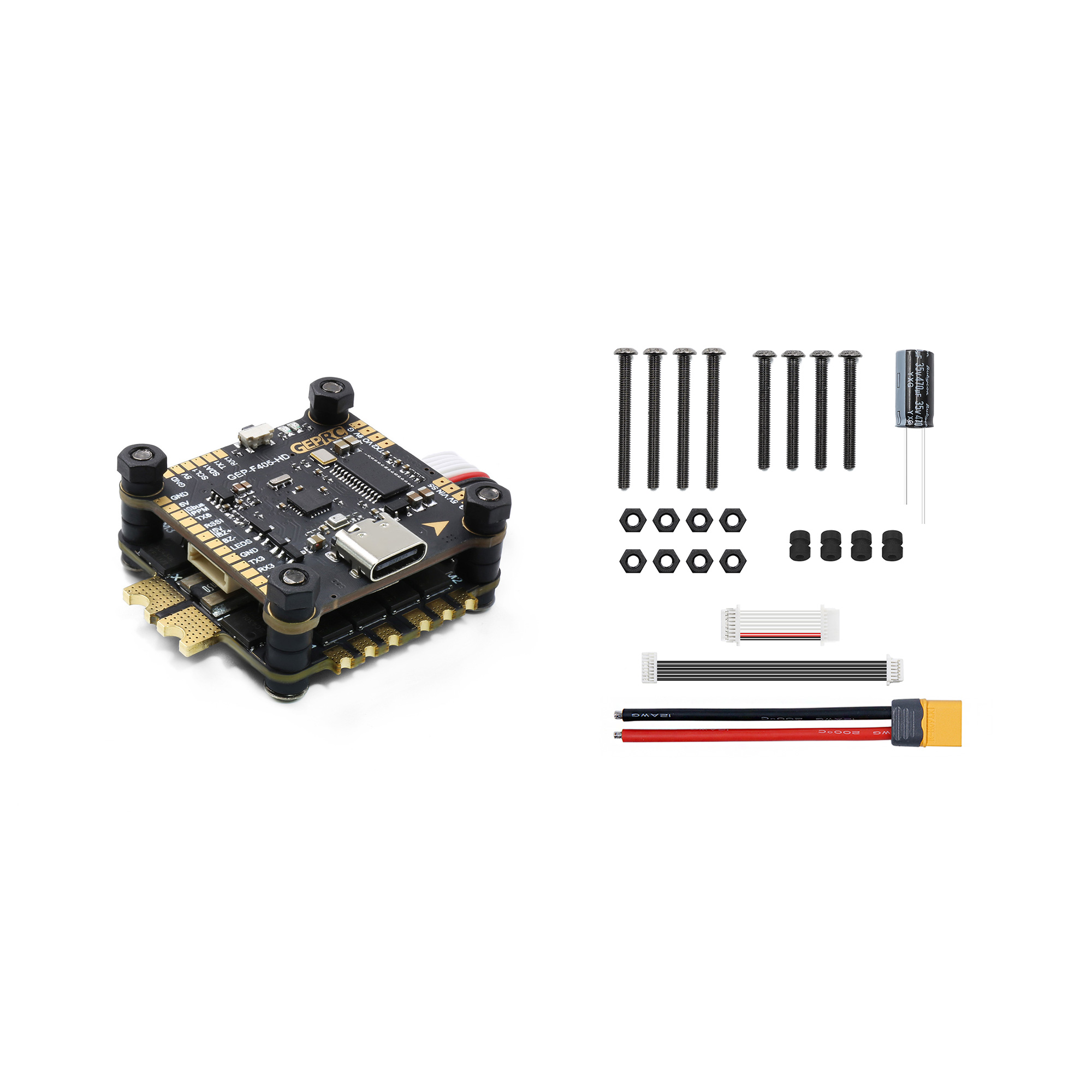

Include:
- 1x GEP-F405-HD Flight Controller
- 1x GEPRC G50A ESC
- 1x 35V 470uf  Capacitor
- 4x Silicon grommets M4 to M3
- 4x M3*22mm Screw
- 4x M3*30mm Screw
- 1x XT60 Power Cable
- 1x ESC Cable
- 1x DJI Cable
