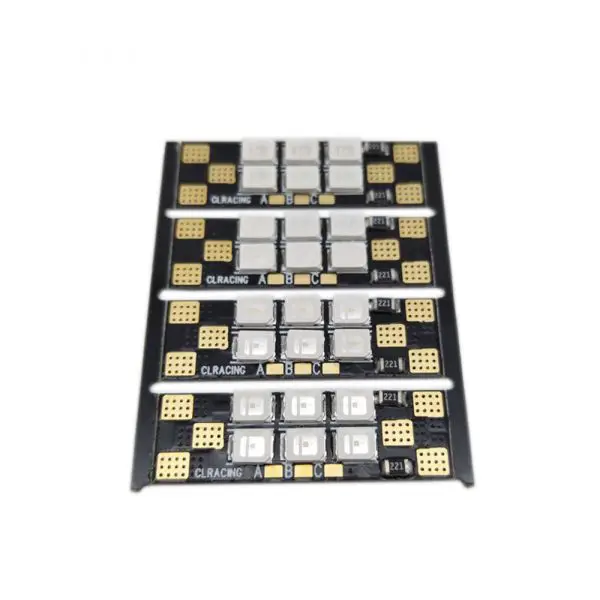

CLRacing Race LED/PCB Wire 4 Pack
Upgrade your FPV drone with the ultimate 2-in-1 accessory from CLRacing. This Race LED Wire pack provides robust protection for your motor wires while adding a strip of six super-bright, programmable LEDs to each arm. It’s the perfect way to add durability and incredible custom style to your racing or freestyle quadcopter.
Say goodbye to race-ending prop strikes on your motor wires. These durable PCB boards act as a shield, replacing the most vulnerable point of the wire on the arm. You simply solder your motor’s phase wires to one end of the board and your main ESC wires to the other, creating a tough barrier that can easily save your motor and ESC from damage in a crash.
Beyond protection, you can light up the sky with six vibrant LEDs on each board. These LEDs are compatible with Betaflight and other flight firmware, allowing you to configure custom colors, patterns, and indicators. With a wide variety of LED colors to choose from, you can customize your quad’s look for racing events, improve line-of-sight visibility, or just stand out at the field. Each pack includes four boards and clear heat shrink, giving you everything you need for a full quad build.
KEY FEATURES
- 2-in-1 Functionality: Combines motor wire protection with 6 bright, programmable LEDs on each board.
- Prop Strike Protection: Provides a durable PCB soldering point to shield motor wires from damage.
- Customizable LEDs: Configure colors and patterns in Betaflight for racing, line-of-sight, or style.
- Wide Voltage Input: Compatible with 3-6S LiPo, allowing for easy power from your ESC pads.
- Complete Quad Set: Each pack includes 4 LED boards and clear heat shrink for a full build.
SPECIFICATIONS
- Input Voltage: 3-6S LiPo
- LED Quantity: 6 per board
- Dimensions: 9mm x 35mm x 1.6mm
- Weight: 1.1g per board
- Unit Quantity: 4 pieces per pack
- Available LED Colors: Red, White, Blue, Green, Pink, Purple
INCLUDES
- 4x CLRacing Race LED Boards
- 4x Clear Heat Shrink Tubes
