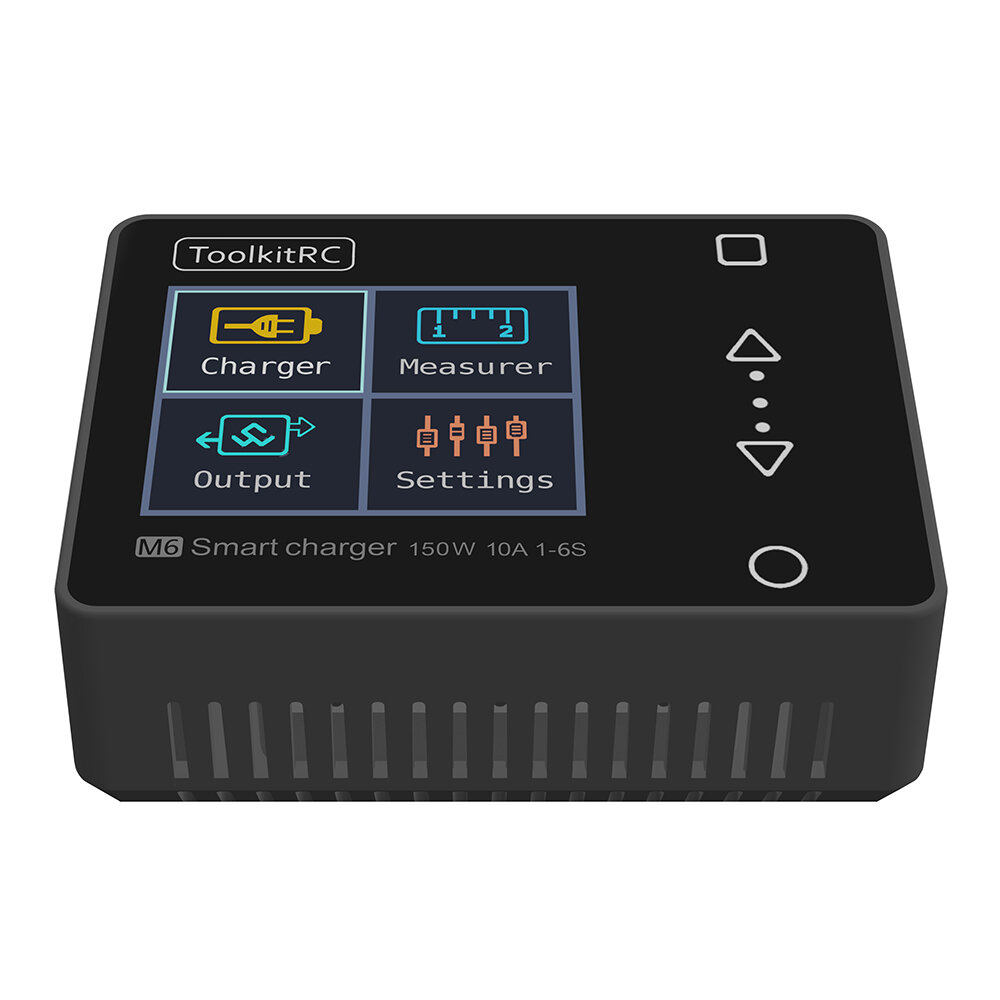

ToolKitRC M6 V2 Black charger

ToolkitRC M6 V2 Battery Charger - Image 2

ToolkitRC M6 V2 Battery Charger - Image 3

ToolkitRC M6 V2 Battery Charger - Image 4

ToolkitRC M6 V2 Battery Charger - Image 5

ToolkitRC M6 V2 Battery Charger - Image 6

ToolkitRC M6 V2 Battery Charger - Image 7

ToolkitRC M6 V2 Battery Charger - Image 8

ToolKitRC M6 V2 Black charger

ToolkitRC M6 V2 Battery Charger 1 - ToolkitRC

ToolkitRC M6 V2 Battery Charger 2 - ToolkitRC

ToolkitRC M6 V2 Battery Charger 3 - ToolkitRC

ToolkitRC M6 V2 Battery Charger 4 - ToolkitRC

ToolkitRC M6 V2 Battery Charger 5 - ToolkitRC

ToolkitRC M6 V2 Battery Charger 6 - ToolkitRC

ToolkitRC M6 V2 Battery Charger 7 - ToolkitRC

ToolkitRC M6 V2 Battery Charger

$36.99

Perfect for beginners, this battery charger is affordable and the same high quality charger you can expect from a great brand like ToolkitRC.

Out of stock

Free Shipping in the US for most orders over $175

SKU: 06972969830032 Category: Battery Chargers & Power Supplies

Description
Additional information

ToolkitRC M6 V2 Battery Charger

The Toolkit RC M6 is the a small 150w color screen charger! At heart, the M6 is a small and compact charger, but boasts a wide array of other features not found in chargers on the market. Additional functionality includes a servo tester, battery cell checker, watt meter (power meter), PWM/PPM/S.Bus input testers (for receiver testing), as well as output generators that offer variable voltage and amperage with DC current.

Upgrade firmware: Click here.

Toolkit M6 Features:

Battery Charger
Cell Checker
Servo Tester
PWM,PPM, S.Bus Input/output & Receiver tester
Viable AMP/Volt DC Power supply

Specification:

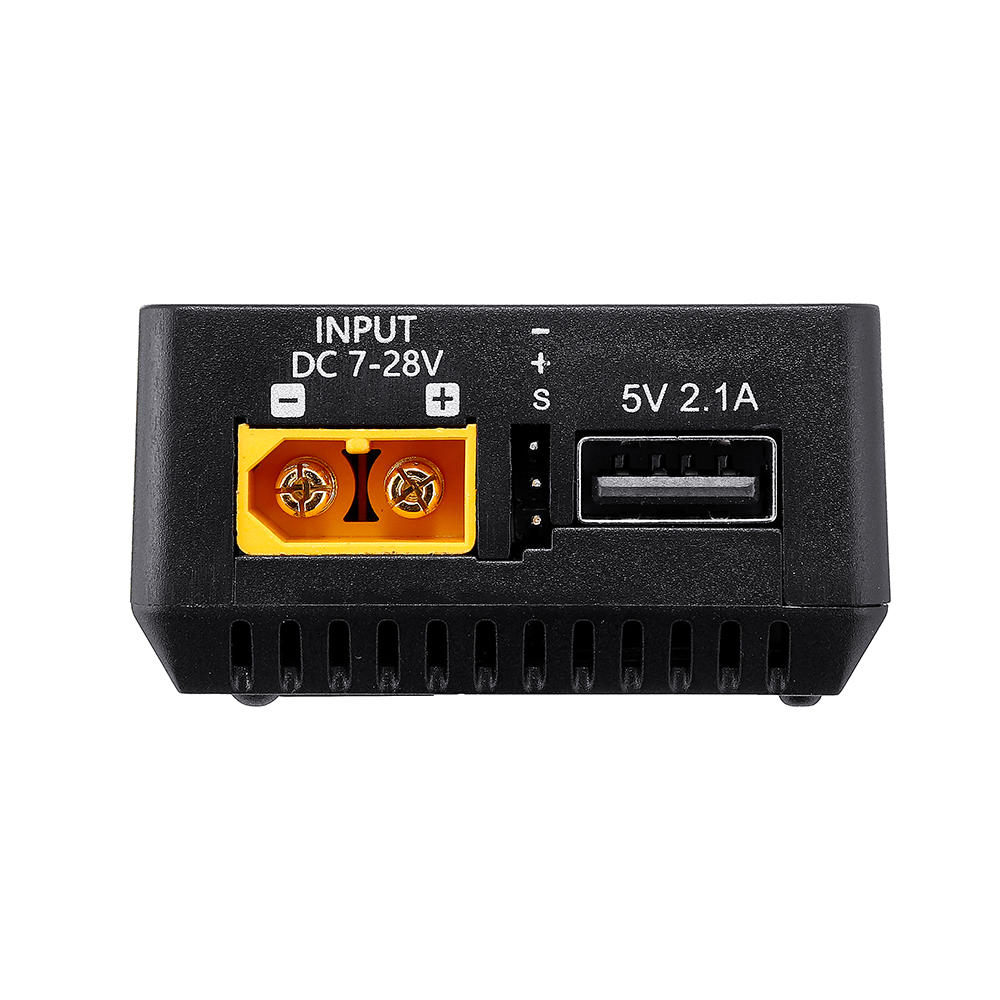

Input Voltage: DC 7-28V

Output Voltage: 1-28V
USB Output: 5V 2.1A

Charge Current: 0.1-10A

Discharge Current: 0.1-2A(Recycling mode)

0.1-10A(Internal consumption mode)

Max Charge Capacity: 150W

Max Discharge Capacity: 20W

Supported Batt. Type:LiFe/Lilon/LiPo/LiHv (1-6S)

NiMH/Cd(1-16S)

Pb(1-10S)

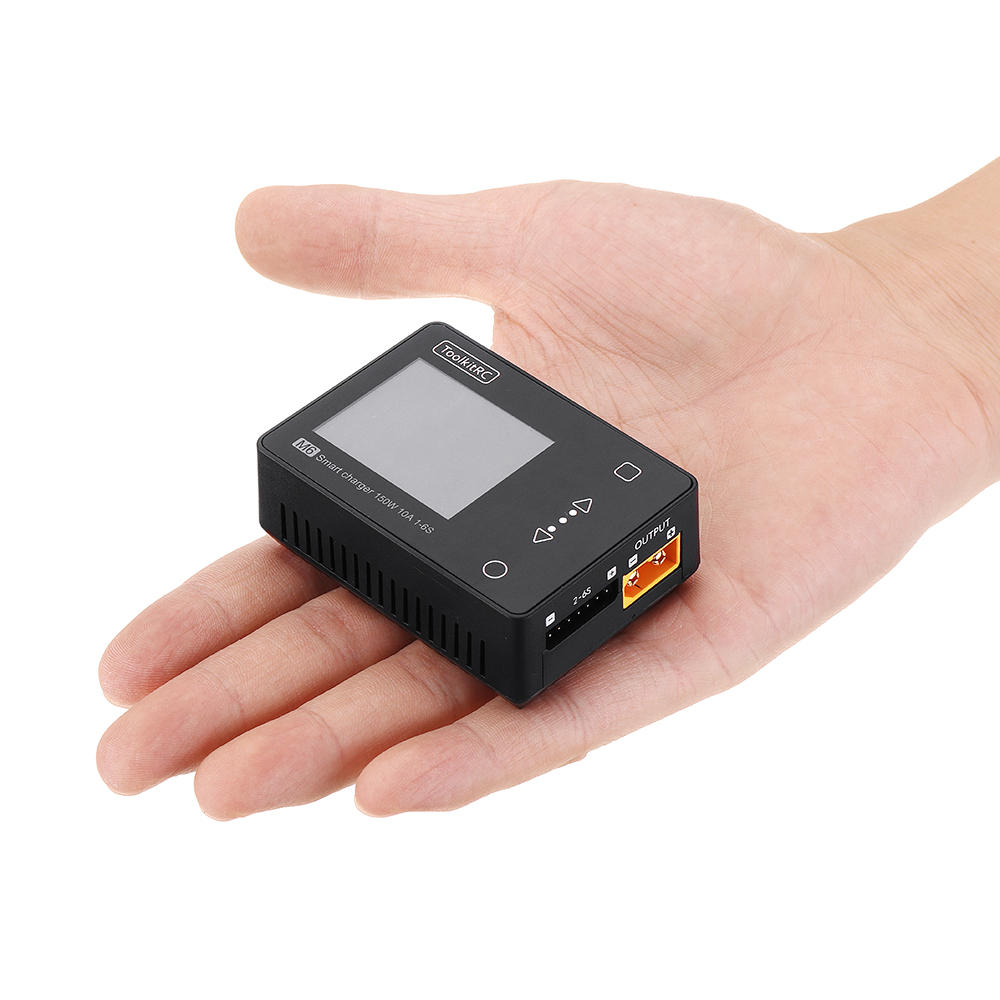

Size:68*49*26 mm

Weight: 80g

Features:

1.The M6 charger come with LCD Display
2.Charge, discharge and balance management support Lipo, LiHV ,LiFe,Lion 1-6S, NiMh 1-16s ,Pb 1-12S battery
3.Can measure battery voltage, battery internal resistance, balance
4.Can measure PWM / PPM / SBUS / DBUS and other signal values accuracy 1s.
5.Can output PWM / PPM / SBUS standard signal, accuracy 1s.
6.Customizable 1-28V constant voltage,1-10A constant current.
7.Compatible with iOS and android mobile device.
8.Charge the drone battery,active and charge.
9.USB [email protected] Output,for mobile phone devices.
10.Udisk firmware upgarde.(Slave device).
11.Multi-language support.

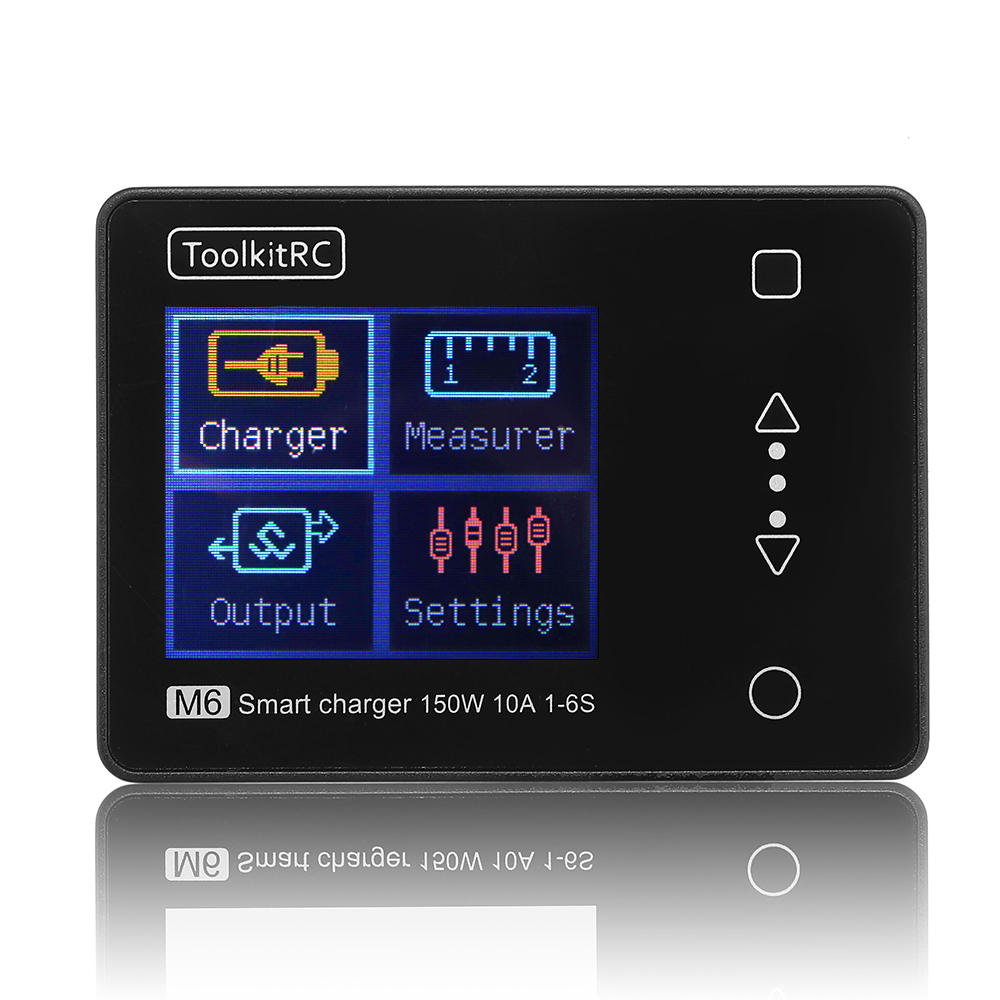

12.TFT 1.8″Full color LCD.
13.150w 10A Charging capacity.
14.0.1a to 10A Discharge/Storage mode with Energy recycle function (high amp discharge and storage when using a battery as the power source.
15.PWM Signal generating function for servo testing.
16.User controlled Power Supply mode with adjustable voltage and amperage output.
17.Cell balancing and IR testing mode.
18.Easy Firmware update, charger acts like USB drive then just copy and past firmware file.

Measurements:

PWM: 880-2200us @ 20-400Hz
PPM: 880-2200us*8CH @ 20-50Hz
SBUS: 880-2200us*16CH @ 20-100Hz
Voltage: 1.0-5.0V @ 1-6S
IR: 10-99mR @ 1-6S

Outputs:

PWM: 500-2500us @ 20-1000Hz
PPM: 880-2200us*8CH @ 50Hz
SBUS: 880-2200us*16CH @ 74Hz
Power: 1-10A @ 1-28V Mode:CC+CV

Packaging Includes:

1X ToolkitRC M6 Charger in Black
1X USB Cable
1X Manual

Weight	.125 lbs
Dimensions	3 × 3 × 1 in
Brand	ToolkitRC
