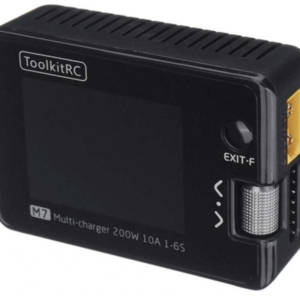

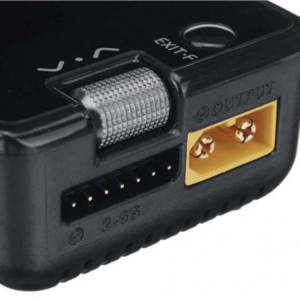

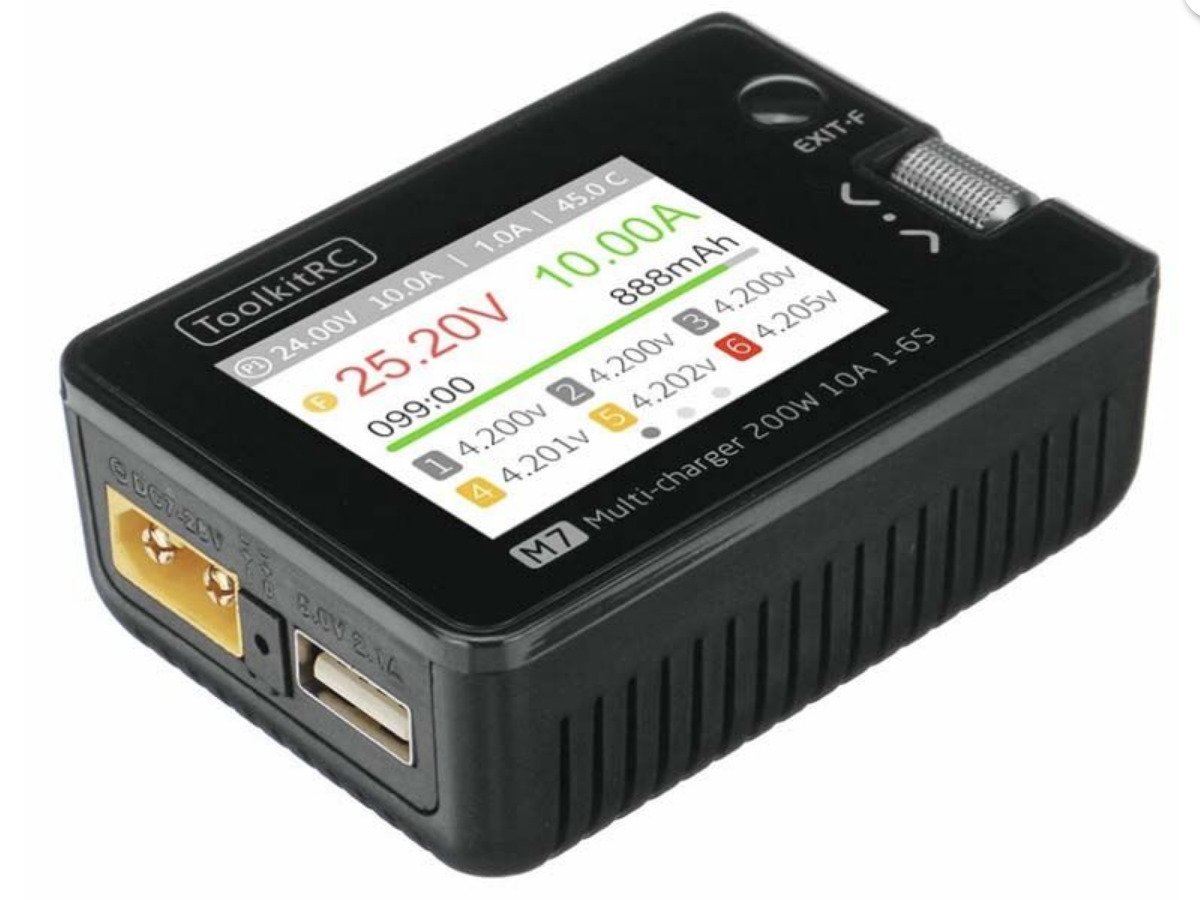

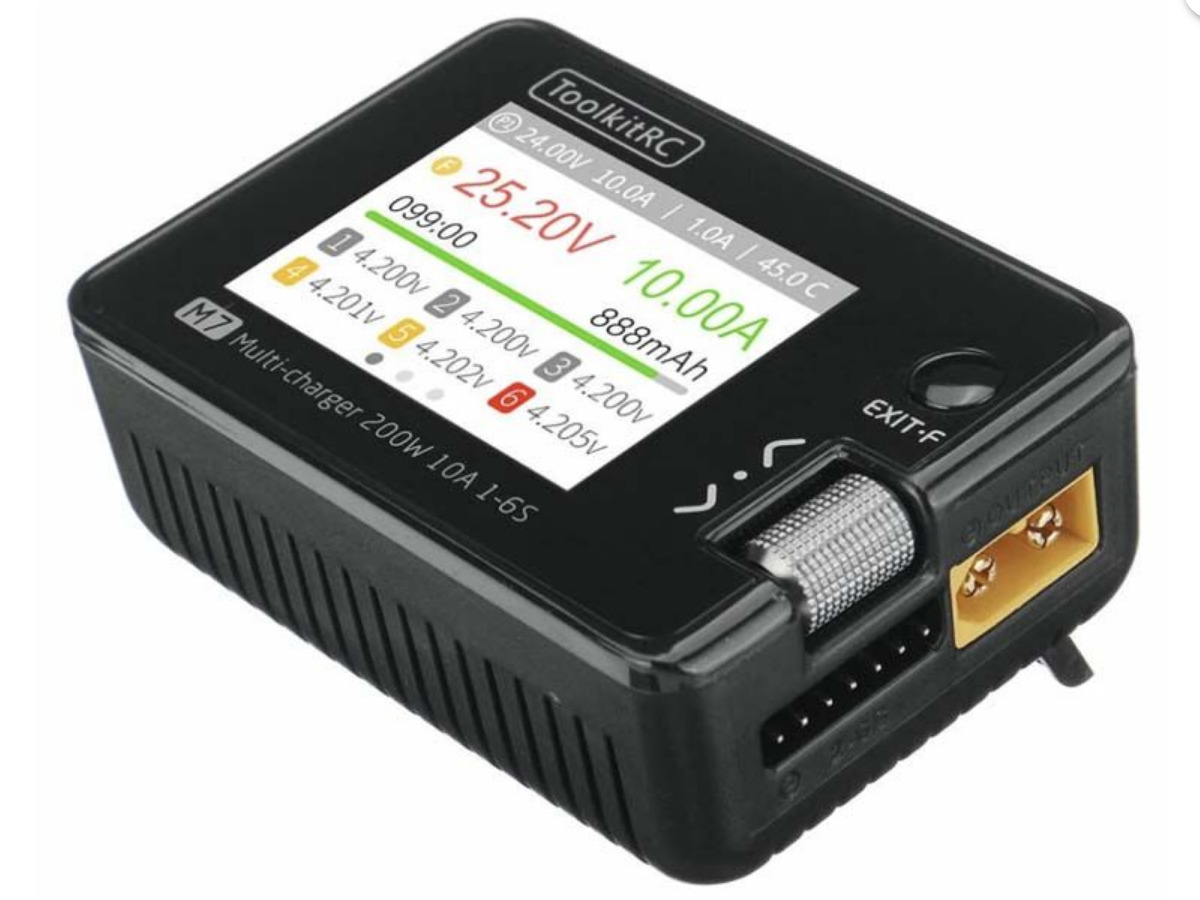

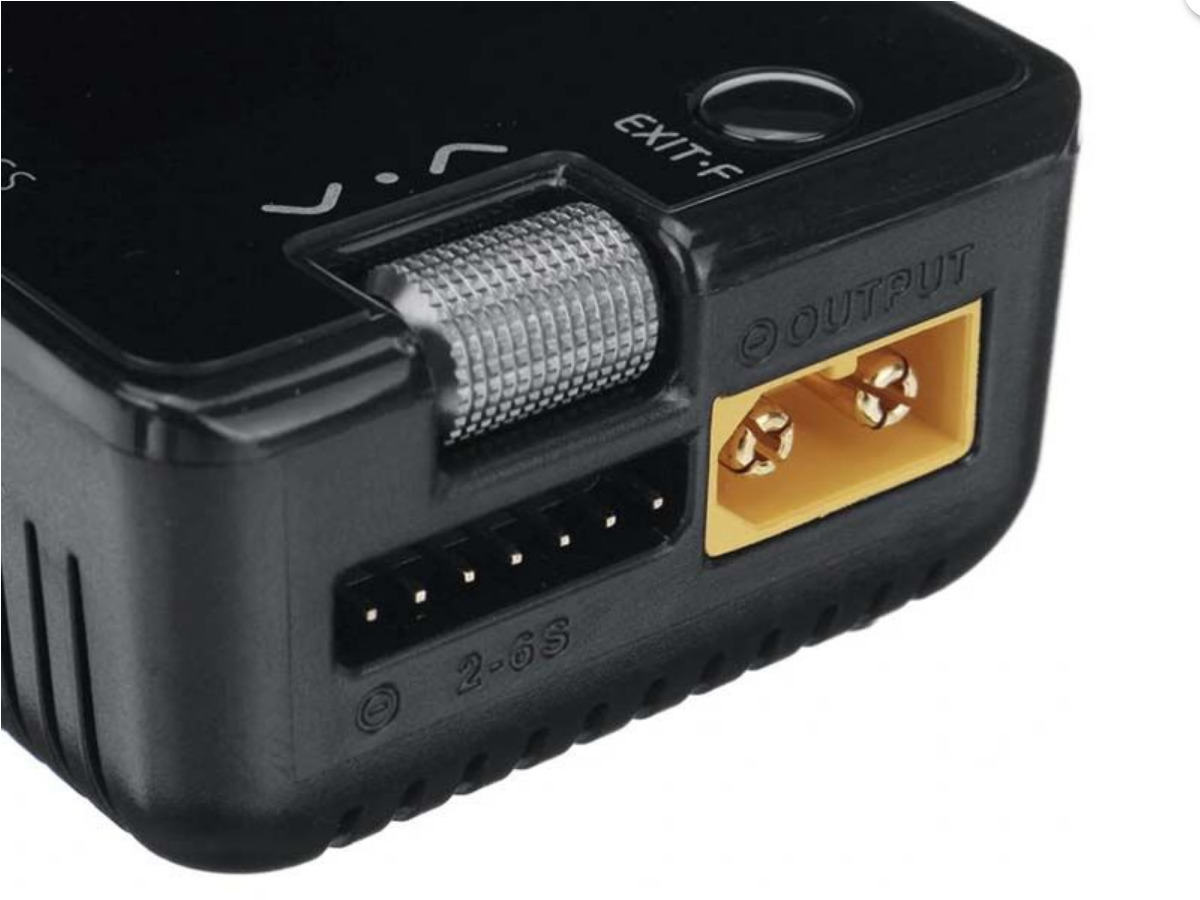

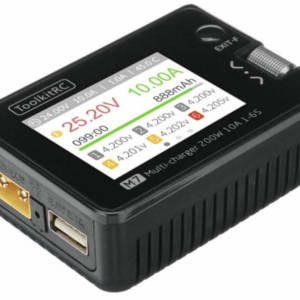

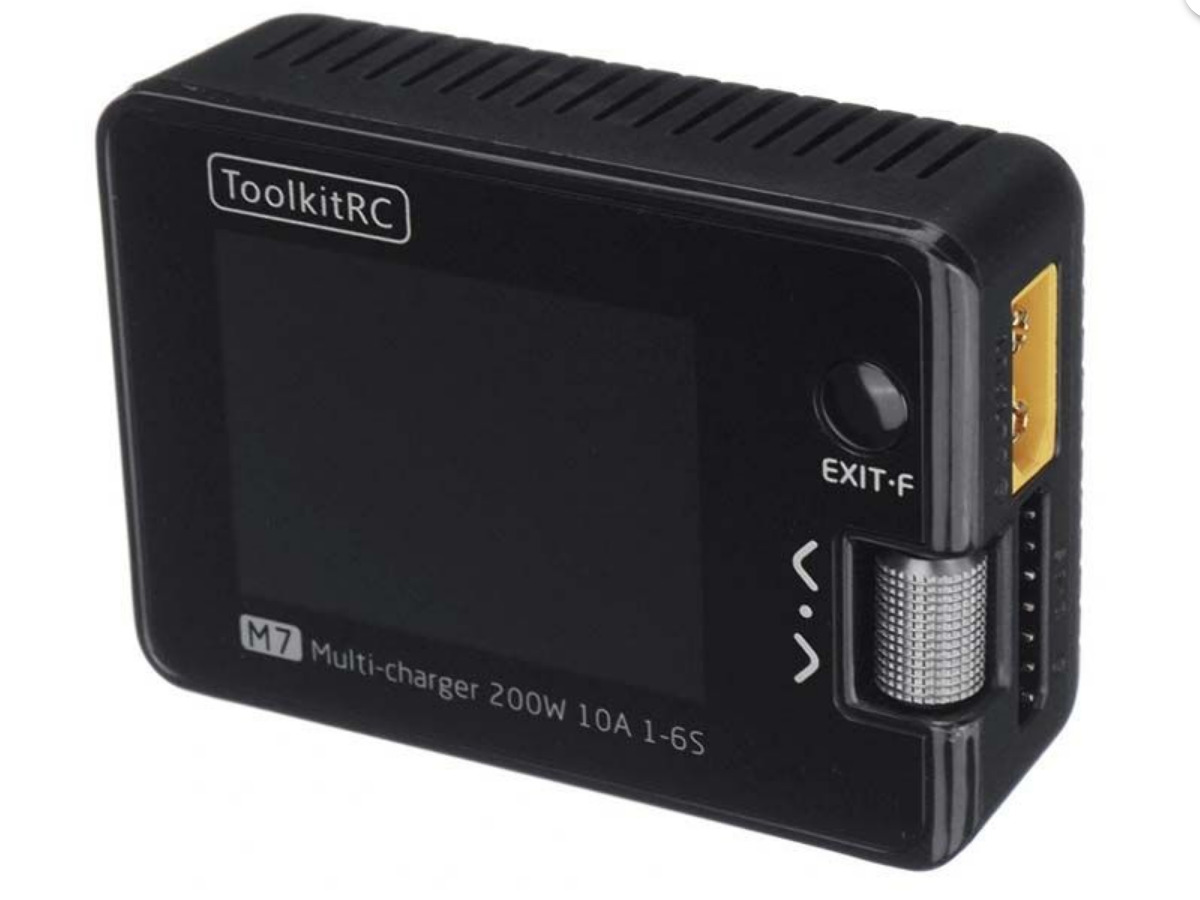

ToolkitRC M7 200W 10A DC Balancing Charger with Servo Checker and Receiver Signal Tester
See all of our ToolkitRC Products! Make sure to pick up a ToolkitRC power supply too!
This ToolkitRC M7 charger is the new and improved version of the M6. It charges and balances LiPo, LiFe, LiOn, NiCd, NiMH, and Pb batteries. It also has a built-in voltage checker, servo driver, and receiver signal tester. The M7 has more charging power than the M6 and features a 2″ IPS full-color screen and a metal scroll wheel for easy navigation thru the menus and settings.
Specifications:
- Product size: 73*51*27 mm
- Product weight: 90g
- Pack size: 84*79*39 mm
- Pack weight: 150g
- LCD: IPSÂ 2.0inch LCD 320*240 Pixel
- Input voltage: 7.0-28.0VÂ @MAX 12A
- Type of battery: Lipo, LiHV, LiFe, Lion @ 1-6, NiMh @ 1-16S, Pb @ 1-10S
- Balance current: 400mA @2-6S
- Charger power: 200W @MAX 10A
- Discharge power: 200W @ MAX 10A Recycle mode, 10W @ 3A Normal mode
- USB: 2.1A @5.0V or Upgrade
Input:
- PWM: 880-2200us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Voltage: 1.0-5.0V @1-6S
- Internal resistance: 1-99mR @1-6S
- ESC: 200W@10AÂ Â Â Â Â Â PWM Output
Output:
- PWM: 500-2500us @20-1000Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
- Power supply: 1.0-28.0VÂ @1.0-10AÂ mode:CC+CV
- OverCurrent Cutoff time: <5ms
Packaging includes:
- 1X ToolkitRC M7 Charger
