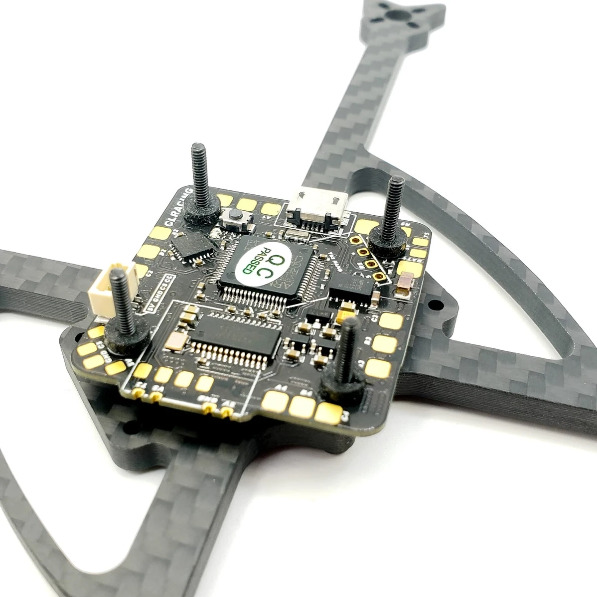

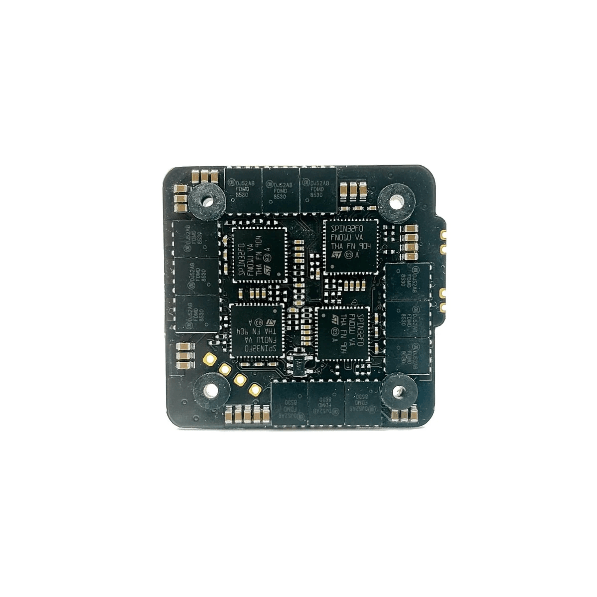

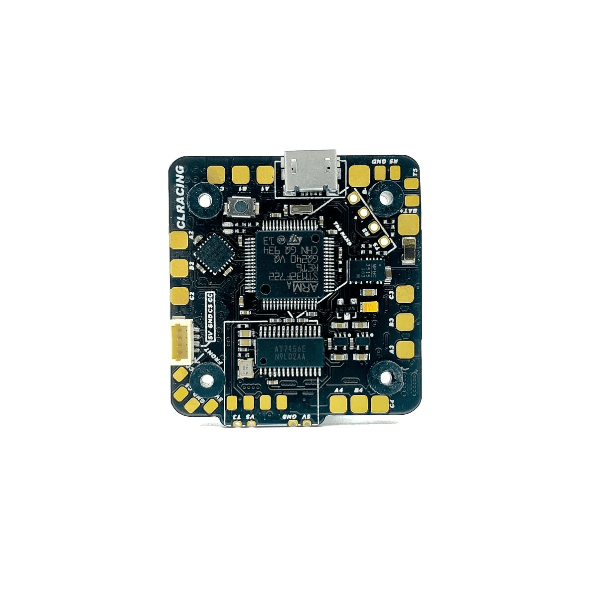

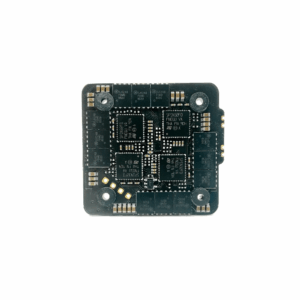

CL Racing 32Bit Whoop AIO
Features:
STM32F722RET6 216MHz Processor
Direct solder TBS NANO RX mount
Direct solder TBS UNIFY Nano Pro32 mount
Up to 6S 27V direct power
BLheli32 bit ESC
Specifications:
MCU: STM32F722RET6 216MHz
6-Axis MPU6000
Build in Beta flight OSD
2- 6S( 27V ) direct battery power
Build in Voltage monitoring resistor
Build in 5V/1.5A BEC and 3.3V/250mA for system
Direct solder on mount for TBS Cross fire Or solder pads for Frsky
Build in Camera Control with direct camera plug in
Direct Solder TBS VTX and solder pads
Build_in 32bit 20A ESC with current sensor
25.5×25.5 whoop Styple mounting pattern
Dshot support with Native RPMfiltering support
Designed to use on 5V camera and VTX.
Package includes:
1 x CLRACING F7 32bit Whoop AIO Flight Controller – 2-6S
1 x Camera Harness
1 x XT30 Connector
1 x 16G Silicone wire set
1 x 25V 220uF capacitor
1 x M2 plastic mounting hardware set
