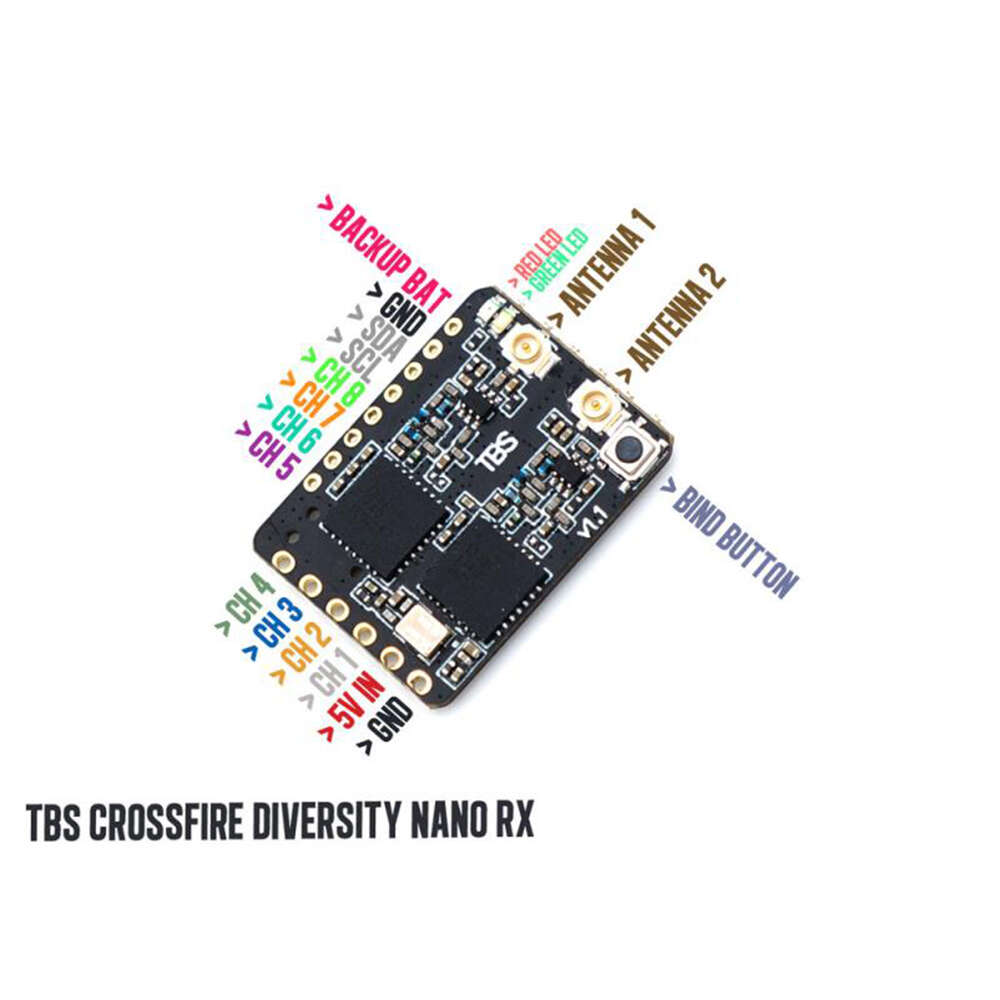

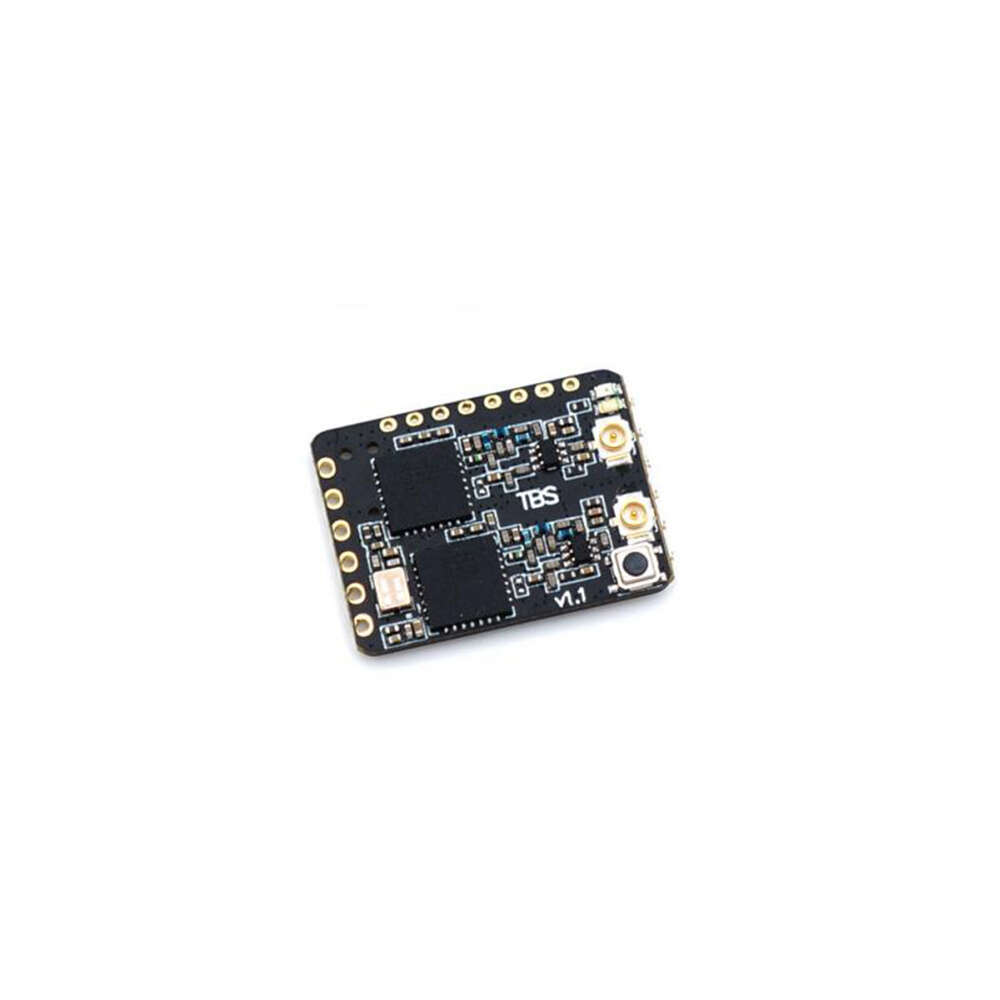

TBS Crossfire Diversity Nano RX – Long Range FPV Drone Receiver
TBS is redefining long-range flying once again with the Crossfire Diversity Nano RX. This is the most advanced receiver in the Crossfire lineup, engineered for FPV pilots who demand the ultimate in signal reliability and aircraft recovery. It is the smallest full-fledged diversity receiver on the market, packing game-changing features like true dual-receiver diversity and a battery-powered Beacon Mode into a tiny package.
The Ultimate in Signal Reliability
The Crossfire Diversity Nano RX provides a rock-solid link through its true, chip-based diversity system. It features two antennas connected to two completely independent receiver circuits. The receiver intelligently analyzes the signal quality from both and instantly switches to the stronger one. This virtually eliminates failsafes caused by signal blocking from your FPV drone’s carbon frame or poor antenna orientation, giving you unparalleled confidence in your control link.
Never Lose Your Aircraft with Beacon Mode
This receiver features a revolutionary recovery tool. An integrated battery port allows you to connect a small, optional 1S LiPo. If your main flight battery is ejected in a crash, this backup battery will keep the receiver powered for a full day. It will continuously transmit its last known GPS coordinates and act as an RF beacon, making finding a lost FPV drone or plane significantly easier. The backup battery is even charged automatically by the receiver when you plug in your main flight pack.
Full-Range Crossfire Performance
Built on the legendary Crossfire system, this receiver delivers the record-breaking range and signal penetration that TBS is famous for. It features best-in-industry noise rejection, ensuring a clean and responsive connection even when flying around other FPV drone pilots. It outputs all common protocols including PPM, SBUS, and CRSF.
Important Firmware Information
To ensure proper operation, you must update your TBS Crossfire Transmitter to firmware version V2.88 or newer before attempting to bind this receiver.
Specifications
- Brand: TBS (Team-BlackSheep)
- Model: Crossfire Diversity Nano Receiver
- Weight: 1.8g (receiver only)
- Size: 24mm x 18mm
- Input Power: +3.3V to 8.4V
- Features: True Diversity, Beacon Mode, Power Redundancy

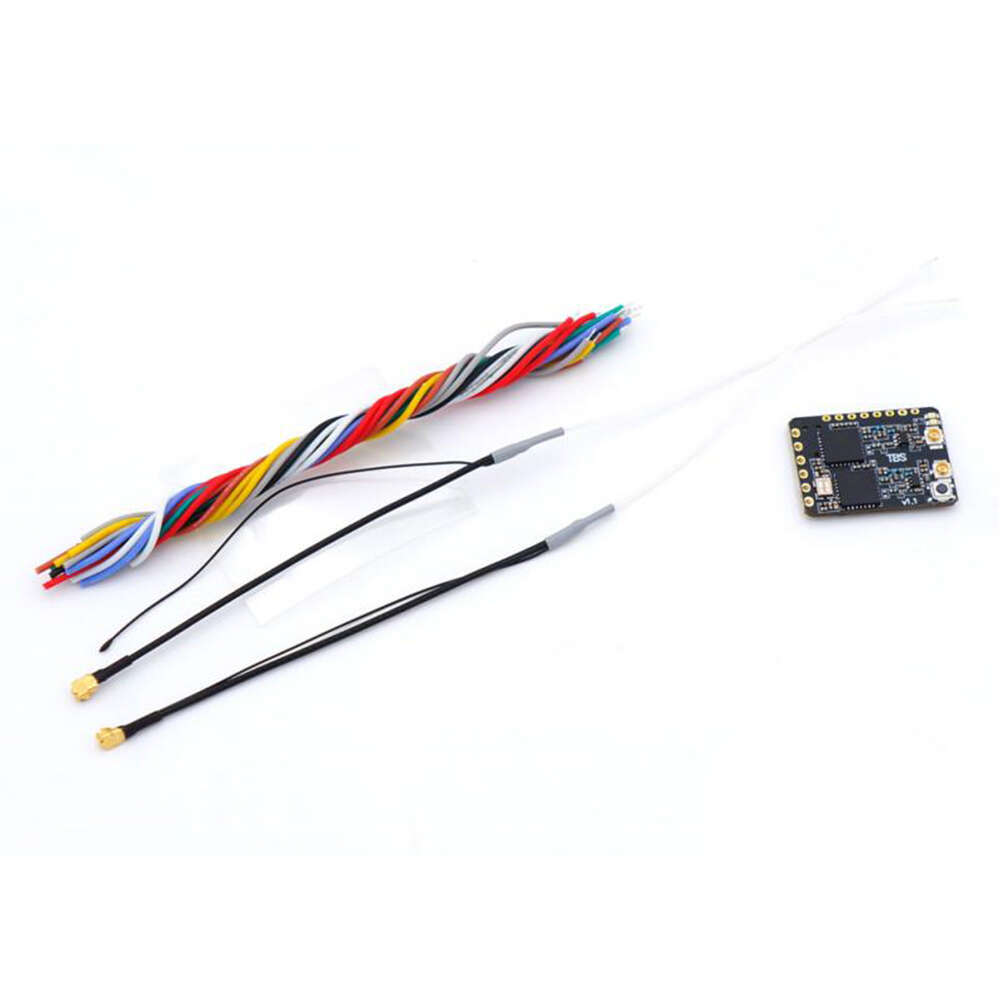

What’s in the Box?
- 1x TBS Crossfire Diversity Nano Receiver
- 2x TBS Crossfire Micro Receiver Antennas
- 1x Spare Shrink Tube
- 14x 30awg Silicon Connection Wires
