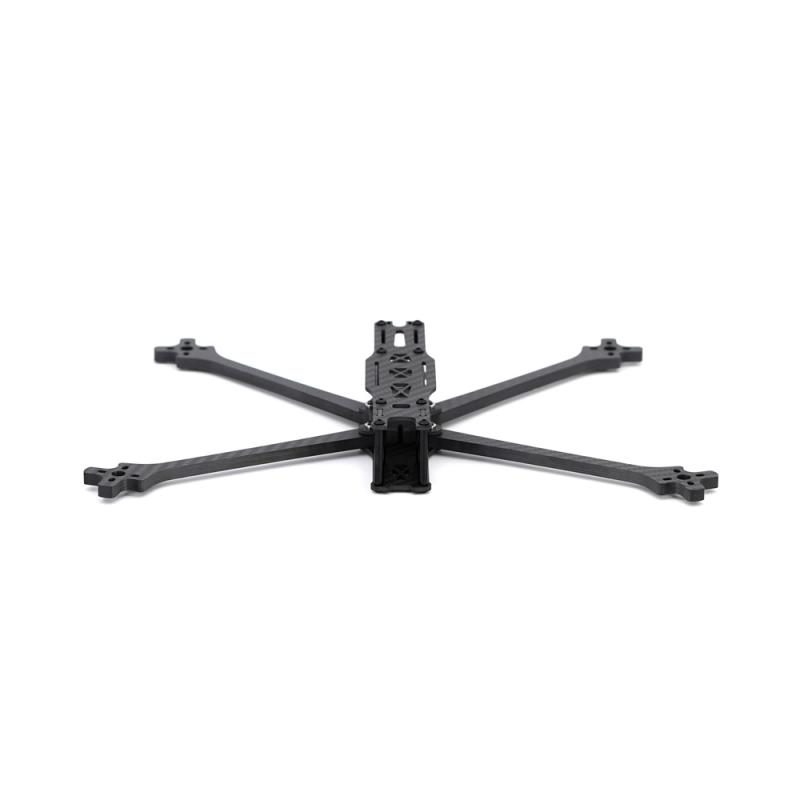

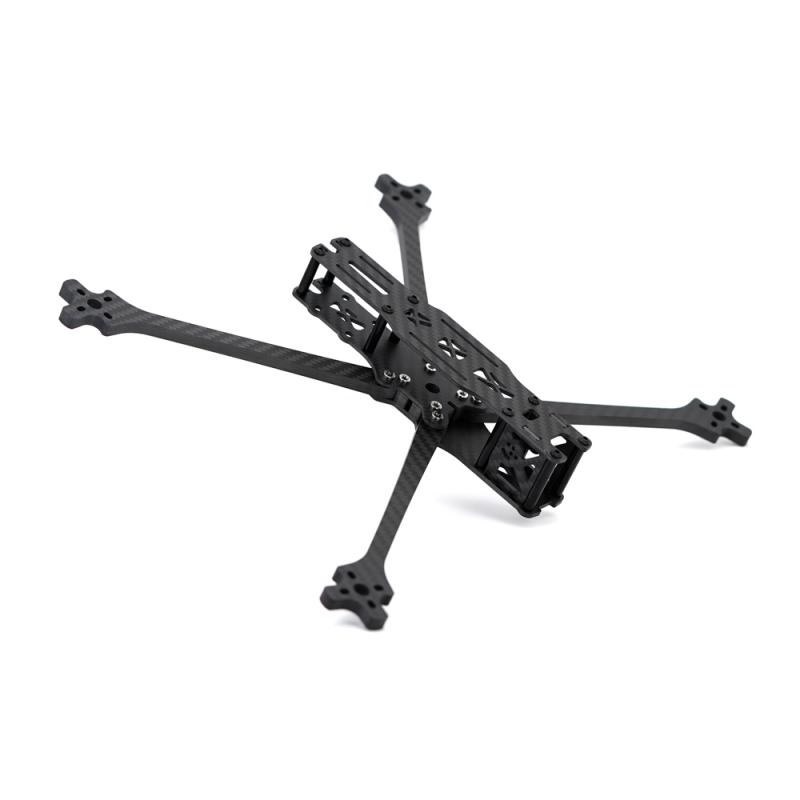

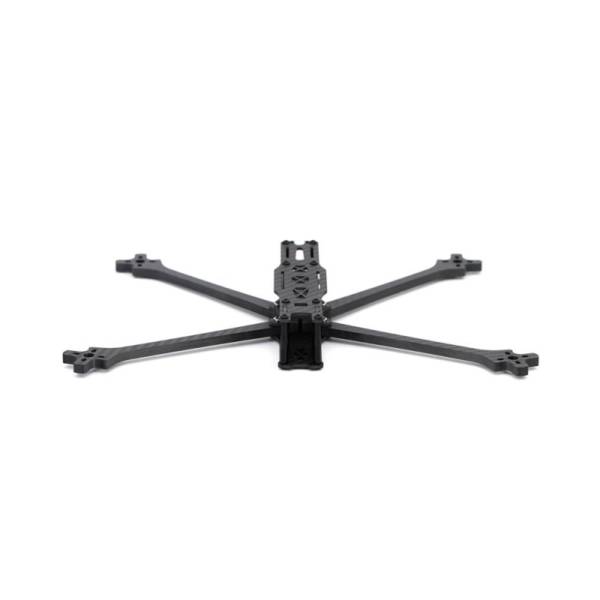

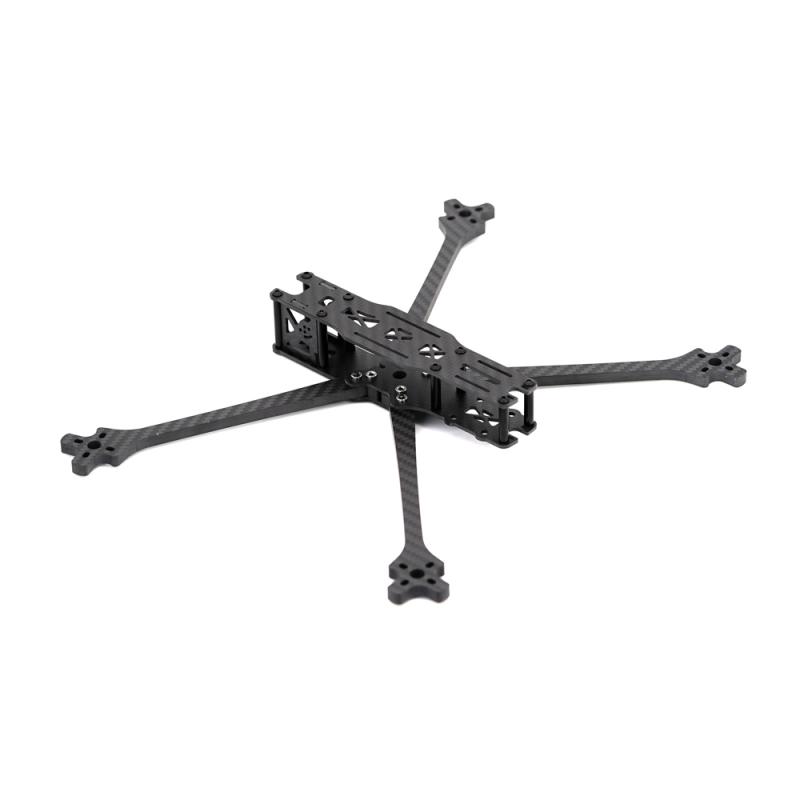

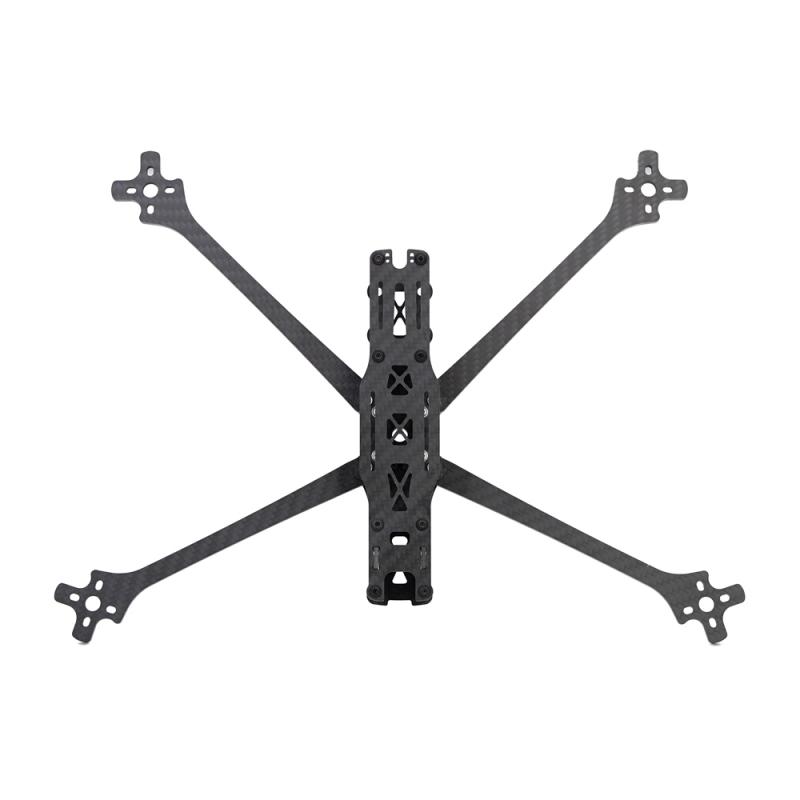

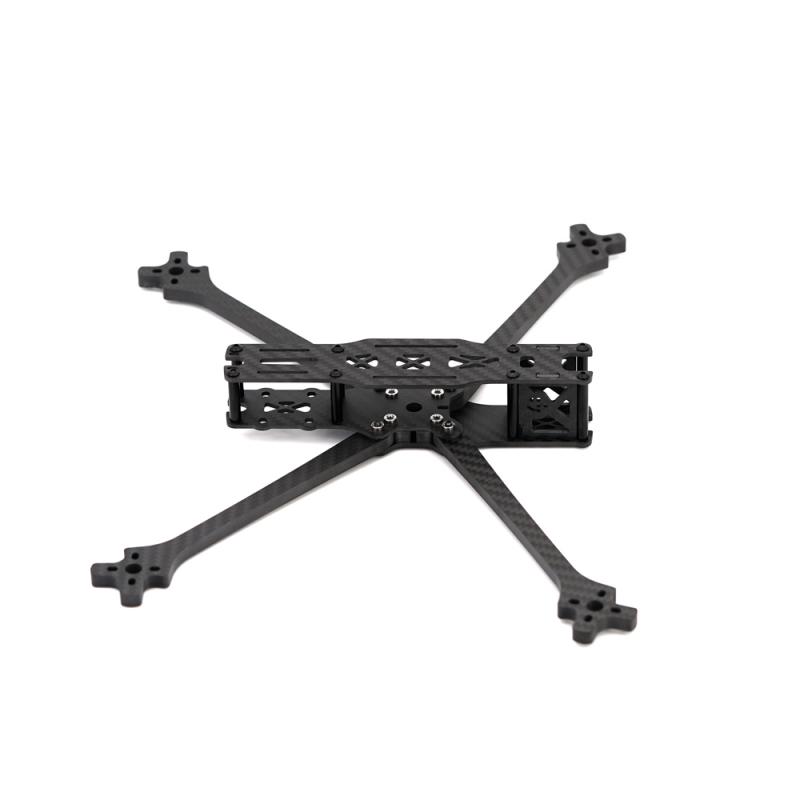

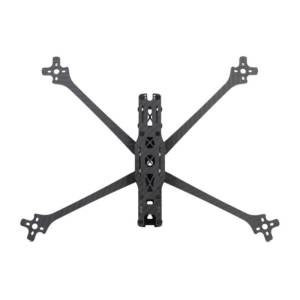

TBS Source One V5 7 inch Deadcat Frame
The SOURCE ONE V5 7inch is a deadcat (DC) configuration frame, popular for long-range freestyle flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual long range FPV flying and cruising.
About the project
The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
Package contains:
- 1x Frame (Top, Middle and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
- 1x Screw & Standoff set
Technical specifications:
| Wheelbase 7″ | 320mm |
| Top Plate | 2mm |
| Middle Plate | 2mm |
| Bottom Plate | 2.5mm |
| Arms Spacer | 6mm |
| Camera plate | 2mm |
| Standoff height | 30 and 22mm |
| Arm thickness 5″ | 6mm |
| Stack Mounting | 30.5 × 30.5mm & 20 x 20 |
| Weight 5″ | *143.5g |
Hardware:
- 16X M3x10 allen screw
- 4X M3x12 allen screw
- 4X M3x14 allen screw
- 4X OD 5mm M3 30mm standoff
- 4X OD 5mm M3 22mm standoff
- 8x M3 press insert nut
