TBS SOURCE ONE V5.1 5INCH

Check out all of our TBS Products!

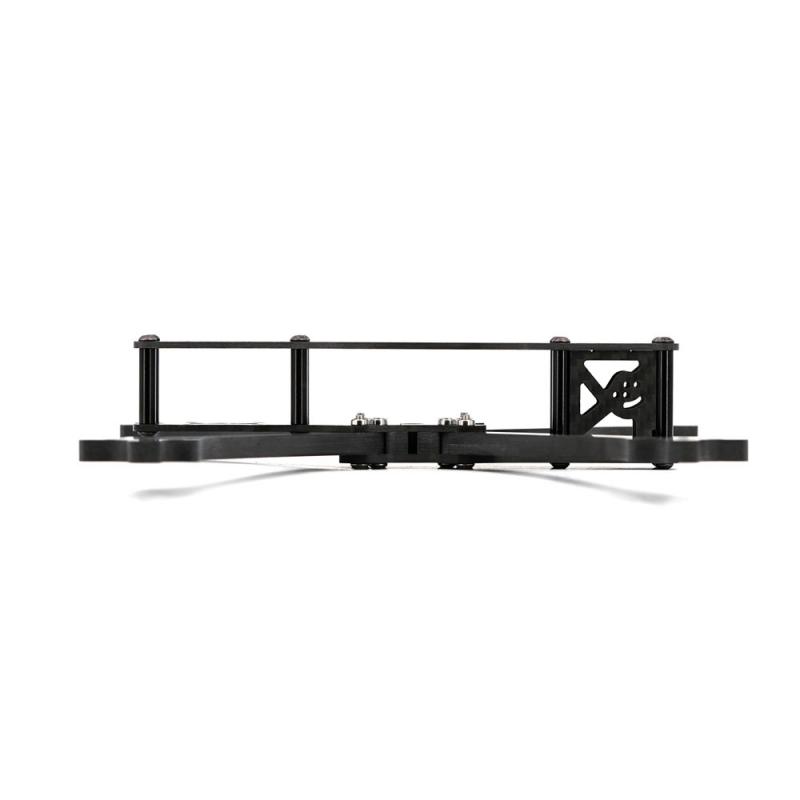

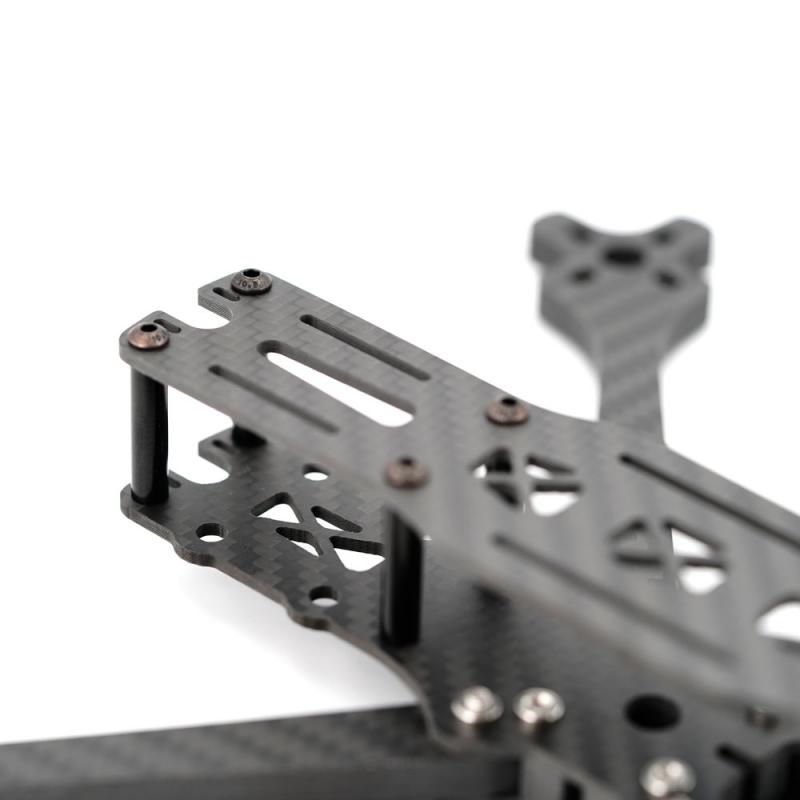

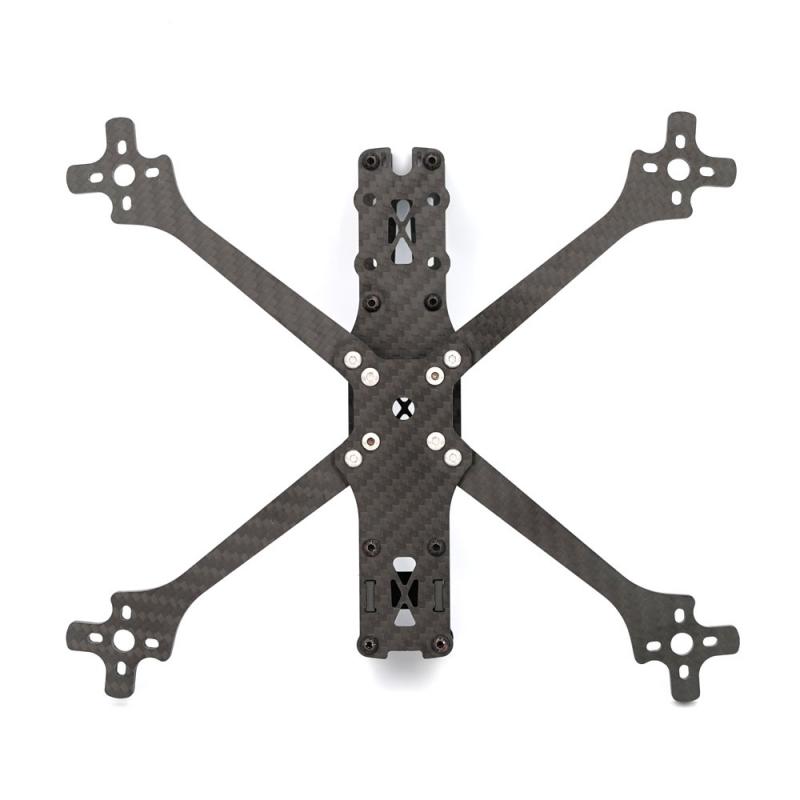

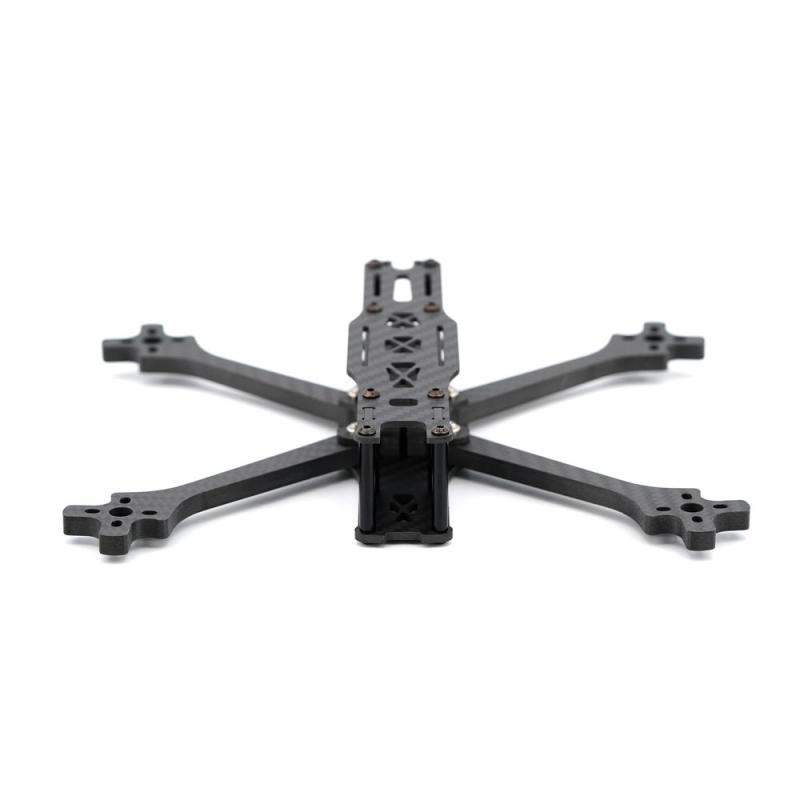

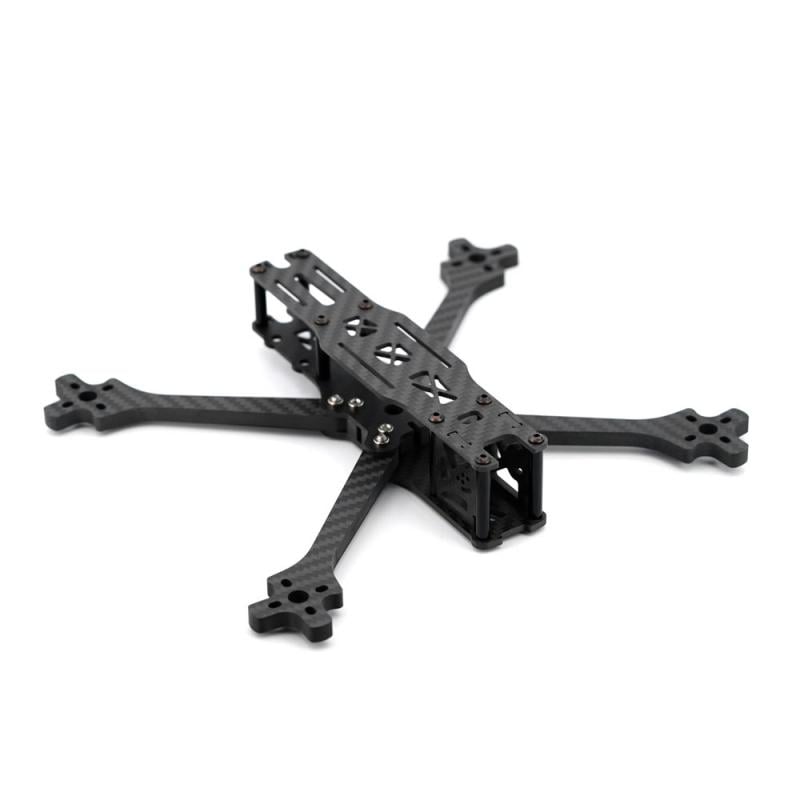

The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for lightweight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.

ABOUT THE PROJECT

The SOURCE ONE project is a first-of-its-kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them to compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation, and wide availability of compatible parts and accessories, without violating other people’s intellectual property.

GET INVOLVED!

• Project discussion: https://discordapp.com/invite/ZJGkHwF
• Project files: https://github.com/tbs-trappy/source_one (Coming Soon)
• Interactive Manual (work in progress)
• 3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone (Coming Soon)
• 3D Printed Parts (STL) are also available on GitHub! (Coming Soon)

PACKAGE CONTAINS:

• 1x Frame (Top, Middle, and Bottom. Brace and 2x Camera plate, 4x Arms, 1x arms spacer)
• 1x Screw & Standoff set

TECHNICAL SPECIFICATIONS:

• Wheelbase 5″: 226
• Top Plate: 2mm
• Middle Plate: 2mm
• Bottom Plate: 2.5mm
• Arms Spacer: 6mm

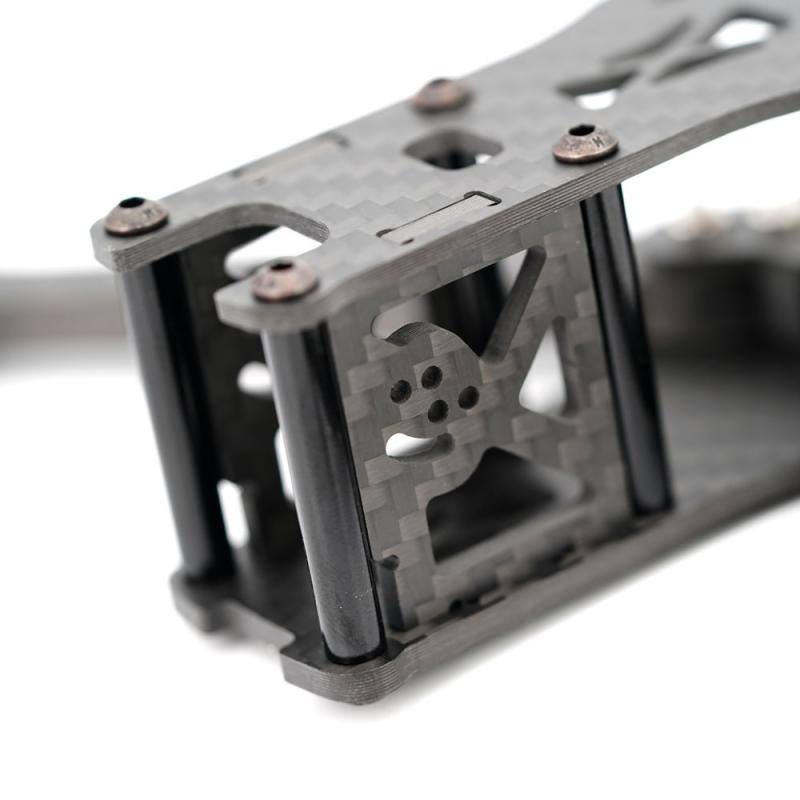

• Camera plate: 2mm
• Standoff height: 30 and 22mm
• Arm thickness 5″: 6mm
• Stack Mounting: 30.5 × 30.5mm & 20 x 20
• Weight 5″: *123.5g

HARDWARE:

• 16X M3x10 Allen screw
• 4X M3x12 Allen screw
• 4X M3x14 Allen screw
• 4X OD 5mm M3 30mm standoff
• 4X OD 5mm M3 22mm standoff
• 8x M3 press insert nut
