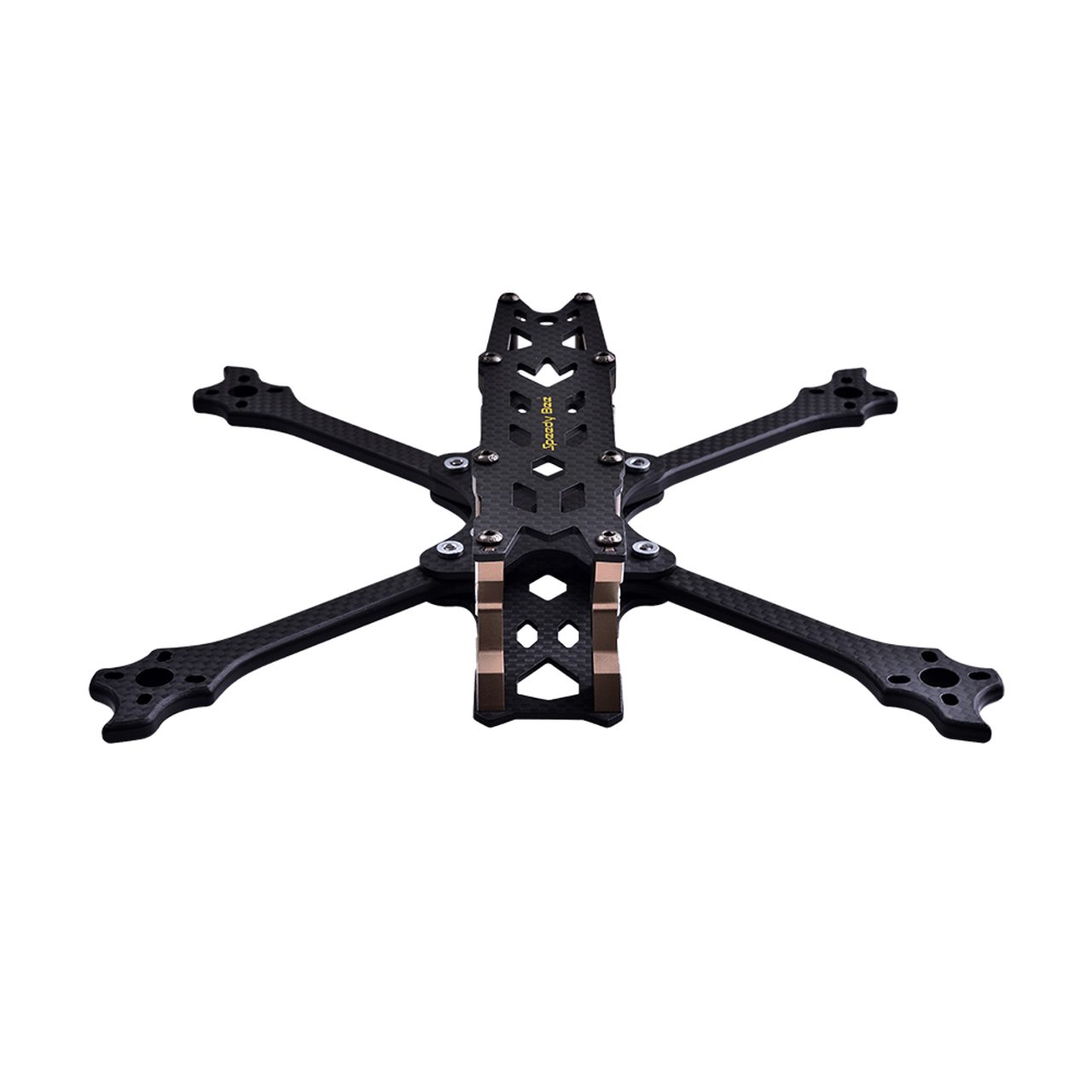

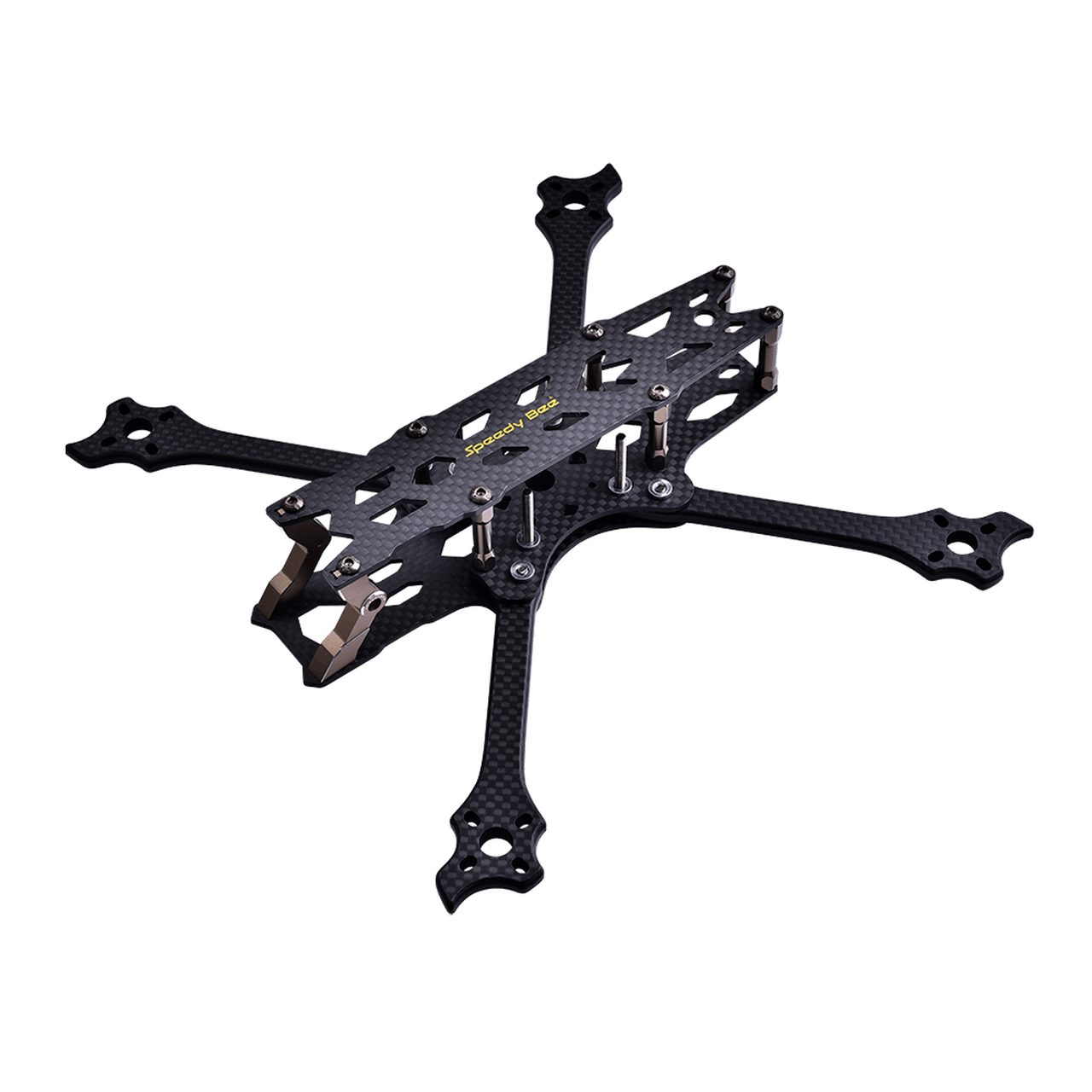

Speedy Bee 5-inch Freestyle Frame
Check out all of our SpeedyBee products!
Build a durable and versatile freestyle machine with the Speedy Bee FS225 5-inch frame. This FPV drone frame is designed for pilots who need a robust platform that is easy to build and maintain. Featuring thick 5mm arms and mounting options for all standard flight controllers, it’s the perfect foundation for your first FPV drone kit or your next go-to freestyle FPV drone.
Built for Freestyle Abuse
The Speedy Bee FS225 is engineered to withstand the hard impacts that come with practicing and pushing your freestyle limits. The frame’s arms are a full 5mm thick, providing excellent rigidity and crash resistance. Best of all, the arms are individually replaceable, making field repairs quick and easy so you can get back in the air without having to tear down your entire FPV drone.
Versatile Component Compatibility
This frame offers incredible flexibility for your build. It includes mounting holes for both 30.5×30.5mm and 20x20mm flight controller and ESC stacks, so you can use virtually any modern electronics you prefer. The camera mount is designed for 19x19mm micro-sized cameras, a common standard for FPV drone parts.
Balanced for Performance
Designed with a classic top-mount battery configuration, the FS225 keeps its center of gravity well-balanced for predictable and locked-in flight characteristics. The 225mm wheelbase provides a great blend of stability for smooth lines and agility for performing freestyle tricks, making it a true all-around performer.
Specifications
- Model: Speedy Bee FS225
- Wheelbase: 225mm
- Material: Carbon Fiber
- Arm Thickness: 5mm
- Top Plate Thickness: 2mm
- Bottom Plate Thickness: 2mm
- Flight Controller Mounting: 30.5×30.5mm & 20x20mm
- Camera Mounting: 19x19mm (Micro)
- Weight: 112g
Recommended Parts (Not Included)
- Motor Size: 2204 / 2205 / 2207 / 2306 / 2307 / 2308 / 2506
- Propeller Size: 5-inch (e.g., 51499, 5043, 5040)
- Camera: Micro size (e.g., Micro Eagle, Micro Swift, Racer)
What’s in the Box?
- 1x Speedy Bee FS225 5-inch Frame Kit (Carbon Plates, Arms, Standoffs, and Screws)
