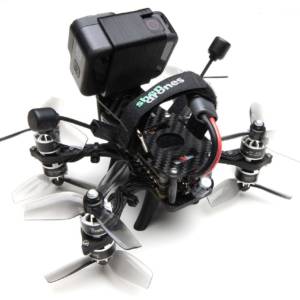

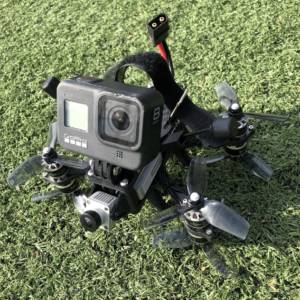

Shendrones Big Baby with 3D Printed Parts

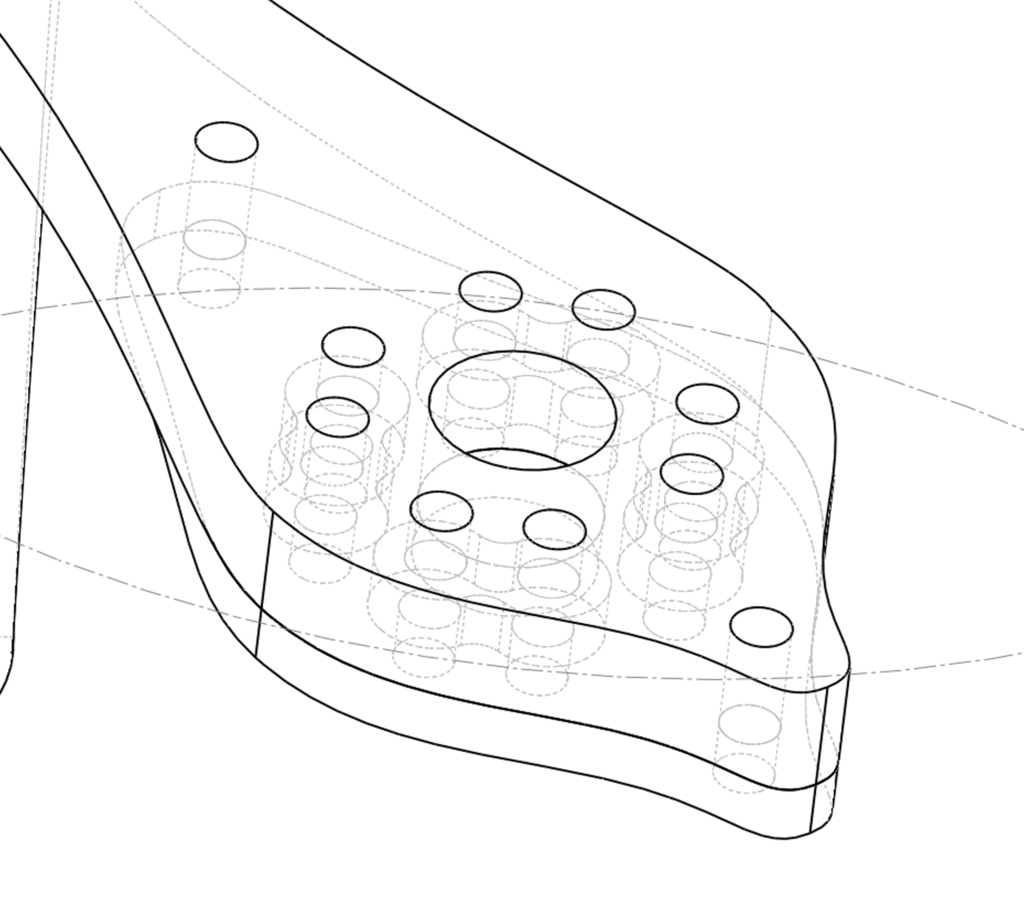

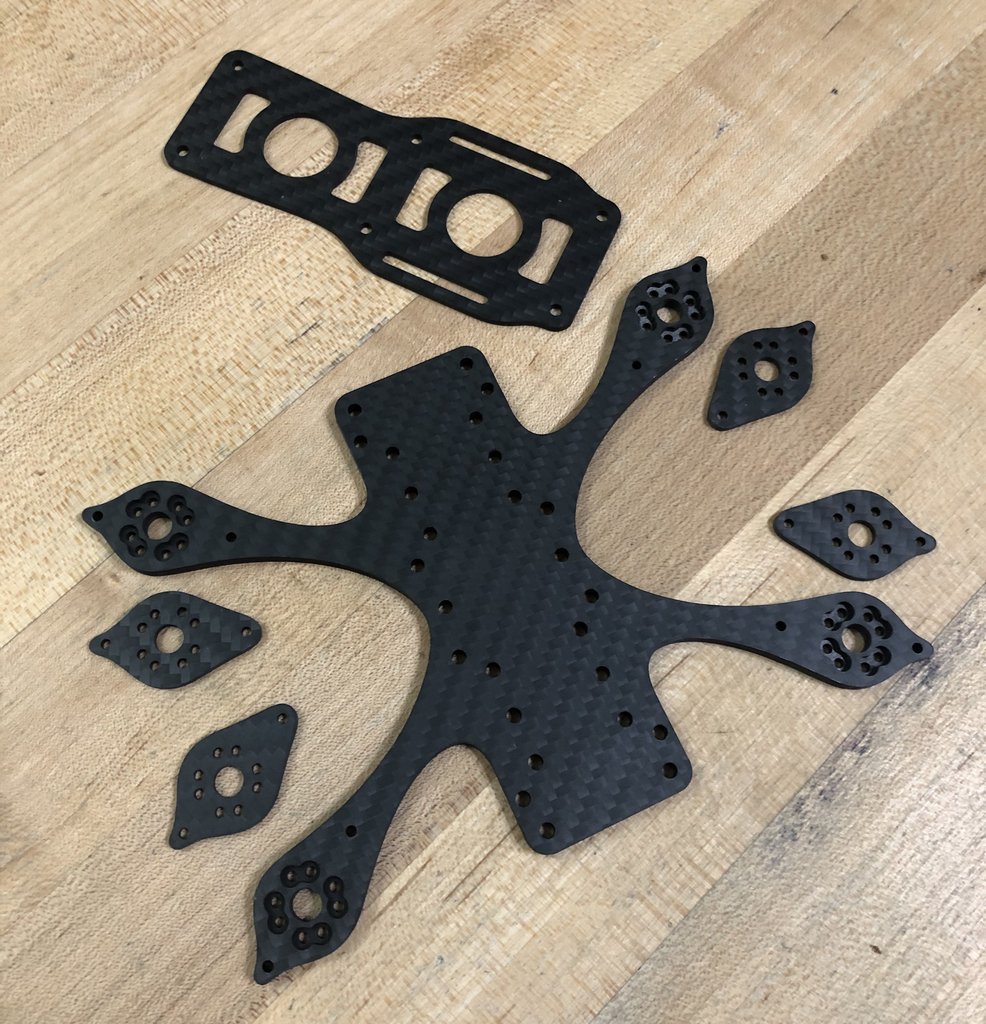

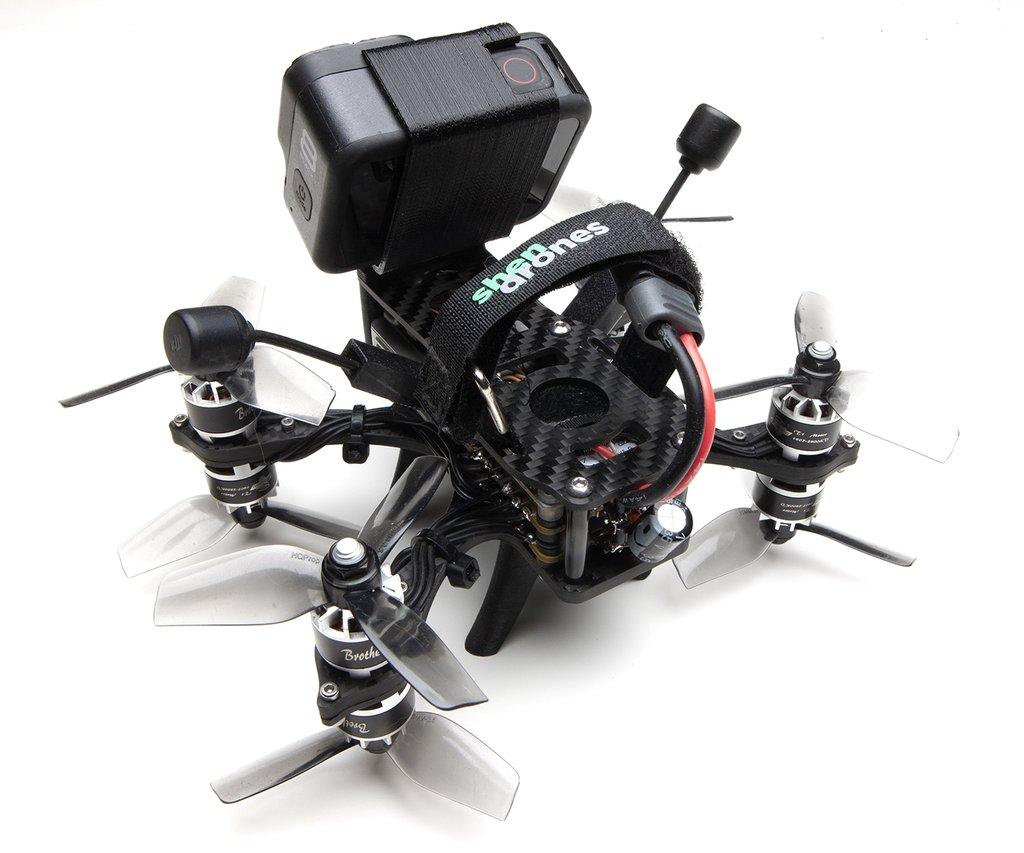

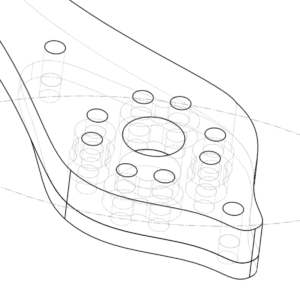

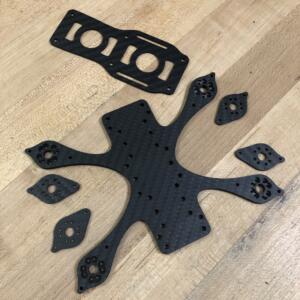

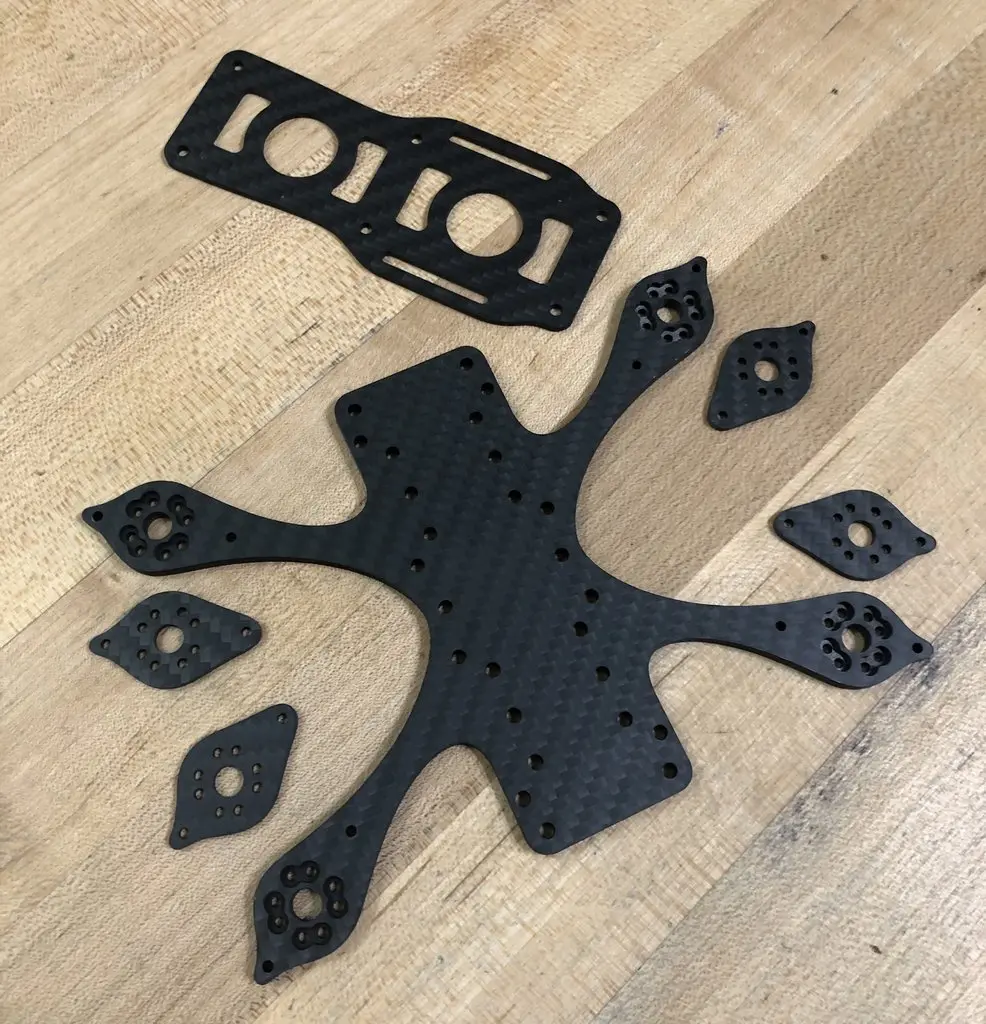

Shendrones Big Baby is a 150mm X8 for 3″ props. It has a 4mm base plate and a 2mm top plate. The motors are stacked using low-profile 2mm cat dog mounts. Stack height is 25mm (leave me a note if you’d like 30 or 40mm instead), which fits 2 4in1’s and the FC. The Lumenier Lux7 is recommended for X8’s. The frame is drilled for 2 30×30 and 20×20 stacks.

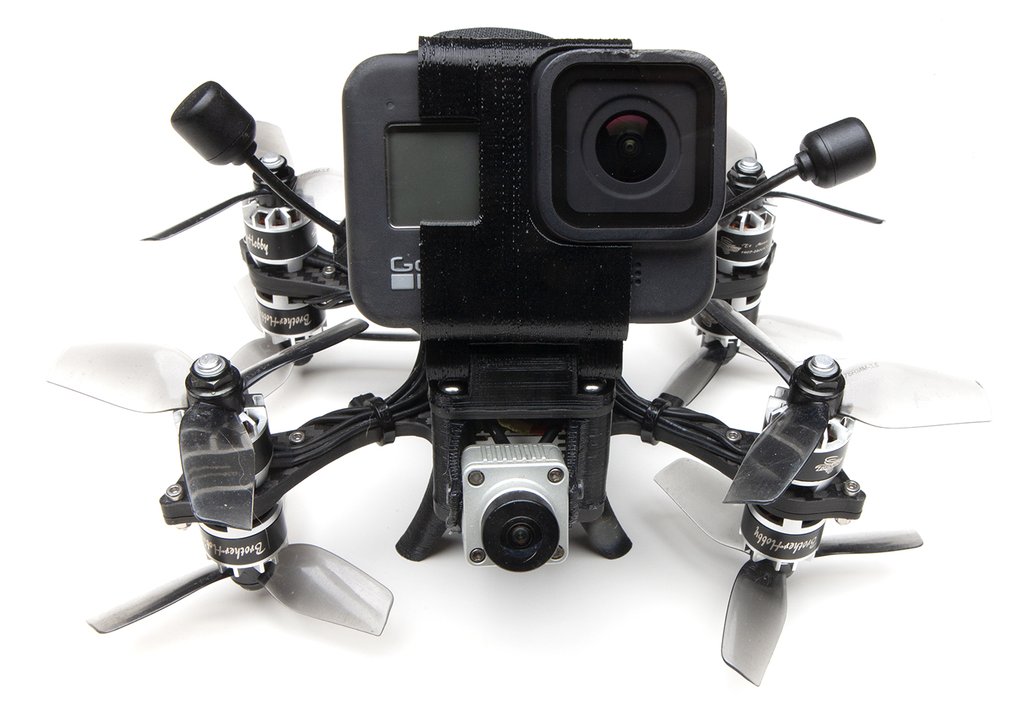

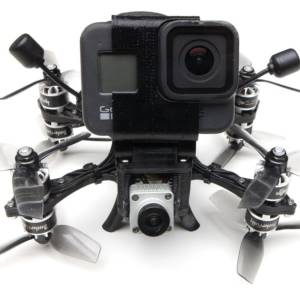

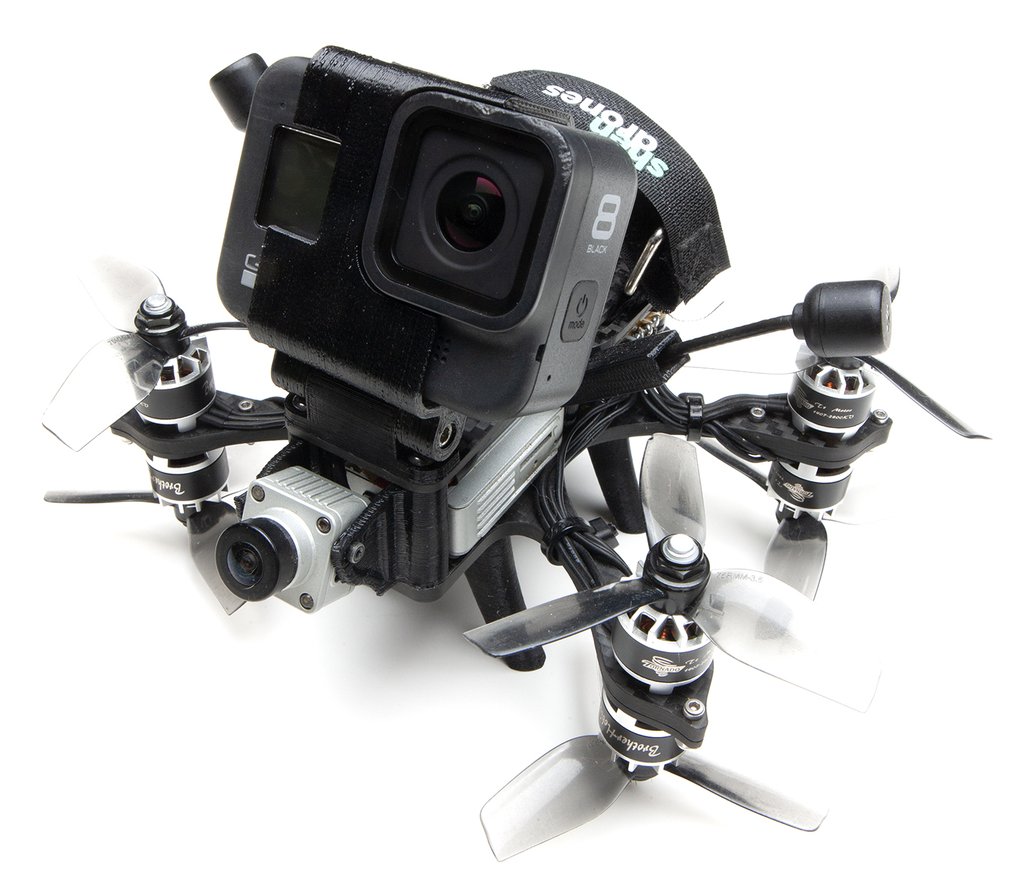

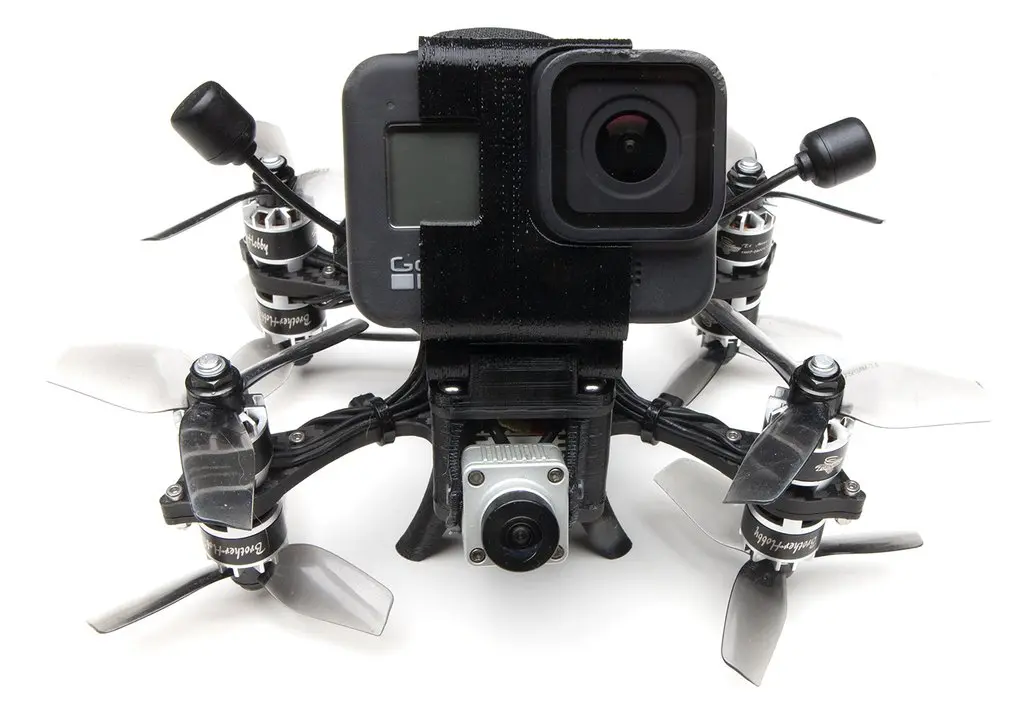

The FPV cam mount and antenna mount wedge in the DJI air unit.
They recommend running 1407 2800kv’s with an 850mAh 6s.
You can print the parts yourself, the files are here. If you’d like me to print the parts they can be red, orange, blue, or clear. Leave a note if you have a preference.
I’m calling this a beta ’cause I’m not sure why this little guy needs to exist, other than fun, or a tiny cine platform that can be as fast as a 5″. The frame design is pretty solid and I don’t anticipate it changing much.
Read more about it here.

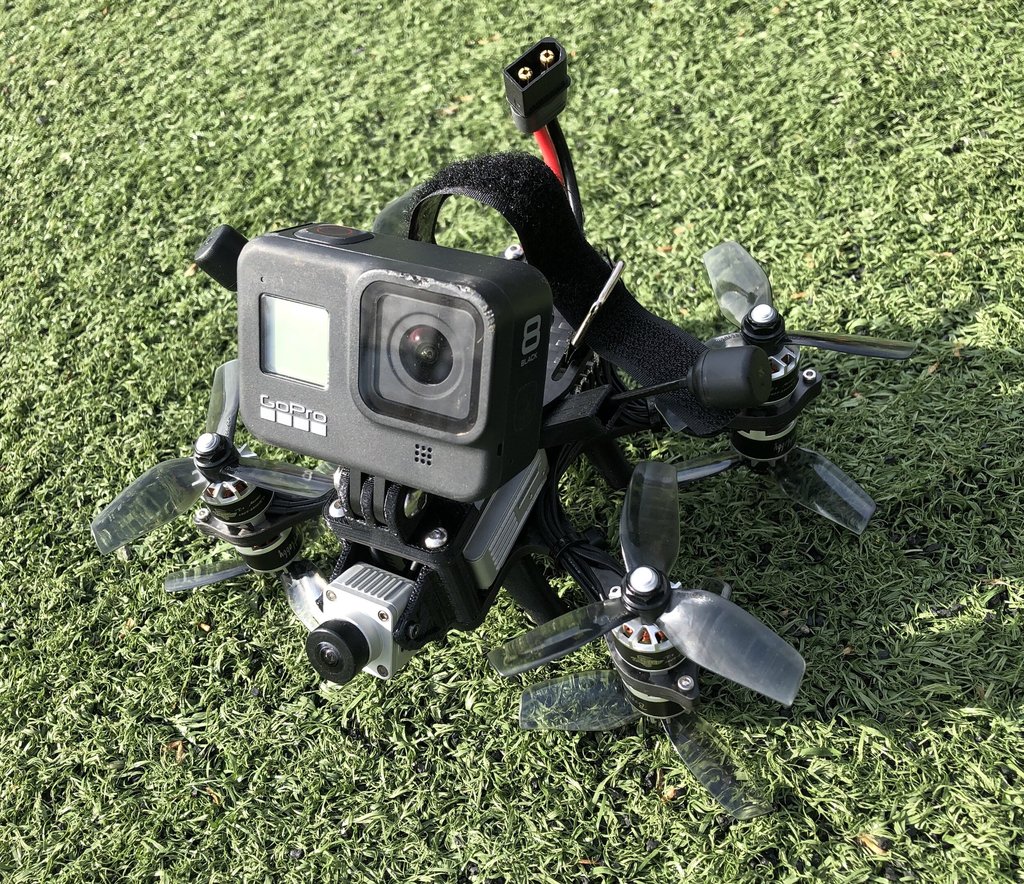

Includes variable angle 3D Printing hardware for Hero 8
