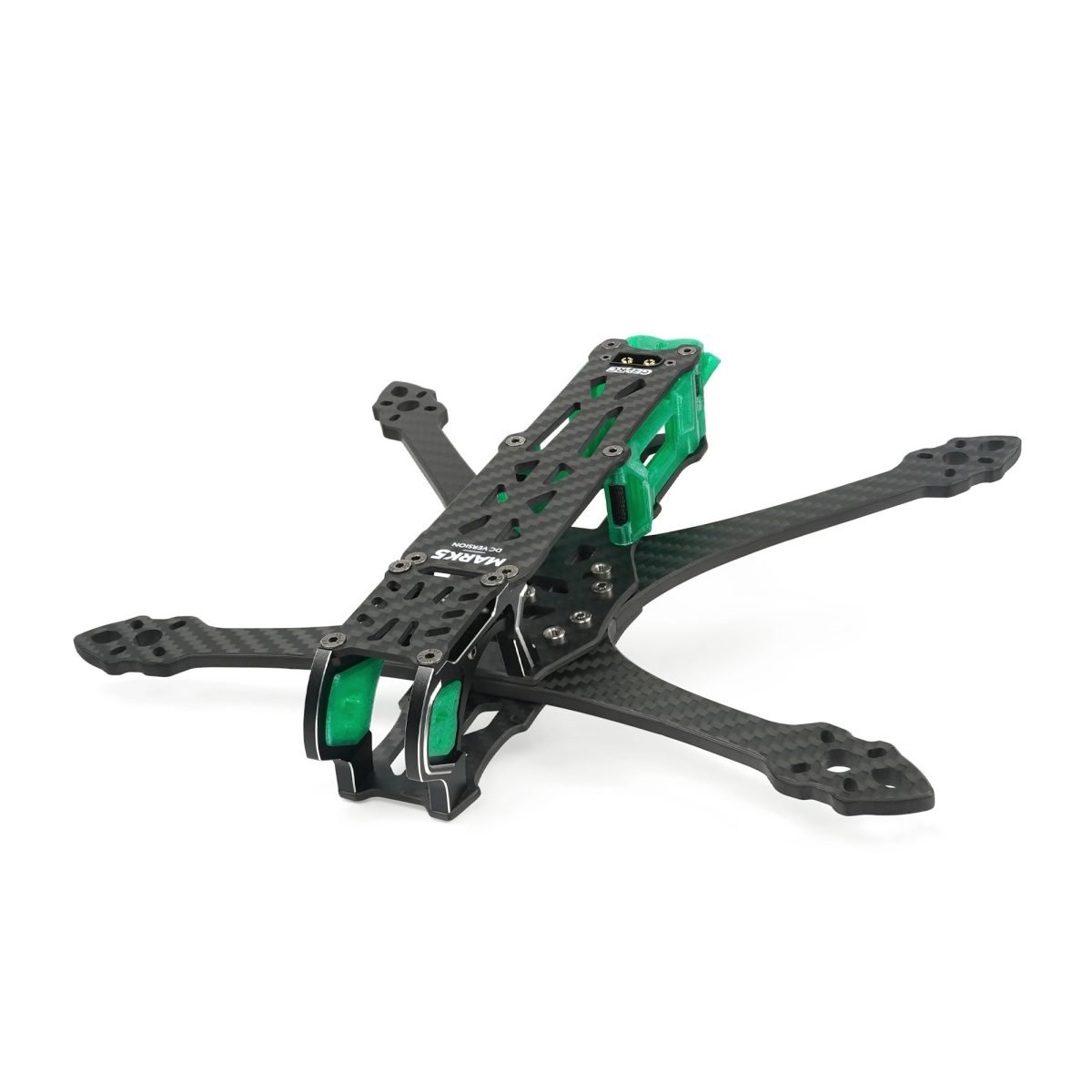

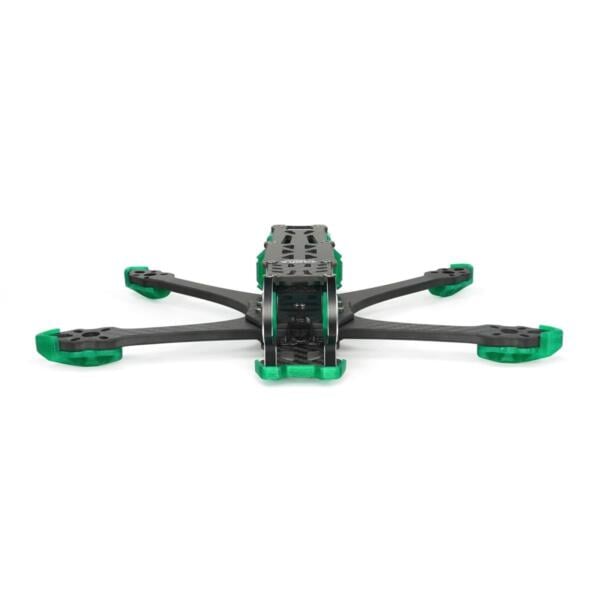

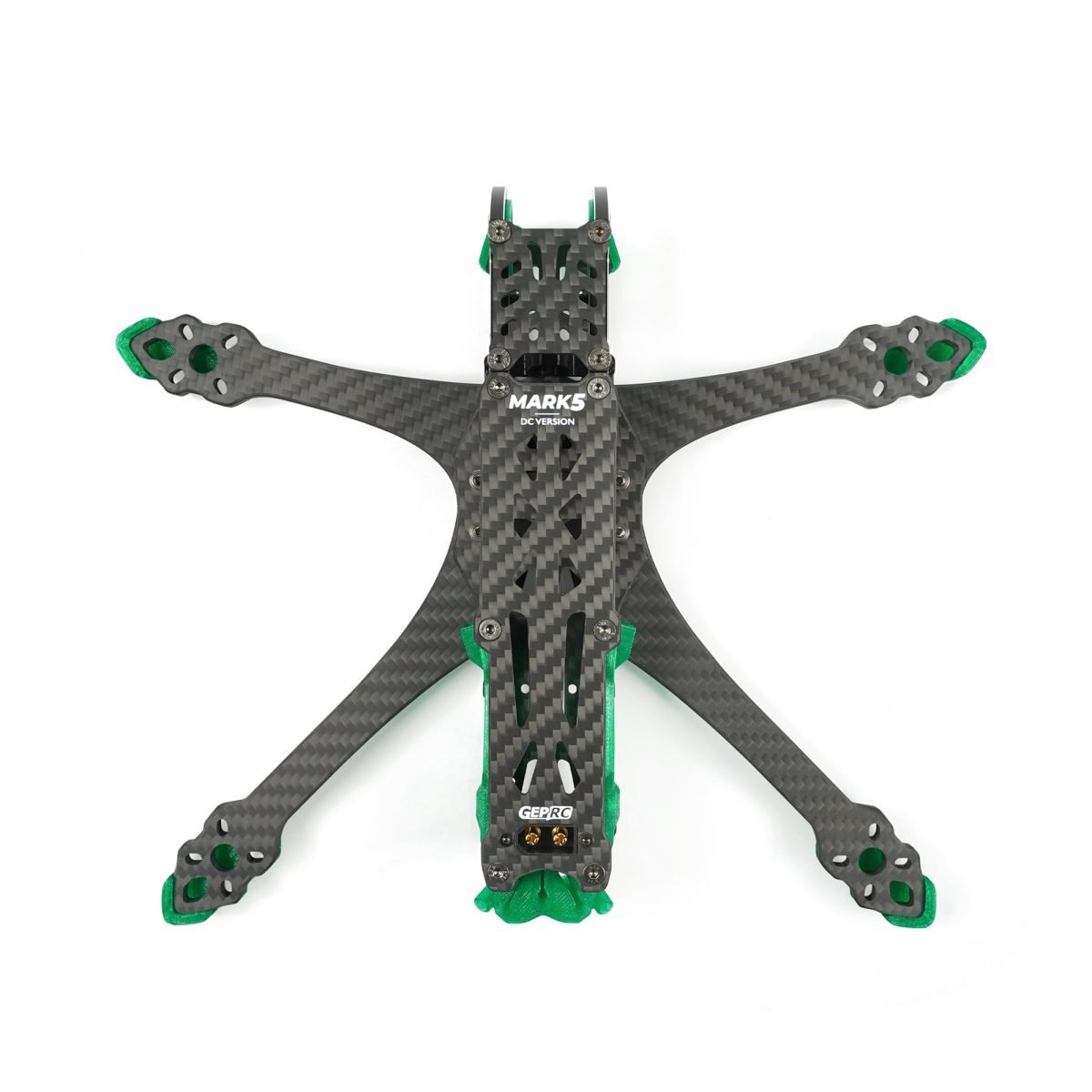

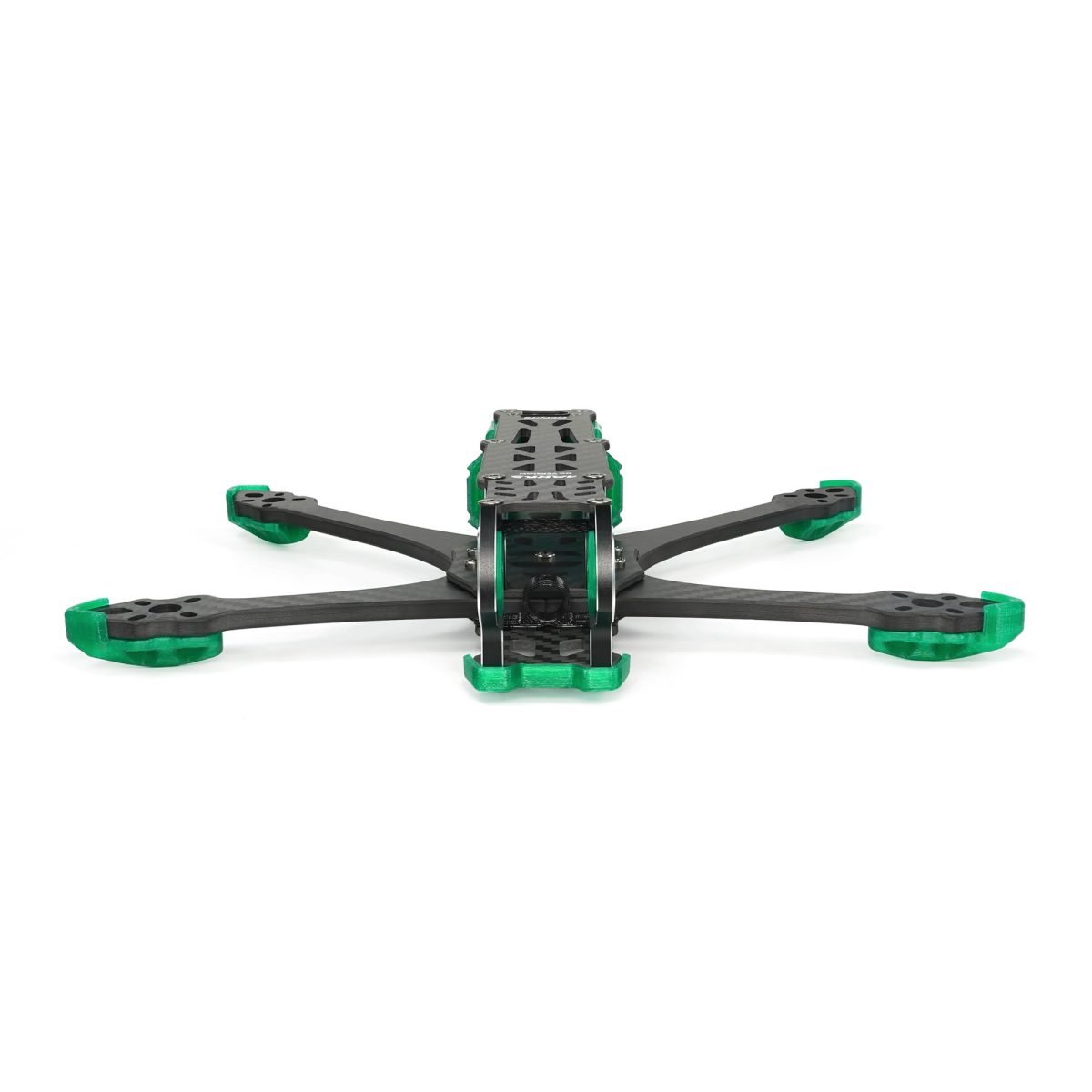

GEPRC MK5D O3 Standard Frame – Green

Build the ultimate 5-inch freestyle or cinematic drone with the GEPRC MK5D O3 “Deadcat” Frame, now in a vibrant Emerald Green. This frame is engineered specifically for pilots using the DJI O3 Air Unit who demand a prop-free view for their stunning HD footage. The “squashed X” or Deadcat-style arm layout ensures your propellers stay out of the camera’s sight, making it the perfect platform for capturing clean, immersive video.

Crafted for durability and performance, the MK5D features robust 5mm thick arms and upgraded aluminum alloy side plates to protect your camera. GEPRC’s unique frame shock absorption design isolates the electronics from vibrations, providing a stable operating environment for your flight controller and gyroscope. This results in less jitter, smoother flight, and incredibly stable footage.

The MK5D O3 frame is highly versatile, offering compatibility with a wide range of components. It supports motors with both 16x16mm and 19x19mm mounting patterns and provides a 20mm installation space for your O3 Air Unit or other camera systems. With a host of included 3D printed parts, you can easily mount a full range of GoPro cameras, as well as the Naked GoPro 8, Insta360 GO2, and Caddx Peanut, making it a truly universal cinematic tool.

KEY FEATURES

• Prop-Free View: The DC (Deadcat) structure is optimized for DJI O3 onboard recording, ensuring no propellers appear in your flight footage.
• Durable Construction: Features 5mm carbon fiber arms, 2.5mm top/bottom plates, and upgraded aluminum alloy camera side plates for maximum rigidity and crash resistance.
• Advanced Shock Absorption: A unique frame design minimizes vibrations, providing a stable environment for electronics and resulting in smoother video.
• High Versatility: Supports various action cameras with included 3D printed mounts and is compatible with motors using 16x16mm or 19x19mm mounting holes.
• Optimized for O3: Designed with dedicated mounting and space for the DJI O3 Air Unit, including an independent capacitor and buzzer cabin for a clean, stable build.
• Complete Kit: Includes a comprehensive set of hardware, 3D printed parts, battery straps, and tools for a full frame assembly.

SPECIFICATIONS

• Model: GEP-MK5D O3 Frame
• Wheelbase: 230mm
• Arm Thickness: 5mm
• FC Mounting: 30.5mm x 30.5mm
• Camera Installation Space: 20mm
• Propeller Size: 5-inch
• Weight (Standard Version): 168.0g

INCLUDES

• 1 x Full GEPRC MK5D O3 Standard Frame Kit
• 1 x Set of Screws and Hardware
• 1 x Set of 3D Printed Mounts (Camera, VTX, Antenna)
• 2 x M20x250mm Battery Straps
• 1 x Full Set of Accessories (Pads, Mats, Tools)
