Flywoo FlyLens 85 Frame kit V1.3 (O3 Lite / O4 )

Flywoo FlyLens 85 Frame kit V1.3 (O3 Lite / O4 )

Check out all of our Flywoo products!

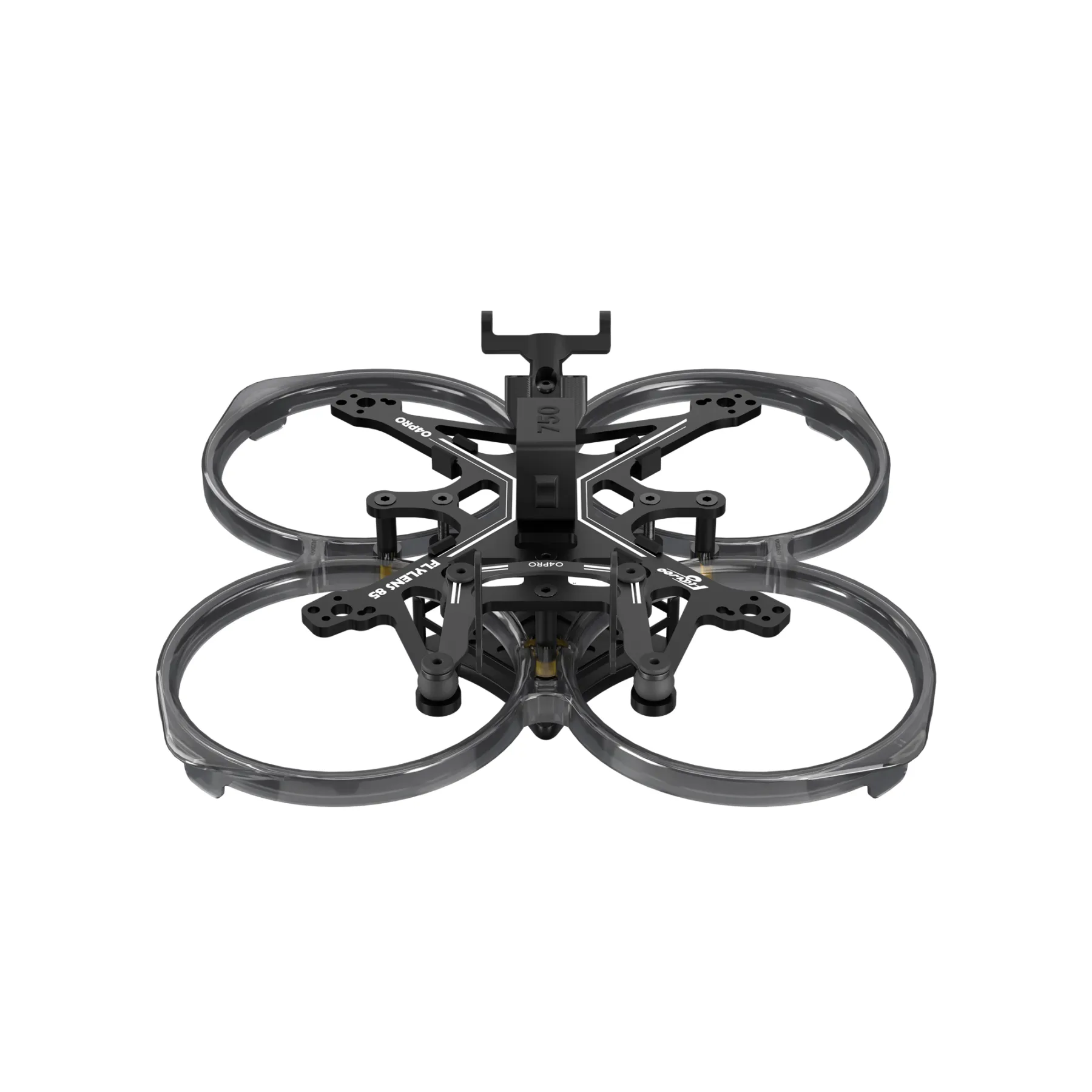

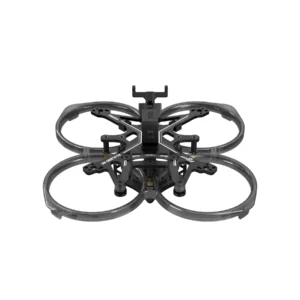

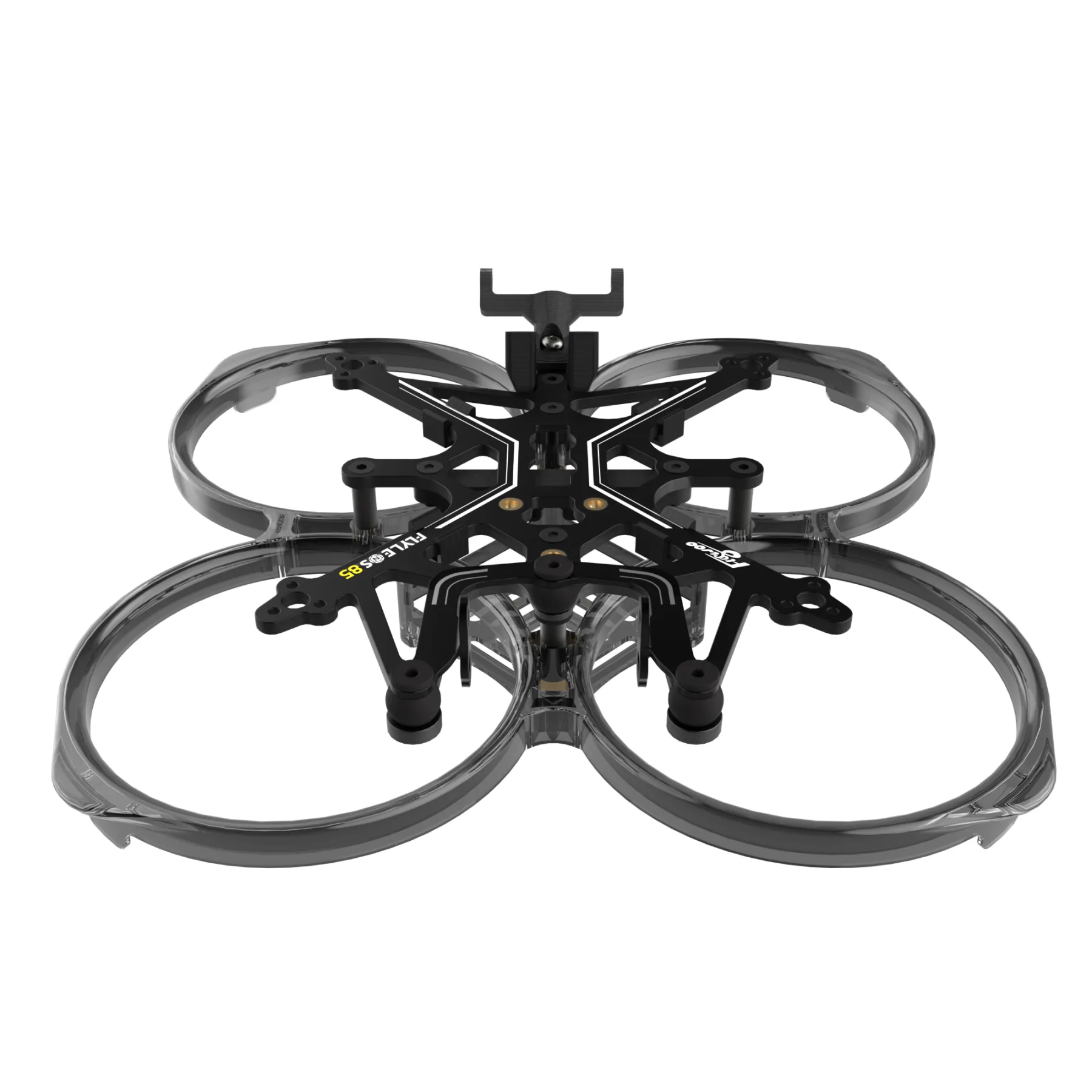

Flywoo FlyLens 85 Frame Kit V1.3 (O3 Lite / O4) – Lightweight 2-Inch Whoop Frame for FPV

The Flywoo FlyLens 85 V1.3 is a compact 2-inch whoop-style frame designed for indoor flying, tight spaces, and smooth cinematic footage. Compatible with DJI O3 Lite, O4, and analog systems, this frame is optimized for micro FPV builds under 250g, making it ideal for pilots who want a lightweight yet durable setup.

Key Features:

• Compact and Lightweight – Weighing only 27g, it keeps builds under 250g for compliance in many regions.

• Supports DJI O3/O4 & Analog – Enables long-range, low-latency HD transmission.

• High-Strength PC+ Protective Ring – Durable injection-molded design for better crash resistance.

• CNC Damping Platform – Reduces vibrations for smoother video recording.

• Bottom-Mounted VTX Compartment – Protects the video transmitter while improving heat dissipation.

• Quick-Release Frame Design – Easy disassembly for maintenance and upgrades.

• Reverse-Thrust Propeller Setup – Improves flight stability and efficiency.

• Compatible with Accessories – Supports wireless LED light strips for night flying.

Specifications:

• Brand: FLYWOO

• Model: Flylens 85 V1.3

• Frame Thickness: 2mm (main board), 1mm (CNC gimbal)

• Protective Ring Material: PC+

• Flight Control Mounting: 25.5×25.5mm

• VTX Mounting: 20/25.5mm

• Motor Hole Position: 6.6mm (hole 1.4mm)

• Propeller Size: 2-inch

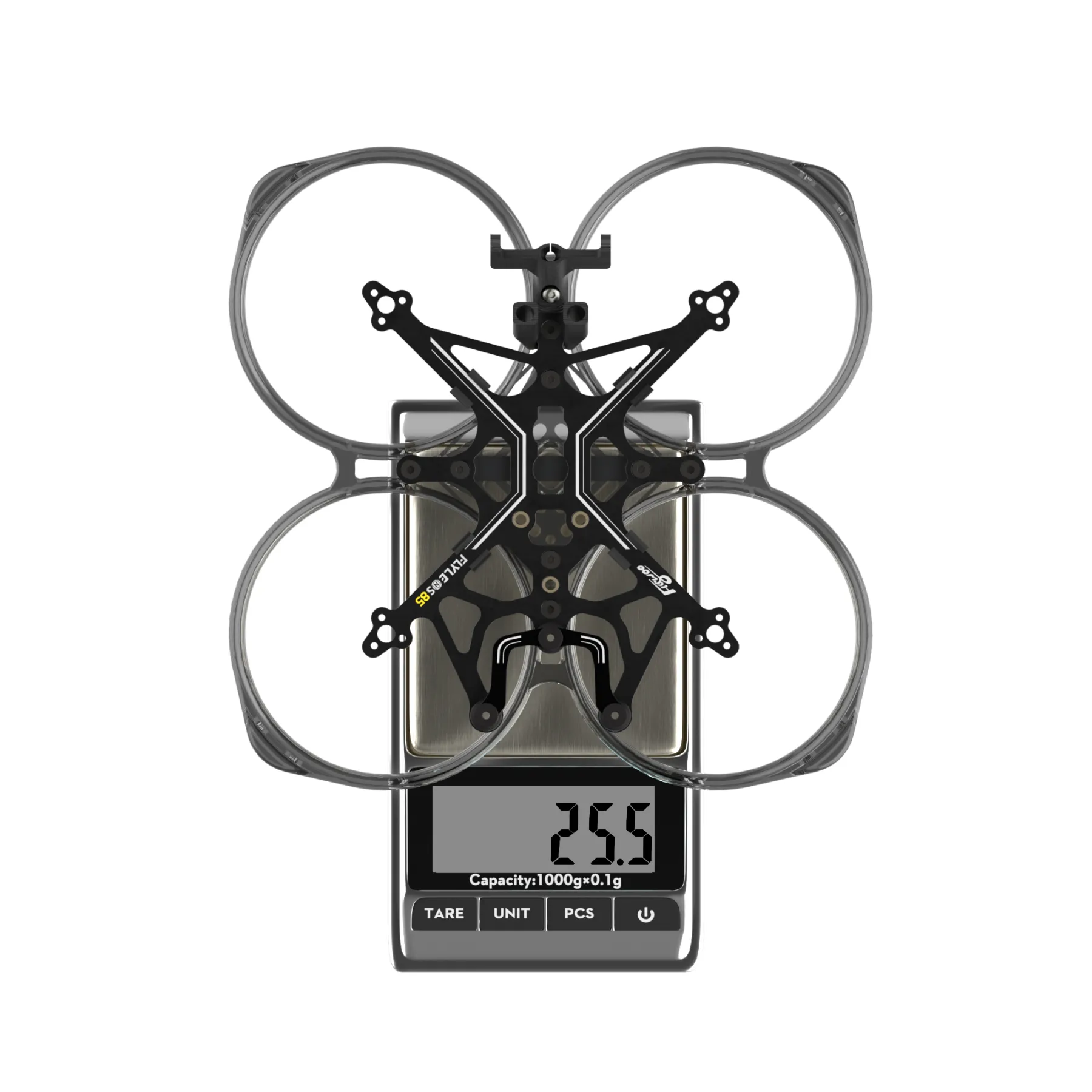

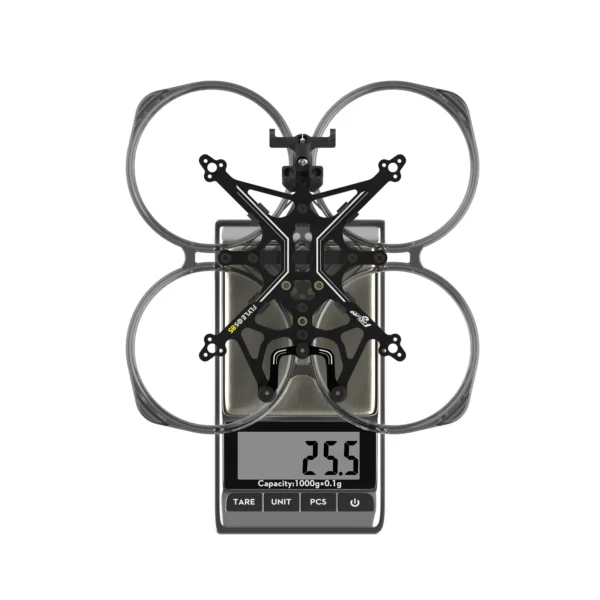

• Weight: 27g (with hardware), 25.5g (frame only)

The Flylens 85 is an excellent choice for FPV pilots looking for a small, agile frame that delivers reliable performance for freestyle, racing, and cinematic flying.
