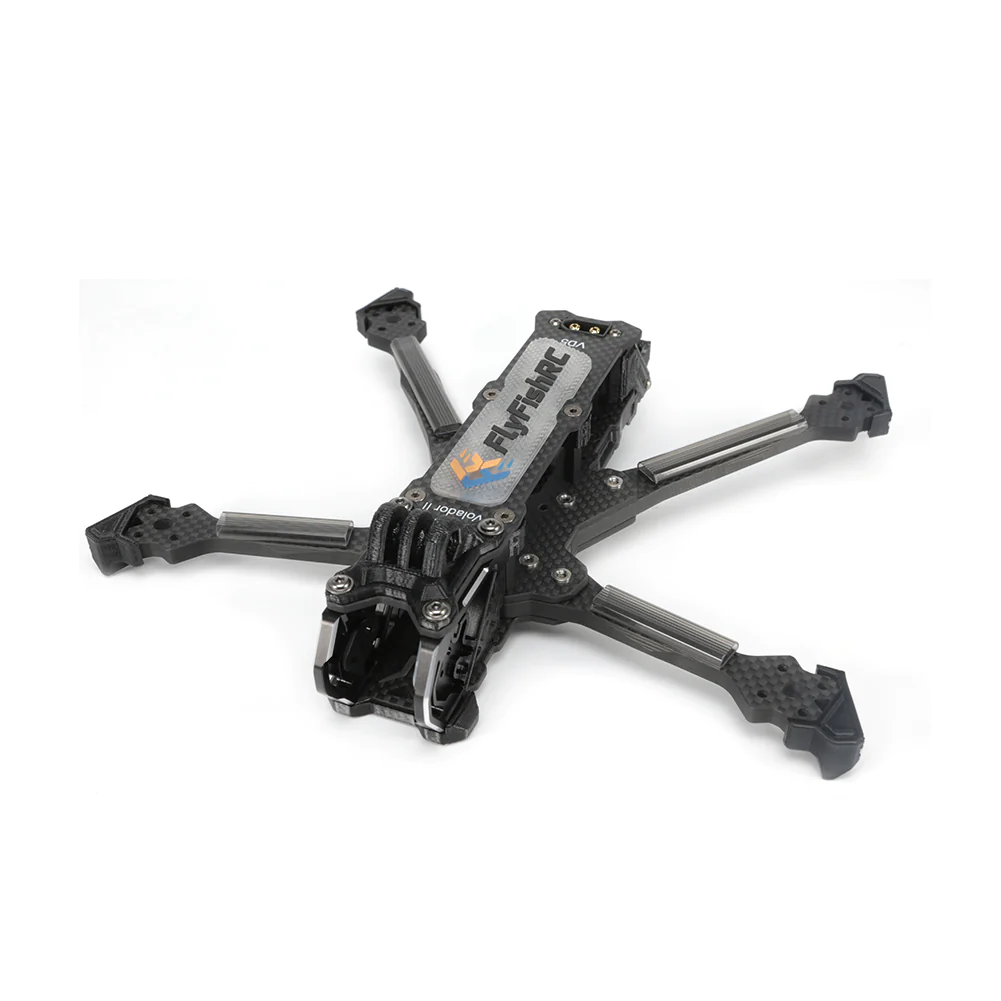

Volador II VD5 O3 Deadcat FPV T700 Frame Kit
Introducing the Volador II VD5 O3 Deadcat FPV T700 Frame Kit, a finely tuned evolution of the acclaimed 5” frame, born from the collective wisdom of the FPV community and the innovative spirit of its creators. Acknowledging the invaluable feedback from pilots like Ryan Harell and Kai Lin, this second iteration embraces a plethora of enhancements designed to elevate the piloting experience.
At the heart of the Volador II VD5’s design is its Deadcat style configuration, eliminating prop view for a clear visual feed, making it an ideal choice for FPV filmmakers and enthusiasts alike. This configuration, coupled with its compatibility with both analog and HD systems, ensures a versatile and immersive flying experience. The frame’s independently detachable arms and precisely engineered structure significantly reduce resonance, offering a smooth and responsive flight.
Craftsmanship meets high-tech with the frame’s construction from the highest quality T700 carbon fiber and CNC aluminum alloy parts. These materials not only offer superior durability and a sleek aesthetic but also ensure smooth surfaces and uniformly chamfered edges, protecting cables and battery straps from damage.
The Volador II VD5 goes beyond structural integrity, incorporating a silicone shock-absorbing camera plate insert for the DJI O3 Air Unit. This feature promises jello-free DVR footage and is adaptable to 19mm/20mm camera formats. The frame’s design also integrates an XT60 connector at the tail for safer and easier battery connections, alongside innovative anti-slip battery pads for enhanced grip.
This frame kit is meticulously outfitted with all necessary accessories for building an analog or HD setup, including hardware with pre-applied Loctite for unparalleled reliability. Its TPU parts, praised for their perfect fit and contribution to the frame’s durability, now come in an eye-catching Tropical Mix Set, showcasing the brand’s dedication to both function and form.
The VD5 variant presents itself as not just an upgrade but a new benchmark in frame design, blending the best of lightweight architecture with uncompromised strength and aesthetic appeal. Whether you’re seeking smooth cinematic shots or agile freestyle maneuvers, the Volador II VD5 O3 Deadcat FPV T700 Frame Kit stands ready to redefine your flying experience.
Volador II Assembly Guide:
V2 Features:
High-end T700 carbon fiber
Tight structure design minimizes resonance
The new CNC aluminum camera plates effectively protect the camera
The silicone shock-absorbers for the O3 AU eliminate jello

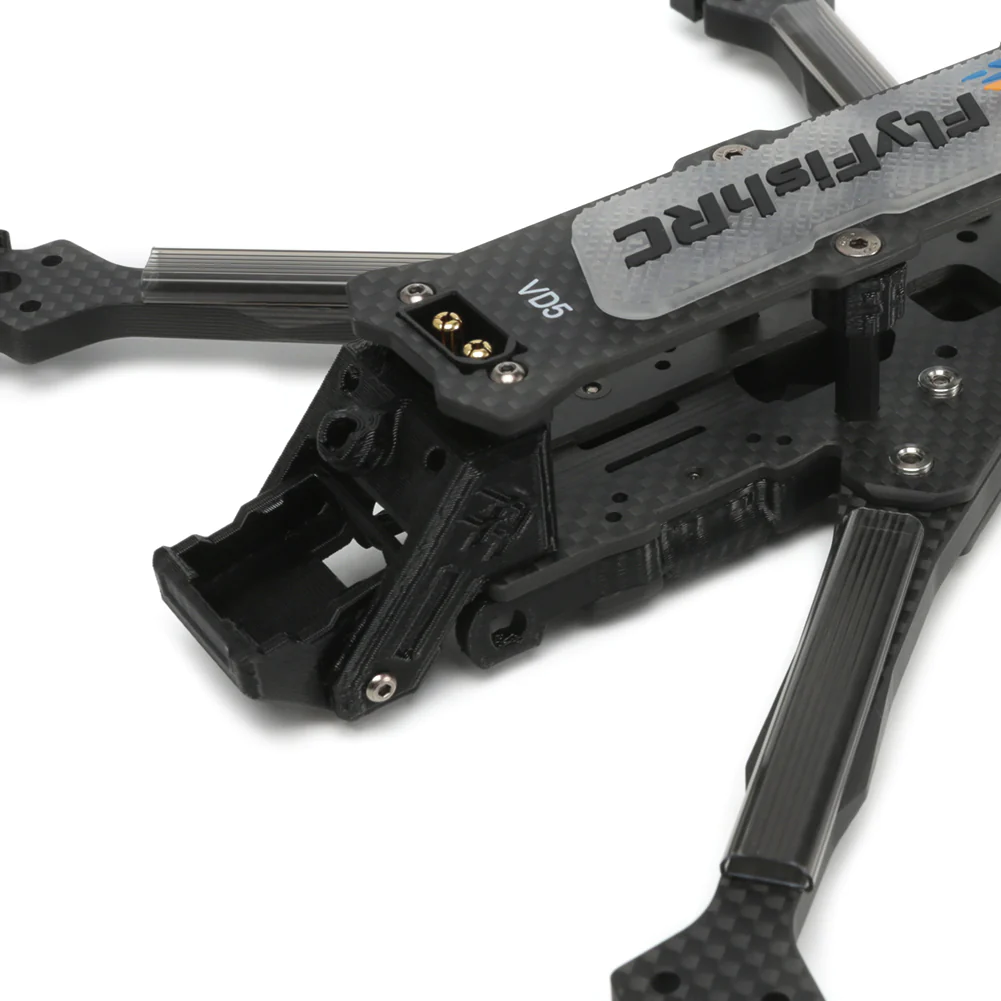

Integrated XT60 connector for safety and reliability
High-quality TPU parts
Innovative anti-slip battery pads
New motor wire protection tubes
Compatible with both 19/20mm cameras
Equipped with all accessories needed for analog and HD builds
12.9-grade strength hardware with Loctite threadlocker pre-applied
High electronics compatibility
V1 to V2 notable differences:
The frame is now significantly lighter.
The new CNC side plate is lighter and perfectly fits the DJI O3 AU camera.
The new battery anti-slip pad is more “sticky” and has better adhesion.
Added keystone to even further reduce arm vibration.
Added bottom screw gasket.
Added motor wire protection tubes.
The four middle screws on the top plate are now countersunk and sit flush, to eliminate possible battery damage during crashes.
The new TPU arm protectors are now lighter and allow for easier disassembly.
All models now come with two types of TPU antenna mount (with or without GPS mount).
The thickness of the bottom and middle plates has been adjusted to 2.5mm.
The connection structure between the arm and the clamp plate is slightly adjusted to distribute stress better.
XT60 plug cutout on the top plate is now symmetrical, allowing installation of the XT60 in both orientations.
VD5 Specifications:
Arm Thickness: 6mm
Top plate thickness: 2.5mm
Middle plate thickness: 2.5mm
Bottom plate thickness: 2.5mm
Keystone thickness:5mm
Side plate thickness:2mm
CNC Side plate thickness:5mm
Propeller size: 5~5.1 inch
Material: T700 carbon plate
FPV cam spacing: 19mm/20mm
Weight: 186.4g(with TPU parts)
Colour: Black/Tropical Mix (Optional)
Total Dimensions:190mm*136mm Wheelbase:225mm
Stack mounting holes: 20mm*20mm/30.5mm*30.5mm(M3)
VTX mounting holes: 20mm*20mm/25.5mm*25.5mm(M2)
