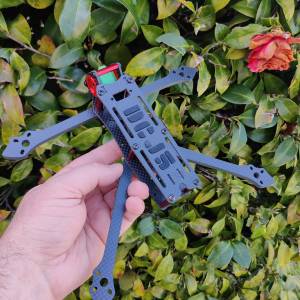

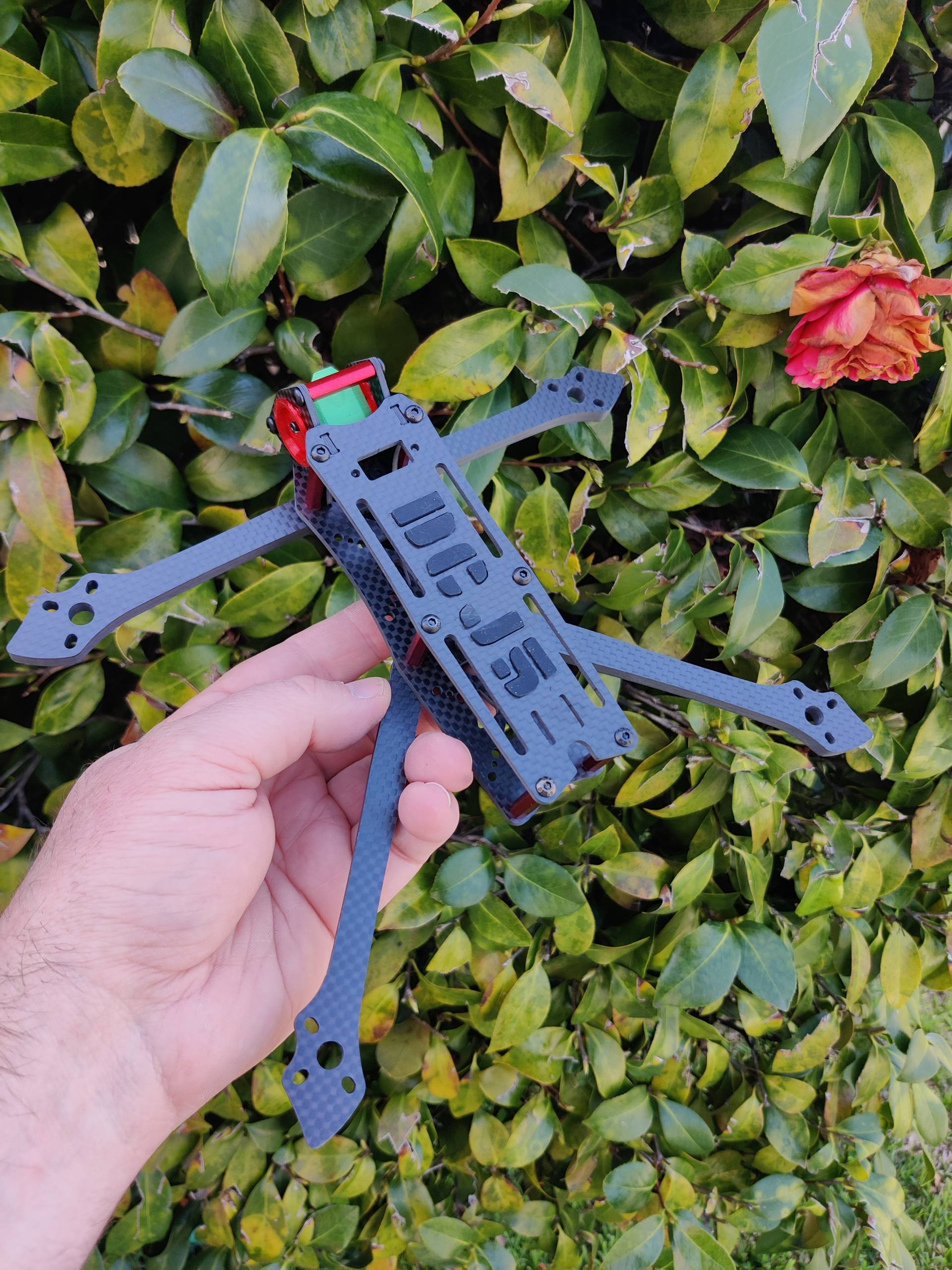

DLQFPV DCJ5 Deadcat Cinematic / Freestyle Frame

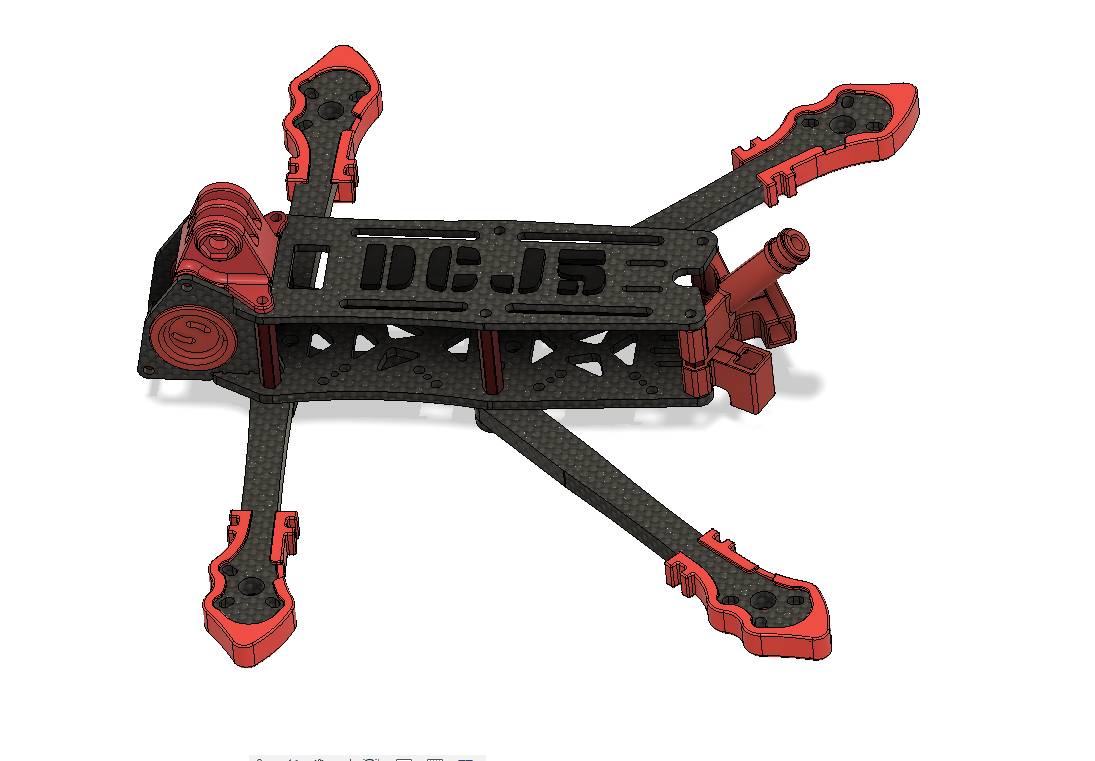

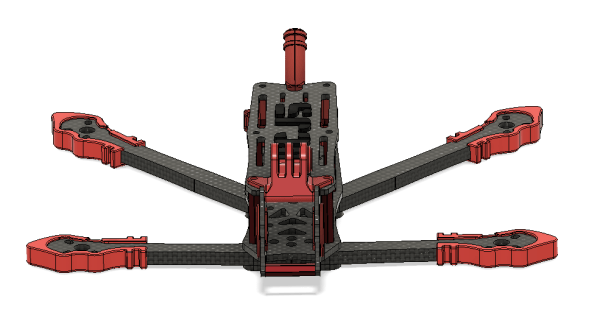

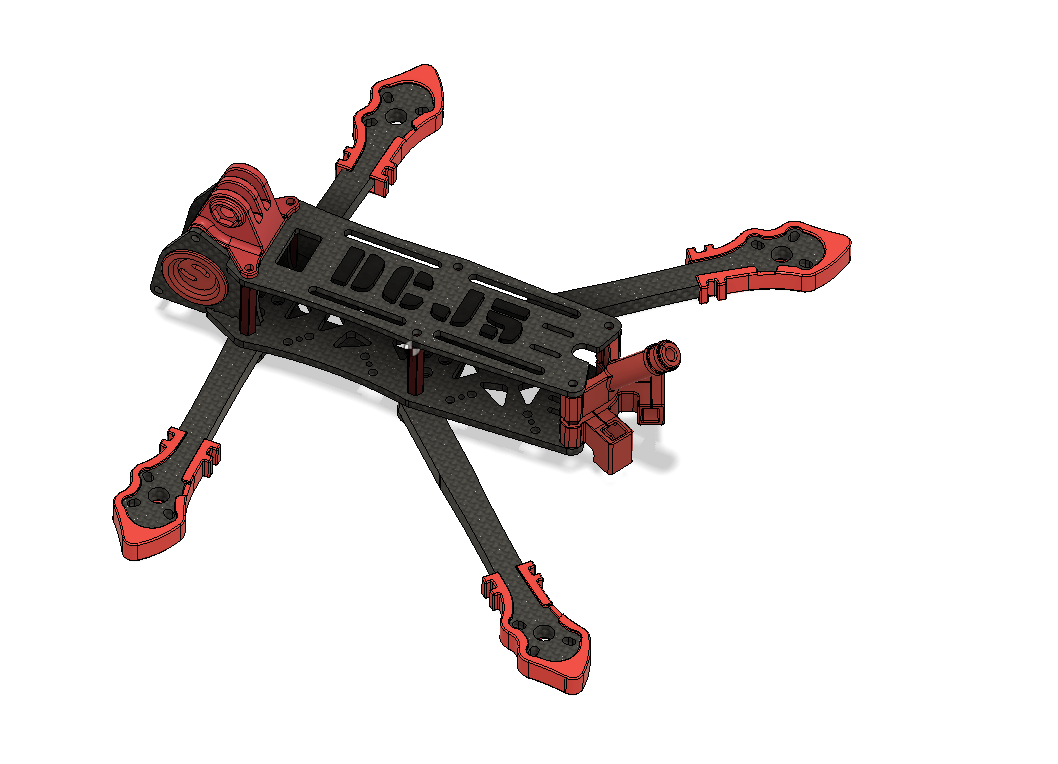

Introducing the DLQFPV ASBO DCJ5, a 5-inch FPV frame masterfully designed for high-speed chases and dynamic cinematic freestyle. Inspired by Team ASBO pilot SeaJayeFPV, this frame features a unique “deadcat” geometry to guarantee a flawless, prop-free view. With its incredibly durable construction and versatile component compatibility, the DCJ5 is the reliable partner you need when capturing impressive, fast-paced footage.

Flawless Prop-Free Chase Footage

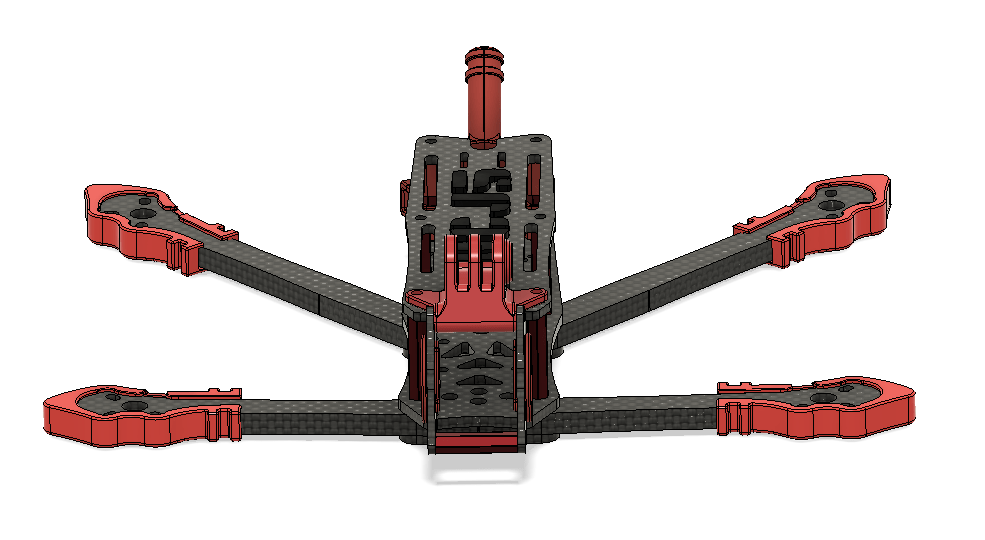

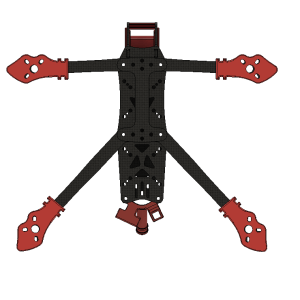

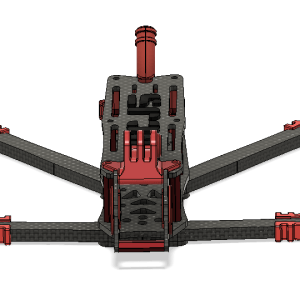

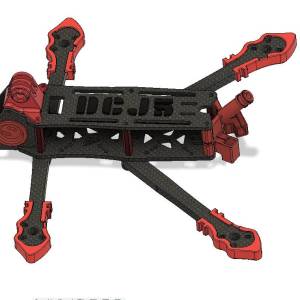

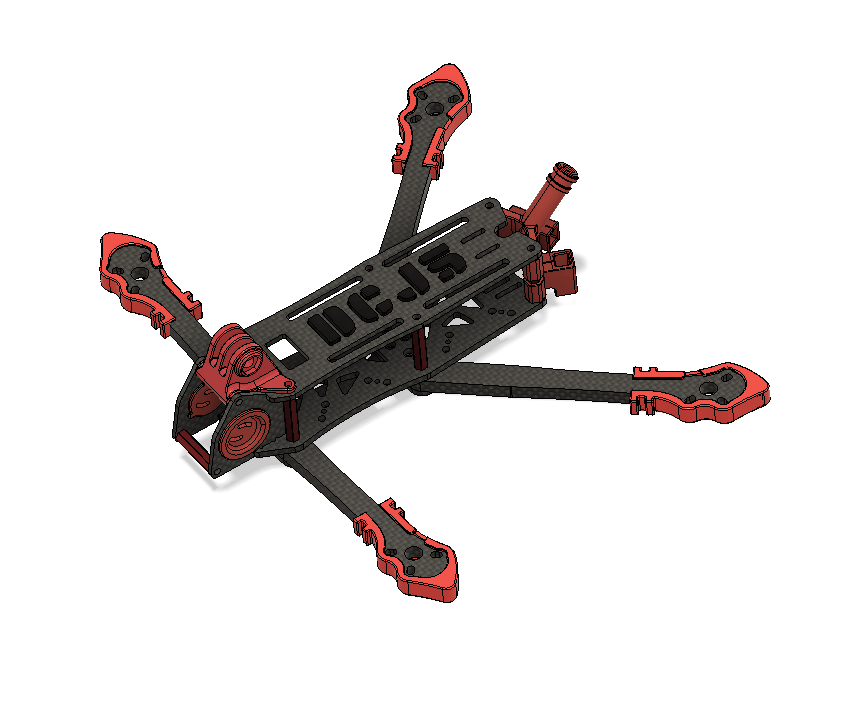

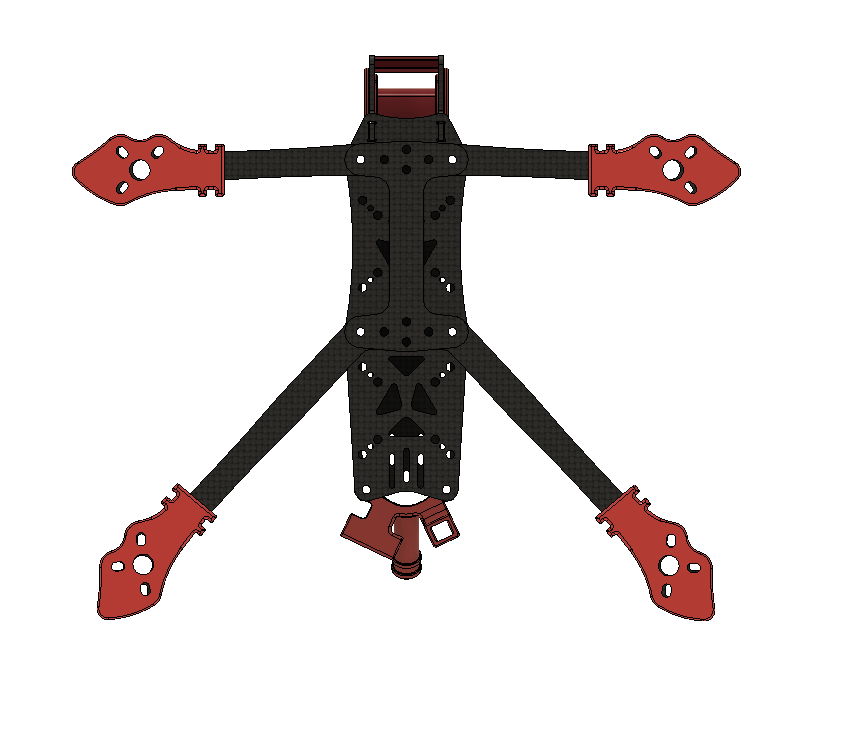

The DCJ5’s “deadcat” design pushes the front arms further back, keeping your propellers completely out of the FPV and HD camera view. This is essential for capturing clean, immersive, professional-looking video when chasing cars, bikes, or other FPV drones. You can fly with confidence, knowing your shot will be perfect.

Built to Be a Beast

Engineered to be a tank, the ASBO DCJ5 is built with massive 6mm thick 3K carbon fiber arms and a 3mm base plate. This robust construction is designed to withstand the intensity of high-speed pursuits and the inevitable tumbles of freestyle flying. The kit also includes TPU arm guards for an extra layer of impact protection for your FPV drone parts.

Versatile & Builder-Friendly

This frame offers incredible flexibility for your FPV drone kit. The main body supports 20×20, 25.5×25.5, and 30.5×30.5mm electronics stacks, ensuring compatibility with almost any AIO or FC/ESC combo. It includes dedicated TPU mounts for your VTX and receiver, plus camera inserts for all popular camera sizes, including the DJI O3.

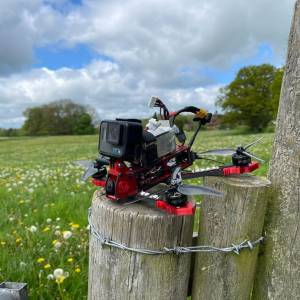

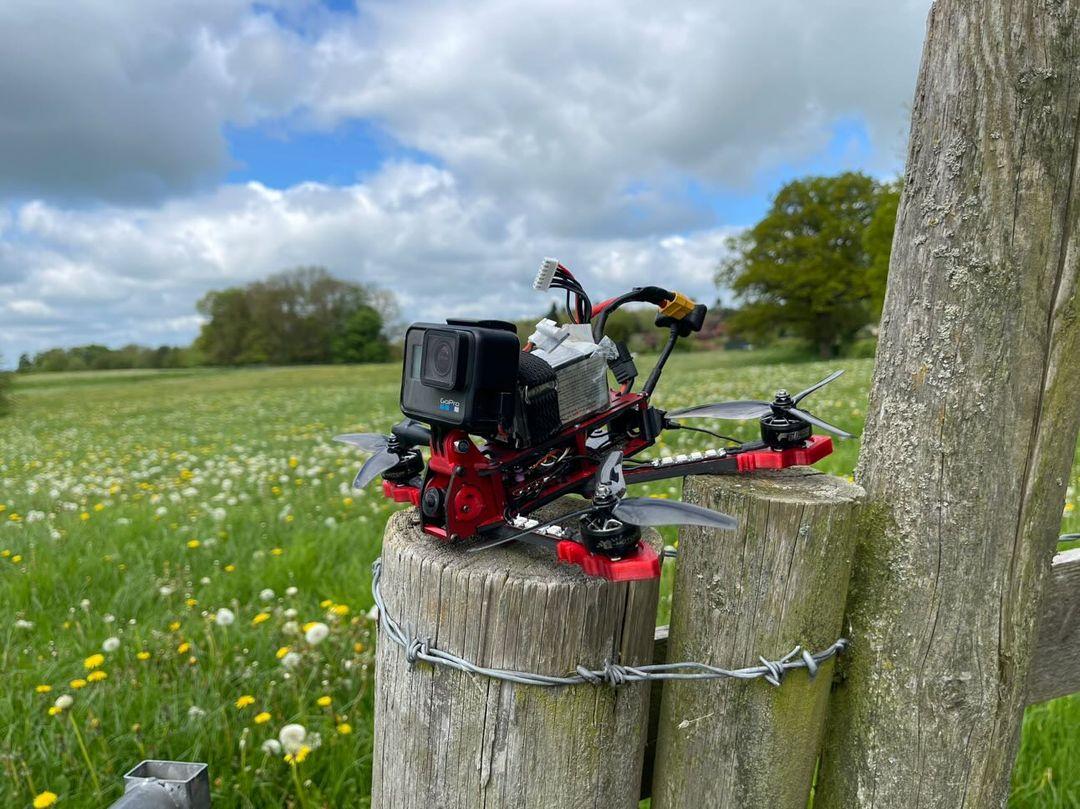

SeaJayeFPV’s Recommended Build

• FC and ESC: Diatone MAMBA H743 w/ 55a 32bit ESC
• Motors: Bosh v2.1 1869kv
• FPV System: DJI O3 Air Unit
• Receiver: ExpressLRS RP3
• Propellers: Gemfan SBANG 4934

Specifications

• Brand: DLQFPV
• Model: ASBO DCJ5
• Propeller Size: 5 inch
• Frame Style: Deadcat
• Arm Thickness: 6mm
• FC Mounting: 20x20mm, 25.5×25.5mm, 30.5×30.5mm
• Motor Mounting: 16x16mm
• Camera Support: 19mm & 20mm (Micro, DJI O3)

What’s in the Box?

• Carbon Fiber:
  • 1x 3mm Base Plate
  • 1x 2.5mm Support Plate
  • 1x 2.5mm Top Plate
  • 2x 2mm Camera Plates
  • 4x 6mm Arms
• Hardware & Accessories:
  • Full Set of Steel Alloy M3 Hardware
  • Red Anodized Aluminum Standoffs (25mm & 22mm)
  • 4x Red Anodized Aluminum Cup Washers

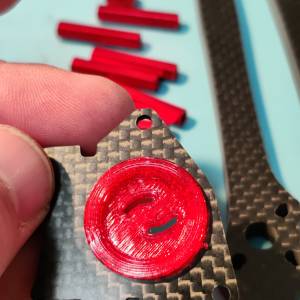

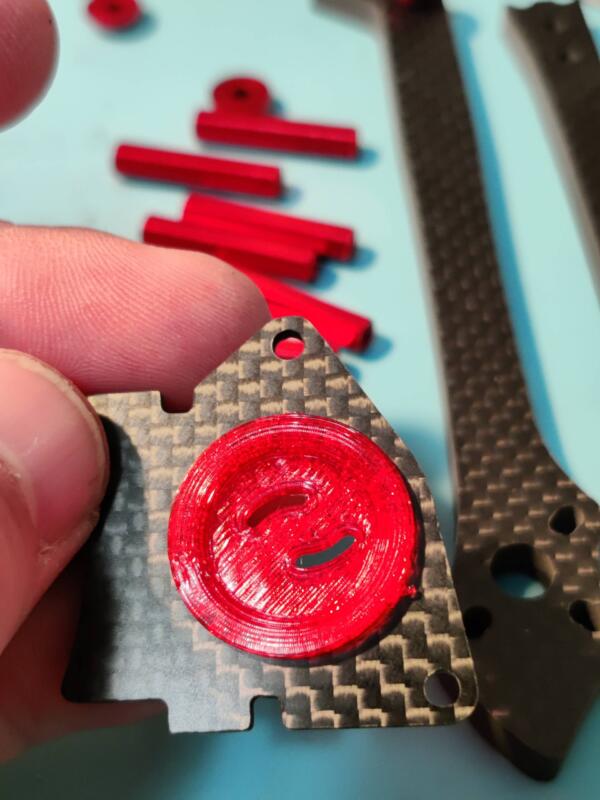

• TPU Parts (Red):
  • 4x Arm Guards
  • 1x GoPro Mount
  • 1x VTX Antenna Mount
  • 1x RX Antenna Mount

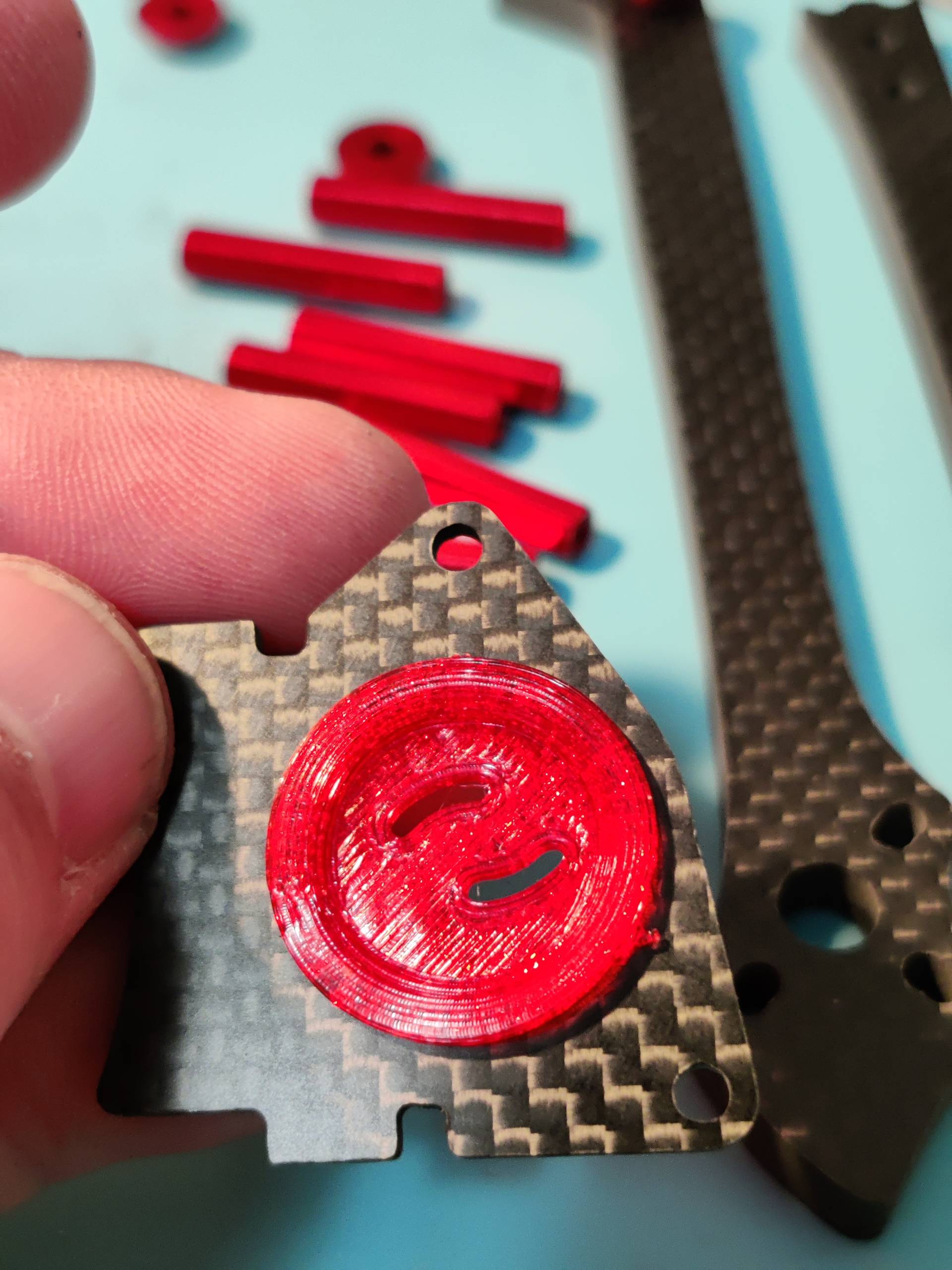

  • FPV Camera Inserts (19mm & 20mm)
