DLQFPV AsboX 3″ Freestyle/Racing Frame (Pick your Canopy)

Check out all of DLQFPVs Products!

MambaFPV has been flying DLQFPV and 8bit Micro frames for the last two years. He came to DLQFPV with a special request. He wanted to take the 8bit nebula he loved so much but give it a Mambafpv twist. DLQFPV ended up with a tank, that is cut from 6mm 3k Carbon Fiber. Along with a Custom TPU Canopy and TPU arm guards, this frame is a beast. Supports 25×25 (whoop style) AIO FC.

The frame has been updated to be even more durable with some modifications made to widen the arms at the base. DLQFPV also went with a 1mm Mamba inlay on each side. All frames carry a one-year warranty as long as your build is within the frame specs.

MyFPVStore Recommended Build Specs

• Speedybee F745 AIO
• Speedybee 4500kv 1404 Motors
• Caddx Vista / Analog VTX
• Nebula Pro / DJI Camera / RunCam Nano Race
• HQ3x3x3 Propellers (T-Style Prop Mounting)

MambaFPV Spec Build (Analog Canopy):

• FC: Diatone Mamba F411 25A BLHeli_S 2-4S AIO Flight Controller
• Motors: XING 1204 4500kv FPV Micro Motor
• FPV Camera: RunCam Nano Race
• VTX: TBS unify nano with linear whip antenna
• RX: CRSF nano
• Props: HQ3x3x3

All ASBO X frames come with the following

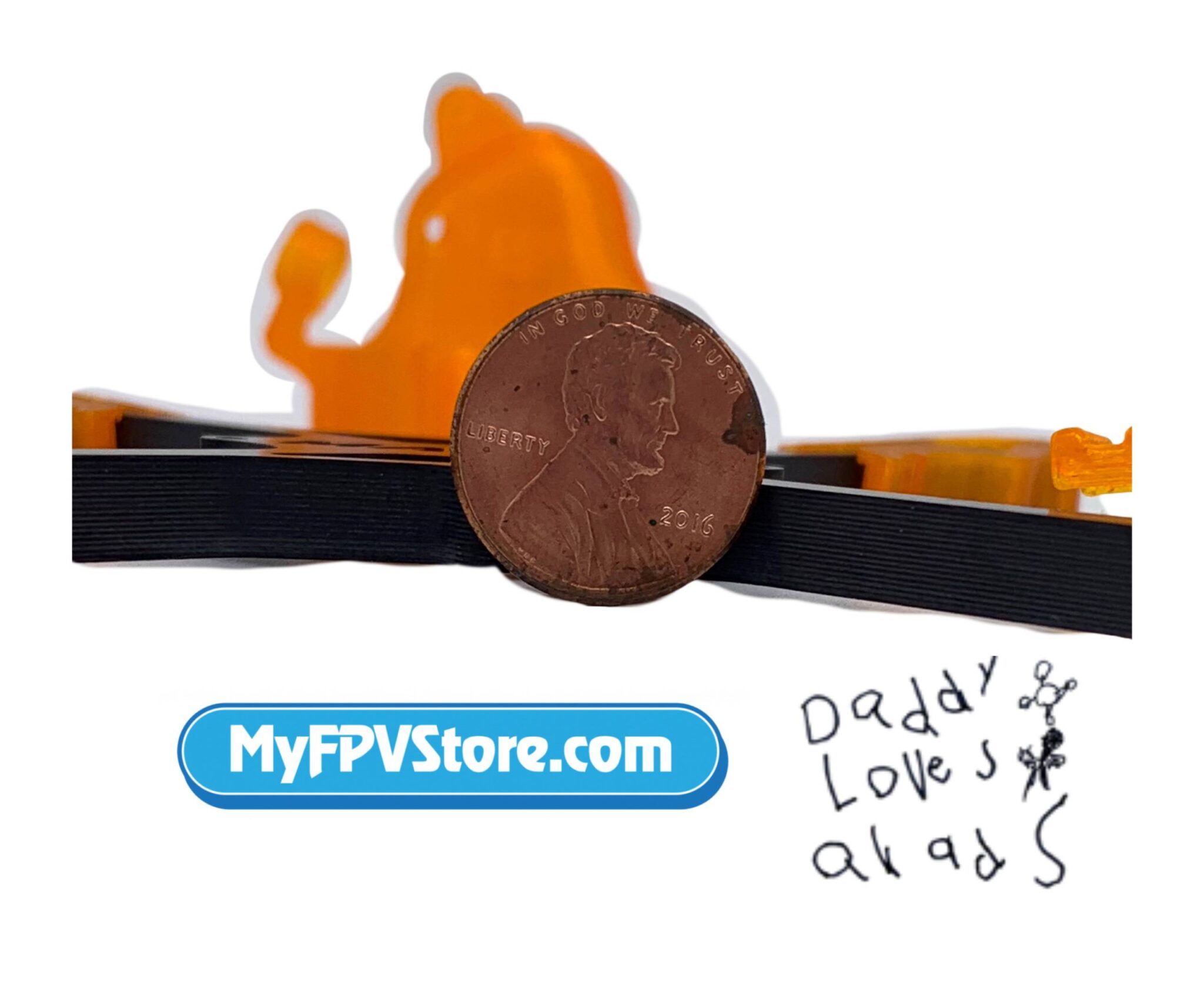

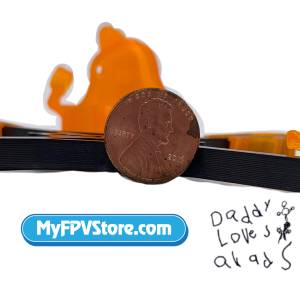

• 6mm 3K carbon frame
• 12 M2 8mm motor mount screws
• 4 M2 25mm FC and Canopy mounting screws
• 4 TPU Arm guards and 1 Canopy (Analog or Vista compatible)
• ASBO X has a 1-year warranty. If you break this tank DLQFPV will replace it for free.

TPU Replacement Parts:

• Canopy
• Arm Guards
• Vistapick V2 Canopy – Caddx Vista Toothpick Mount (Prototype)

**Warranty will be done through DLQFPV.com**
