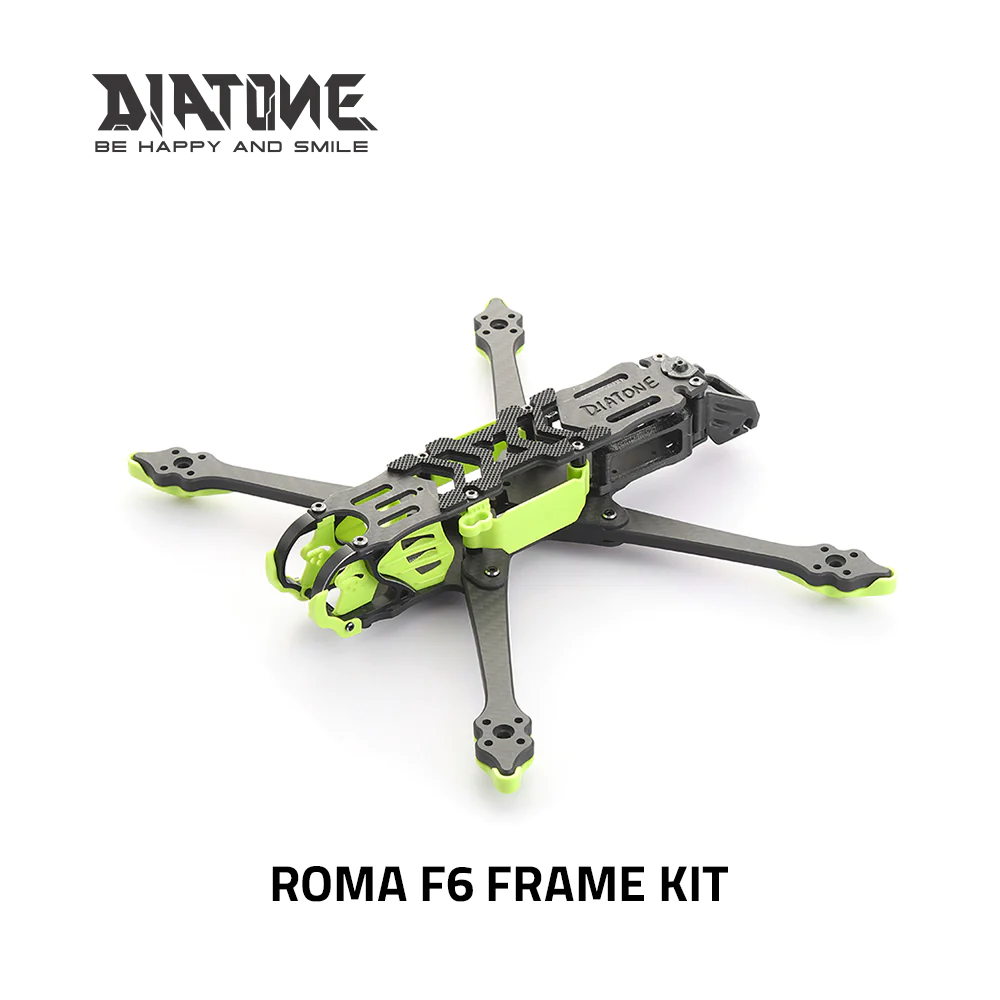

DIATONE Roma F6 FPV Drone Frame Kit
Check out all of our Diatone Products!
Boasting a 260mm wheelbase, 6-inch prop compatibility, and tailored for 23 series motors. Made from premium T300 3K carbon fiber and T7075 metal. Ideal for 4-6S voltage setups. Includes bonus accessories and mounts for DJI and GPS systems.
Specifications:
Wheelbase: 260mm
Weight: 190g
Prop Size: 6 inch
FC Mounting: 30.5×30.5(M3)&20×20mm（M2）
Motor Mounting: 16mm(M3)
Recommended Motor Size: 23 Series motor
Top Plate: 2.5mm
Medium Plate:2mm
Bottom Plate: 3.5mm
ARM Thickness: 6mm
Max Stack Height: 23mm
Rated Voltage（Recommendation): 4-6S
Drone nose metal parts： T7075
carbon fiber: T300 3K
Green Plastic Injection Part in Default
Includes:
Head aluminum protection, Camera mount, Arm protection, General GOPRO fixed base, and the Stack side plate
Printed Parts:
M8PLUS GPS/SMA analog antenna base *1
M22 GPS/DJI dual antenna mount *1
DJI mount *1
