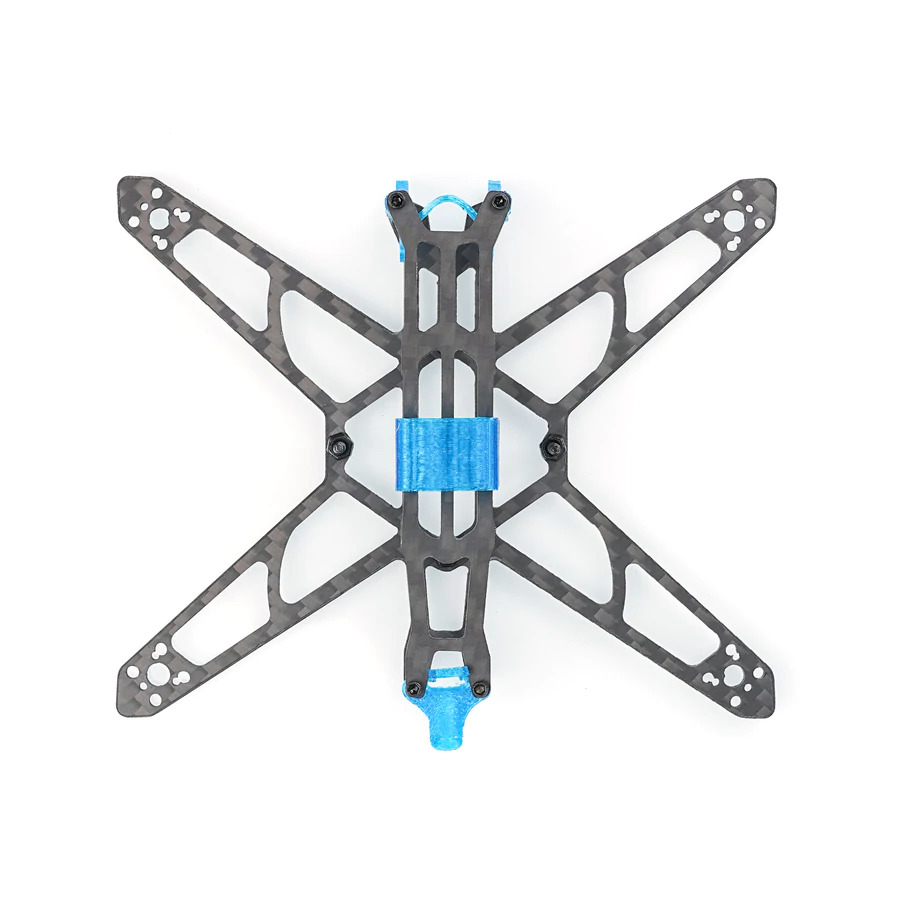

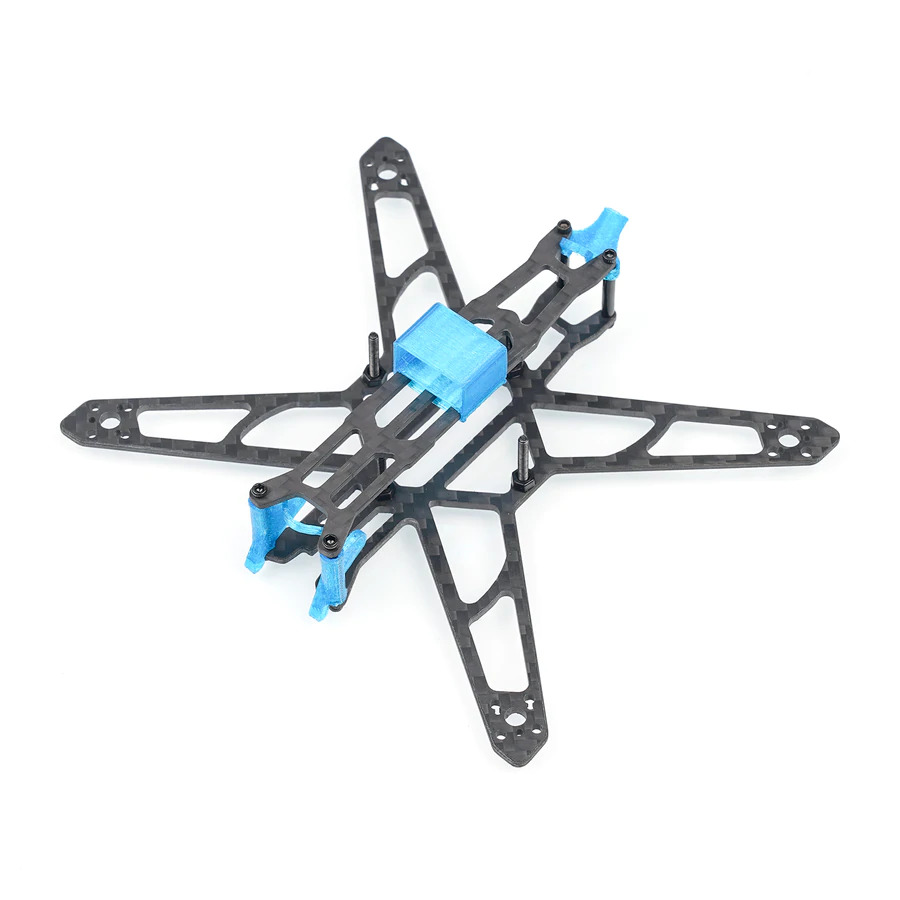

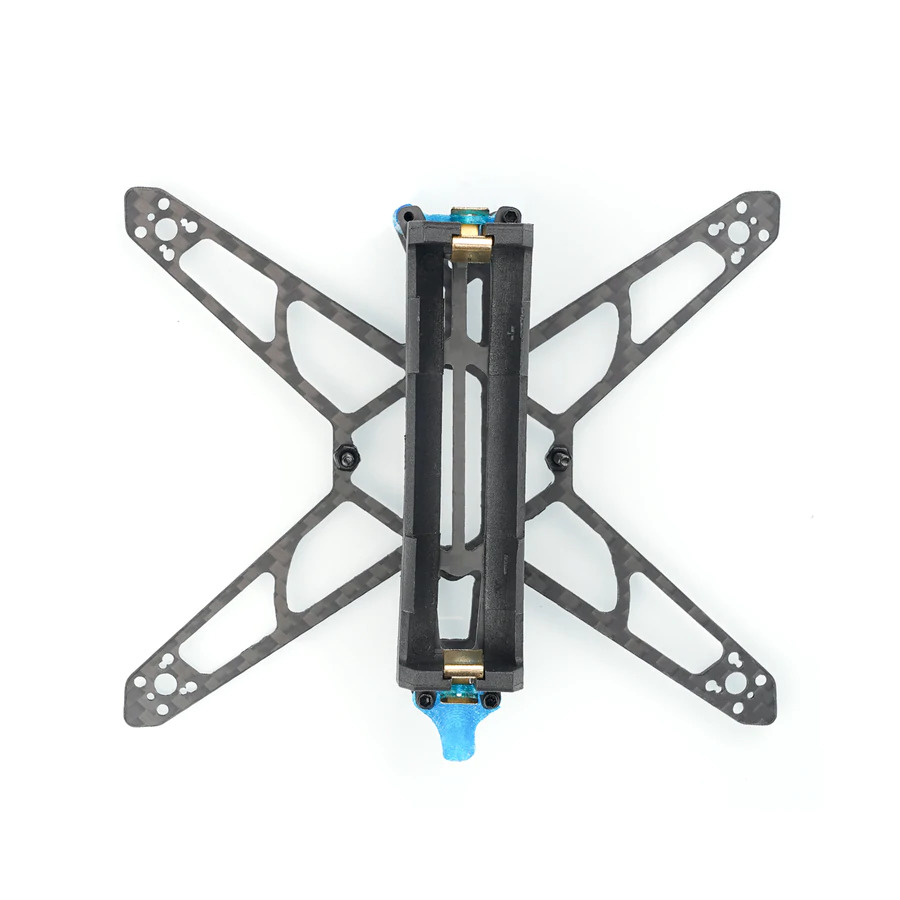

BetaFPV HX115 LR Frame Kit

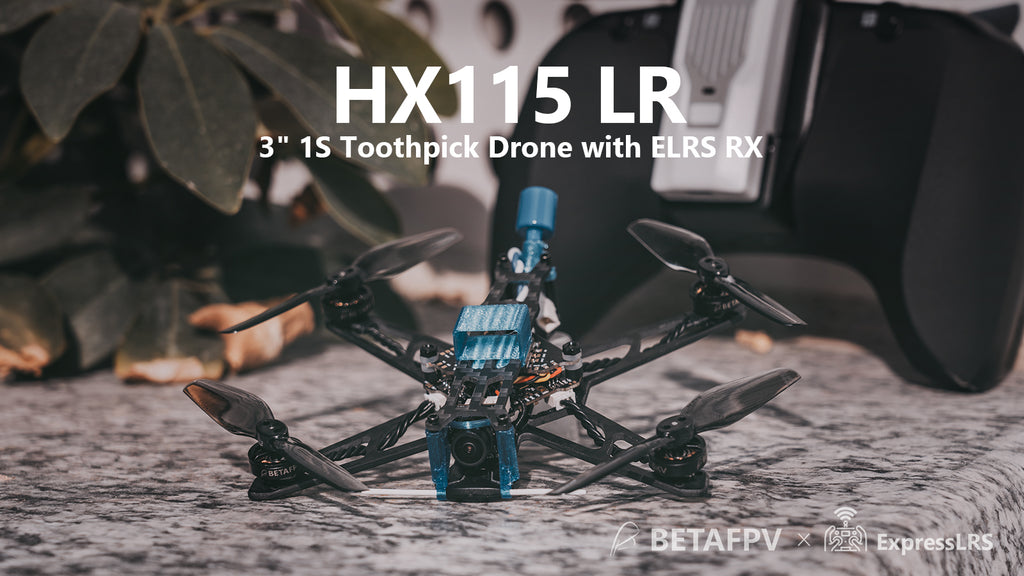

This is the frame kit for the HX115 LR drone. It is designed for a long-range ultralight 3″ 1S drone with the 12A 1S FC board integrated ExpressLRS receiver.

Specification

• Material: T700 Carbon Fiber

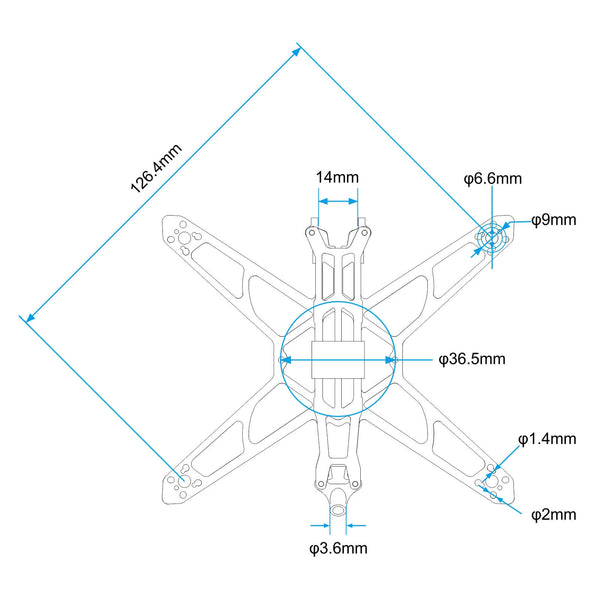

• Wheelbase: 126mm

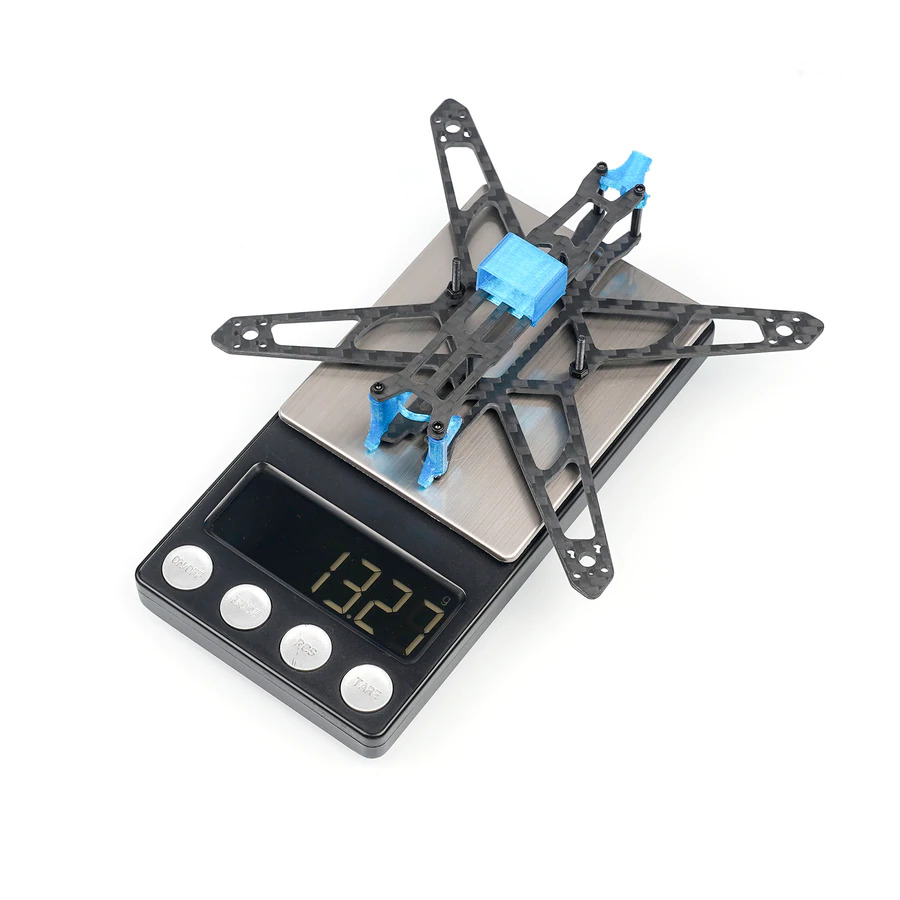

• Weight: 14g
• Top plate thickness: 1.5mm
• Bottom plate thickness: 2.0mm
• Motor mounting hole (4 holes pattern):  9 x 9
• Motor mounting hole (3 holes pattern):  6.6 x 6.6
• FC mounting hole: 26.5mm x 26.5mm

Recommend Parts

• Recommend for drones like HX115 SE Toothpick Drone / HX115 LR Toothpick Drone
• Battery: BT2.0 450mAh 1S 30C Battery
• Motor: 1102 18000KV motor
• Propeller: HQ3020 2-blade props

Package

• 1 * HX115 LR frame
• 4 * Aluminum standoff 15mm
• 8 * M1.6 screws
• 3 TPU 3D printed parts
