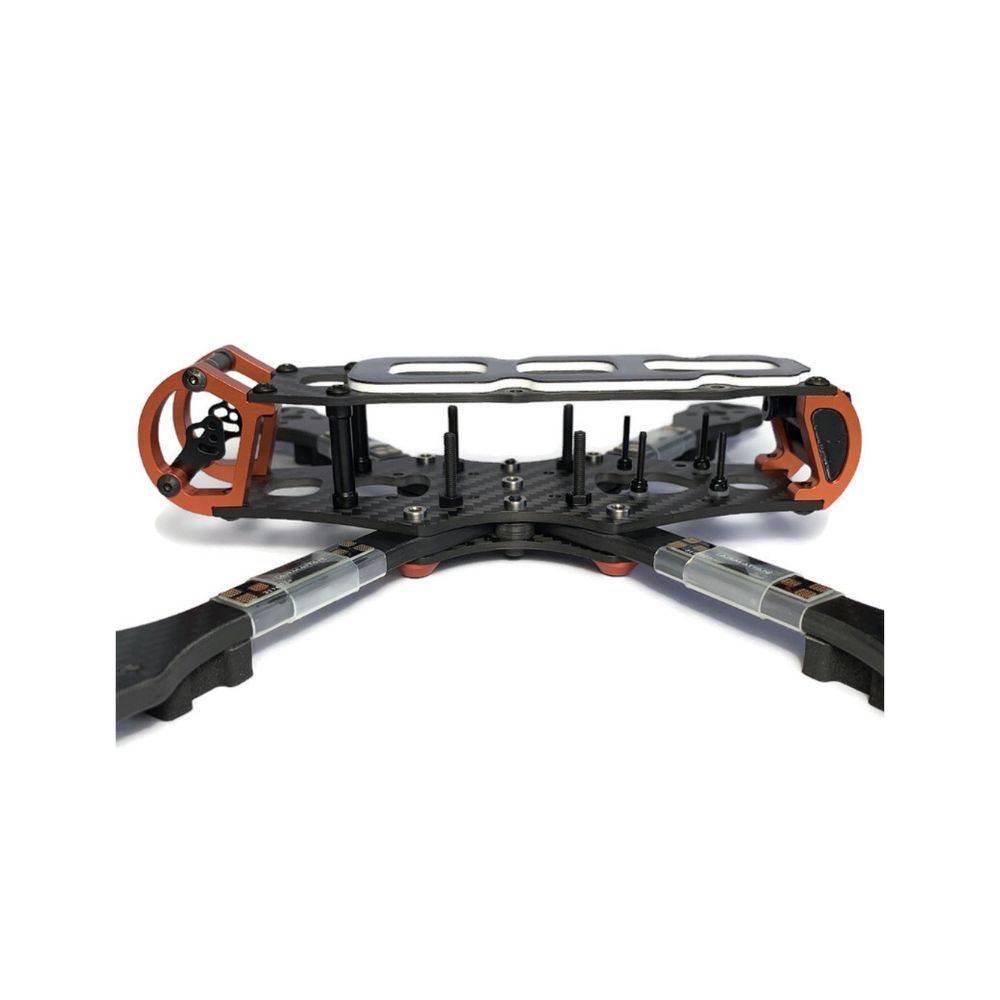

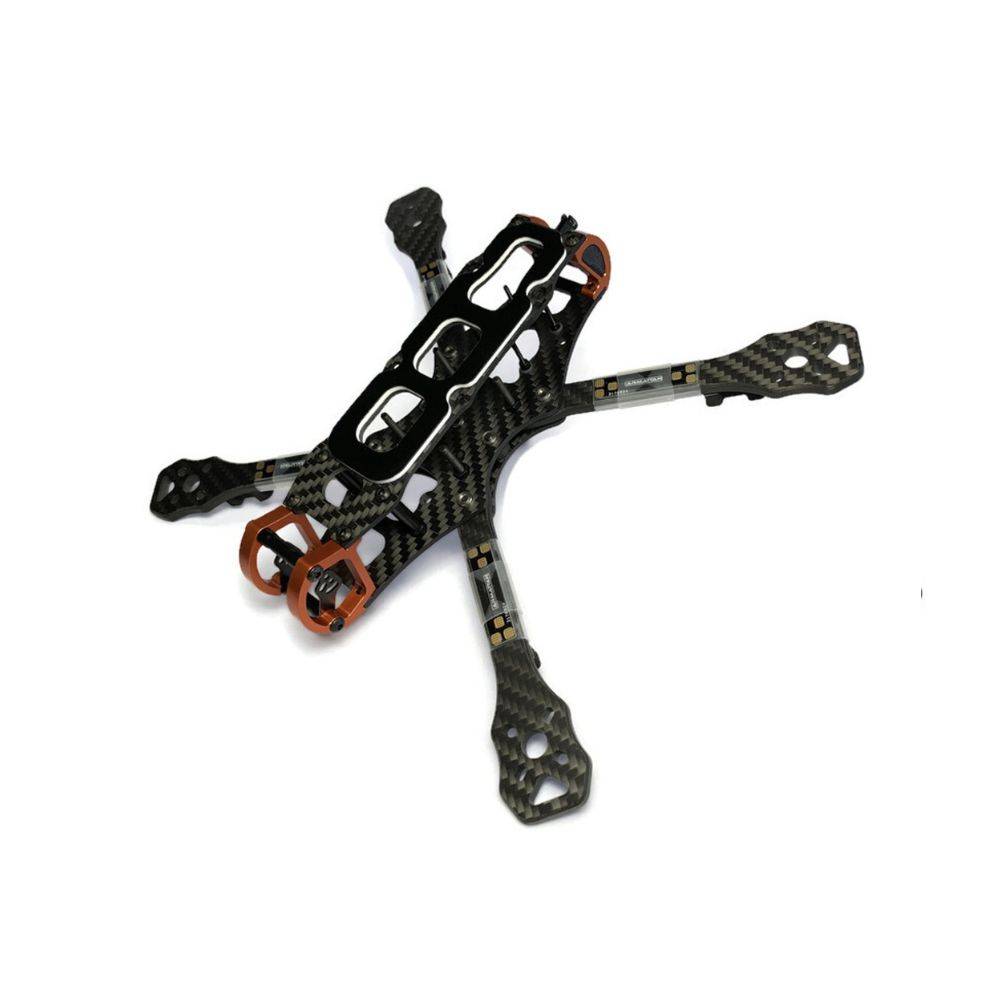

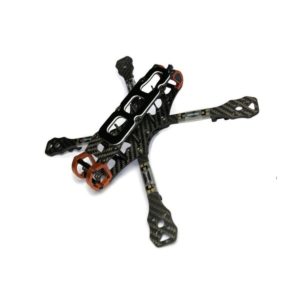

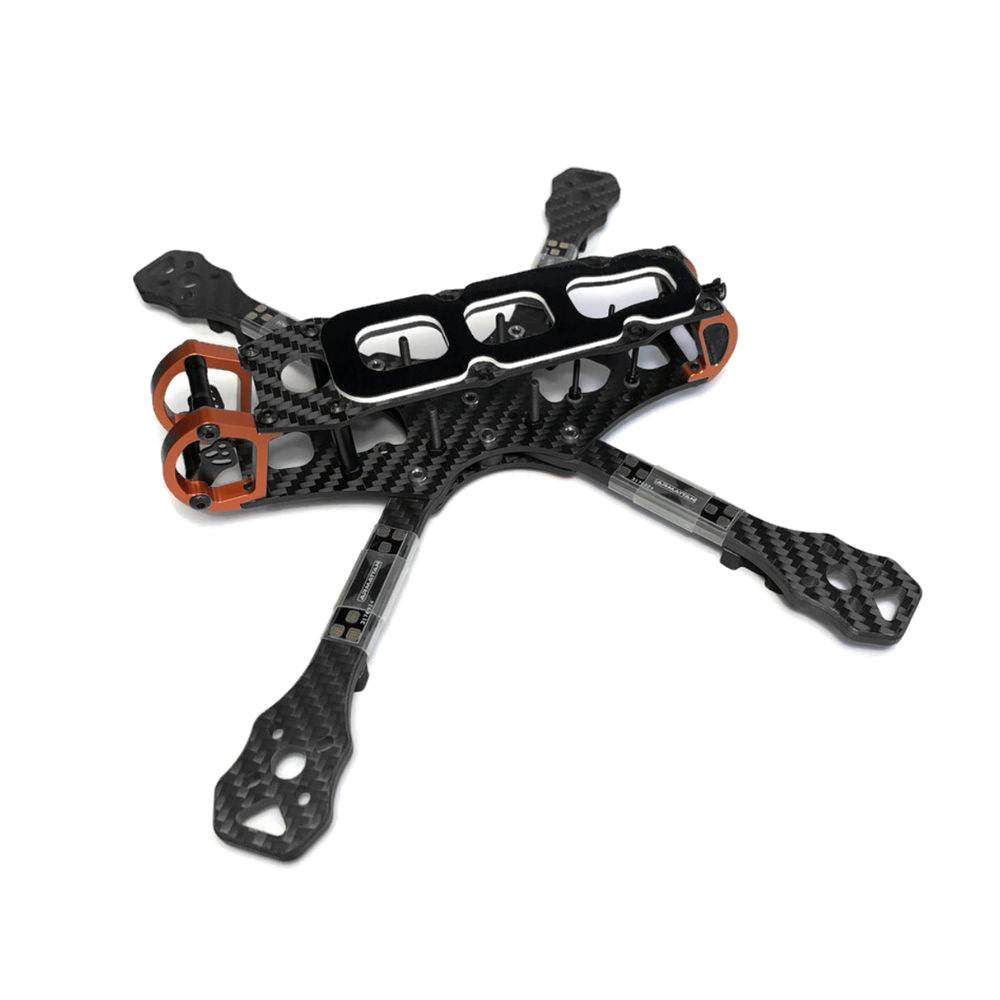

Armattan Beaver 5″ Quadcopter Frame Kit
Armattan’s most advanced design execution to date

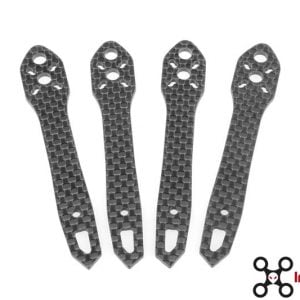

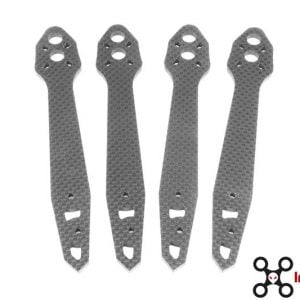

If you get this frame, you’re going to need spare arms for it too!
Description
After many designs and prototypes, the Armattan Beaver Frame 5″ Quadcopter Frame Kit is here! The Armattan Beaver features a strong carbon frame with thicker arms than previous versions which makes it the strongest to date. This frame focuses on noise reduction, easy maintenance, and versatility for use with a variety of electronics. With a weight of 126g, this frame is lighter than previous Armattan frames.
VIDEO: Armattan Beaver Overview
Features

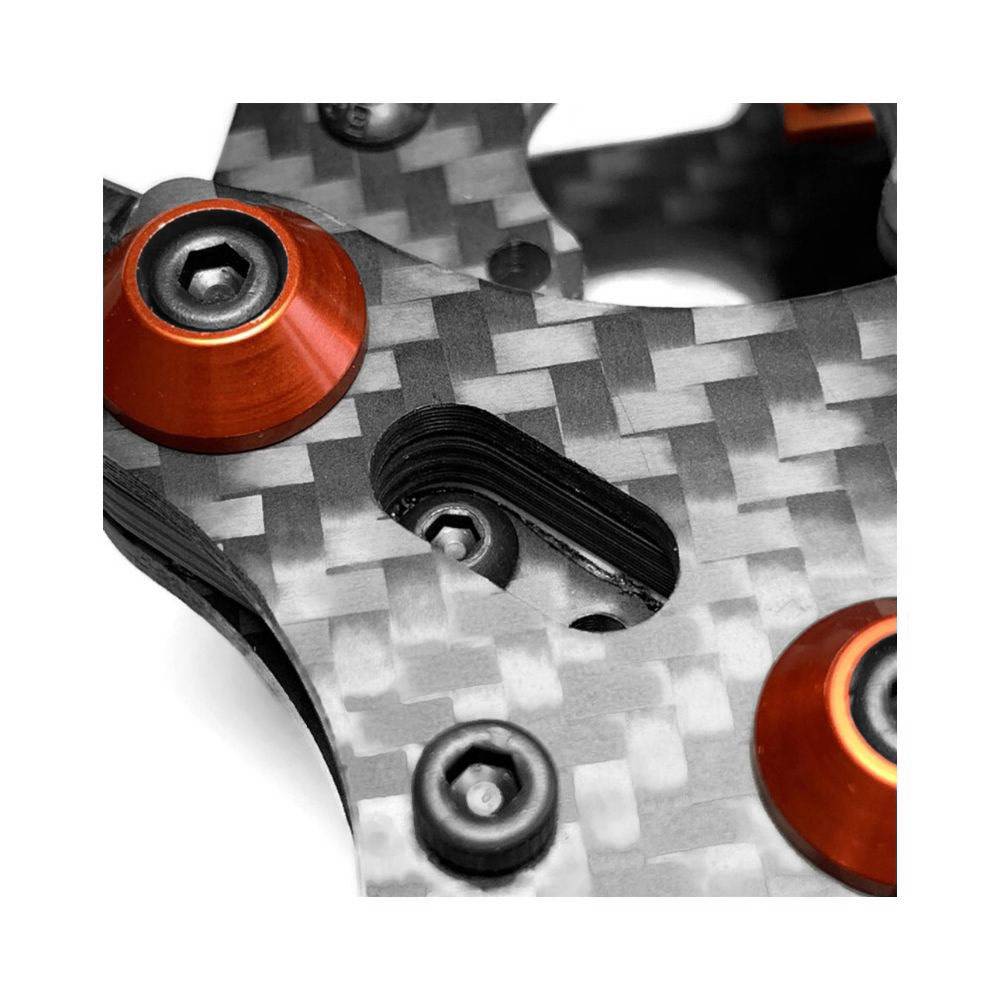

- Ease of maintenance: Only one bolt needs to be removed to replace an arm at the field
- The well-balanced frame (strength and weight distribution)
- The great price point for a high-end, freestyle frame
- Thicker arms than any other previous frame
- Light and small camera cage
- Easy to tune for newcomers
- Strong, stiff, and light frame
- Crash-protection provisions
- Good-looking frame
- Lifetime warranty
- Noise reduction
- Versatile
Specifications
- Stack Mounting: Two 30.5×30.5mm stacks(center and rear) + Two 20x20mm stacks (4 possible positions)

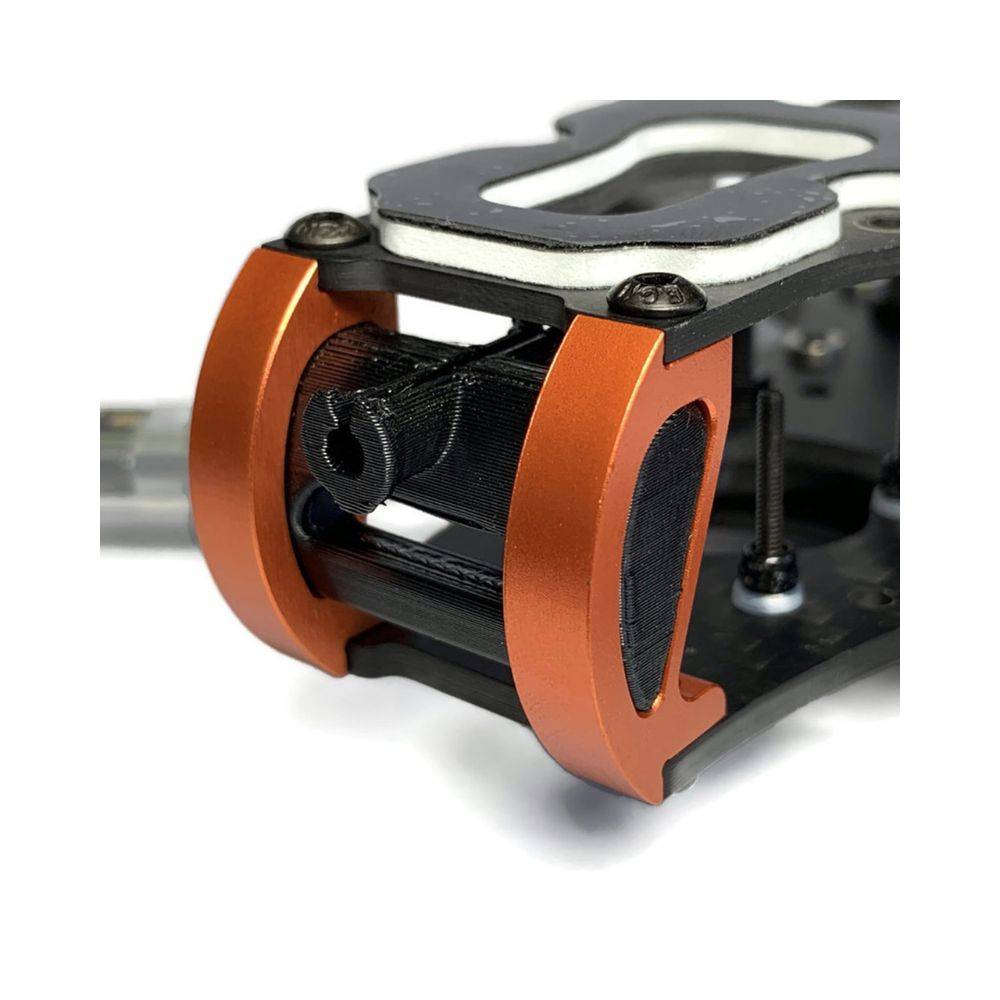

- FPV Camera Mount: 20mm(DJI) or 19mm Micro cam
- Motor Mount Pattern: 16×16 or 16×19 or 19x19mm
- Warrantied Parts: All CF and alumi frame parts
- Main Plate Thickness: 2.5mm
- Frame Shape: Compressed X
- Frame Weight: 126 grams
- Max Stack Height: 25mm
- Motor to Motor: 235mm
- Arm Thickness: 5mm
Includes
Carbon Fiber
- 1x 2mm bottom plate
- 1x 2.5mm main plate
- 4x 5mm arms 5 inch
- 1x 2mm top plate
- 1x 4mm arm core
Hardware
- 4x M3 25mm profiled alumi standoff
- 5x M3 20mm button head iron bolt
- 6x Aluminum cone spacer orange
- 5x M3 6mm nylon standoff F/F
- 20x M3 6mm 12.9 grade bolt
- 5x M3 10mm 12.9 grade bolt
- 5x M2 2.5mm cup head bolts
- 2x M3 20mm alumi standoff
- 9x M3 12mm cup head bolt
- 3x M3 16mm cup head bolt
- 5x M2 18mm cup head bolt
- 5x M2 nylon washer
- 14x M3 nylon nuts
- 5x M2 nylock
Metal

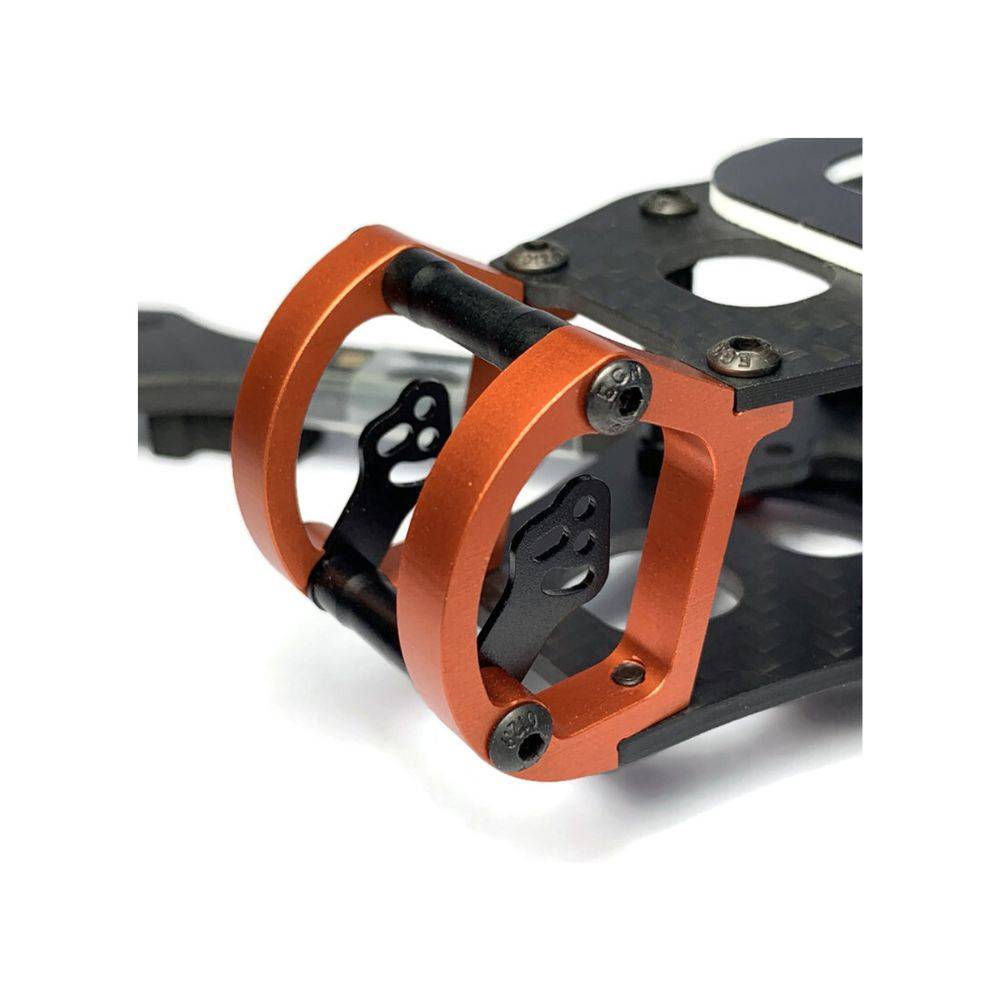

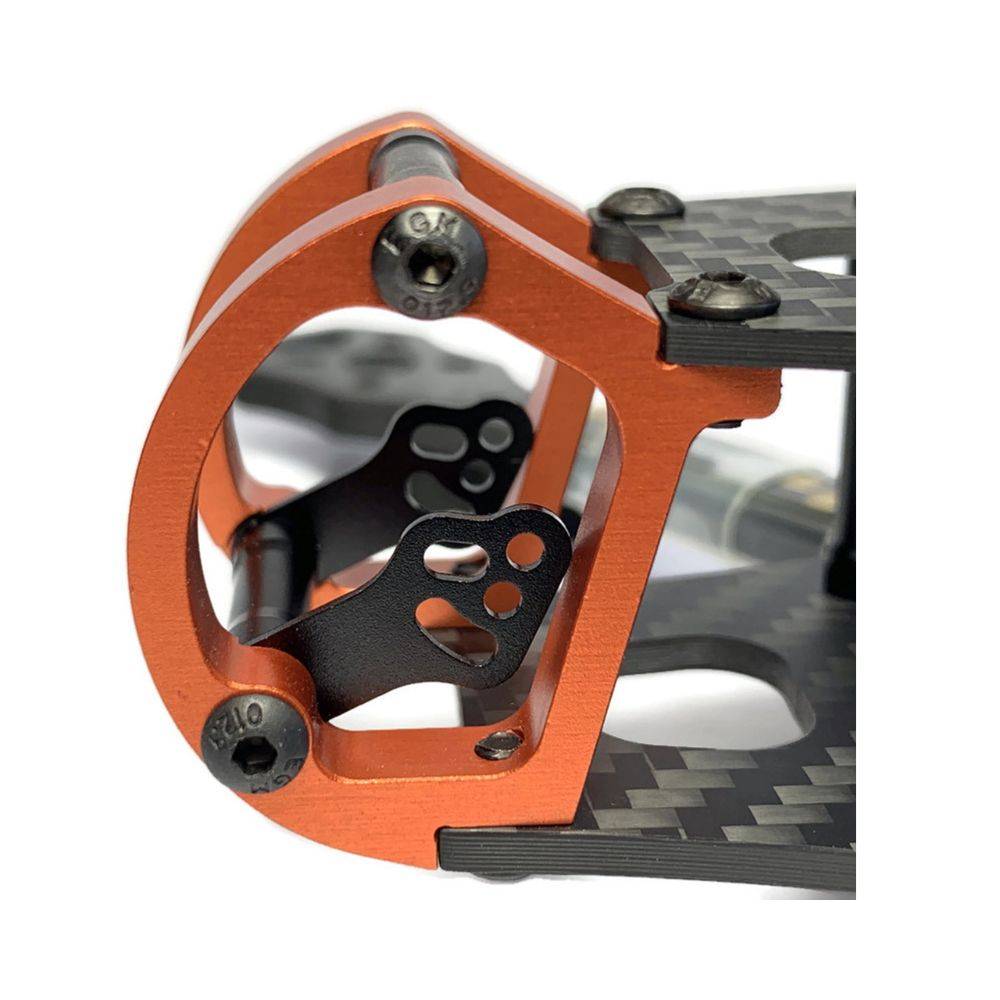

- 1x Right aluminum cam brace orange
- 1x Left aluminum cam brace orange
- 2x Aluminum tail posts orange
- 2x Aluminum cam saver black
Foam
- 4x Dog bone landing pads
- 1x Air unit foam
- 1x Center foam
- 1x Lite grip
Accessories
- 1x 25cm clear heat-shrink 20mm wide
- 4x Motor wire extension PCB
- 1x Universal antenna mount
- 2x White lipo strap
