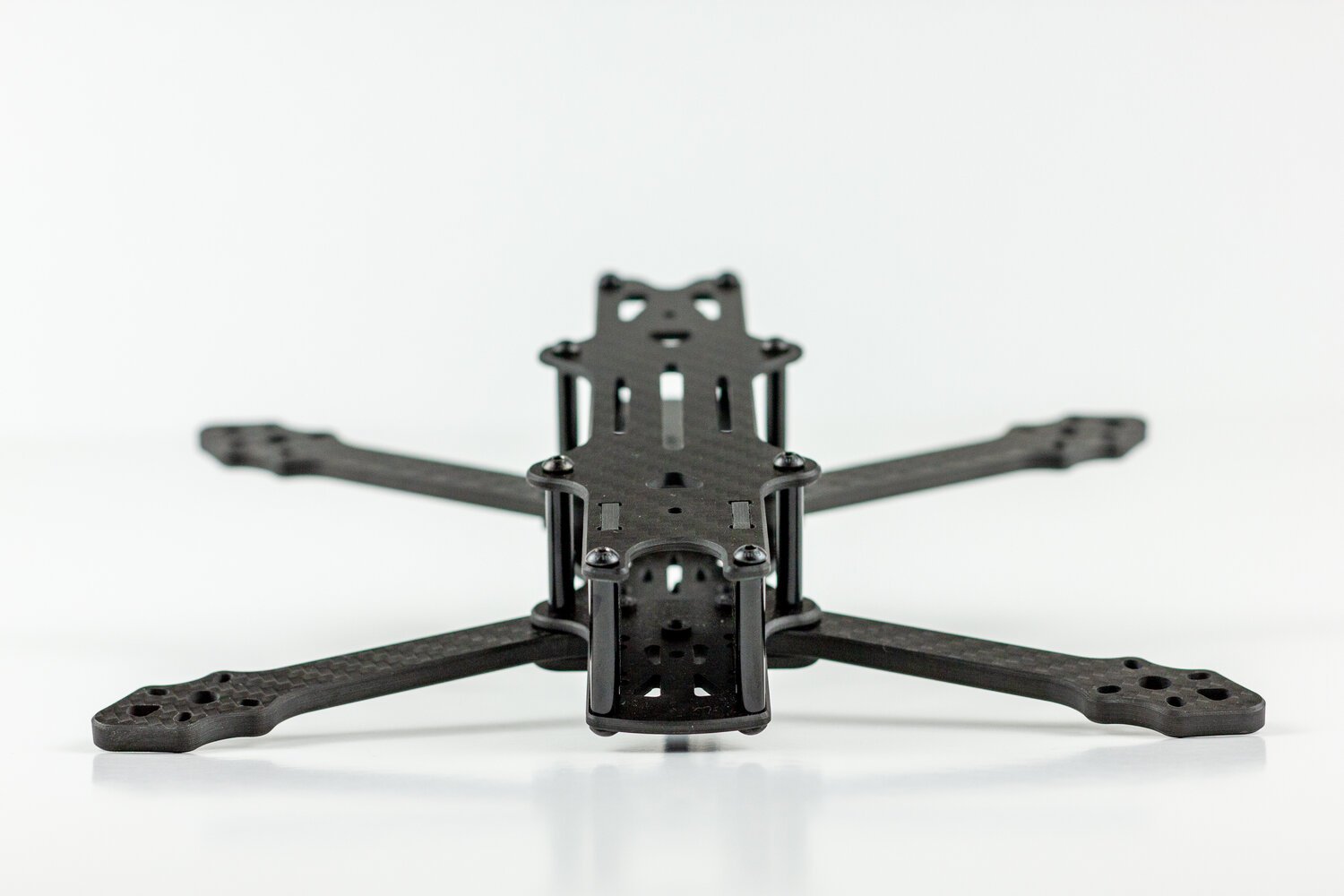

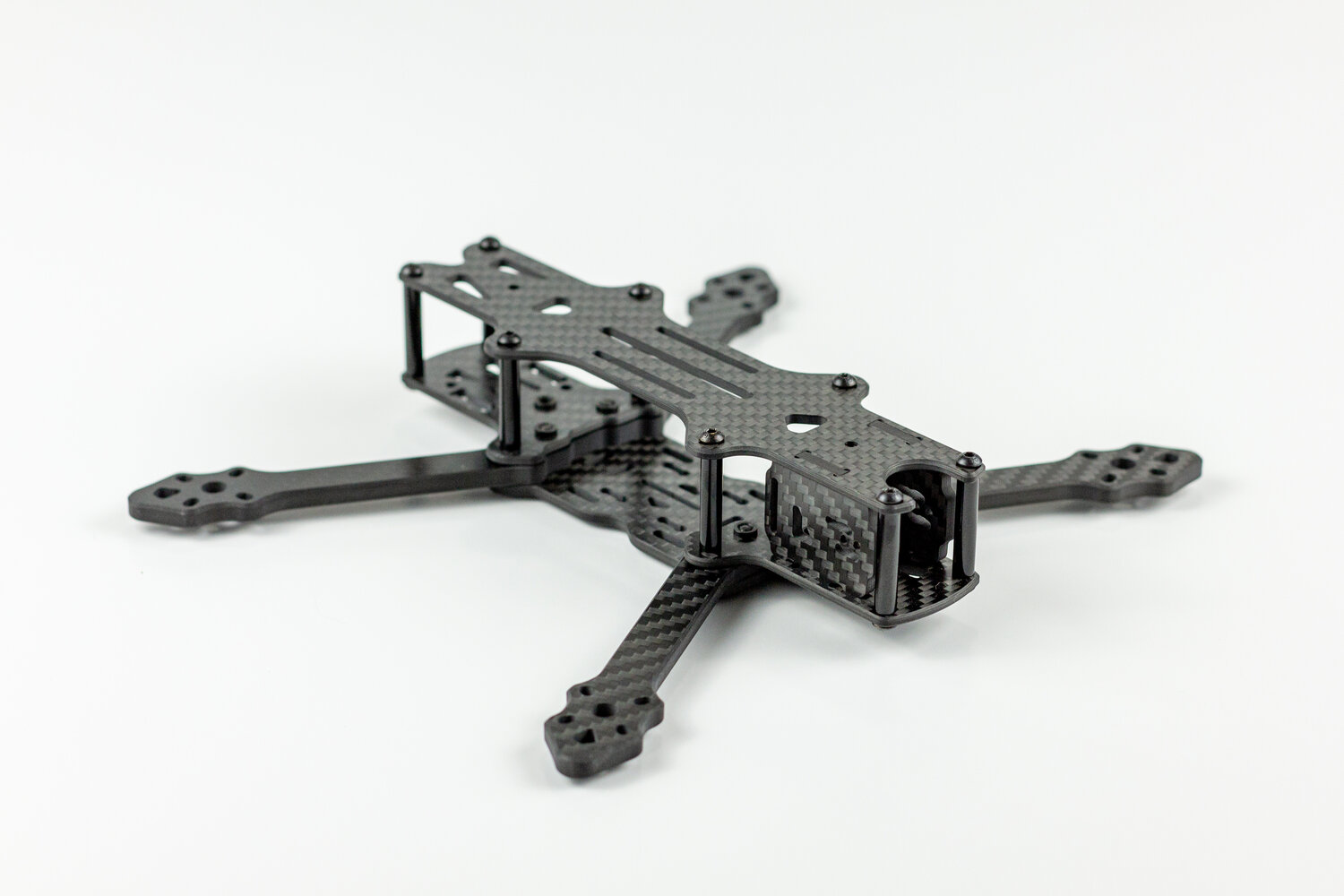

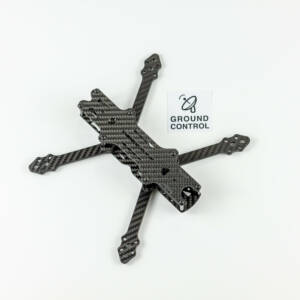

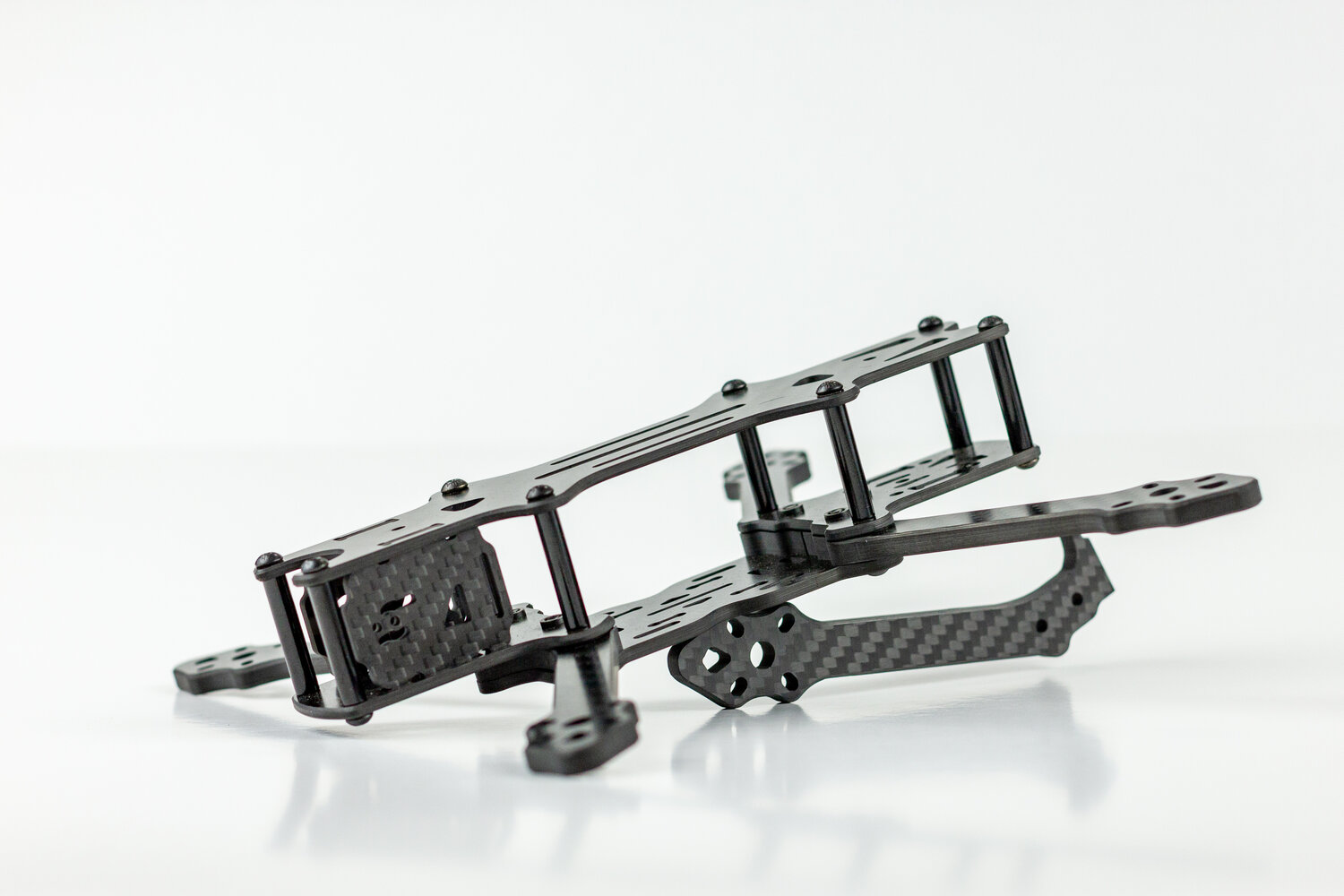

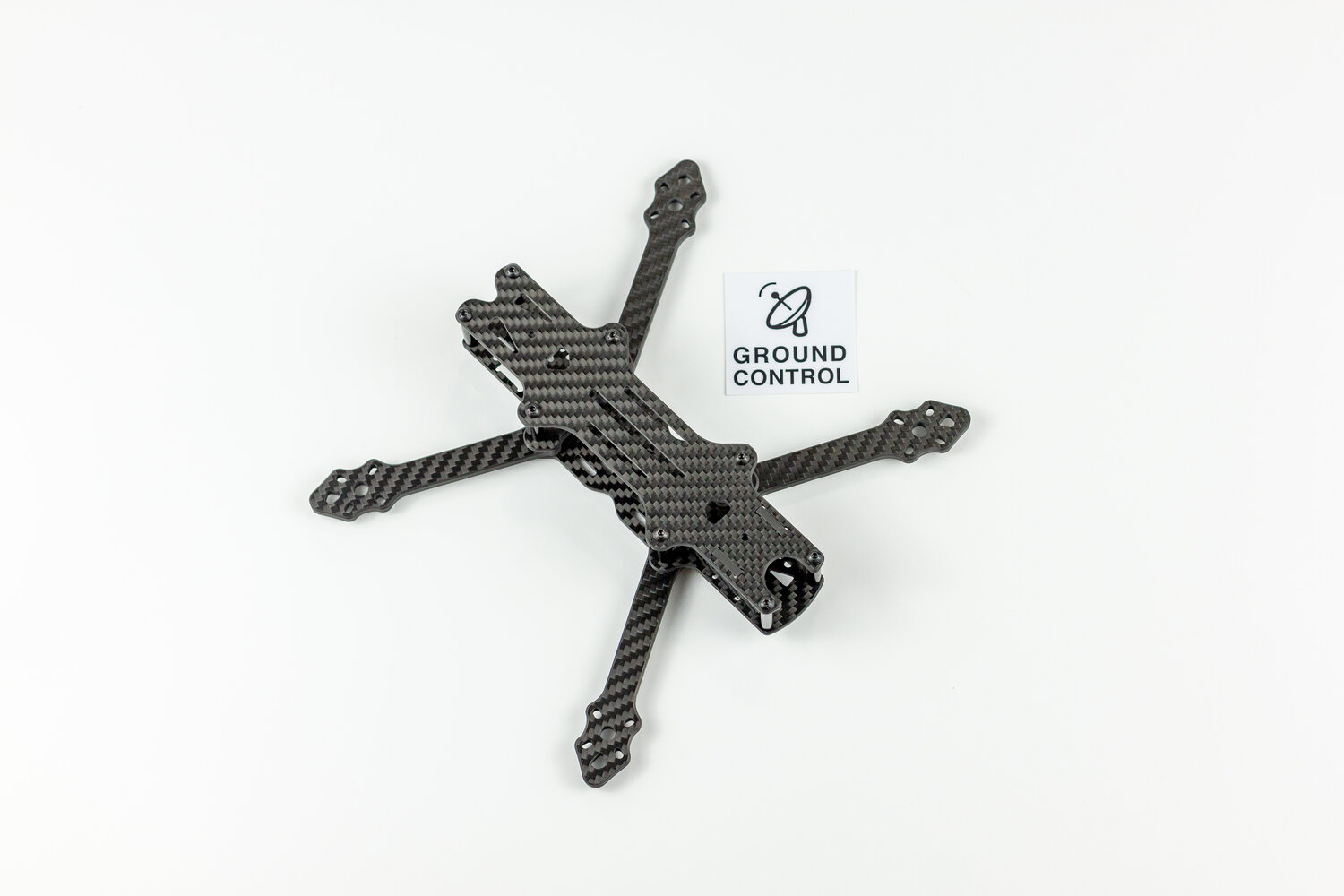

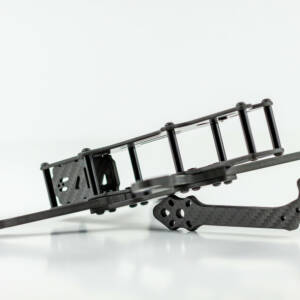

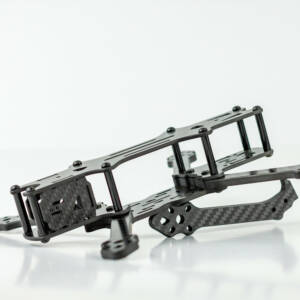

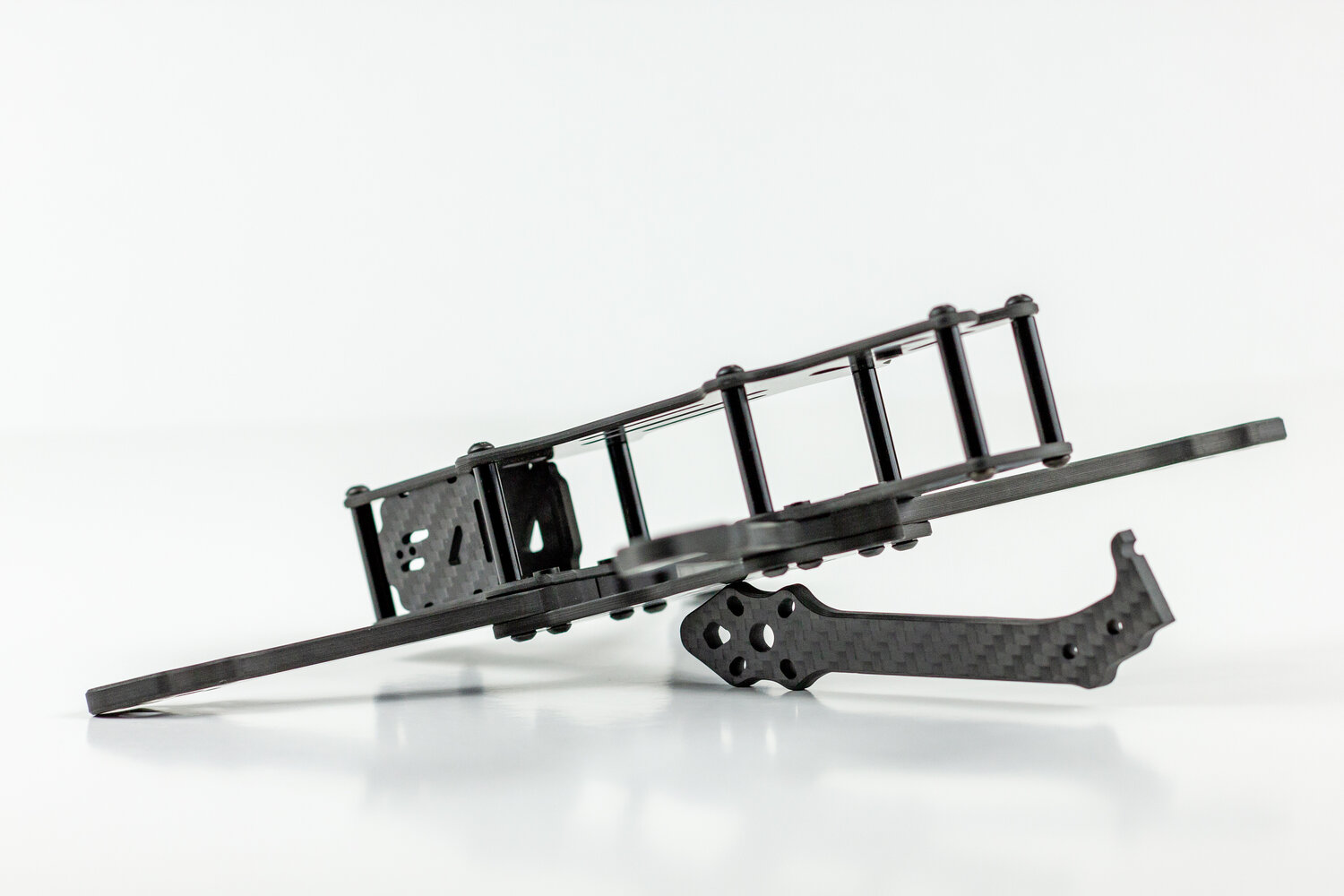

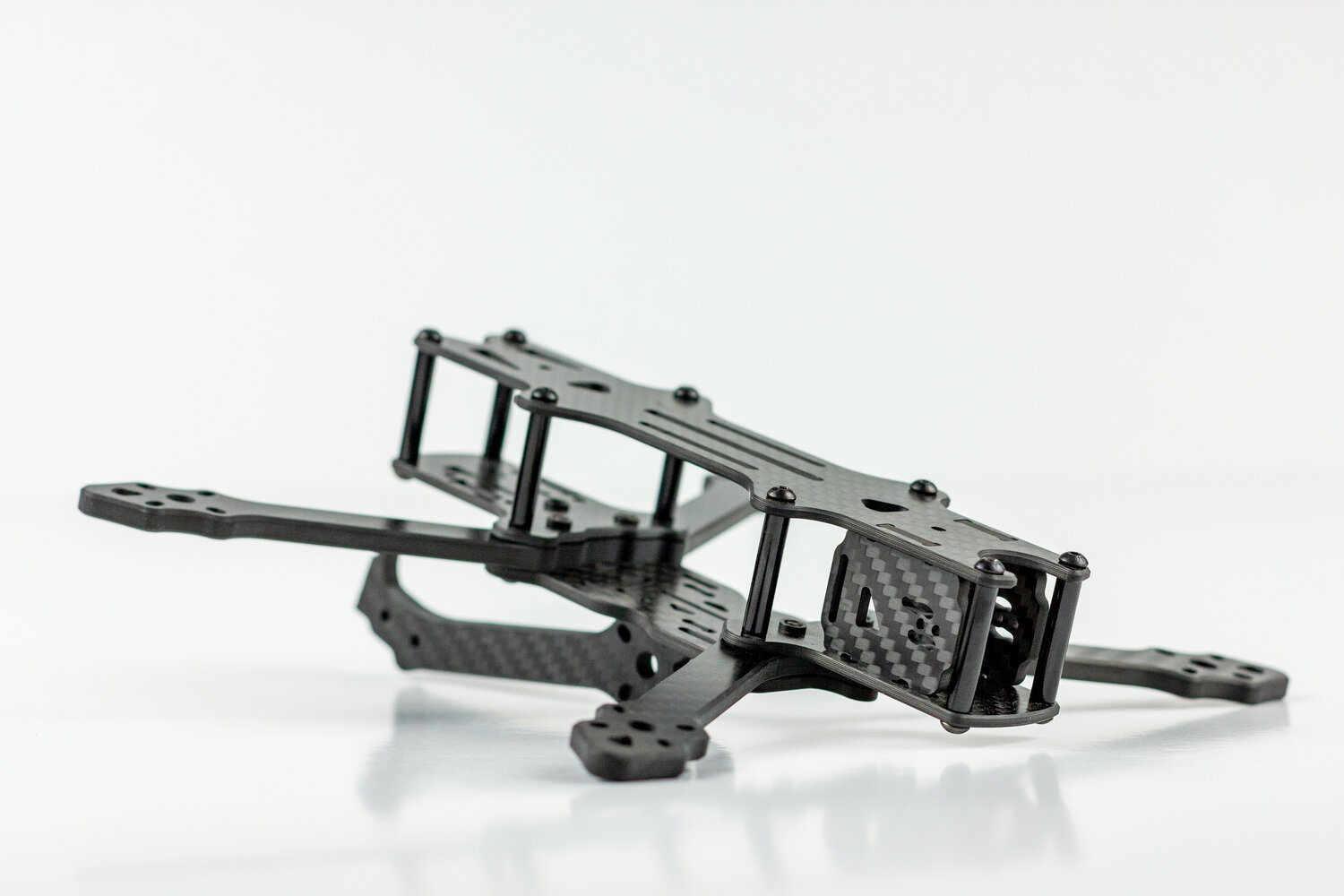

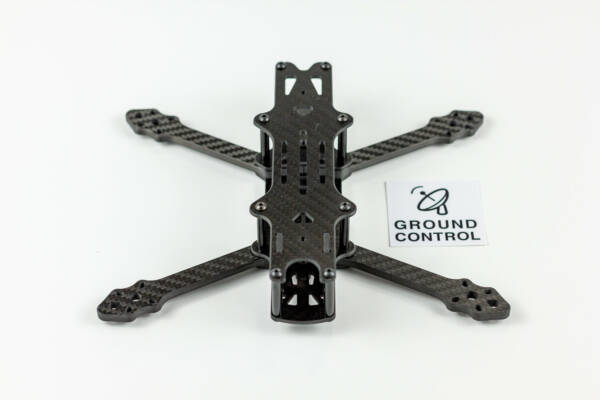

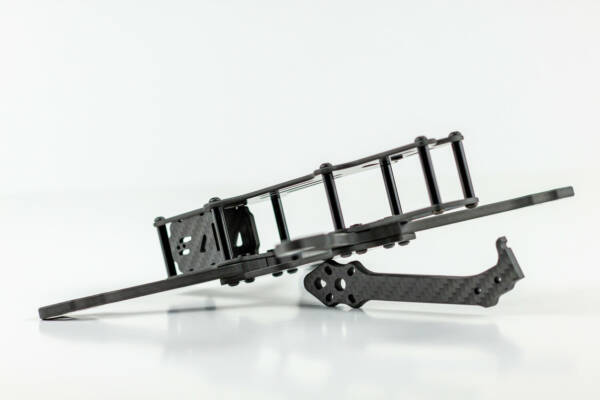

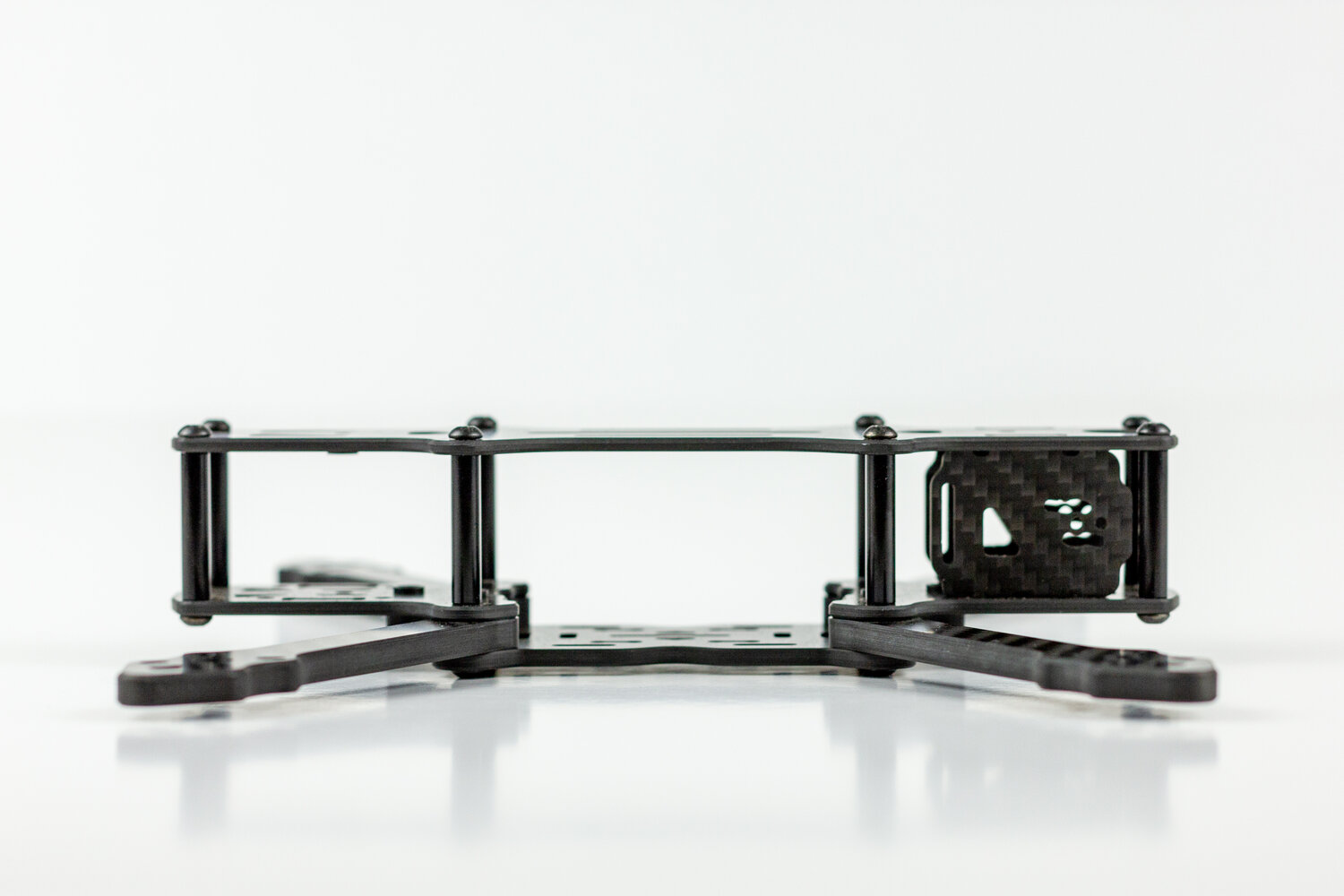

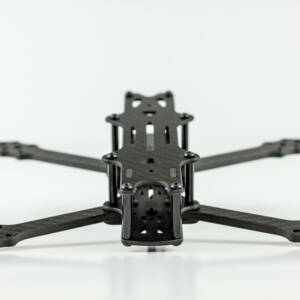

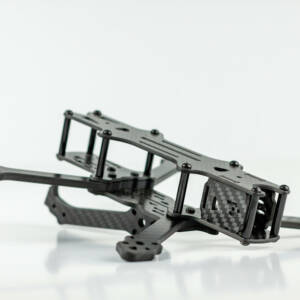

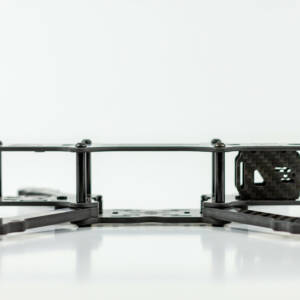

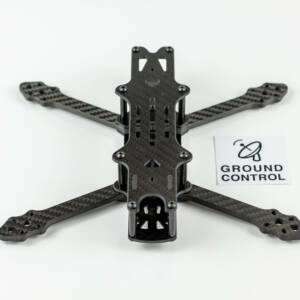

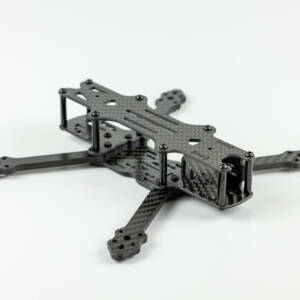

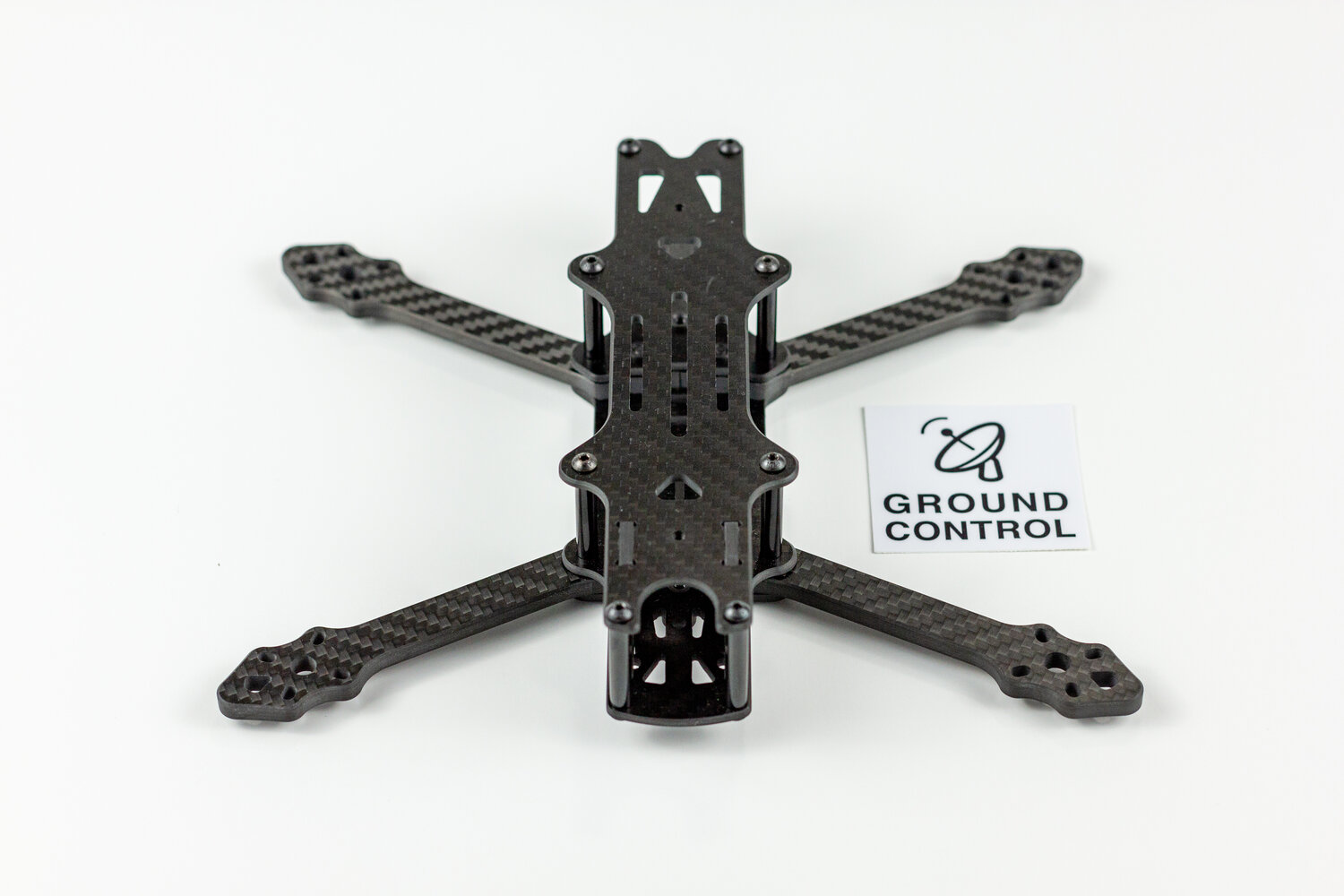

Ground Control Sky Yacht 5″ FPV Frame
Most of the quadcopter frames available today are designed with specific uses in mind, which we viewed as a chance to innovate. Freestyle frames are known for their robustness and unique aesthetics, often accommodating a particular electronics setup, making it challenging to find compatible components for desired applications. Typically, they offer a single option for mounting an HD camera, limiting flexibility for pilots aiming for cinematic quality shots.
Conversely, frames tailored for cinematography are relatively rare in the hobby and tend to lack aesthetic appeal, right?
Are you looking for a frame that combines durability and lightness for freestyle flying, while also being versatile and attractive for filmmaking? We’ve created the solution.
FEATURES
- Designed for a 5.1″ propeller diameter.
- H-style frame to reduce arm length, minimizing stress and damage during crashes.
- Compatible with both 20×20 and 30.5×30.5 stack mounts, including additional 20×20 mounting options at the front and rear.
- Supports DJI Air Unit, Vista Unit, and most analog video transmitters.
- Features triple mounting points for HD cameras on the top and bottom of the frame, at both the front and rear.
- Includes 3mm plates for securing 19-20mm FPV cameras.
- Allows for the construction of electronic stacks up to 30mm in height.
- Weighs approximately 120g when dry.
STANDARD PACKAGE CONTENTS
- One 2.5mm top plate
- Two 2.5mm mid-plates
- One 3.0mm bottom plate
- Four 5.0mm arms for 5″ propellers
- Eight 25mm standoffs
- Two 20mm standoffs
- Twelve M3x8 screws
- Six M3x12 screws
- Four M3x16 screws
