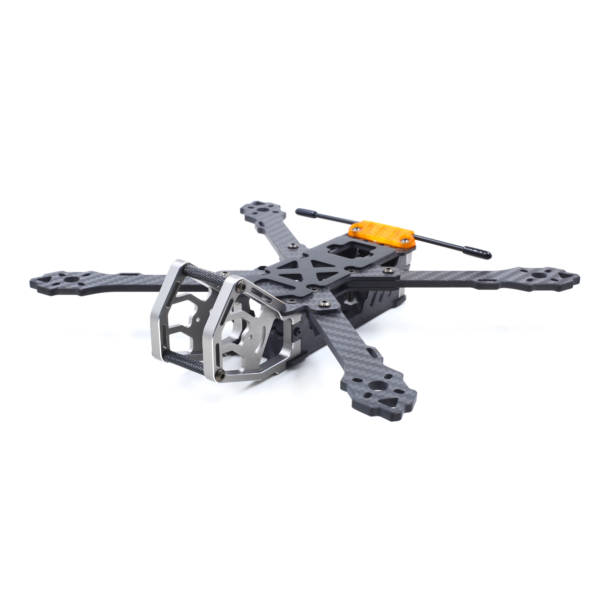

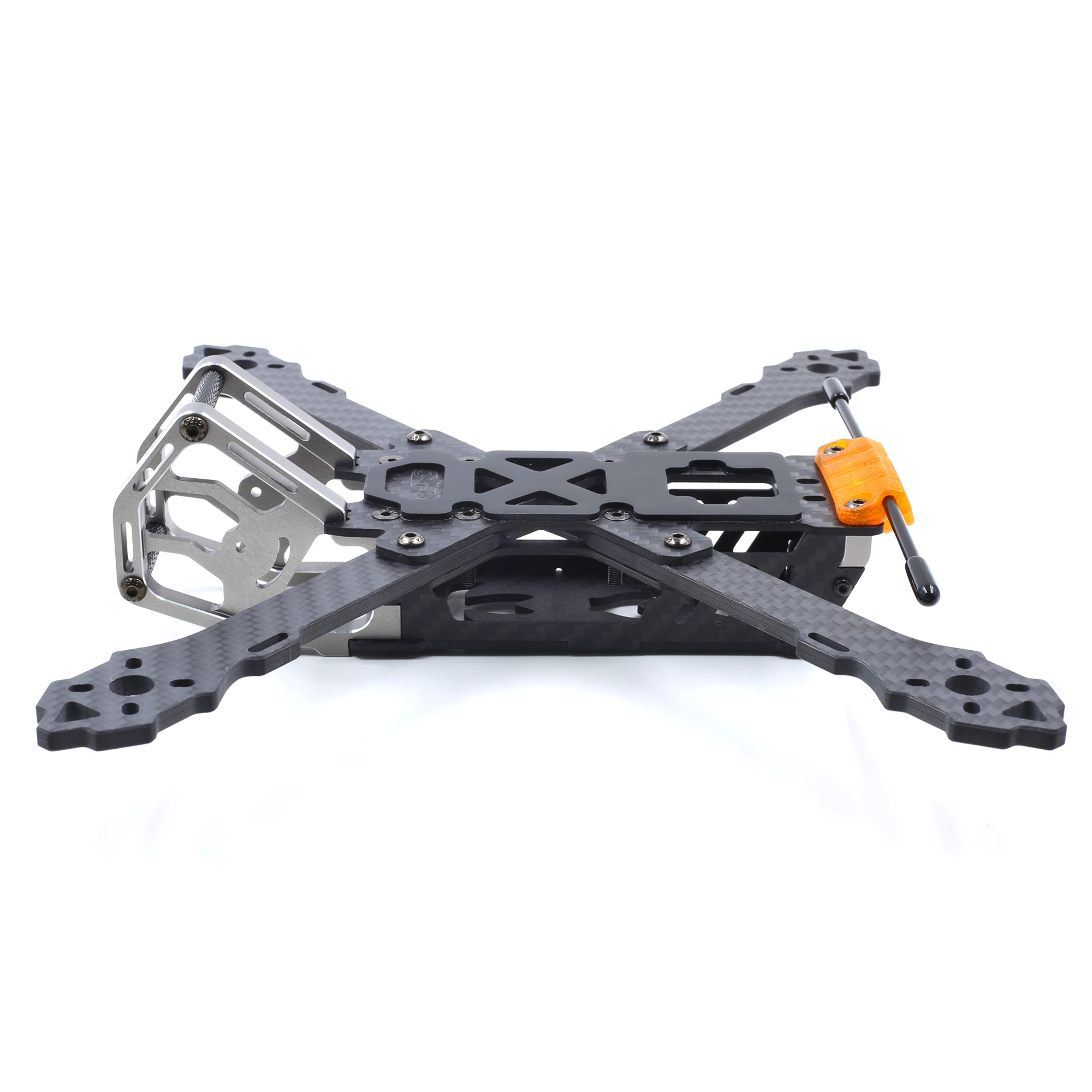

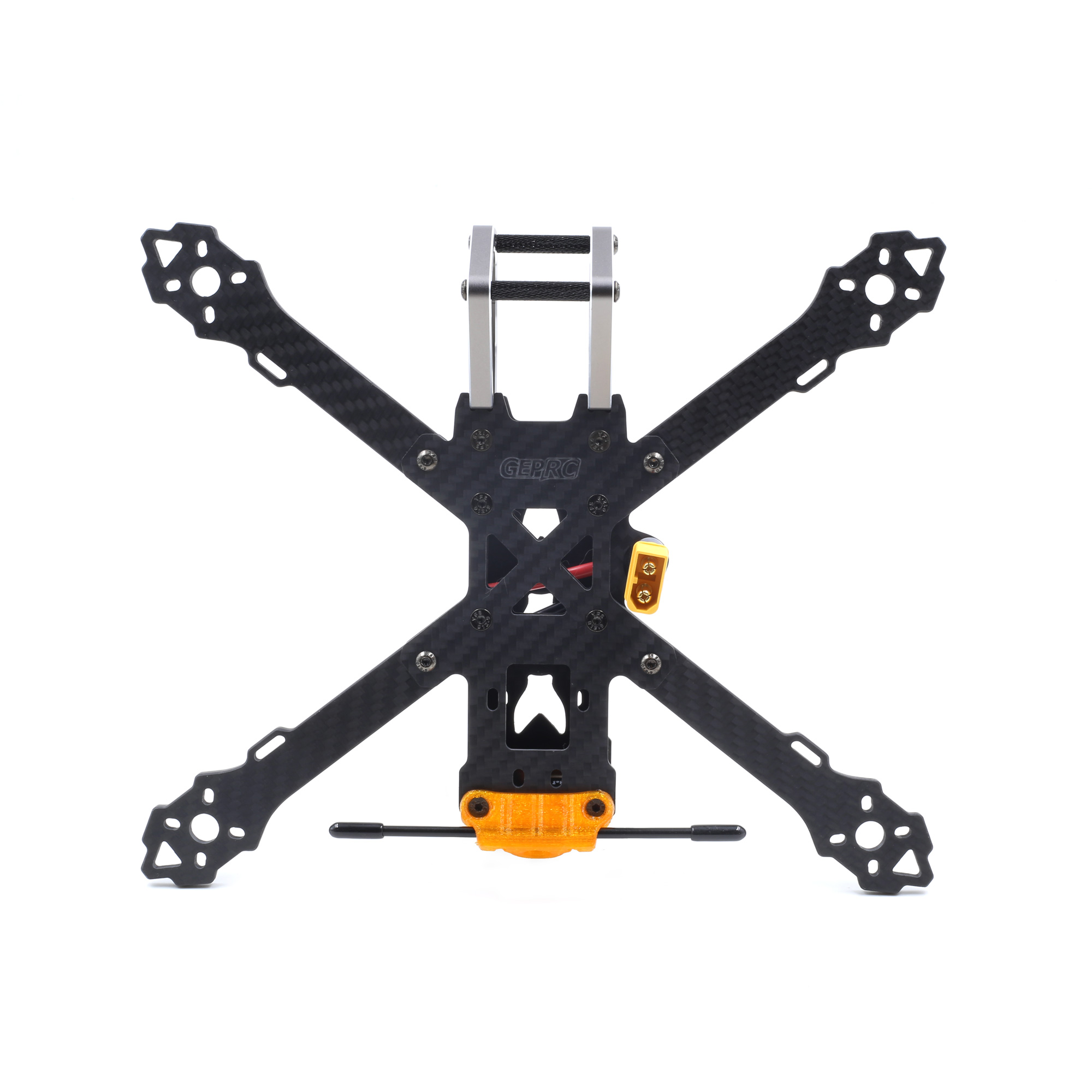

GEPRC KHX5 Elegant Frame – 5″ Frame
The main feature of the removable arm is to reduce the loss cost. The GEP-HKX5 wheelbase is 230mm, GEP-HKX4 wheelbase 200mm, GEP-HKX6 wheelbase 260mm, GEP-HKX7 wheelbase 300mm. It maintains good stability, center point concentration, and is suitable for FPV freestyle and racing.
In addition, they’ve made some minor adjustments in the details. For example, there is a 3D printing piece, which is more convenient for the fixed drawing to transmit 5.8g antenna and 2.4g antenna.
- Name：GEP-KHX5 Elegant
- Props Size: 5inch
- Arms board:4mm
- Base board:2mm
- Side board:1.0mm
- Flight Controller：Kiss/F3/F4/Naze32/CC3D
- Motors： 2204/2205/2206/2305/2306
- Battery: 3S 1300mAh ~ 4S 1500mAh
- The weight of the battery is above the arm, the overall center is balanced, and each motor output is balanced and efficient.
- The camera position USES 7075 aviation aluminum alloy, high precision, very strong. And it forms a 33-degree gopro position.
- All 3k Japanese carbon plate, 14mm narrow arm structure, reduce air resistance.
- Hybrid X structure, shortening wheelbase, flexibility and stability.
- Integrated LED lights, buzzer.
- Side panel design to effectively protect the electronic equipment inside the fuselage.
- YFS screw, 12.9 level hardness.
1x GEP-KHX frame kits
