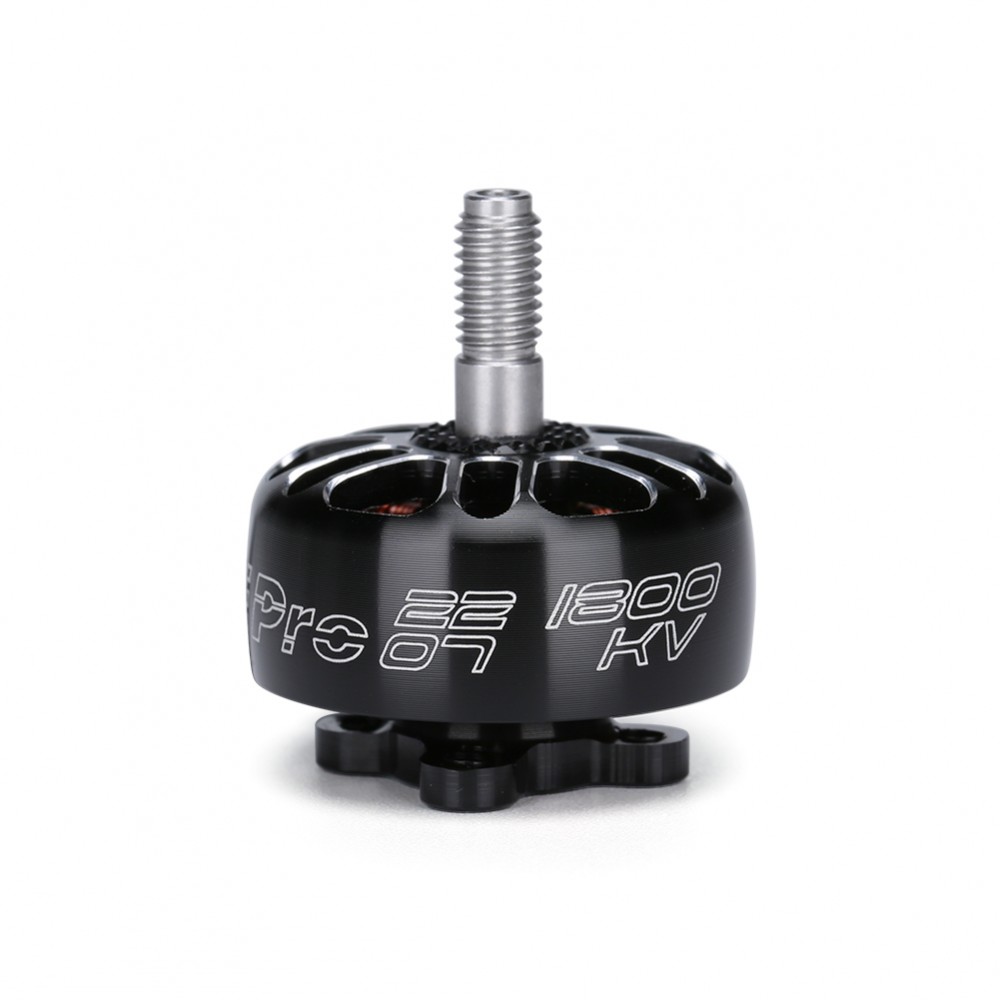

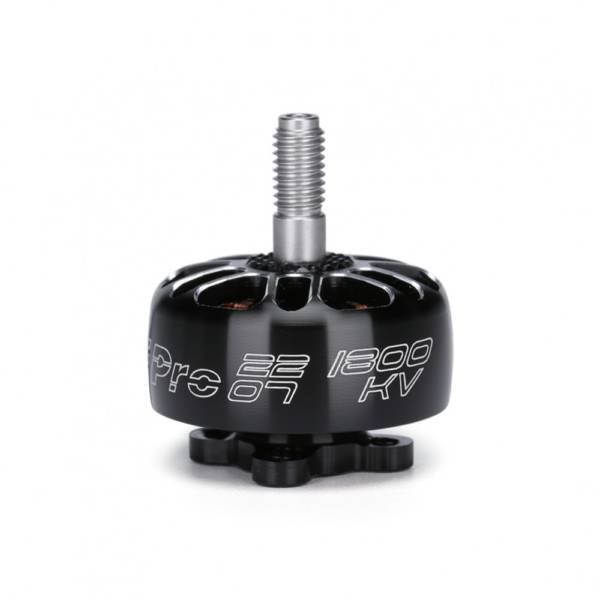

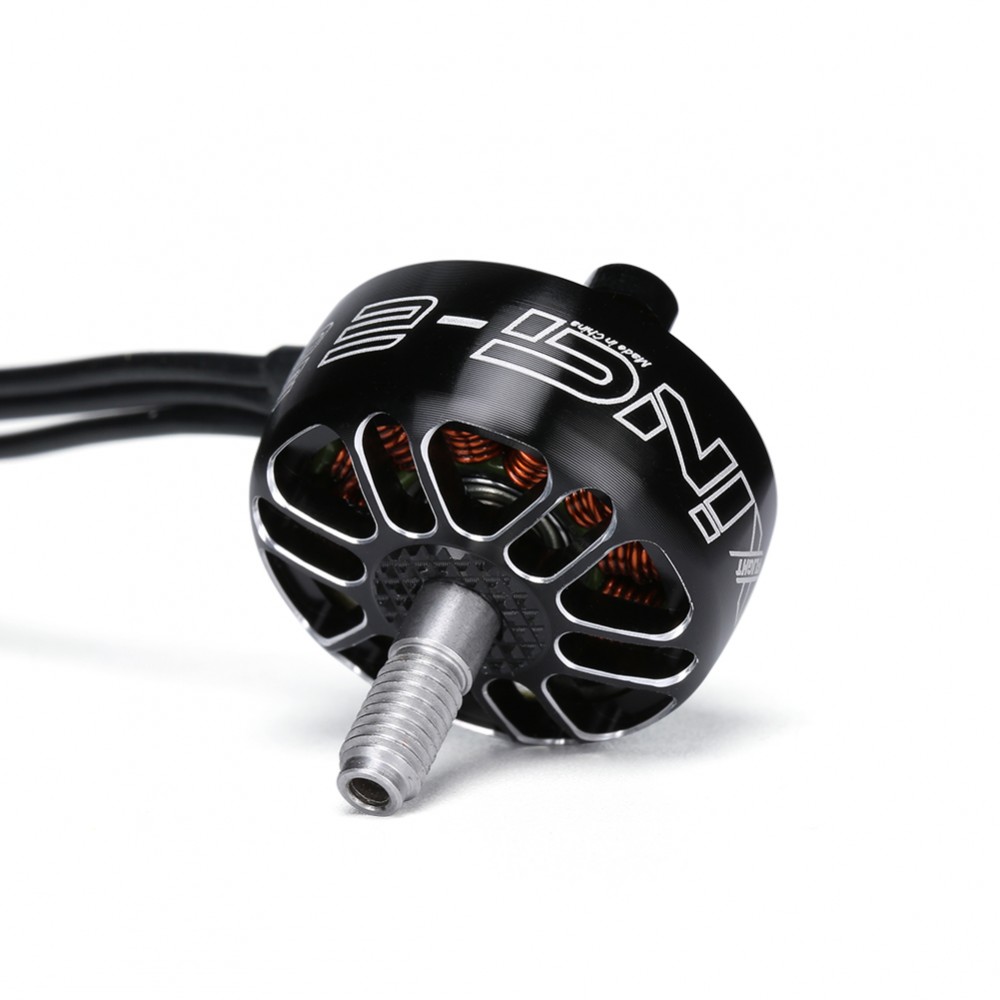

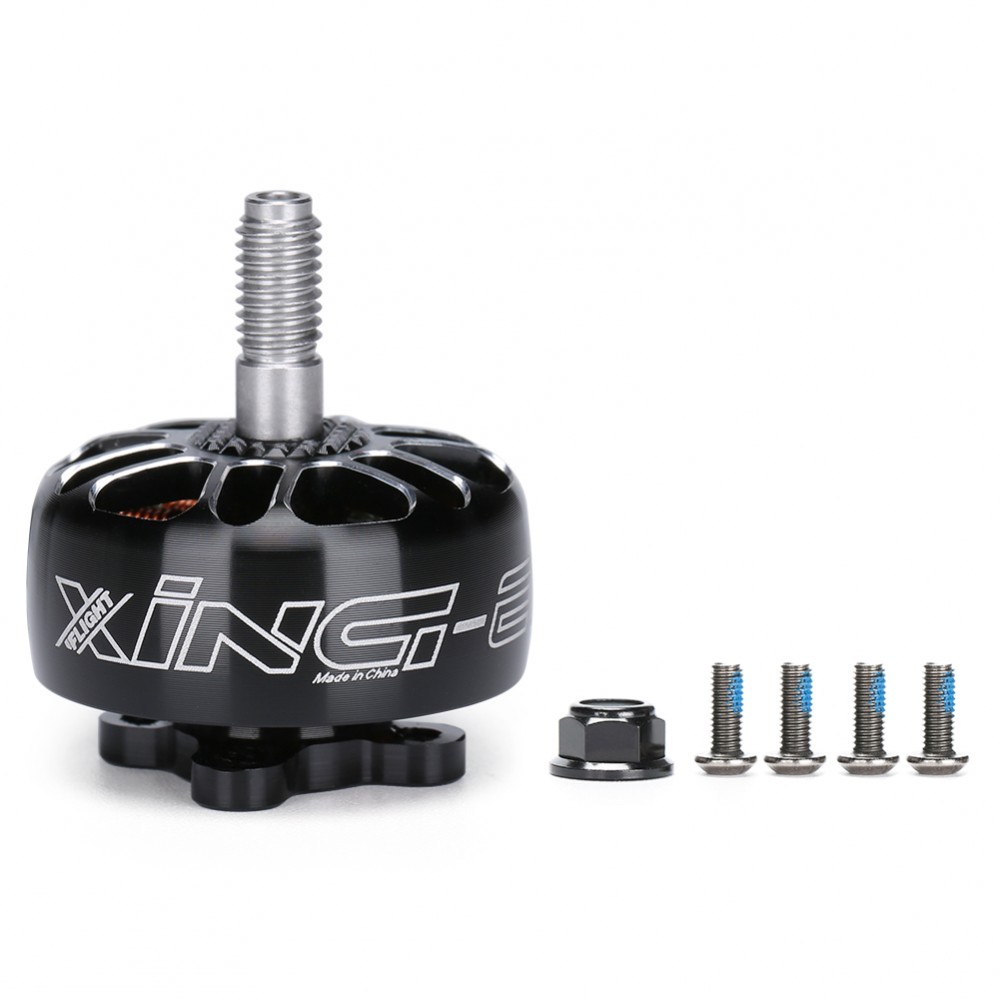

XING-E Pro 2207 1800Kv/2450Kv 2-6S FPV NextGen Motor
Pick Your Kv – Comes in two flavors 1800Kv for 6s and 2450Kv for 4s
After the huge success of iFlight’s XING motor line, iFlight just released the new “E” (Economy) line as a low-budget more affordable version of the XING motors. According to iFlight, there is no lack of performance in these motors compared to the regular version of Xing motors. iFlight was able to shave the cost on this motor by switching from Ti shaft to steel and using less complicated anodizing

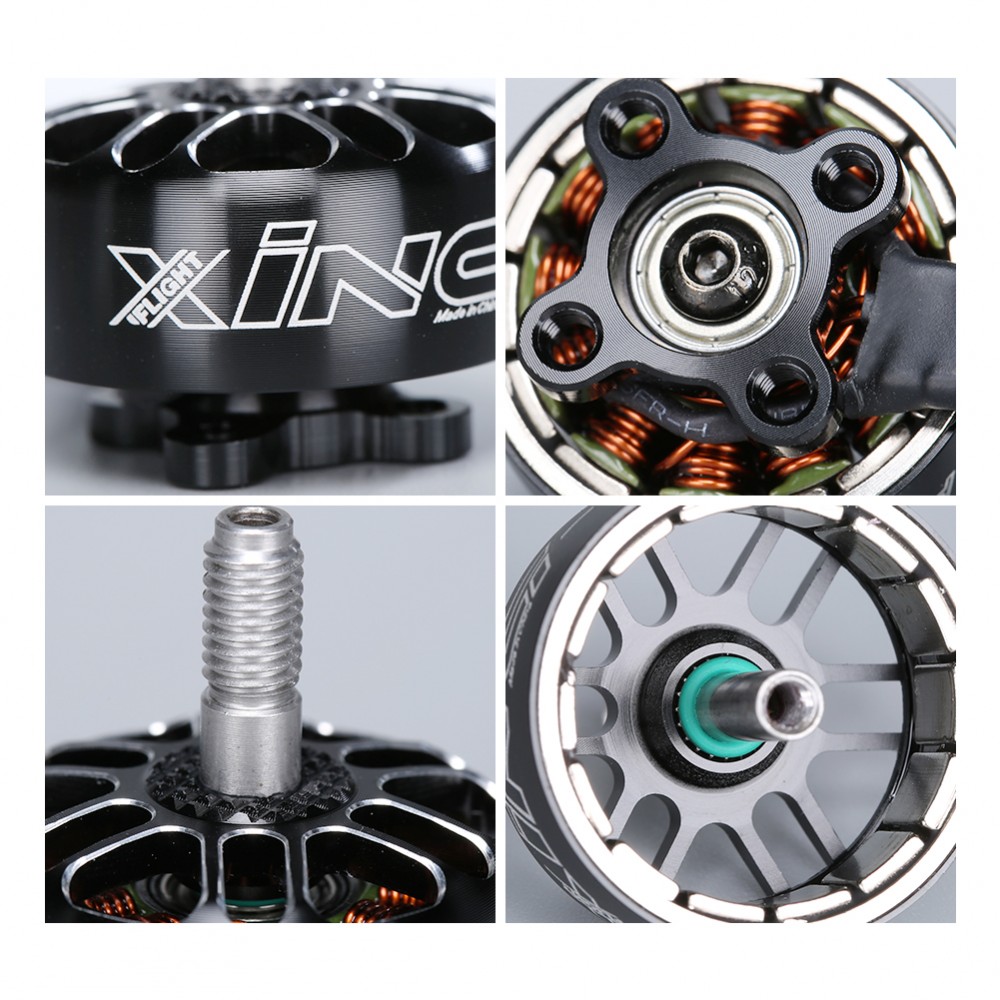

XING-E series are very strong and powerful FPV motors for FPV racing, a great value choice with well-known XING performance. This 2207-sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, an M3 shaft screw, and larger 9x4x4mm NSK bearings.
Check out all our iFlight Products!
Features
- -High-strength 4mm Steel shaft
- -N52H High-temperature magnets, NSK bearings
- -16x16mm hole pattern
- -Single-strand copper winding
- -Hex bolt shaft set screw
Specifications
- -Configuration: 12N14P
- -Stator Diameter: 24mm
- -Magnets: N52SH Curved
- -Bearing Size: 9x4x4
- -Shaft Diameter: 4mm / Steel

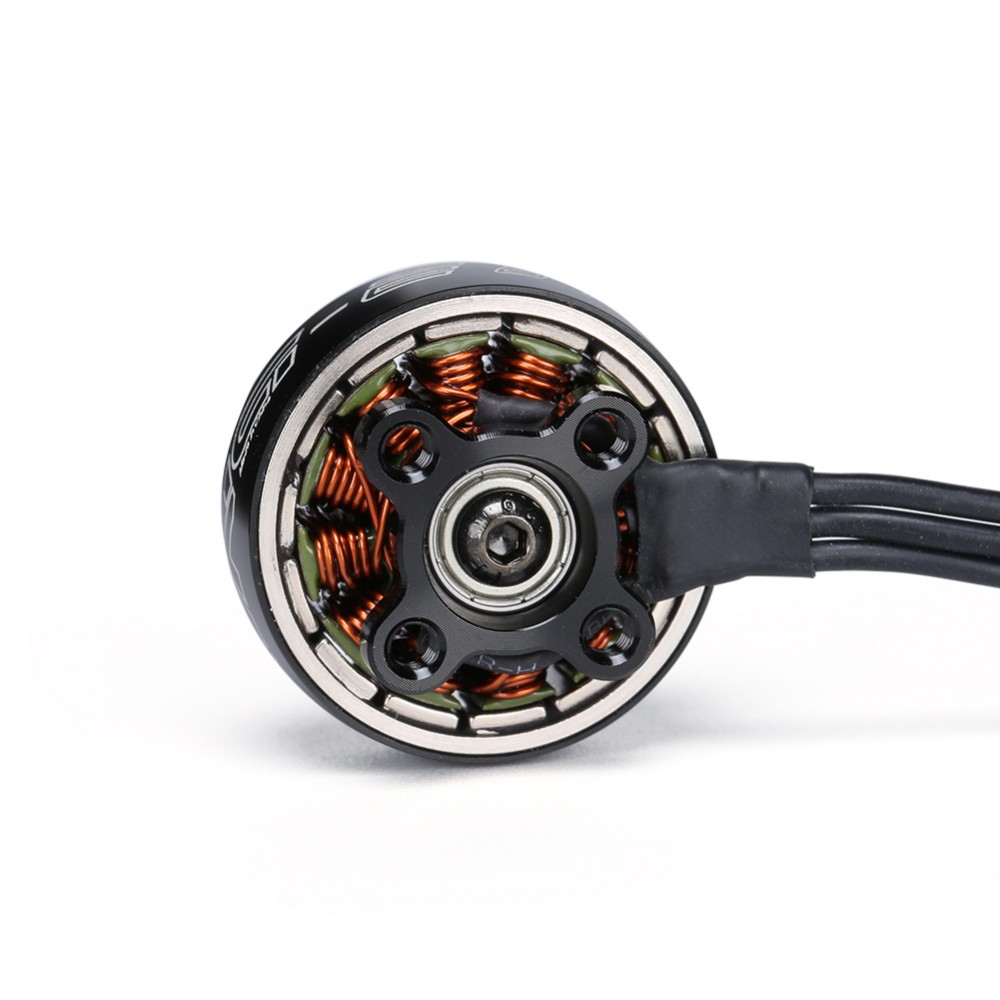

- -Base Mounting Pattern: 16x16mm M3 Thread
- -Motor Dimension: 28.5×19.7mm

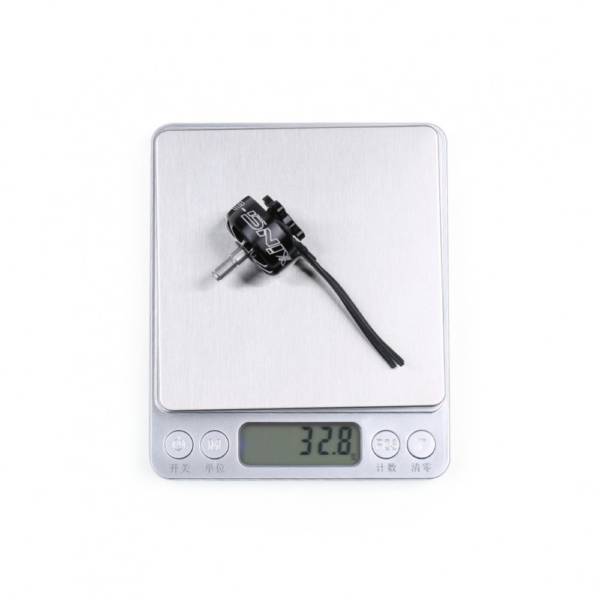

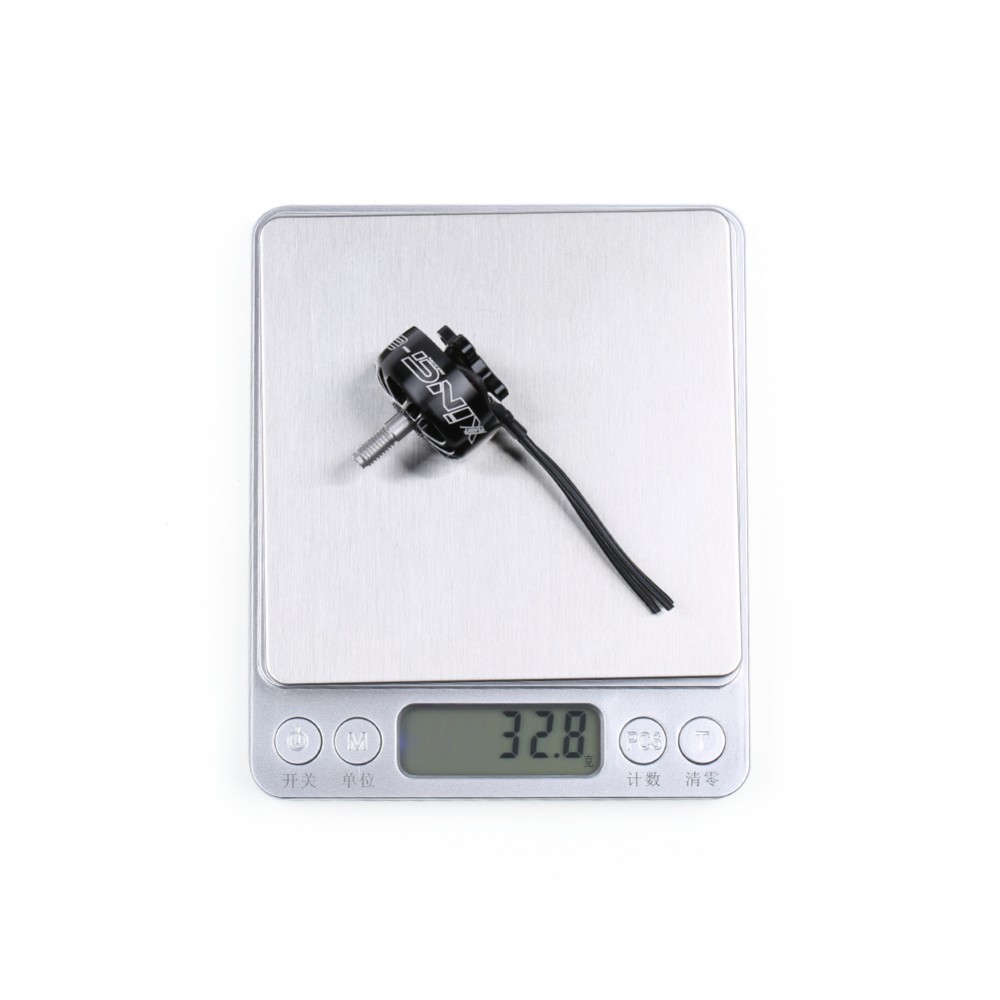

- -Weight: 33.8g (150mm wires)
- -Idle Current @12.6v (Io): 1.2 A
- -Cells (LiPo): 2-6S
- -Max Burst Current <10s: 35.22A
- -Max Power (W) 60s: 845W
- -Internal Resistance (Rm): 81.5mΩ
- -Motor Wire Length: 150mm / 20AWG
Package includes:Â
- 1pc x MOTOR XING-E 2207 Motor – Pick Your Kv
