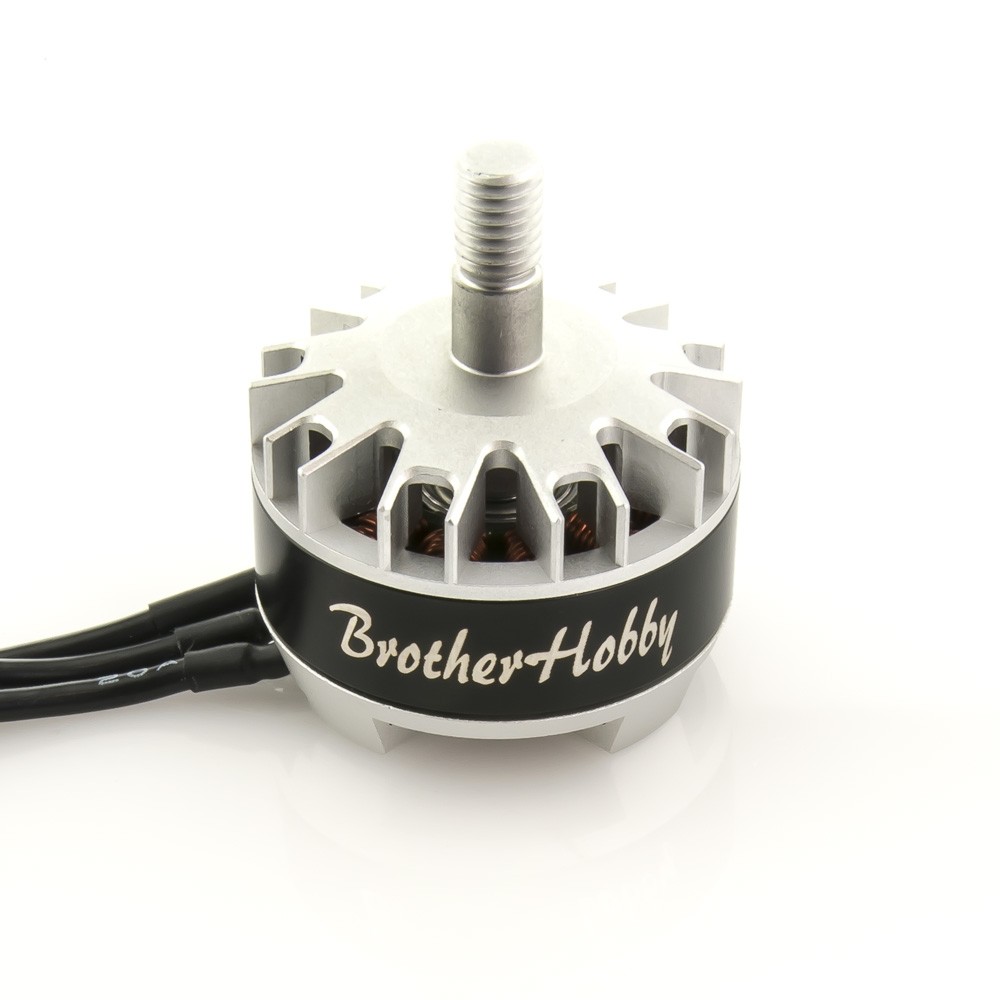

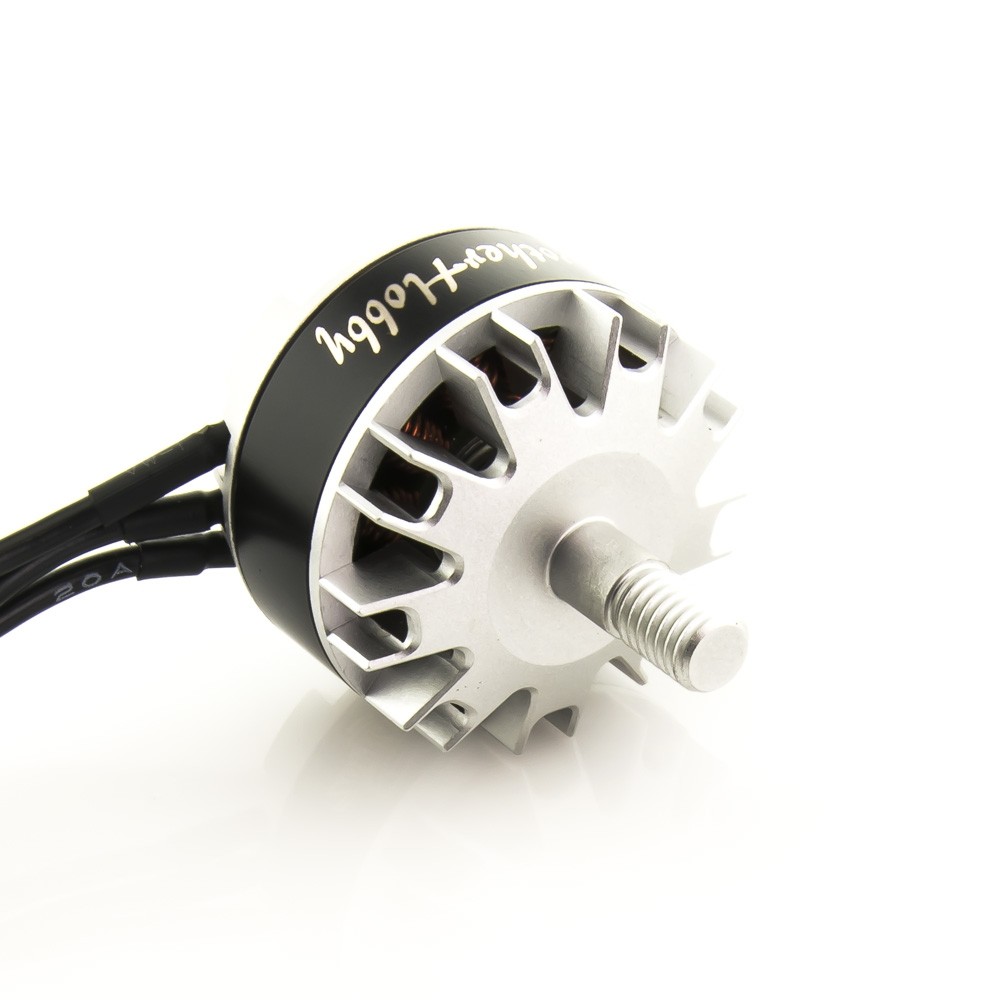

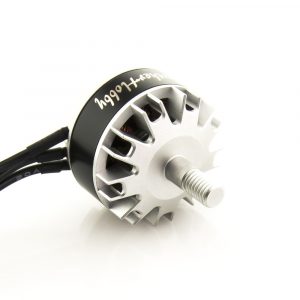

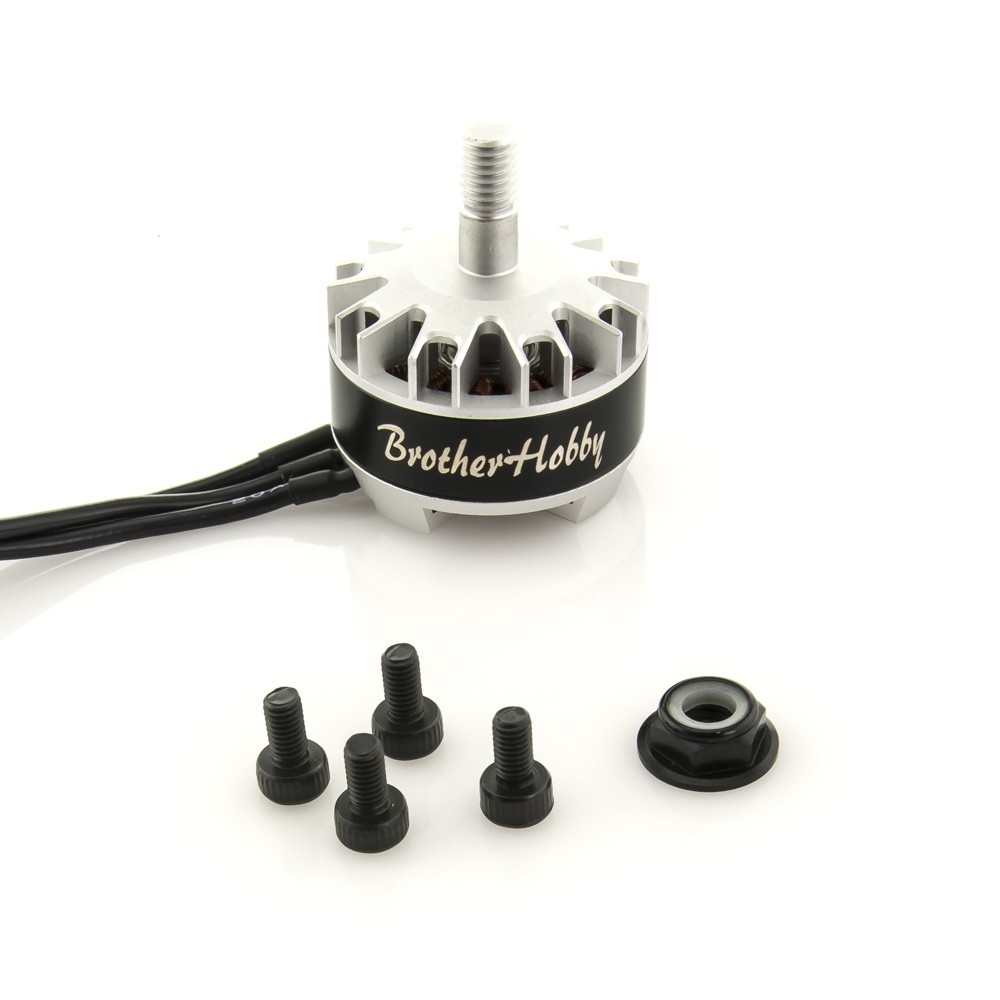

Brother Hobby Tornado T1 2205 1700kv Brushless Motor

Brother Hobby Tornado T1 2205 1700kv Brushless Motor



Specifications:

KV: 1700KV/2300KV/2600KV

Base casing: Al 7075

Stator: 0.15mm Nippon Steel silicon steel

Configuration: 12N14P

Prop Adapter Shaft Thread: M5

No.of Cells(Lipo): 3-6S

Bolt Pattern: M3 (16X19mm)

Bearings: Japanese NSK 8x3x4mm

Rotor: N52H arc magnets

Weight: 29 with 16cm SR wires

Wire AWG: 20AWG 16cm length

Bell cap: Al 7075

Please note : This is the 2205 1700kv rated for 5-6s Lipo
