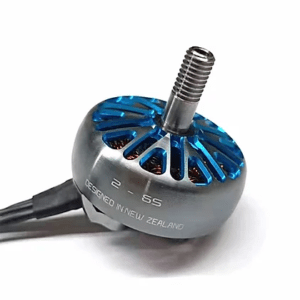

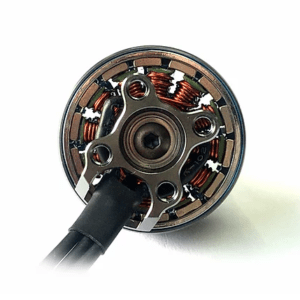

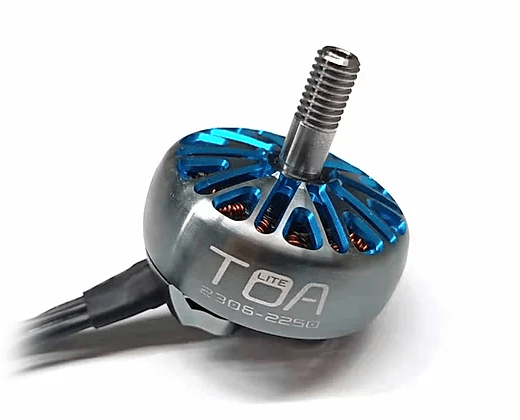

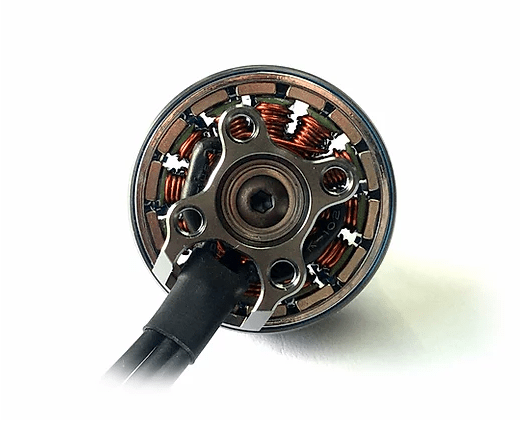

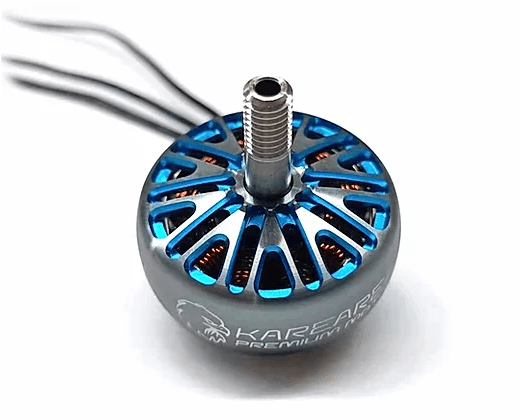

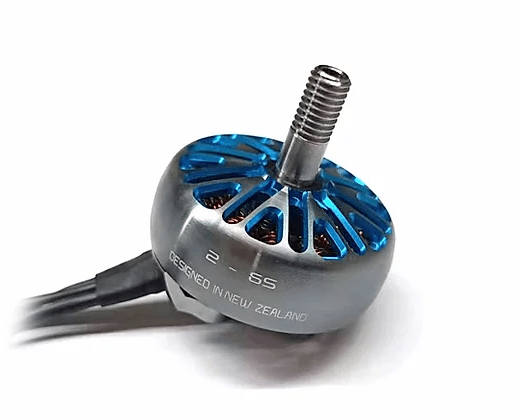

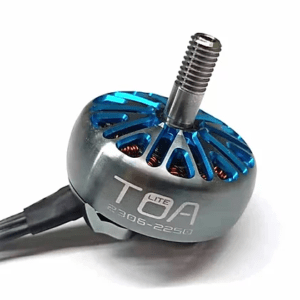

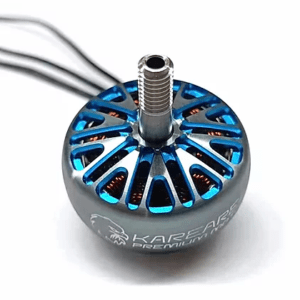

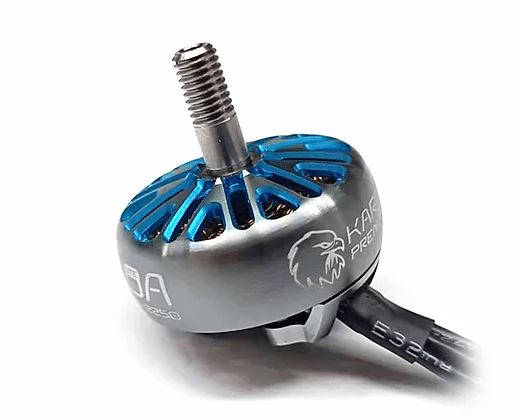

Karearea NEW TOA LITE 2306 Series – 1850Kv

Specifications

• Configuration / 12N14P
• 1 Piece Unibody outer motor bell
• Stator / Kawasaki 0.15 (0.1-0.12 Air gap)
• Weight / 31.2 grams (without cable)
• Wire Length / 15cm
• Wire Gauge / 20 AWG
• 0.1mm -0.12mm Air gap

• Recommended Props / 5 or 6 inch
• LiPo Compatibility / 2-8S
• Prop Mount Diameter / 5mm
• Shaft / Semi-hollow, Titanium TC4 GRADE –  CW threads
• Magnets / N52SH Arc magnet
• Set Screw / 2mm
• NSK bearing (4x9x4)
• Single winding

• KV (rpm/Volt) 1850, 2250, 2450, 2650 : 4 Different KV selection
• Idle current @10v(A) 0.9A 1850KV / No of Cells(Lipo) 2-8S
• Idle current @10v(A) 1.3A 2250KV / No of Cells(Lipo) 2-6S
• Idle current @10v(A) 1.6A 2450KV / No of Cells(Lipo) 2-6S
• Idle current @10v(A) 1.8A 2650KV / No of Cells(Lipo) 2-5S
