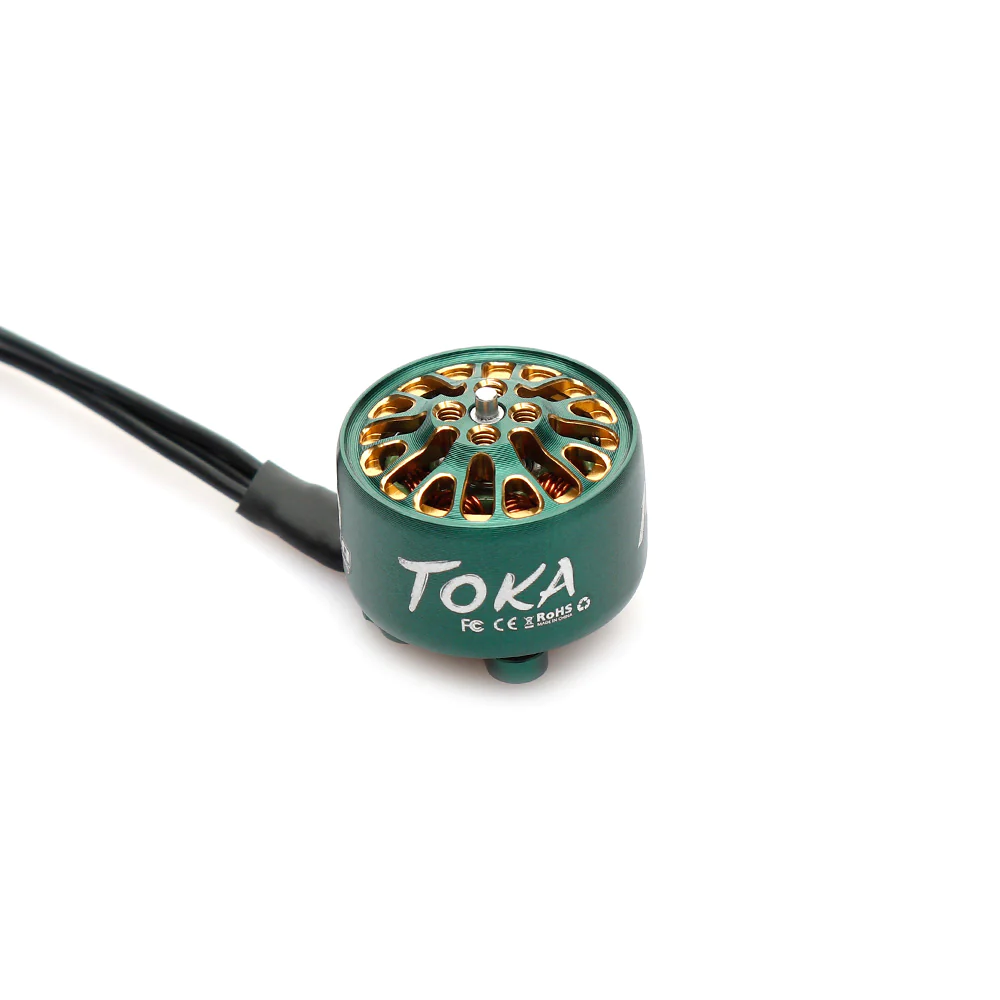

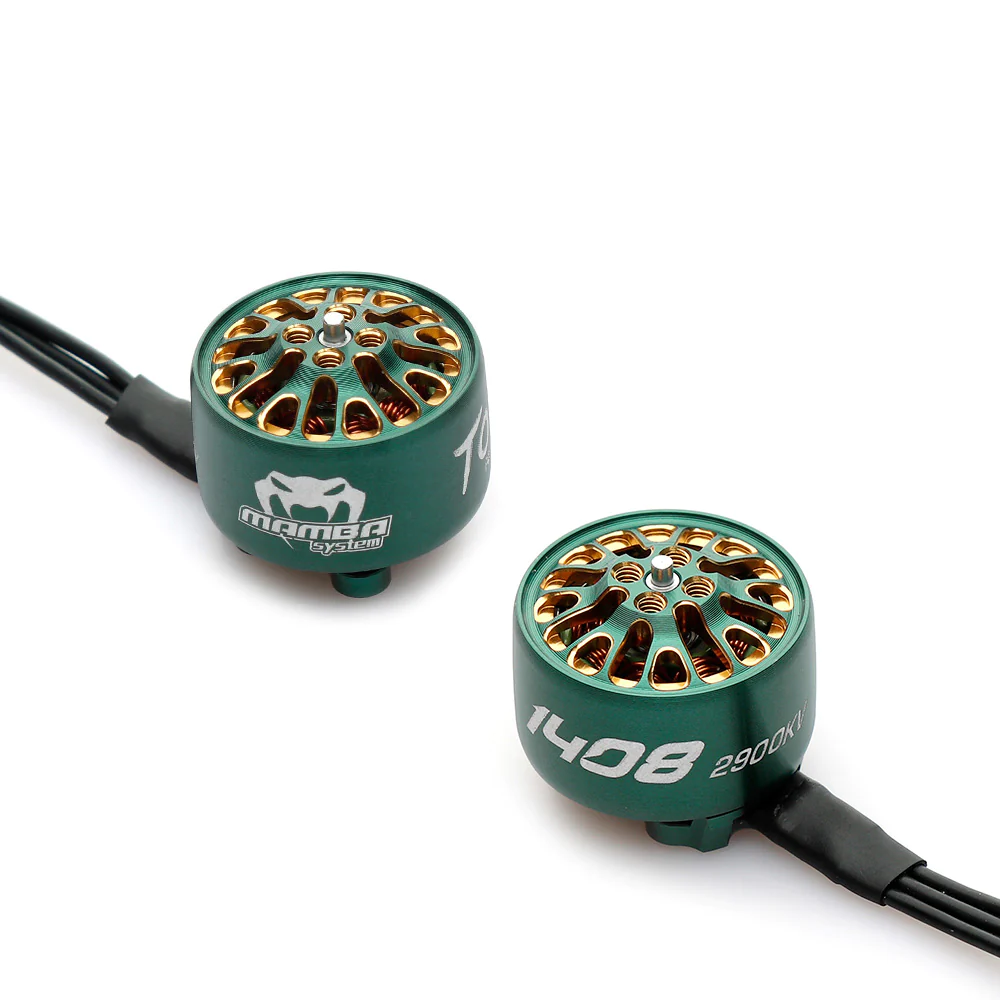

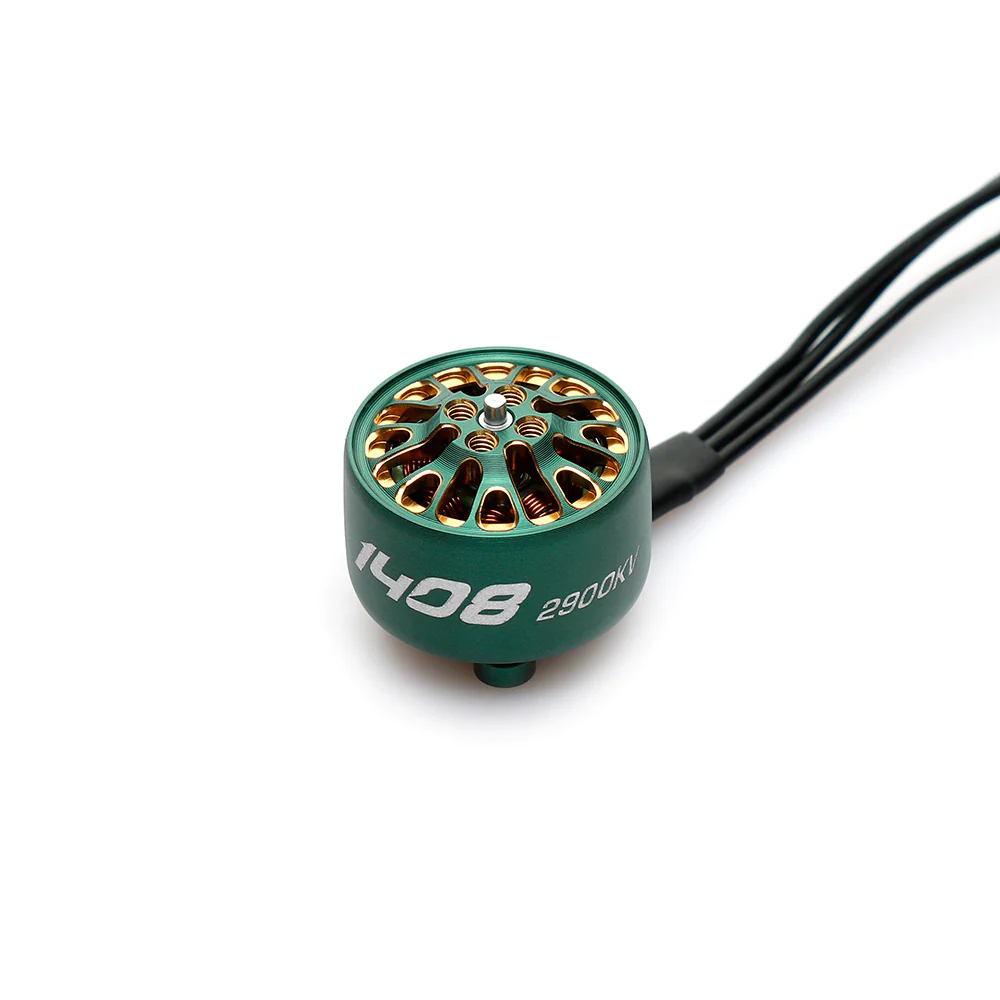

Diatone MAMBA TOKA 1408 2900KV FPV Racing Motor
Check out all of our Diatone Products!
Specifications:
Overall Dimension: Φ20.6×18.5mm
Prop mounting shaft diameter: 1.5mm
Installation hole position: 12×12mm，M2
Prop: 3inch~4inch                                                                Â
Bearing: 5*2*2.5Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Shaft Diameter:2.0mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：14mm
Stator Height:8mm
Rated Voltage:4~6S (16.8V~25.2V)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
Peak Current: 15.75A
ldle Current：10V/0.4~1.0A                                                               Â
Maximum Power: 376.3W
Internal Resistance：135mΩ
