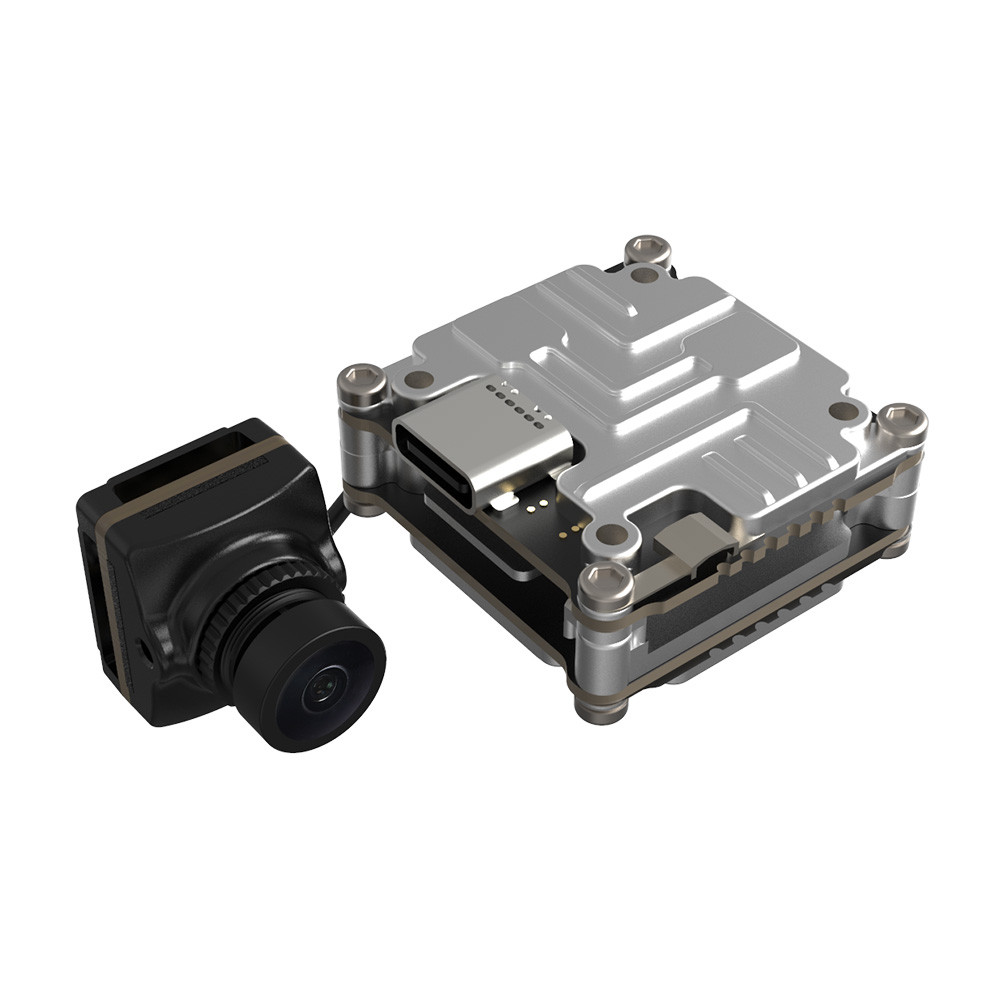

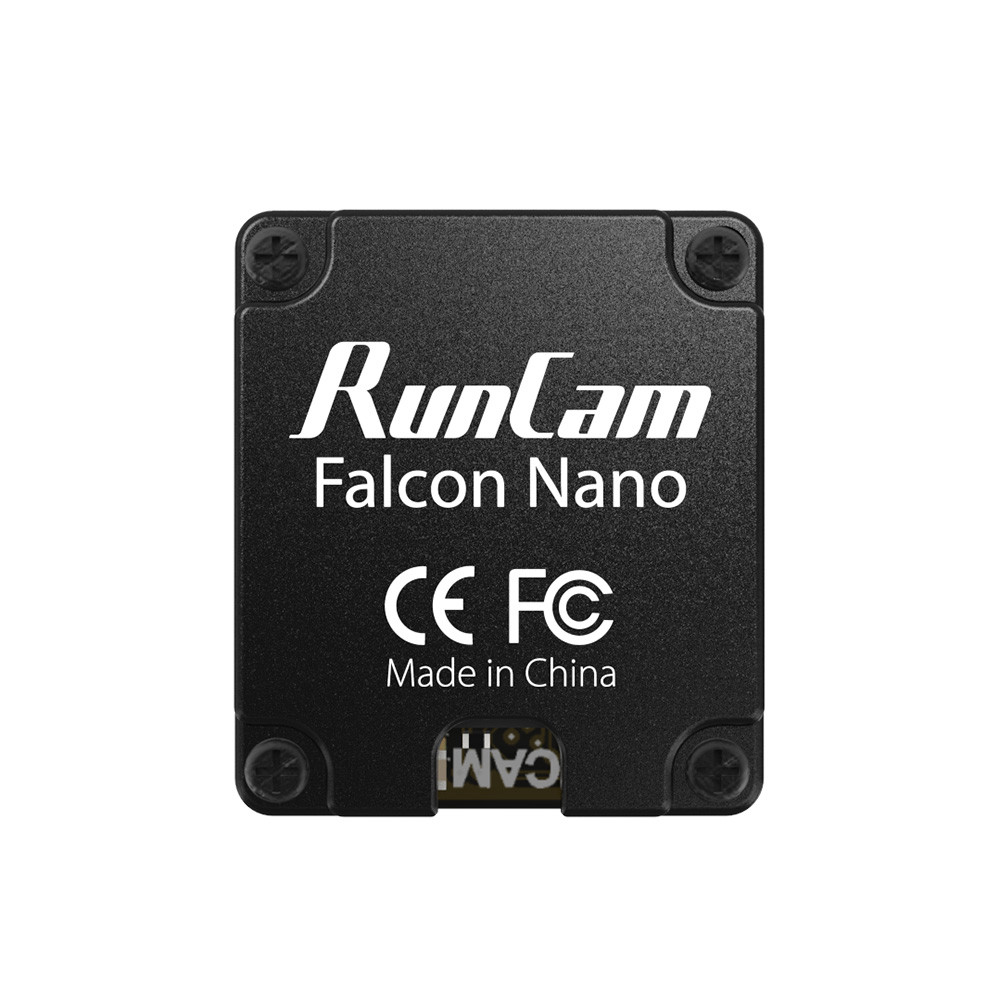

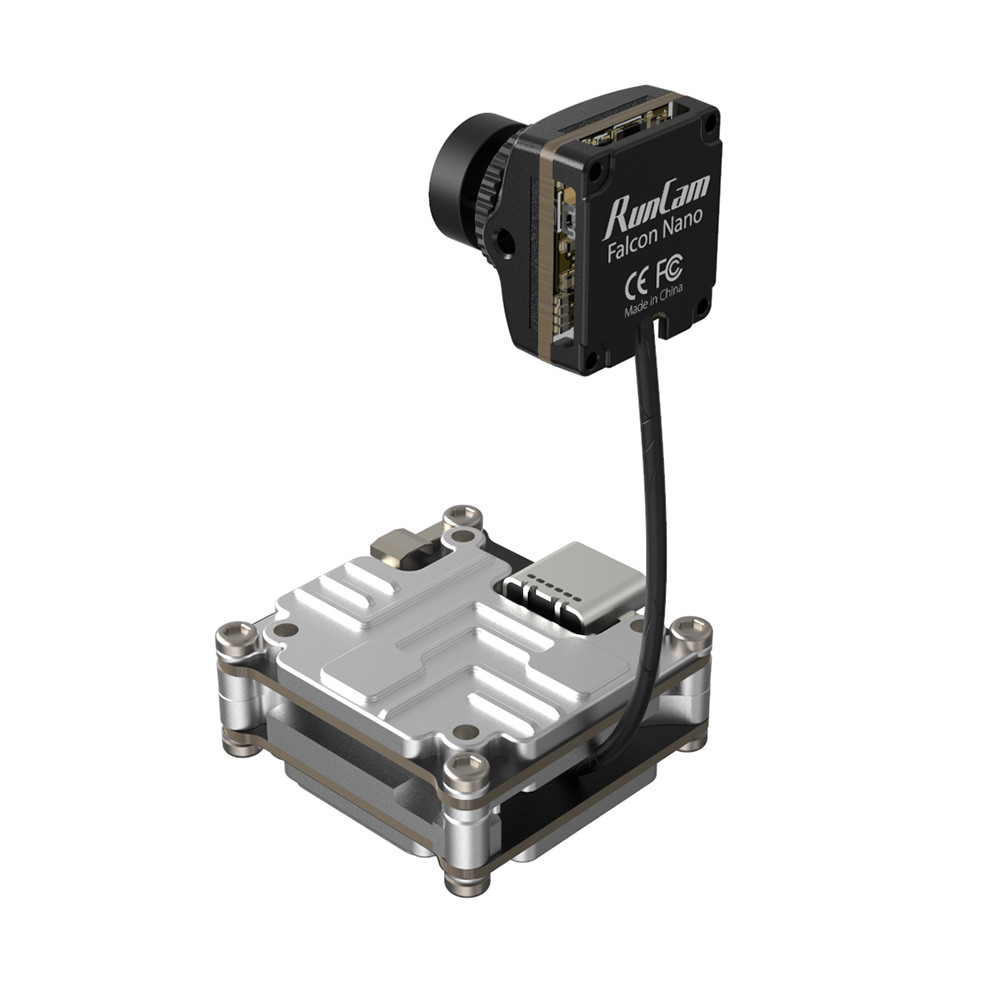

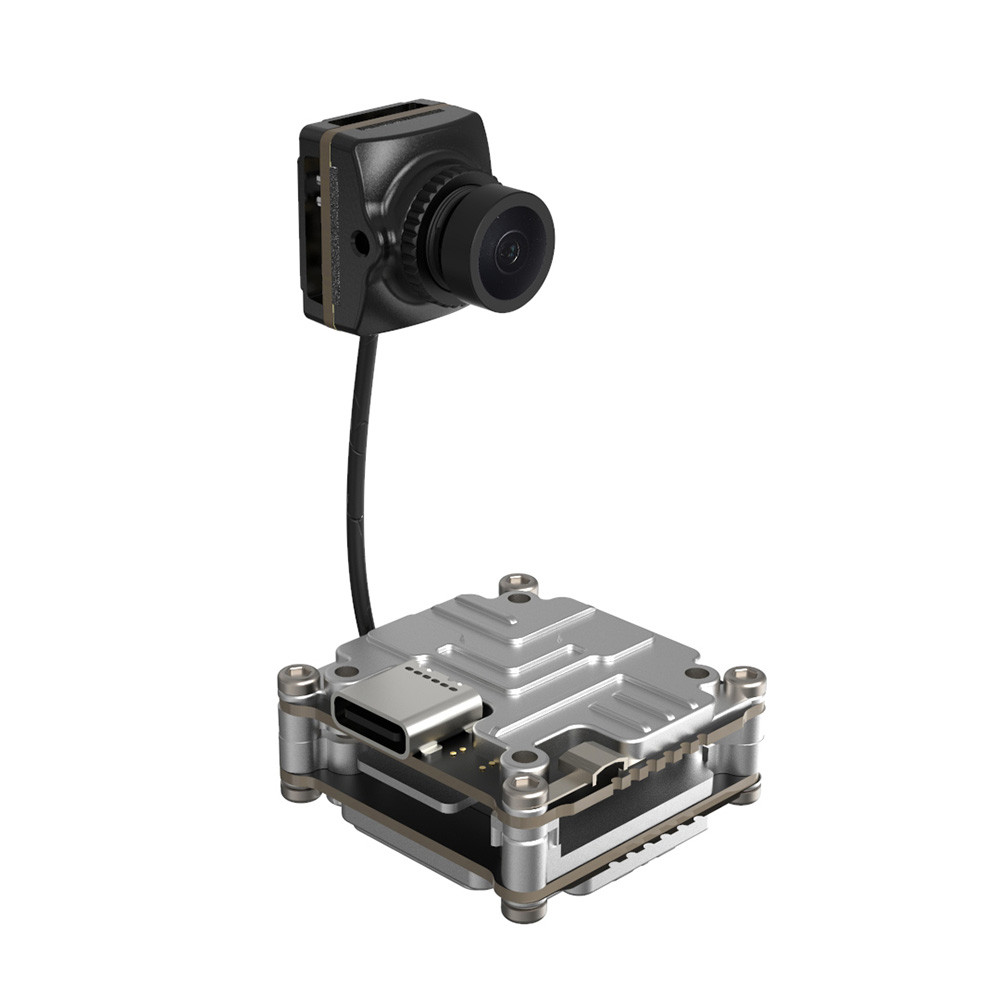

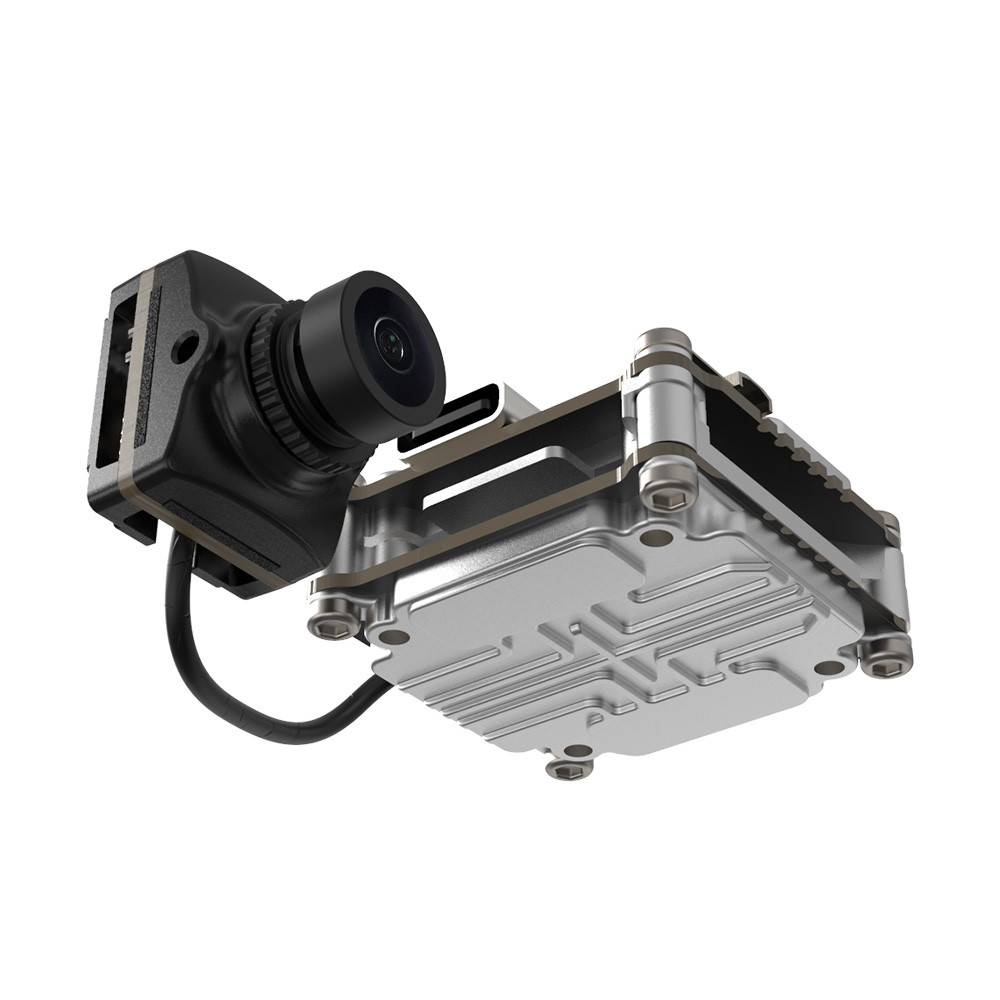

RunCam Falcon Nano Digital FPV Camera Kit
Check out the RunCam Split HD and the RunCam Link Pheonix HD Nano.
- The size is only 14X16mm, weight is only 23.5g, which is more suitable for all kinds of drones. It’s your ideal FPV high-definition camera Kit for you to see more clearly.
- Falcon Nano Link kit 4:3 original ratio sensor output, more suitable for FPV racing flight, bringing a stronger flight experience to the pilot.
- Falcon Nano Link kit supports 16:9/4:3 image switching, 720p120fps can be set to choose DJI glasses 25mW/200mW/500mW/700mW and other power, providing high-definition video images that are completely different from analog video transmission.
- The HDL FPV Transmission system and the FPV Air Unit are equipped with eight frequency channels, which allow up to eight drones to fly simultaneously. Each operator has an exclusive channel. This helps to reduce cross-interference and provide an optimal racing experience.
Specifications
- Resolution:1920*1080@120fps
- LENS: FOV D:150° H:118° V:87°
- Frequency: 5.725-5.850 GHz
- Max. Distance: FCC/SRRC: <4 km & CE: <0.7 km
- Power:7.4-26.4 V@ 4-9W
- Vista Size: 29×29×13 mm
- Image Sensor: 1/3.2”
- Shutter: Rolling Shutter
- Coaxial Cable:120 mm
- Camera Size: L16mm*W14mm*H17mm
- Weight: 23.5g
