RunCam Phoenix Oscar Edition (Pick Your Lens)

RunCam Phoenix Oscar Edition (Pick Your Lens)

Check Out All Of our Runcam Products, and all of our Analog Cameras!

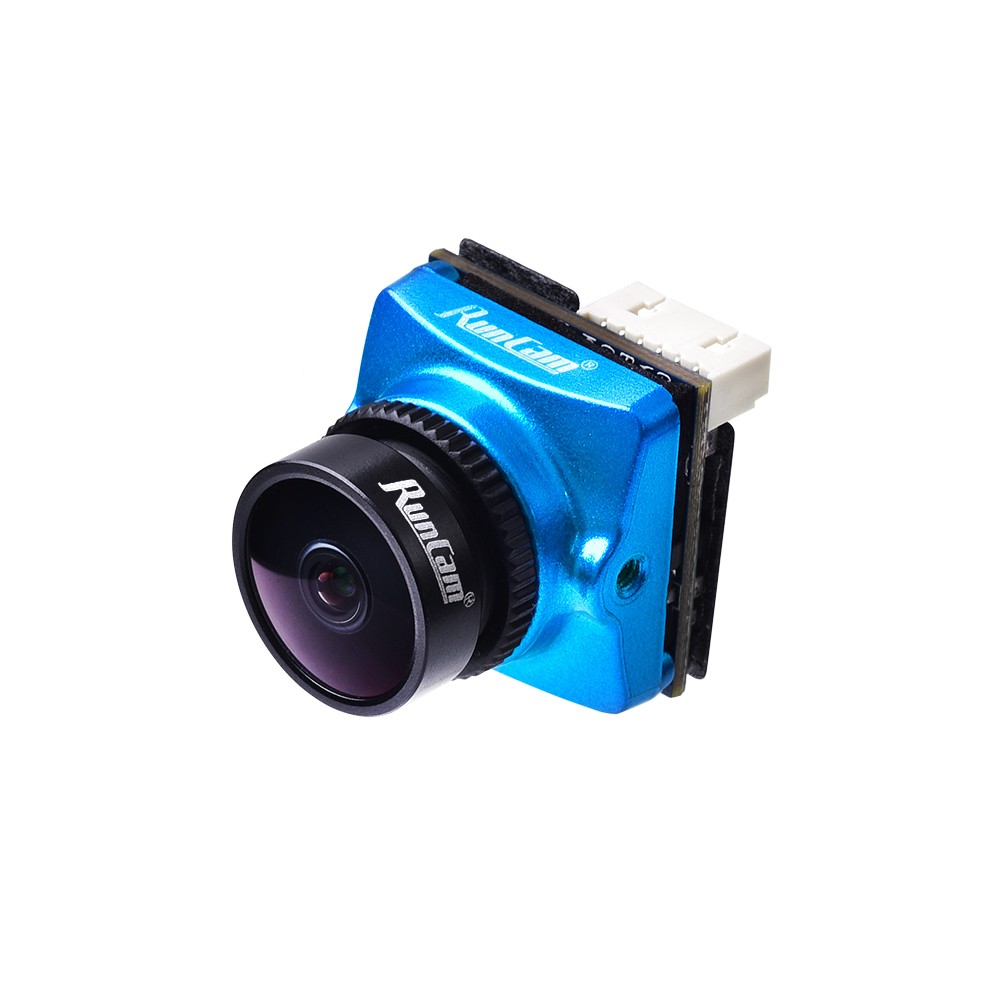

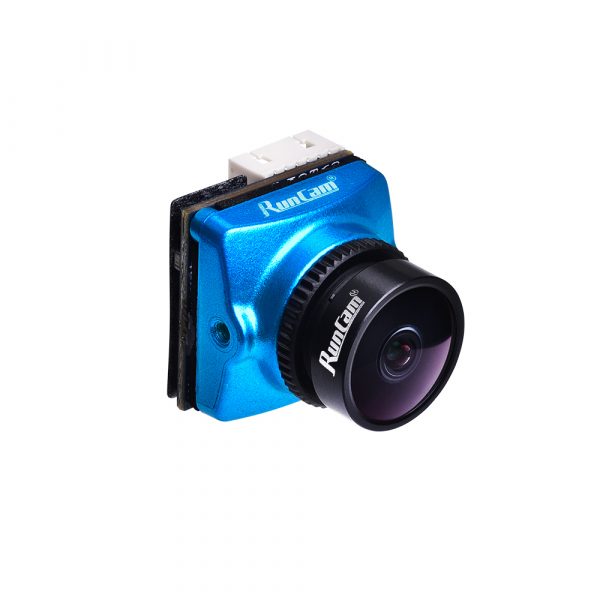

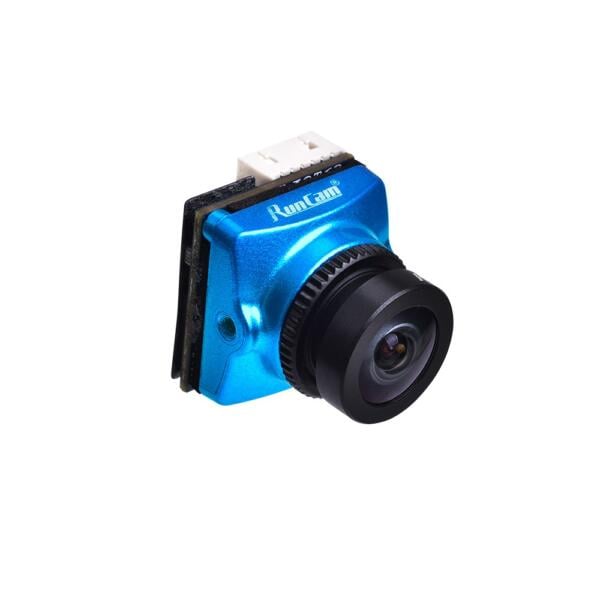

Experience one of the best analog FPV cameras for daylight flying with the RunCam Phoenix 2 Oscar Edition. This special edition micro FPV camera is the result of a collaboration with renowned FPV expert Oscar Liang, tuned specifically to deliver a stunningly clear and vibrant image in bright conditions. It’s the premium choice for any FPV pilot who values exceptional daytime video quality for freestyle and cinematic flights.

Tuned for Incredible Daylight Performance

While many cameras focus on low-light, the Phoenix Oscar Edition was perfected for when the sun is out. It features a high-resolution 1000TVL sensor and a powerful Super 120dB WDR, providing rich colors, excellent detail, and fantastic handling of high-contrast scenes. This camera will make the colors of your FPV drone footage pop like never before, capturing the beauty of your flight.

Key Features:

• Tuned by Oscar Liang: A custom image tune from a trusted FPV expert, optimized for stunning daylight performance.
• Super 120dB WDR: Delivers rich, vibrant colors and expertly handles high-contrast lighting, keeping detail in both the sky and shadows.
• High 1000TVL Resolution: A crisp and detailed analog image makes your flights more immersive.

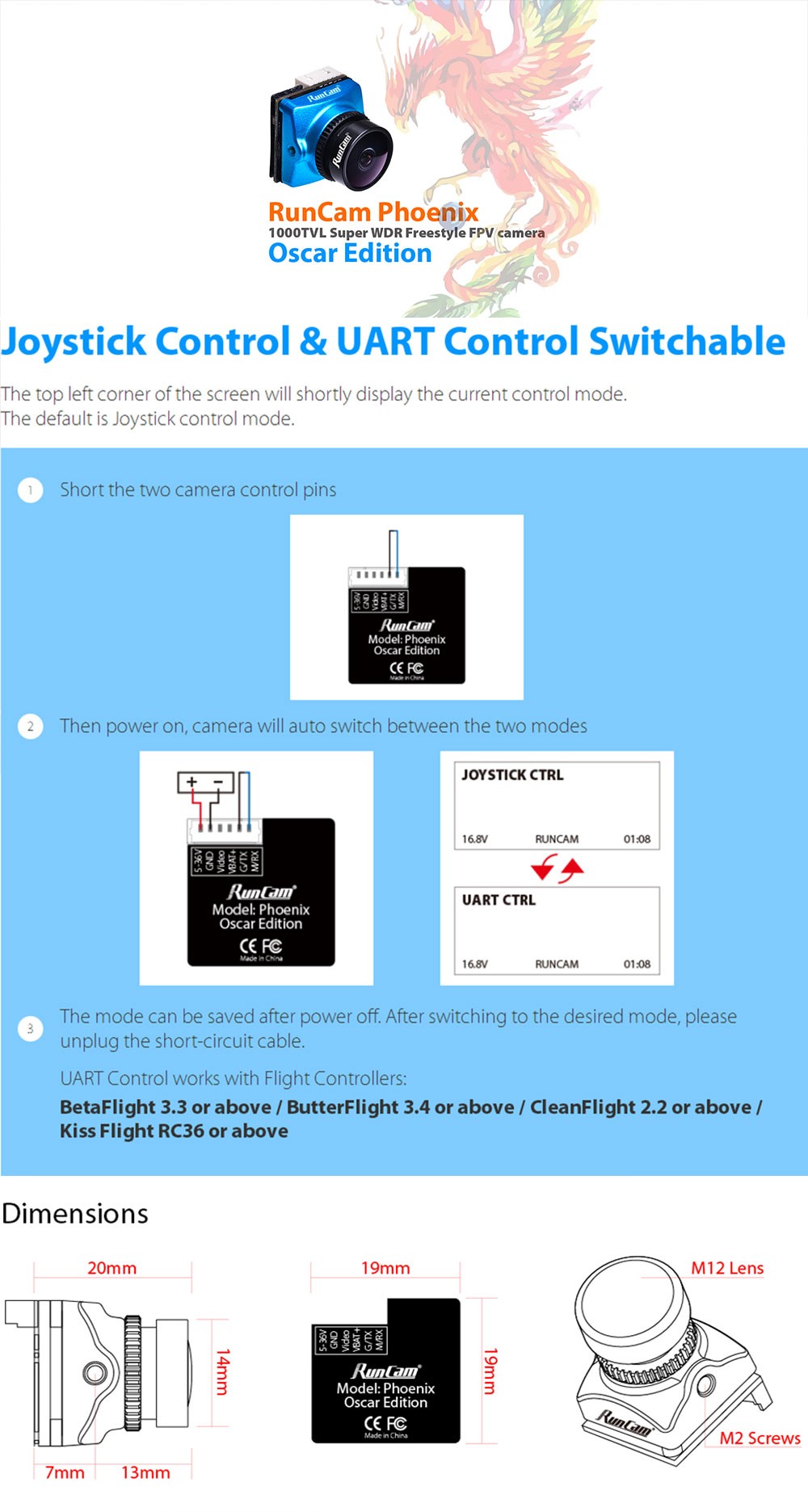

• Dual Control System: Change settings with the traditional joystick or conveniently through your flight controller’s OSD via UART control.
• Fully Customizable: Switch between 4:3/16:9 aspect ratios, NTSC/PAL video formats, and choose your preferred lens for a perfect setup.
• Wide 5-36V Input Voltage: Incredible flexibility to power the camera from any 2S to 8S LiPo power source.

Customize Your Field of View

This camera is available with two lens options to suit your flying style. Please select your preferred lens from the dropdown menu:

• 1.8mm Lens: Provides a super-wide 160° FOV for maximum immersion and awareness.
• 2.5mm Lens: Offers a more standard 140° FOV with less distortion, a favorite for many freestyle pilots.

Specifications

• Model: RunCam Phoenix 2 Oscar Edition
• Image Sensor: 1/3″ 120dB WDR CMOS Sensor
• Horizontal Resolution: $1000\text{TVL}$
• Aspect Ratio: 4:3 / 16:9 (Switchable)
• Signal System: PAL / NTSC (Switchable)
• Control Method: Joystick Control or UART Remote Control
• Input Voltage: $5\text{V}-36\text{V}$
• Dimensions: $19\text{mm}\times 19\text{mm}\times 20\text{mm}$ (Micro)
• Weight: $9\text{g}$

What’s in the Box?

• 1x RunCam Phoenix 2 Oscar Edition FPV Camera (in your chosen lens)
• 1x 1928 ABS Mounting Bracket
• 1x 6-pin FPV Silicone Cable
• 1x Set of Screws
• 1x User Manual
