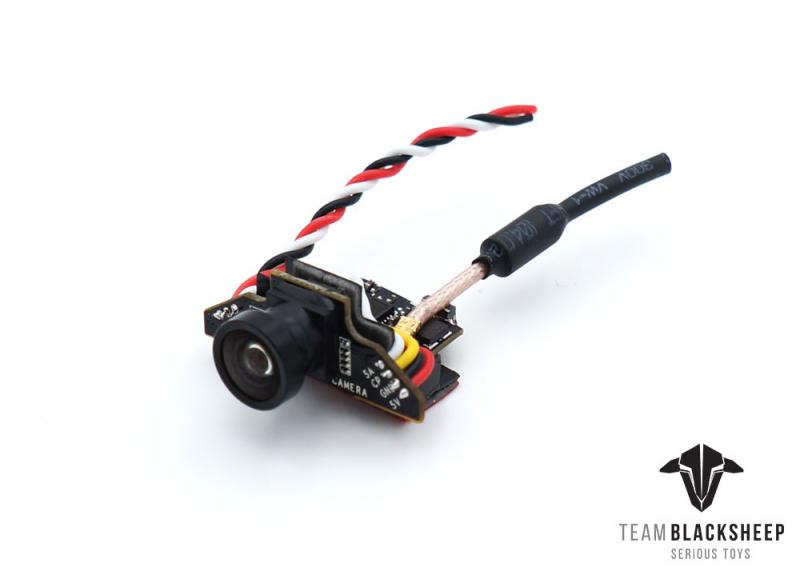

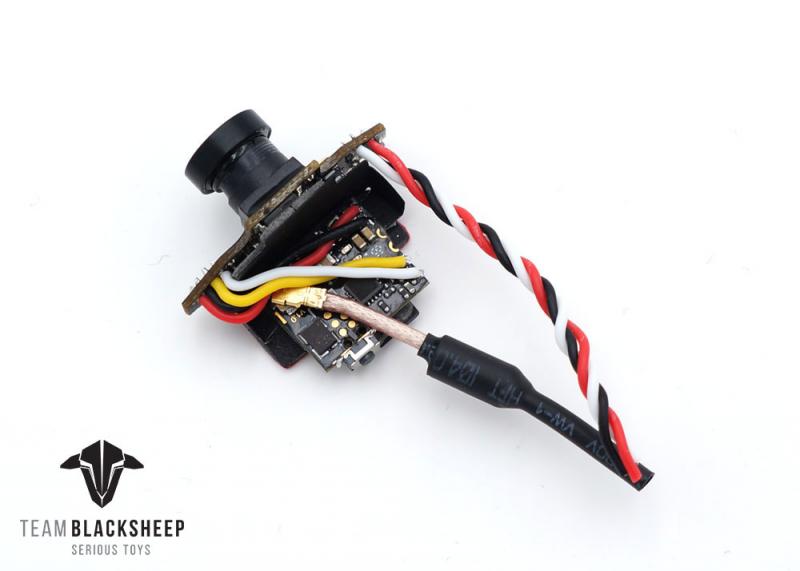

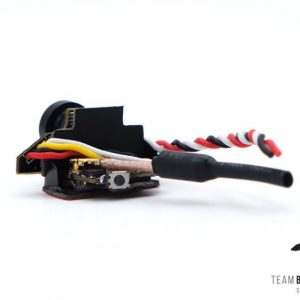

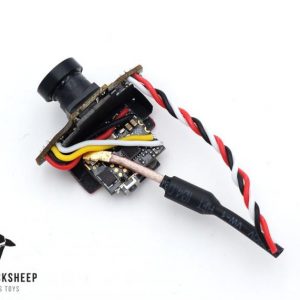

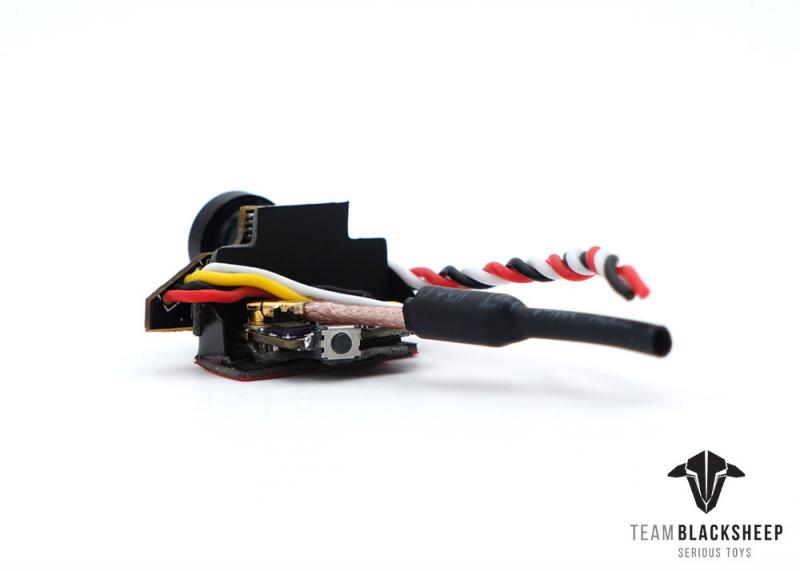

TBS UNIFY NANO + TINYCAM COMBO

The TBS Unify Nano + TinyCam Combo is ready-to-go right out of the package, just solder your Power, GND and Smart Audio then you are ready to whoop!

*If you dont need Smart Audio, you may simply remove the white wires

VTX

• Model: TBS Unify Pro Nano 5G8
• Input Voltage: 4.5V – 5V
• Power levels: 25mW / 50mW
• Interface: SmartAudio and capacitive button (or solder external tactile button separately – included!)
• Antenna connector: u.FL (upgraded)
• TBS Tech: Smart Audio, Clean Switch

CAMERA

• Model: TBS Tiny Camera
• Power supply:3.7-5V
• Smart Audio Passthrough
• Resolution: 700TVL
• FOV: 120 degree
• Video format: NTSC
• Mini illumination:1.0lux

SPECIFICATION

• Weight: 4g (incl. antenna)
• Dimension: 28mm(L) x 29mm(W) x 14mm(H) (excluding antenna)
