RunCam Link Phoenix HD Nano Kit (Pick Your Style)
Experience exceptional low-light performance on your digital FPV drone with the RunCam LINK Phoenix HD system. This product line combines the proven RunCam LINK digital VTX with the incredible Phoenix HD “Starlight” camera. It’s the ultimate digital FPV solution for pilots who fly in all conditions, from bright daylight to deep dusk, providing a crystal-clear image when other cameras fail.
Choose Your Option: Full Kit or Camera Only
This product is available in two configurations. Please select the option you need from the dropdown menu:

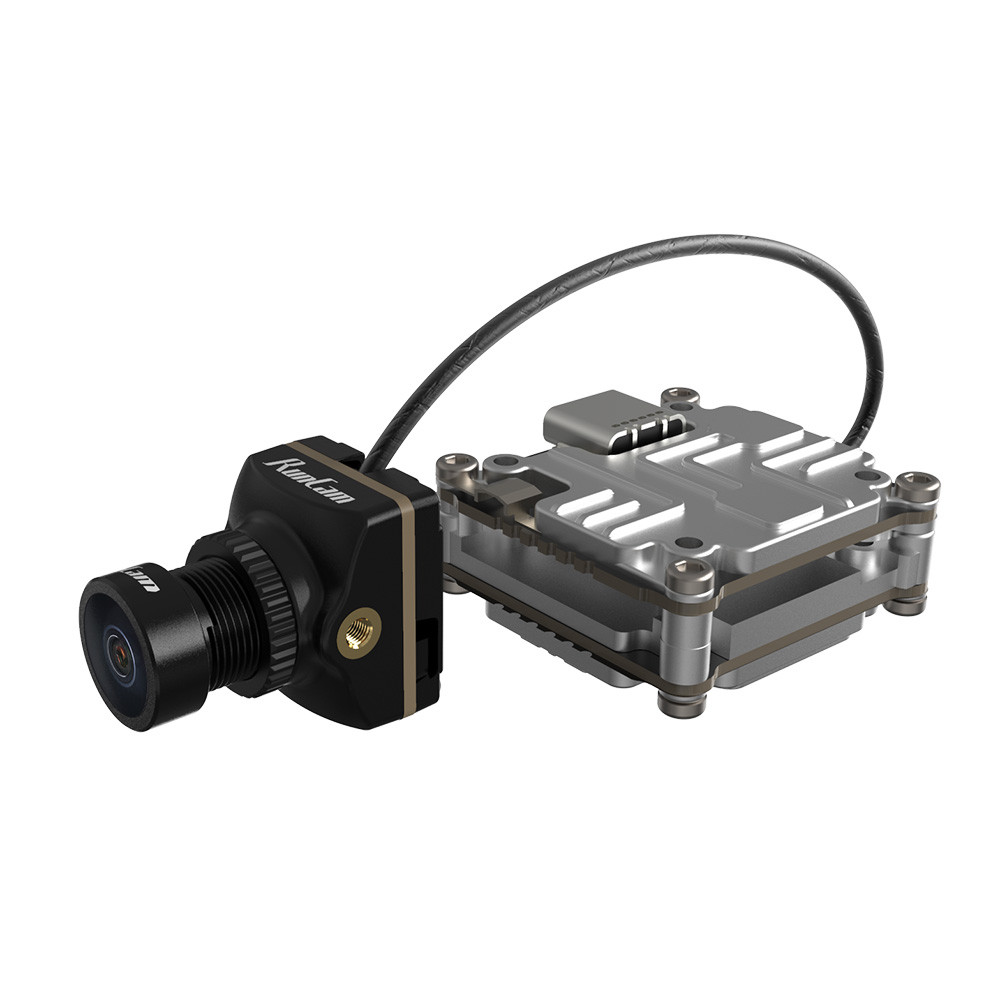

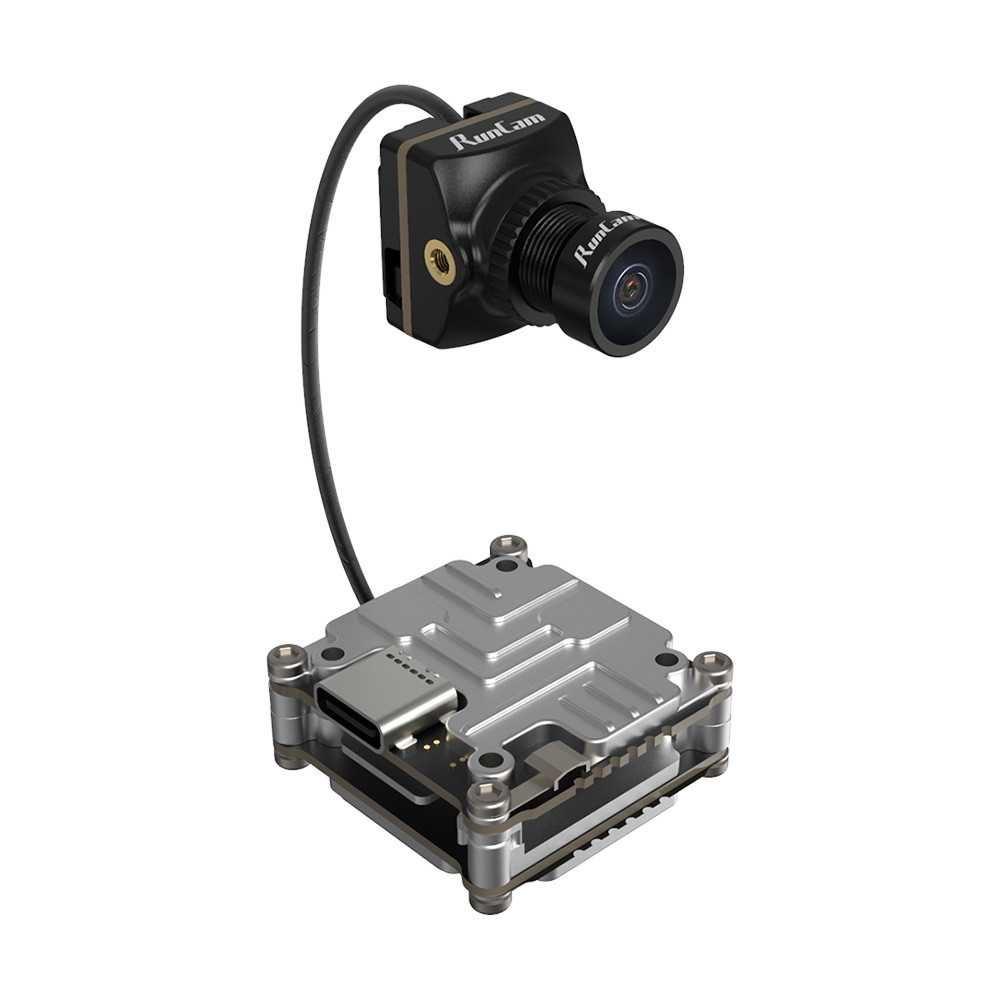

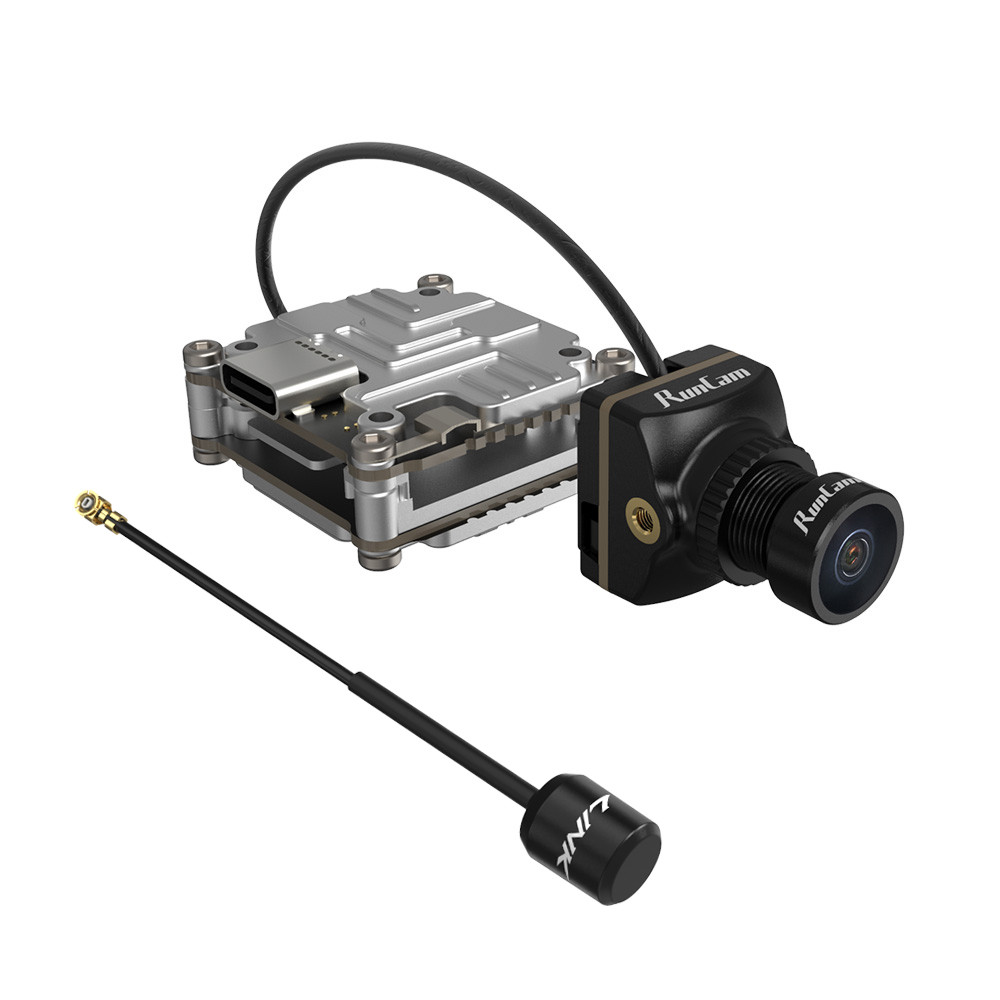

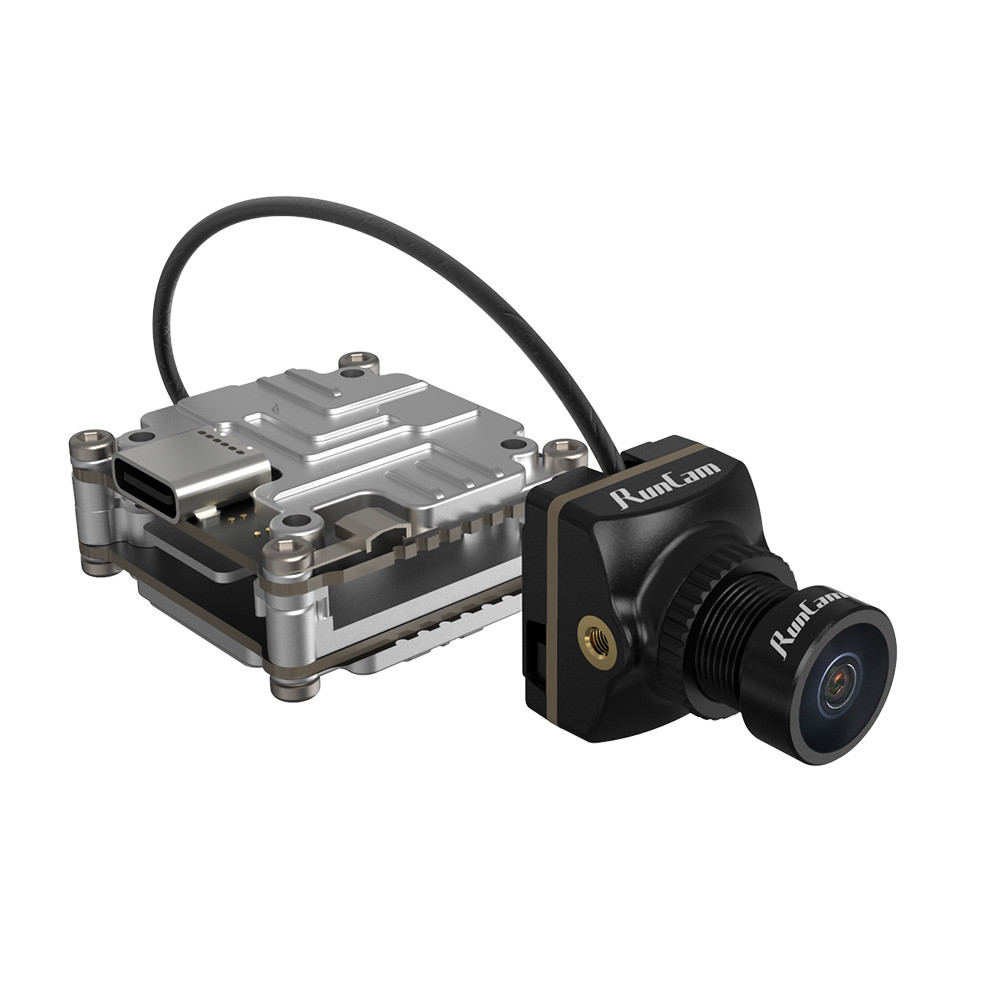

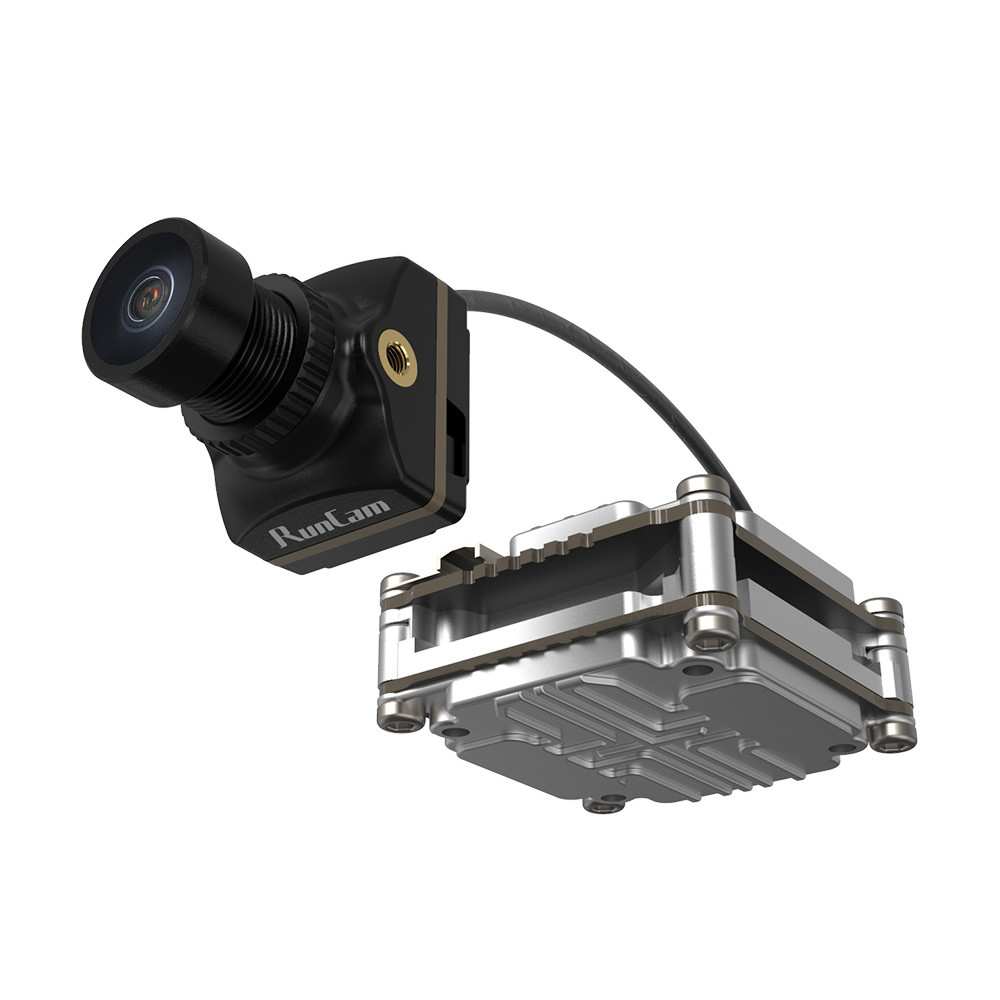

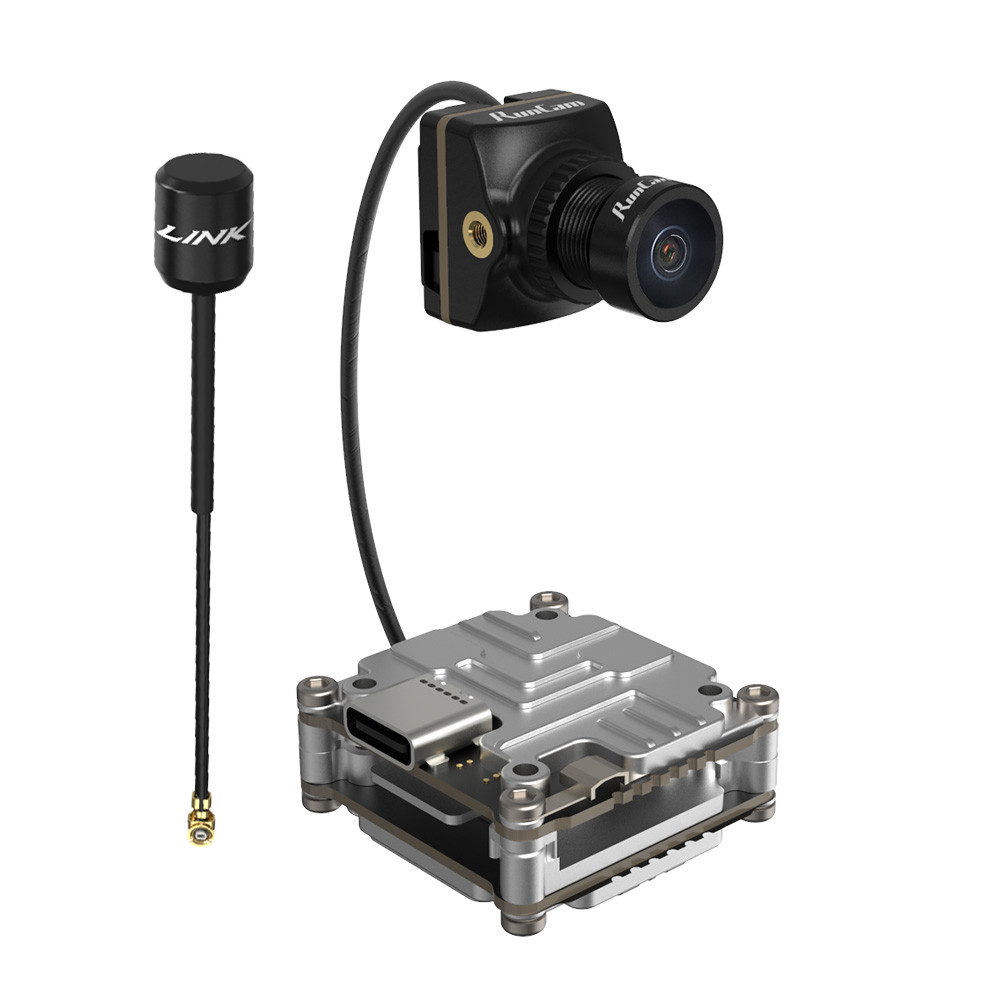

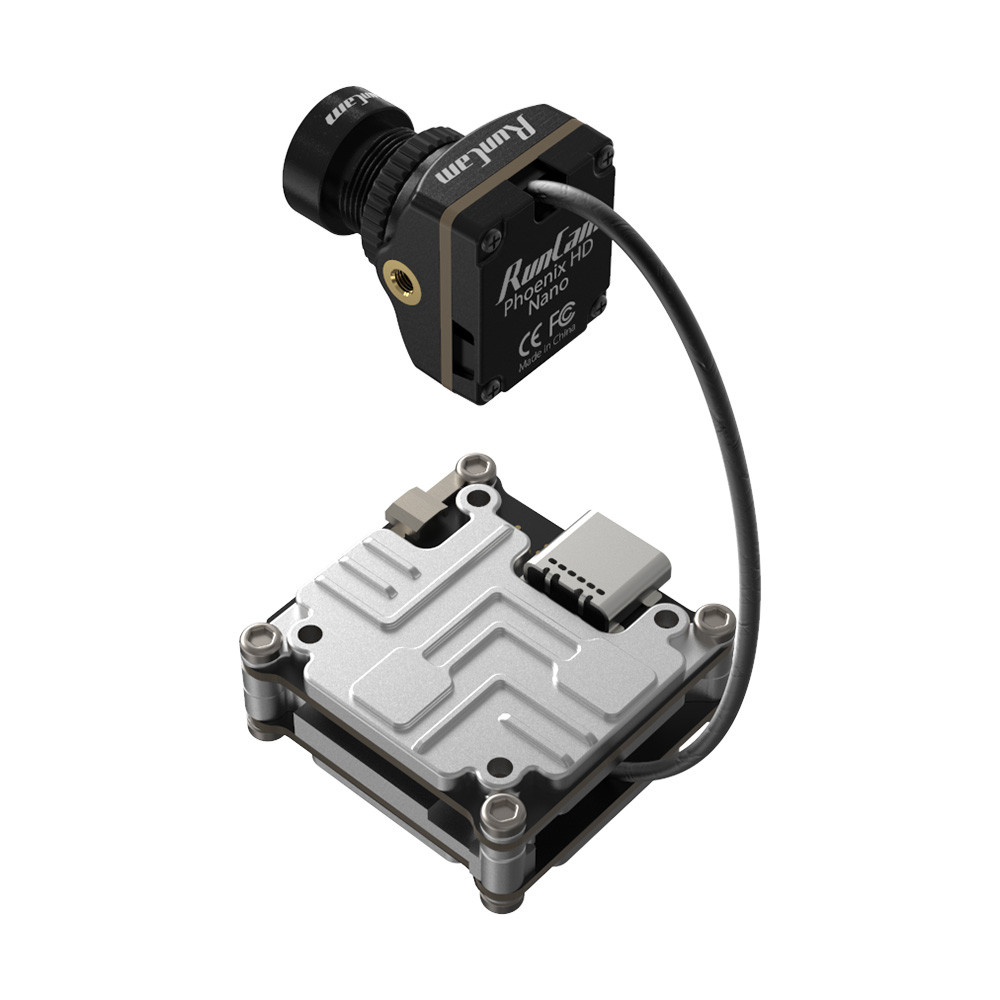

- Full Link Kit: This is the complete package, including both the RunCam LINK VTX and the Phoenix HD Nano Camera. It’s everything you need to add this high-performance digital FPV system to your drone.

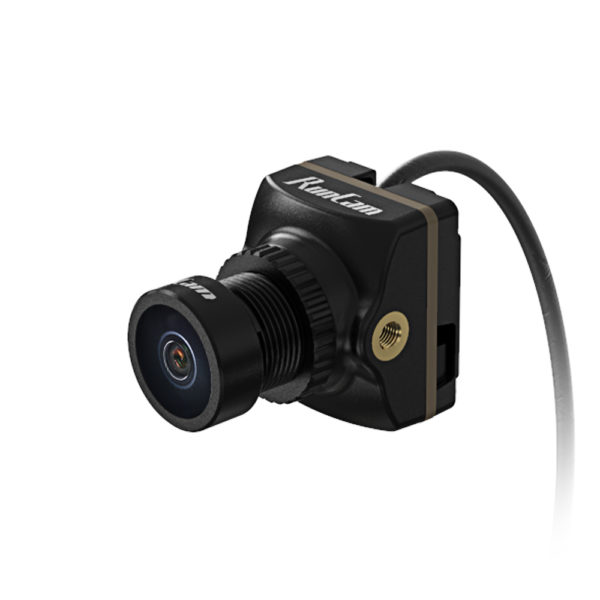

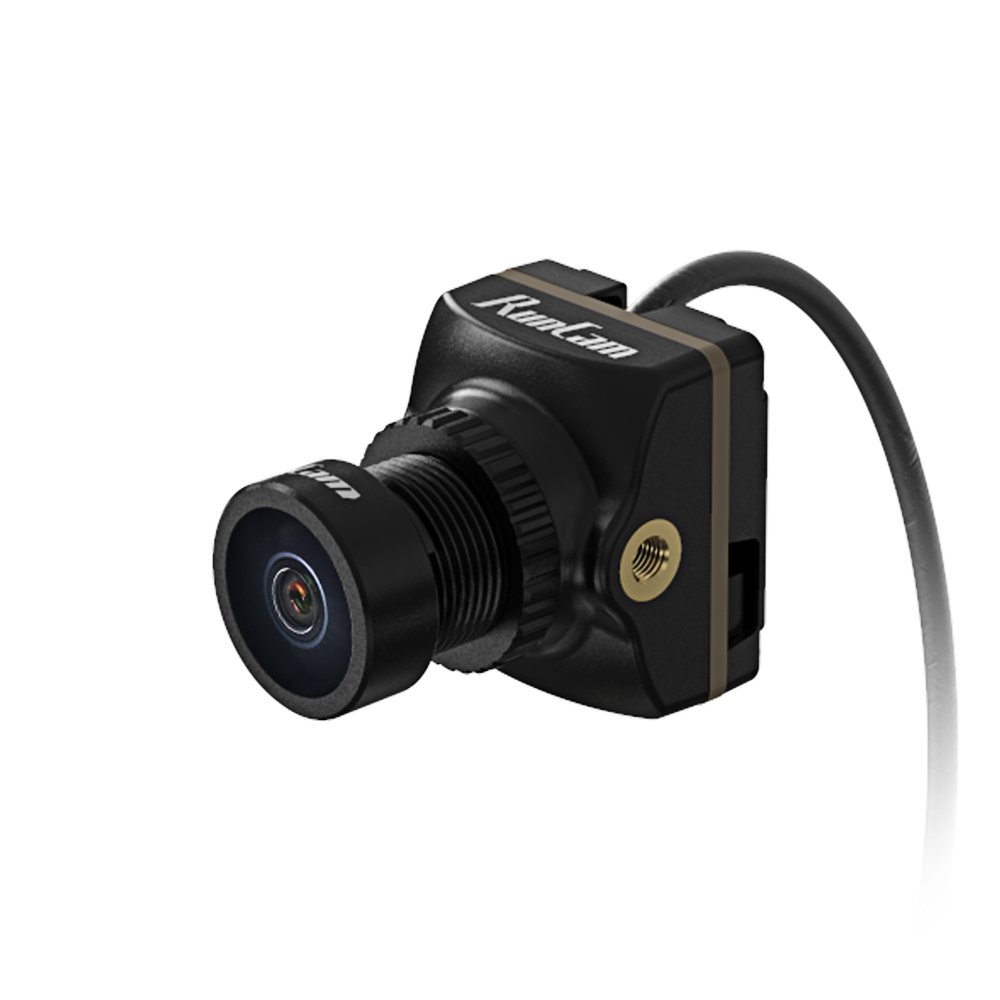

- Camera Only: This is a replacement Phoenix HD Nano Camera. It’s the perfect choice if you have already damaged the camera on your existing RunCam LINK or Caddx Vista system and just need to replace the camera itself.
Superior Low-Light & Night Vision

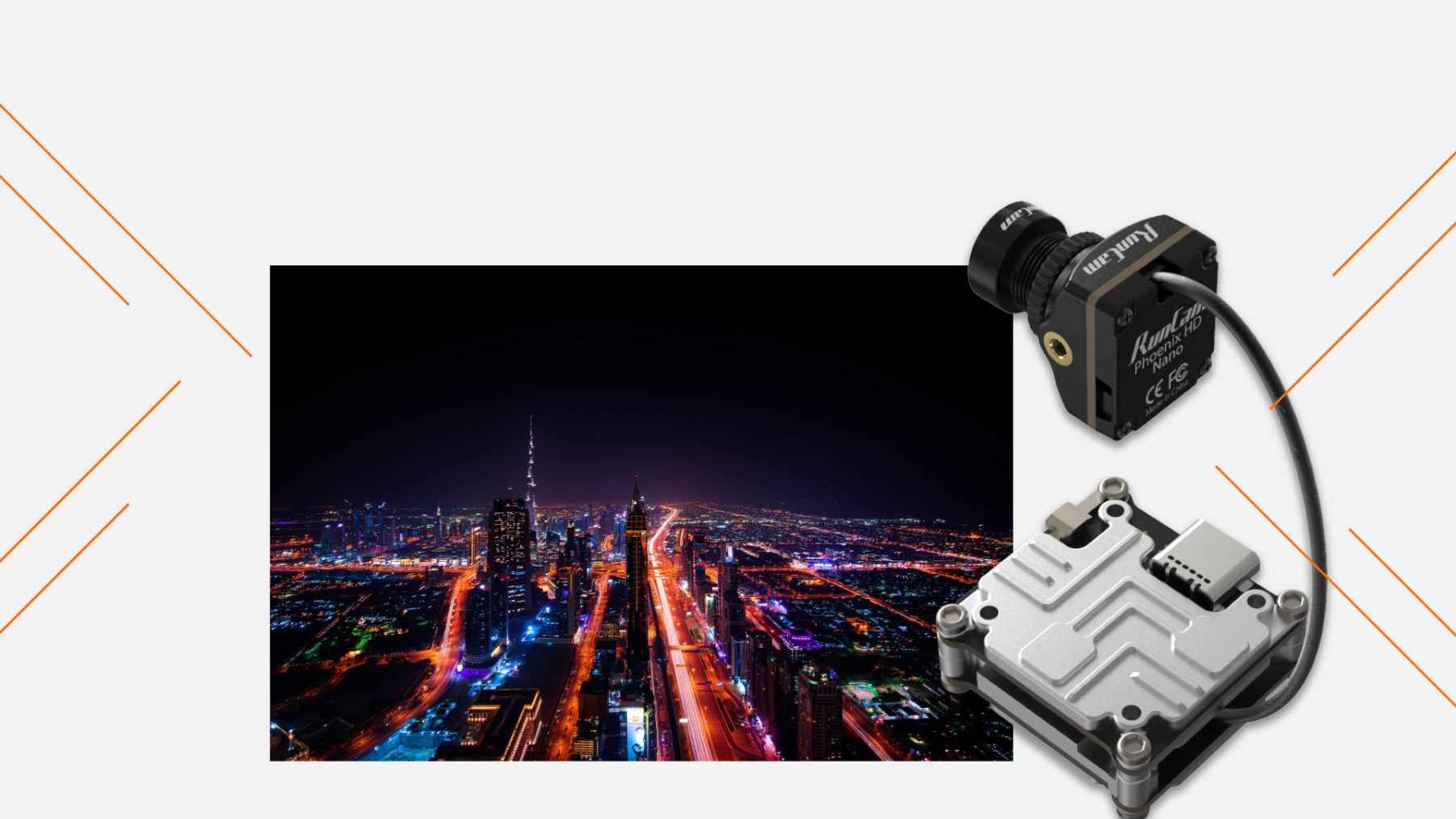

The heart of this system is the RunCam Phoenix HD camera, which features a massive 1/2-inch, ultra-high sensitivity sensor. This “Starlight” sensor gathers an incredible amount of light, delivering a bright, clear, and low-noise image in twilight and even nighttime conditions.
Reliable Digital HD Transmission (Full Kit)

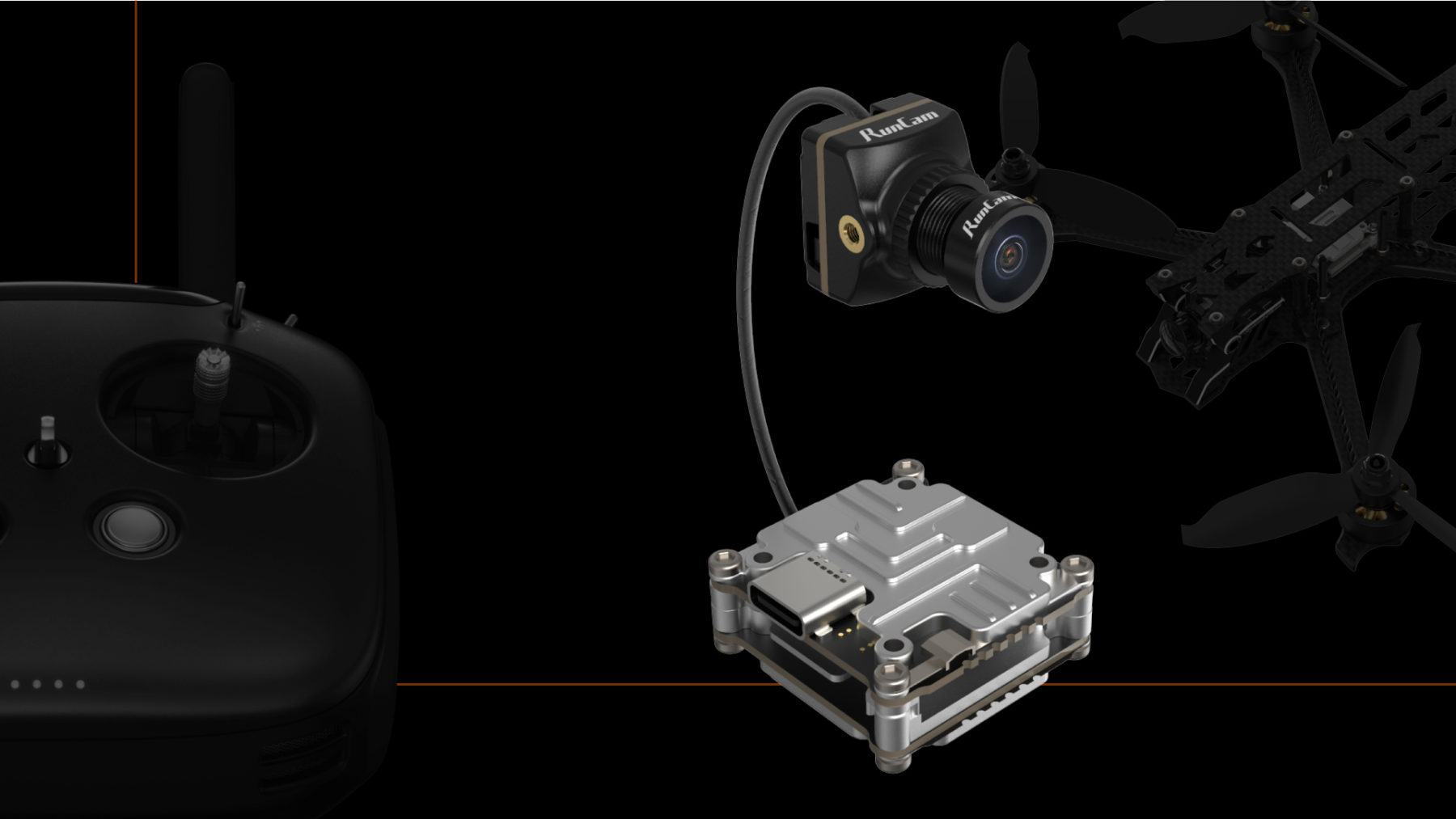

The RunCam LINK VTX (included in the Full Kit) is fully compatible with the DJI Digital FPV system, offering a low-latency 720p 60fps video feed. With eight available channels, you can fly interference-free with others. The VTX also features a built-in receiver that works seamlessly with the DJI FPV Remote Controller, saving you the cost and weight of a separate receiver.
Key Features:
- Phoenix HD Starlight Camera: A large 1/2″ high-sensitivity sensor provides outstanding low-light and night vision performance.
- DJI FPV System Compatible: The full kit works seamlessly with DJI FPV Goggles V1/V2 and the DJI FPV Remote Controller.
- Low-Latency HD Video: Delivers a crisp 1280×720 @ 60fps video feed with latency as low as 32ms.
- Embedded DJI Receiver: (Full Kit) No need to purchase or install a separate receiver when using the DJI FPV Remote Controller.
- Flexible Options: Available as a complete kit for new builds or as a standalone camera for easy repairs.
Specifications
RUNCAM LINK (VTX – Included in Full Kit):
- Frequency: 5.725-5.850 GHz
- Max. Distance: FCC/SRRC: <4 km & CE: <0.7 km
- Power Input: 7.4V – 26.4V (2S-6S LiPo)
- Dimensions: 29mm × 29mm × 13 mm
- Net Weight: 19.5 g
RUNCAM Phoenix HD Nano (Camera):
- Image Sensor: 1/2”
- Resolution: 1280*720@60fps
- LENS FOV: D:145° H:123° V:67°
- Coaxial Cable Length: 120 mm

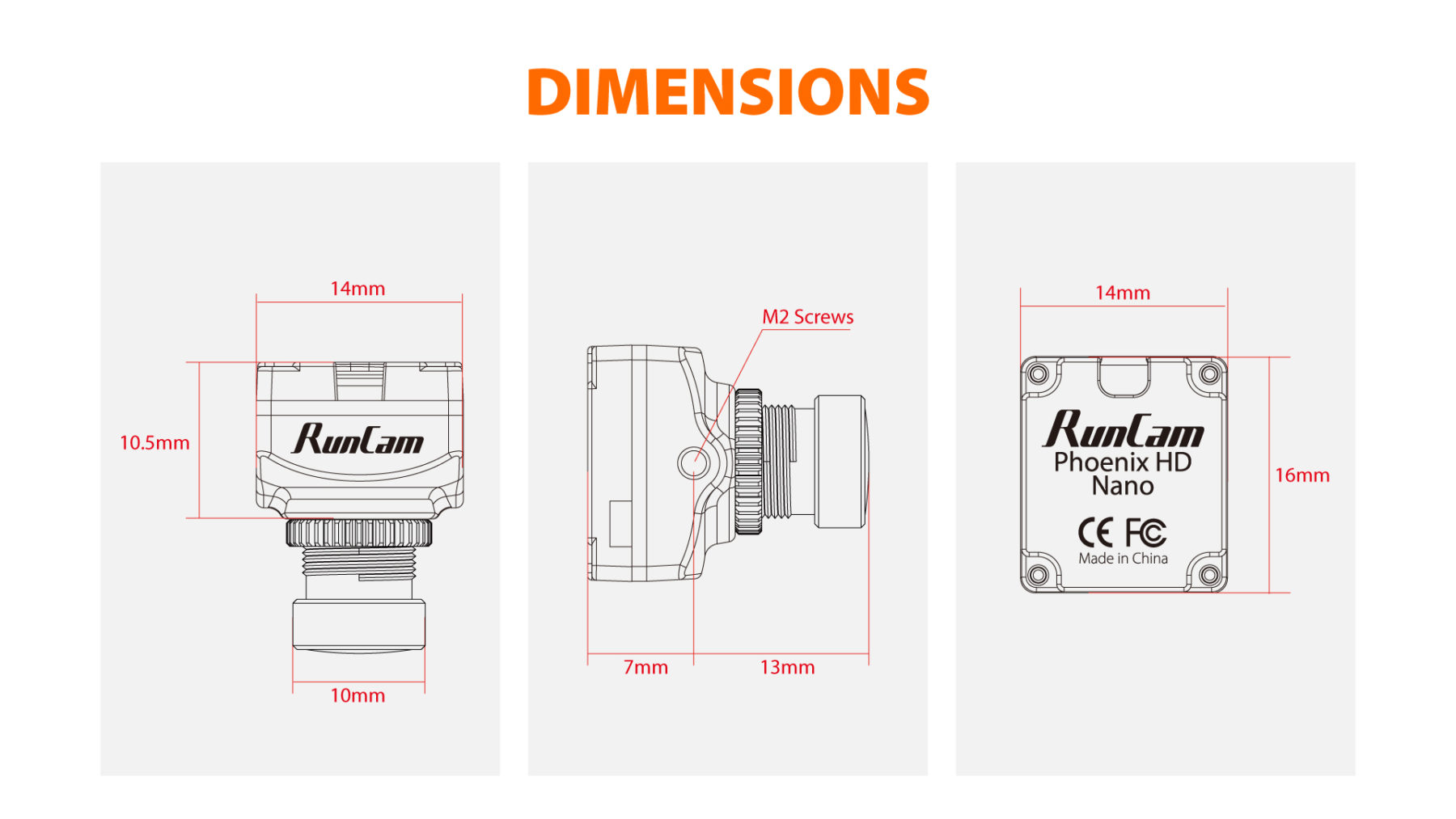

- Dimensions: 16mm x 14mm x 20mm
- Net Weight: 4.3g

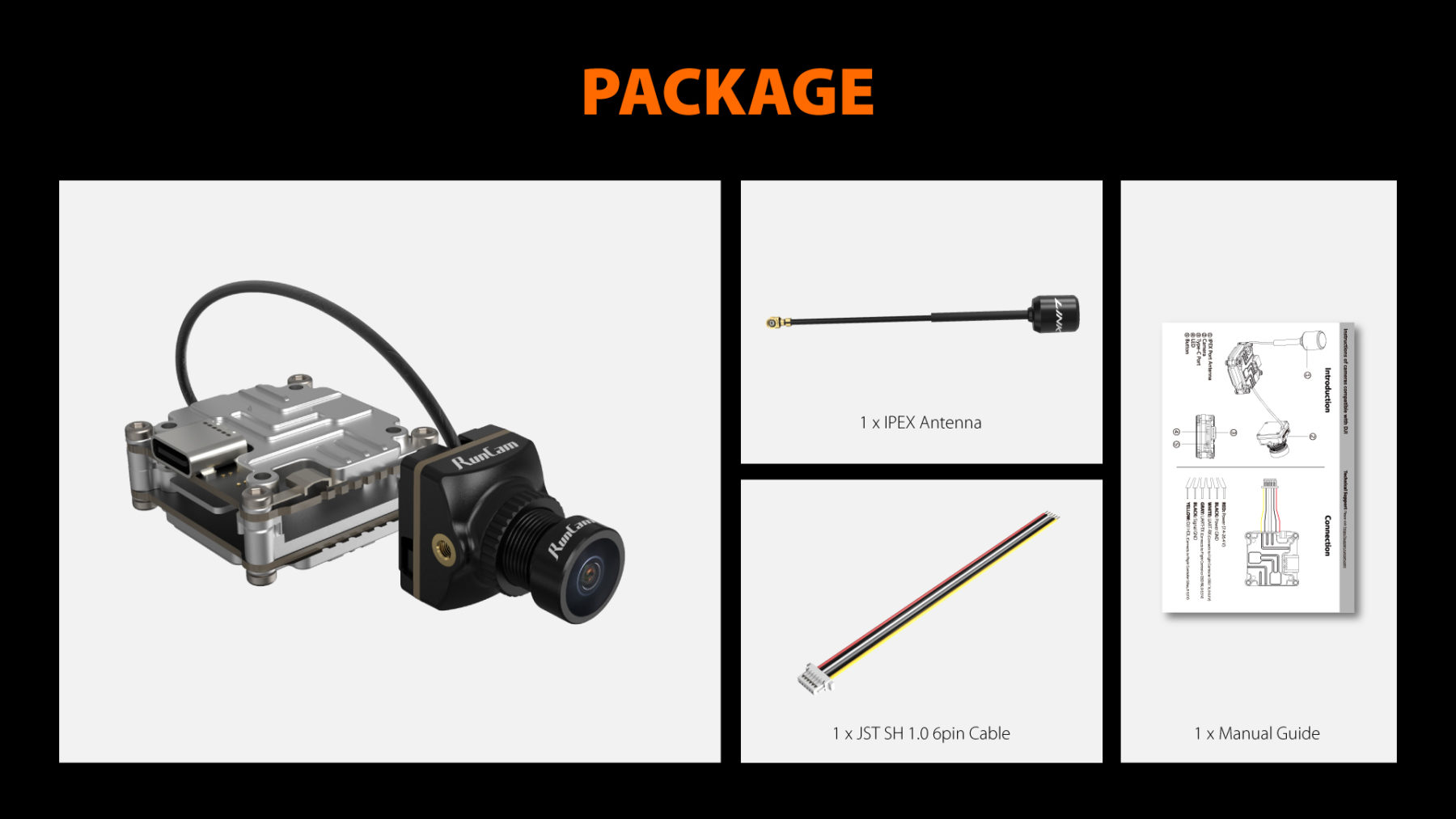

What’s in the Box? (Contents depend on your selection)
- If you select the Full Link Kit:
- 1x RunCam Phoenix HD Nano Camera
- 1x RunCam LINK VTX Air Unit
- 1x Coaxial Cable (120mm)
- 1x Set of Hardware
- If you select Camera Only:
- 1x RunCam Phoenix HD Nano Camera
- 1x Set of Mounting Screws
