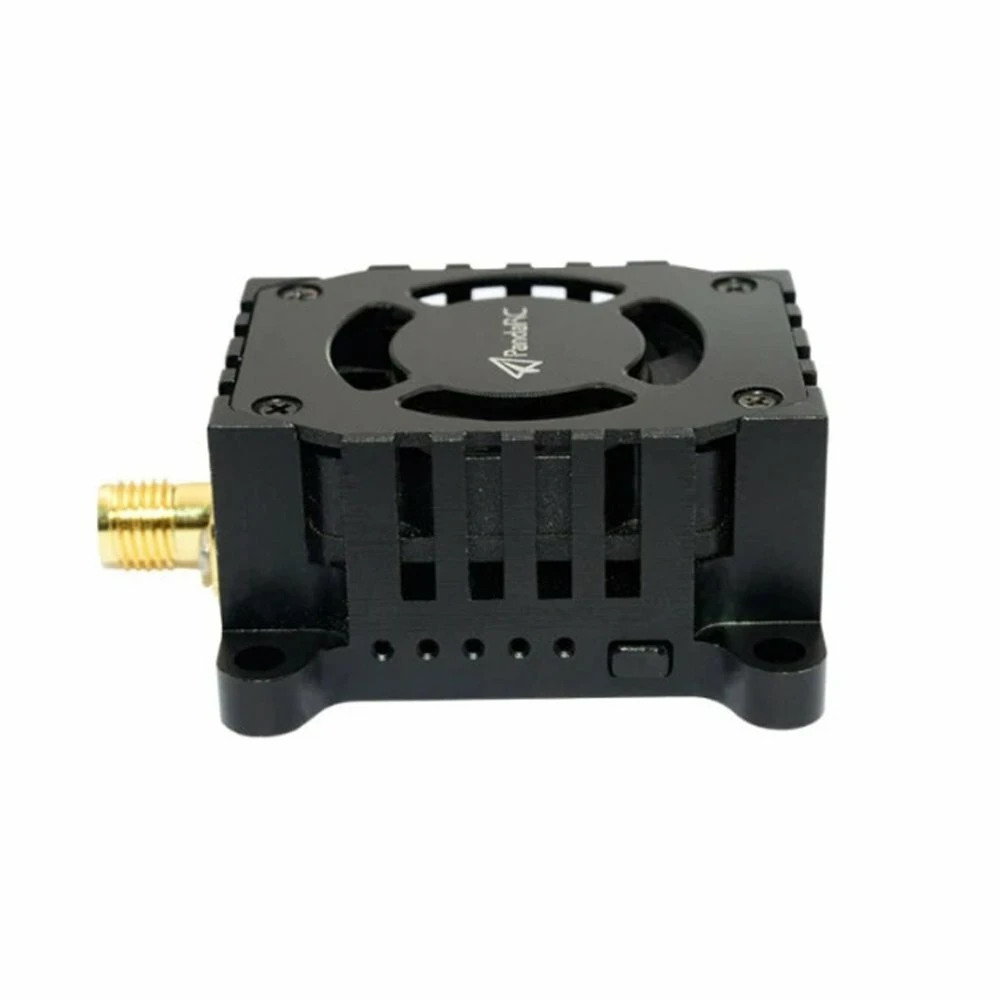

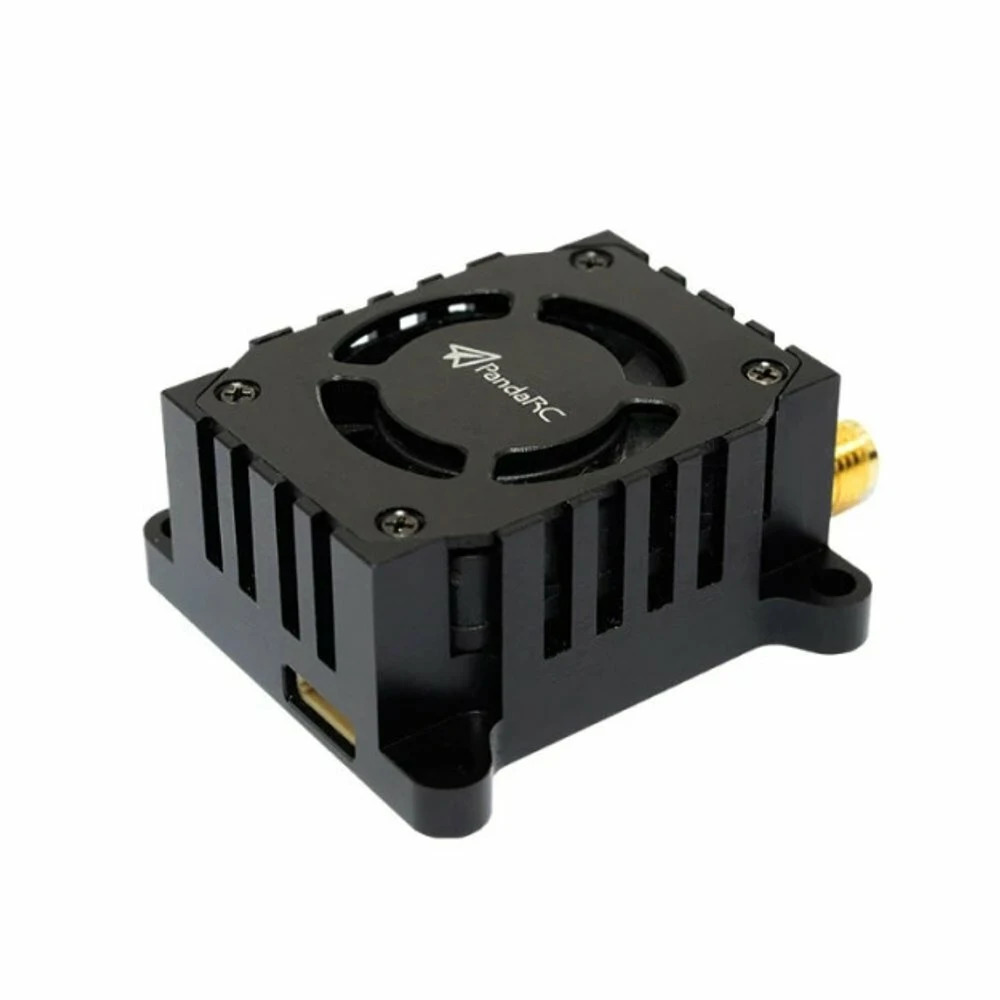

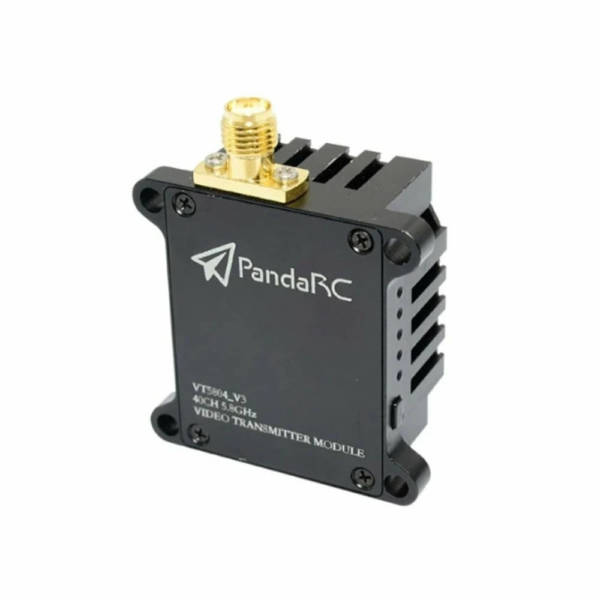

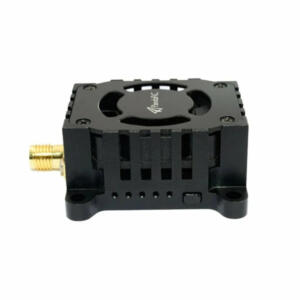

PandaRC VT5804 V3 5.8G 25mW/200mW/400mW/800mW/1000mW Switchable Long Range FPV Video Transmitter
Specifications:
Brand Name: PandaRC
Item Name: VT5804 V3
Video Module: NTSC/PAL
Input Voltage: 7-28V, +12V/450mA@1000mW
Size: 36*36*5.5mm
Hole Size: 30.5mm x 30.5mm
Weight: <30g(without antenna)
Features:
– Stable output power, long transmission range (0.5KM+@25mW; 1KM+ @200mW; 2KM+@400mW, 5KM+@800mW,10KM+@1000mw)
– 0mw/25mw/200mw/400mw/800mw /1000mw switchable.
– Channel, Frequency and Output power controlled through OSD configuration.
– Fast frequency lock.
– Support self-checking function of output power.
– Comes with Cooling fan.
Package Included:

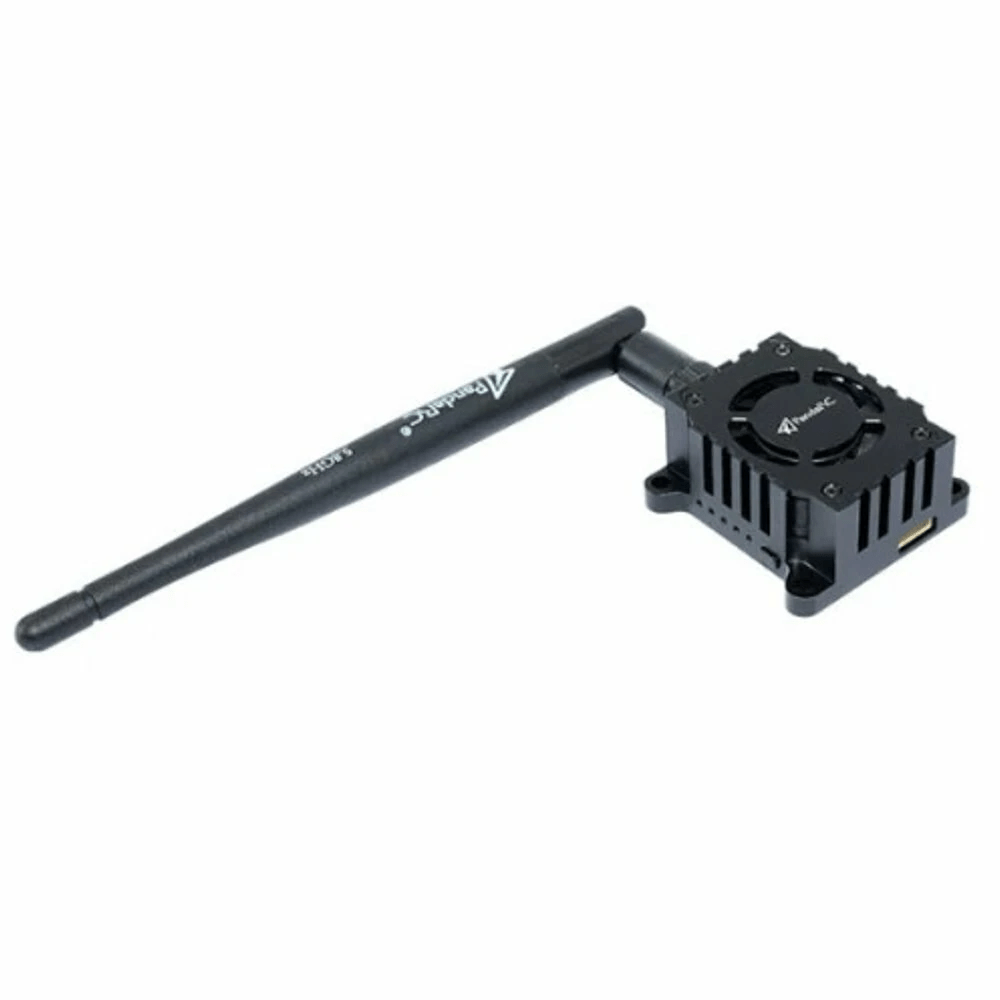

1 x PandaRC VT5804 V3 1W FPV Video Transmitter
1 x Antenna
