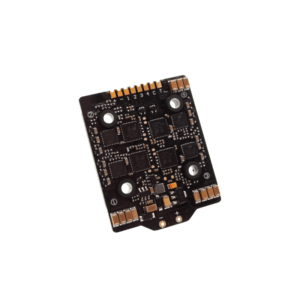

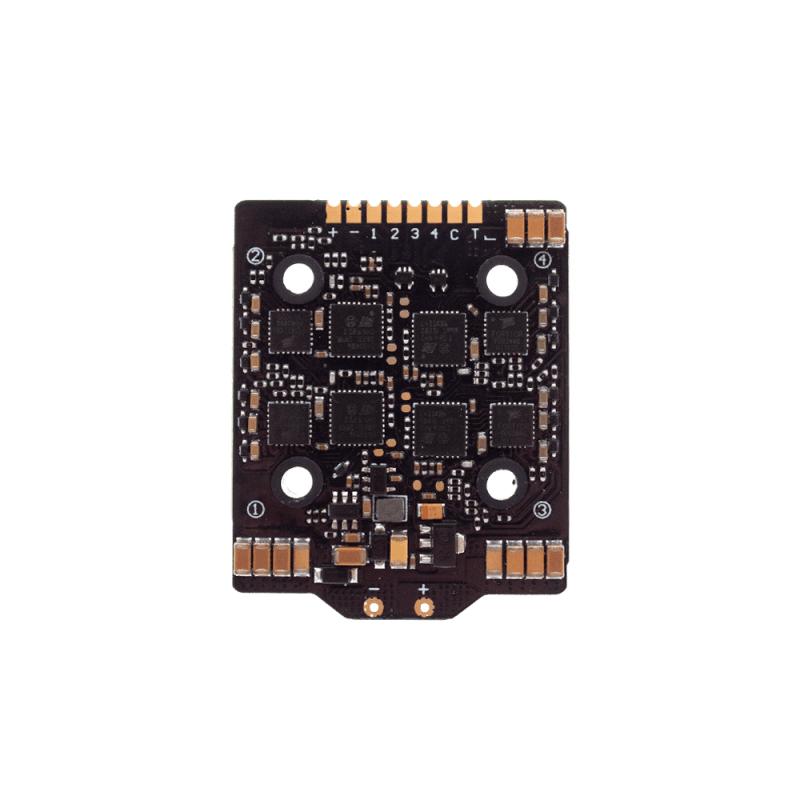

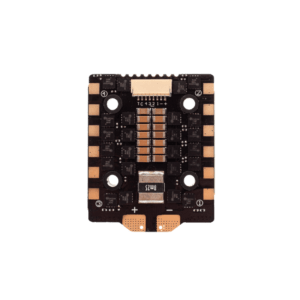

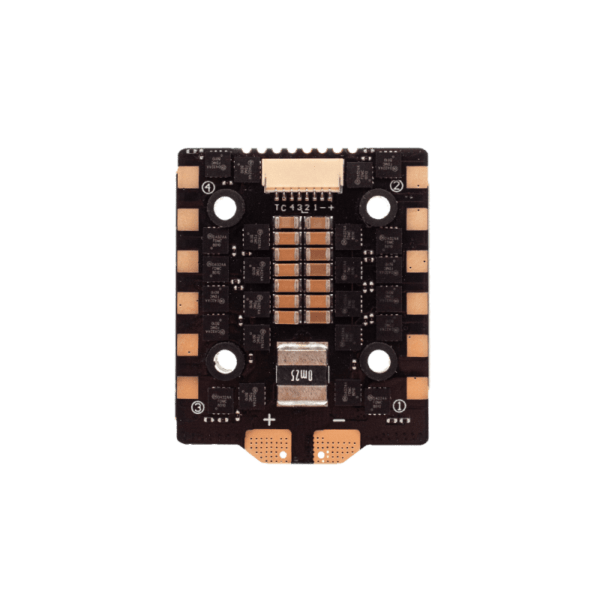

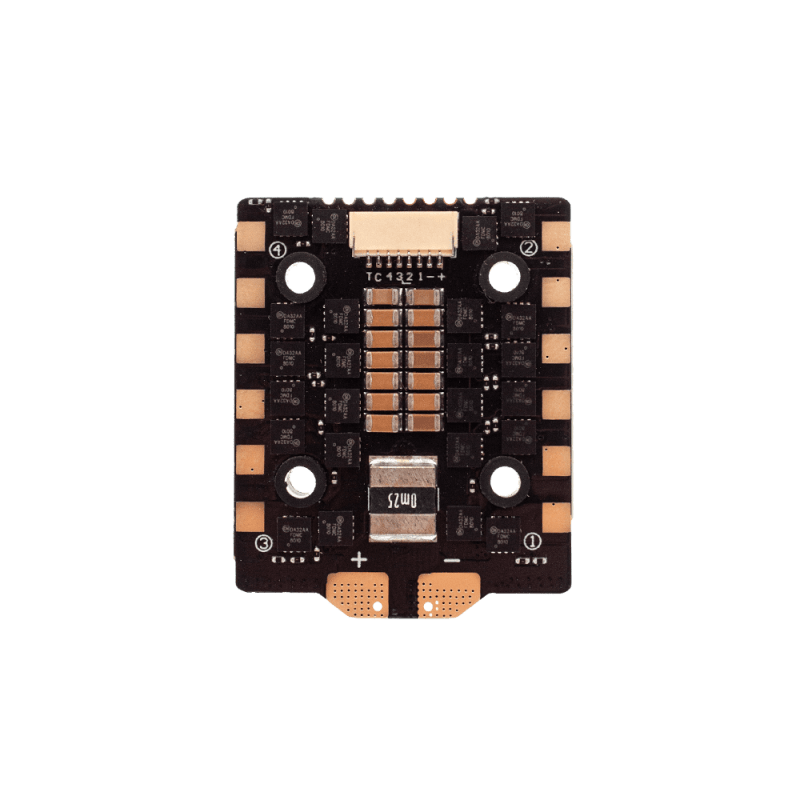

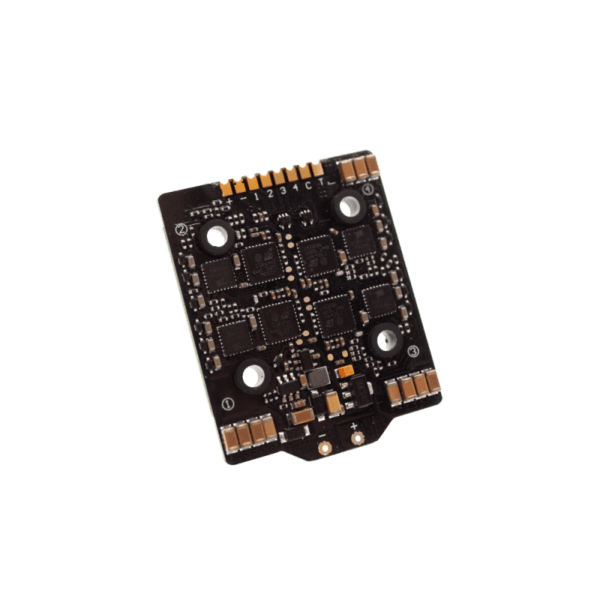

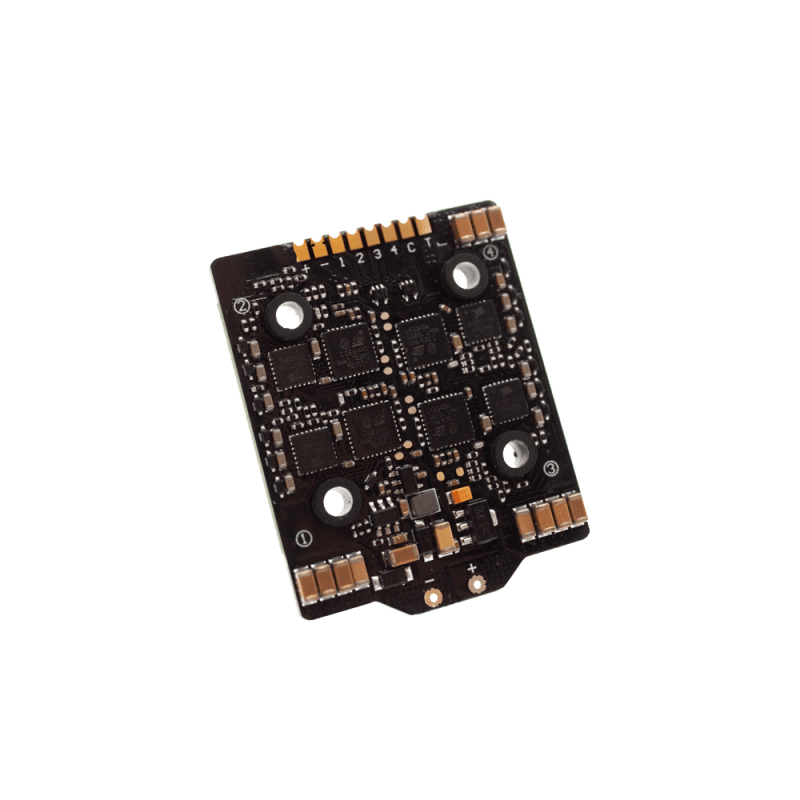

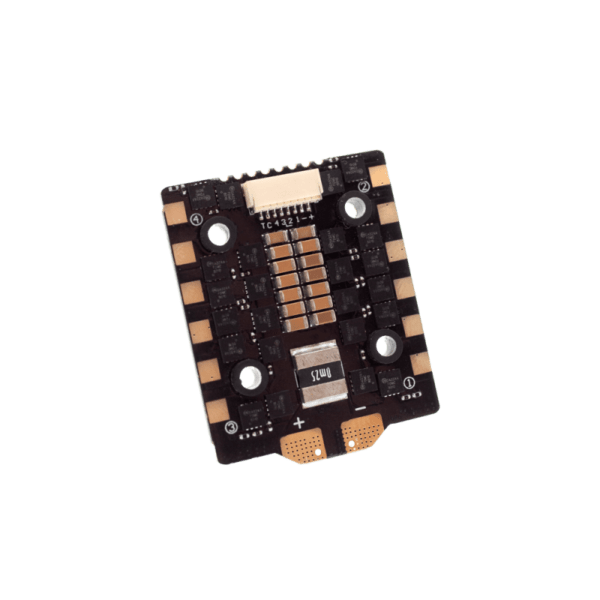

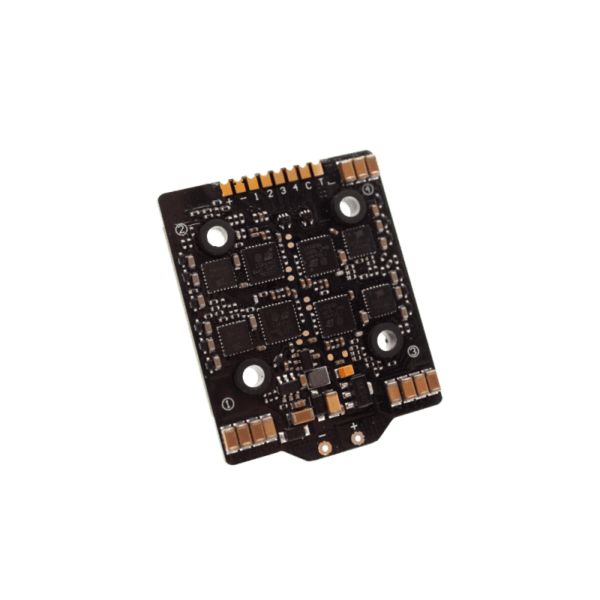

ZEEZ 45A 4in1 ESC V2
The ZEEZ 45A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32L4, it is 12% FASTER than the old STM32F3 and 67% FASTER than STM32F0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).
We took advice from some of our newer pilots and have improved the solder pads by giving them more clearance.
Specifications:
20 x 20
MOUNTING HOLES
3S-6S
BATTERY INPUT
45A-55A
CONTINUOUS & PEAK DRAW
STM32L4
80 MHz FREQUENCY
(12% FASTER THAN STM32F3 , 67% FASTER THAN STM32F0)
BLHELI32
O.G FIRMWARE
96KHz
MAX PWM FREQUENCY
MOSFET
HIGH QUALITY RDS(on) 1.3 mΩ
30V RATED
HIGH CAPACITANCE
ONBOARD & EXTERNAL CAPACITOR HOLES
CURRENT
SENSOR SCALE: 250

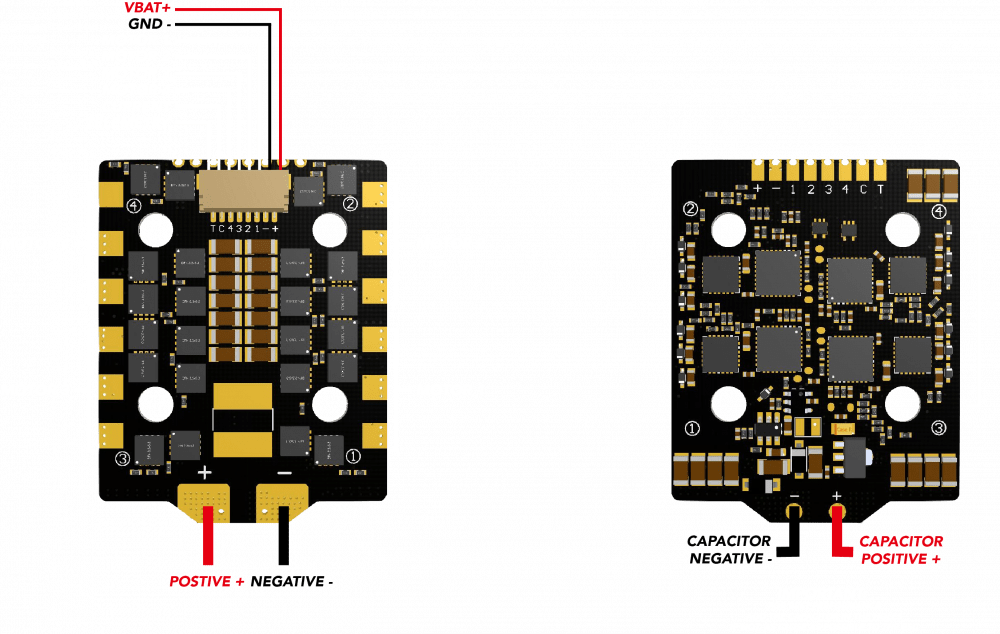

Wiring Diagrams:
